The ahu with brushless motor listed here carries refrigerant Water, type Air Handling Unit, documented exactly as the manufacturer publishes it. Made by Guangzhou Jetex -Lloyd`s Machinery Limited (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ahu With Brushless Motor
- Model Number: JTAHM Series
- Refrigerant: Water
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Cleanroom
- Type: Air Handling Unit
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Floor Standing |
| Fan Motors Type | Brushless |
| Motor Type | Brushless Motor |
| Filter Type | High-Efficiency Particulate Air Filter, Regular Filter, Activated Carbon Filter |
| Application | Cleanroom |
| Key Selling Points | Eco-Friendly, Low Maintenance Cost, Accurate Temperature Control, High air speed and high air capacity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 500 |
| Brand Name | Jetex |
| Model Number | JTAHM Series |
| Dimension(L*W*H) | customizable |
| Frame | Thermal break aluminum alloy frame with high-density sealing gasket |
| Casing Structure & Insulation | double-skin with Polyurethane foam insulation |

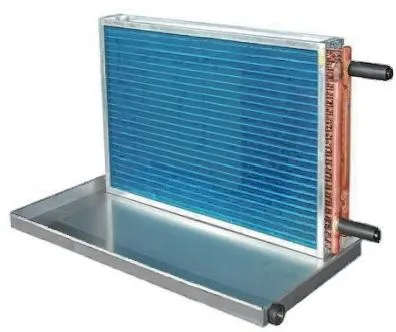

| Cooling/Heating Coil | High-quality copper tubes with blue-wave aluminum fins |
| Filters | G4 panel-type filters, F5~F9 bag-type,H11~14 filters,HEPA filter |
| Other Functions | customization is available based on customer requirements |
| Sterilization Devices | UV-C Germicidal Lamp,Plasma Air Sterilizer |
| Sterilization Components | HEPA / ULPA Filtration Section,Ozone Sterilization Module |
| Humidifier | Electrode Steam Humidifier,Dry Steam Humidifier |
| Humidifier Type | Wetted Media ,High-pressure Spray Humidifier |
| Heater | hot water,PTC heater,Electric Heater,Steam |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Cleanroom Air Handling Unit with HEPA Filter | Pharmaceutical / Laboratory / Electronics AHU
Over the 30 years, Jetex has been committed to the research and development of air conditioning equipment for industrial and biological purification. Our AHUs offer a flexible range of air volumes, from 2600 m³/h to 400,000 m³/h, allowing customization for various needs.
The JTAHM-series of clean air conditioning units for operating rooms are specially designed and produced by Jetex based on national mandatory standards and regulations such as the “Construction Standards for Hospital Clean Operating department”, ”Architectural Technical Code for Hospital Clean operating Department”,and the “Air Conditioning Units for Clean Operating Rooms" (GB/T19569-2004),and other related specifications. JTAHM-series adopts the modular design,with an air volume range of 2,600 – 40,000 m³/h,the units can withstand a pressure of up to 2,500 Pa.This series of products have comprehensive air treatment functions,including cooling,dehumidification,heating,humidification,filtration,purification and sterilization.through flexible combinations of different functional sections ,they can meet diverse application requirements of users.
Features: Water-Cooled System Uses chilled water coil for cooling; compatible with central chiller systems. Cleanroom-Grade Filtration G4 + F8 + optional HEPA (H13/H14) filtration available. Precise Temperature & Humidity Control Supports cooling, heating, humidification, and dehumidification. Modular & Customizable Structure Flexible sections based on project requirements. Energy Efficient & Reliable
Optimized airflow design with EC or centrifugal fans.
Intelligent Control System
PLC / DDC control with temperature, humidity, and pressure monitoring.
Main Components
1.Double-skin insulated AHU casing 2.Fresh air intake section/Return air section 3.Pre-filter / Medium filter / HEPA filter section 4.Chilled water cooling coil 5.Heating coil (hot water / electric / steam optional) 6.Humidification section (steam or ultrasonic optional) 7.Supply air fan section 8.Control and monitoring system
Applications
* Pharmaceutical cleanrooms
*Pharmaceutical cleanrooms
*Hospital operating rooms & ICU
*Laboratories and research centers
*Electronics & semiconductor factories
*Food & beverage clean production areas
*Biotechnology and medical device plants
* Pharmaceutical cleanrooms
*Pharmaceutical cleanrooms
*Hospital operating rooms & ICU
*Laboratories and research centers
*Electronics & semiconductor factories
*Food & beverage clean production areas
*Biotechnology and medical device plants
Pharmaceutical Cleanrooms
Hospitals
medical facilities
Specification
Company Profile
Guangzhou Jetex-Lloyd’s Machinery Ltd. is a professional manufacturer specializing in the R&D, production and engineering solutions of air handling equipment for over 30 years. With a 10,000+ m2 factory, advanced manufacturing facilities and an experienced technical team, we provide high-quality HVAC terminal products widely used in pharmaceutical plants, cleanrooms, laboratories, electronics, lithium battery production, commercial buildings, hotels and shopping malls.
We are also a long-term supplier of Foxconn for more than 20 years, serving multiple Fortune 500 companies and international partners.
Our Worldwide Successful Cases
Guangzhou NanFang Hospital
The Second People's Hospital of Shenzhen
Beijing You'an Hospital
RayBiotech Guangzhou Co., Ltd.
Yangzijiang Pharmaceutical Group
Livzon Group Pharmaceutical
Exhibition
Packing & Delivery
For Shipment: The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
FAQ
Q1: Can you manufacture non-standard machine?
A1: Yes, our factory has 30 years of manufacturing experience. Just provide us with your technical parameters and our engineers will develop a solution.
Q2: How about the quality of your product?
A2: Our products are manufactured strictly according to national and international standards. We have ISO and CRAA certifications.Every product will be tested before shipment.
Q3: How to choose a suitable model?
A3: Please provide your specifications and building drawings. Our professional technical engineers will assist you in selecting the right solution.
A1: Yes, our factory has 30 years of manufacturing experience. Just provide us with your technical parameters and our engineers will develop a solution.
Q2: How about the quality of your product?
A2: Our products are manufactured strictly according to national and international standards. We have ISO and CRAA certifications.Every product will be tested before shipment.
Q3: How to choose a suitable model?
A3: Please provide your specifications and building drawings. Our professional technical engineers will assist you in selecting the right solution.
For Shipment: The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $5000 / set
- 5–9 set: US $4800 / set
- 10+ set: US $4500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ahu with brushless motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
