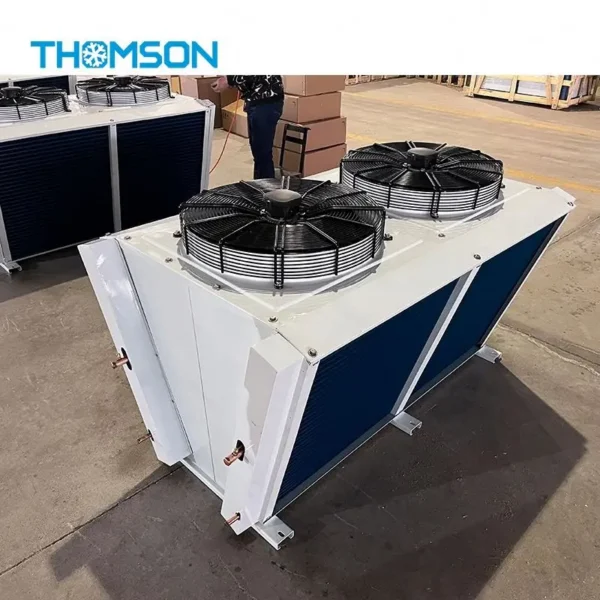

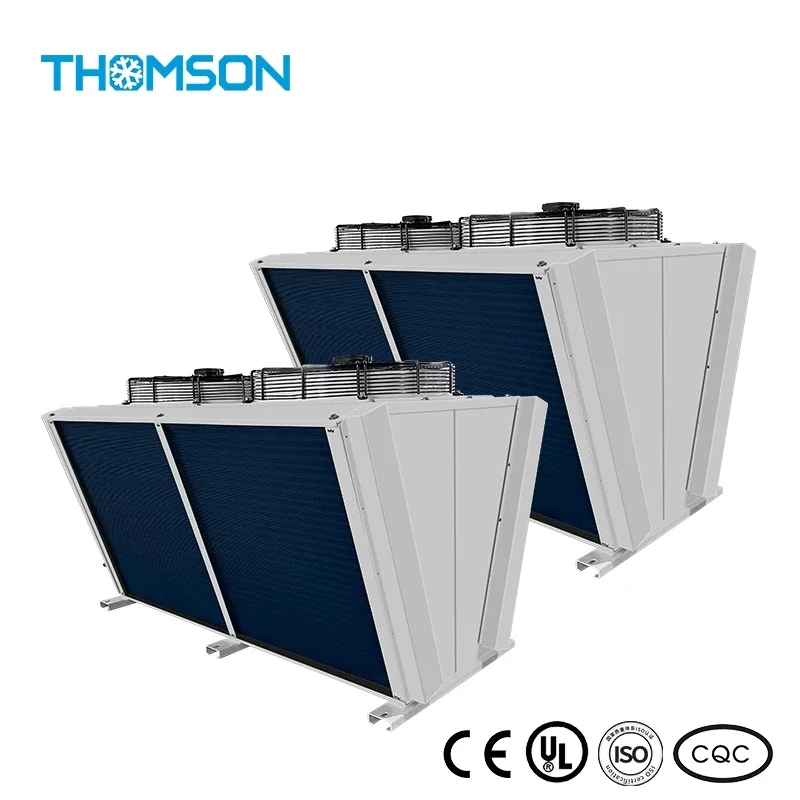

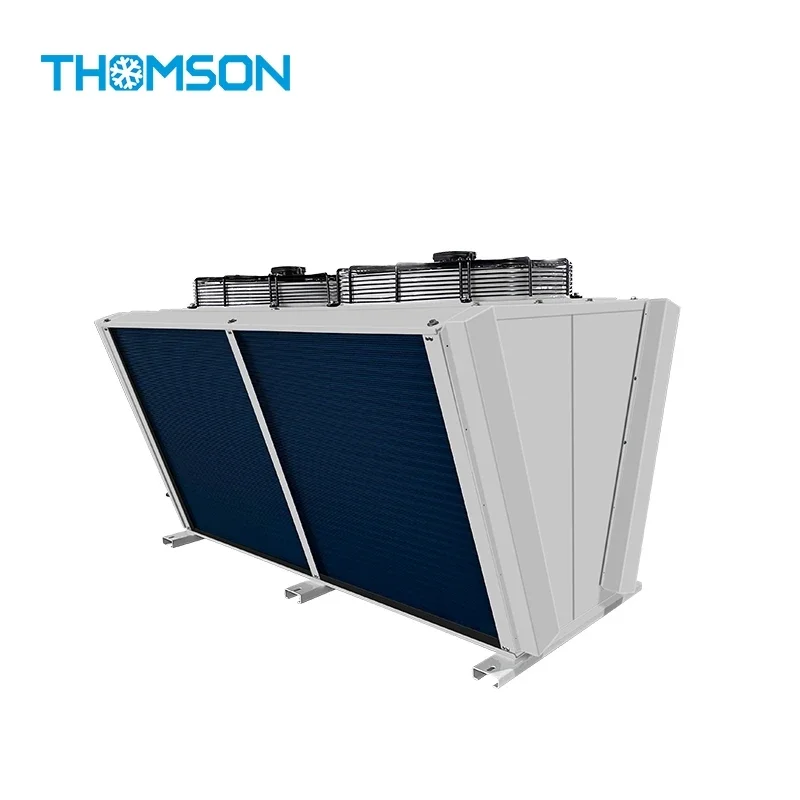

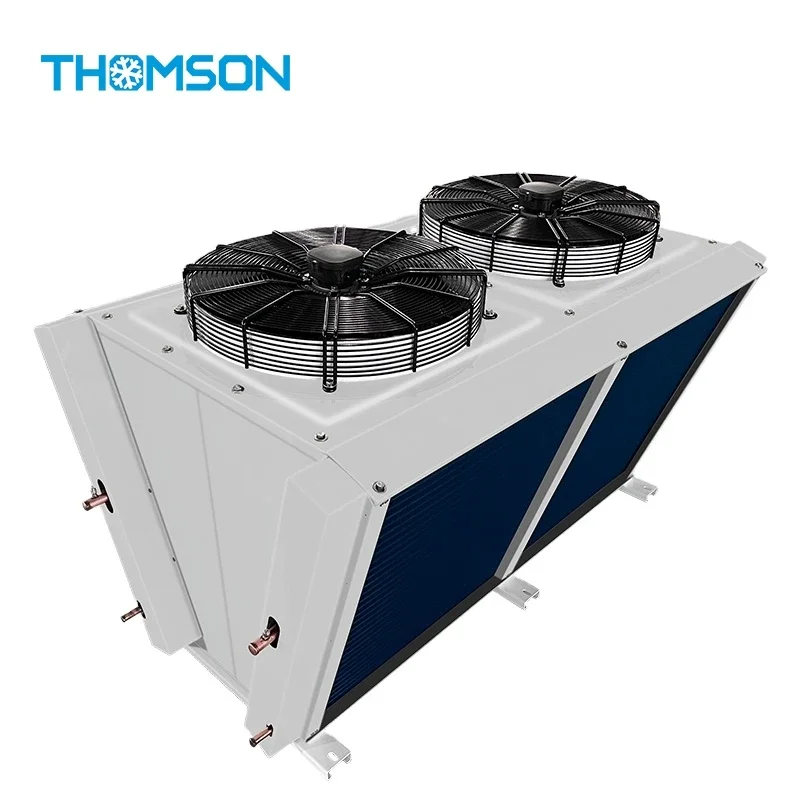

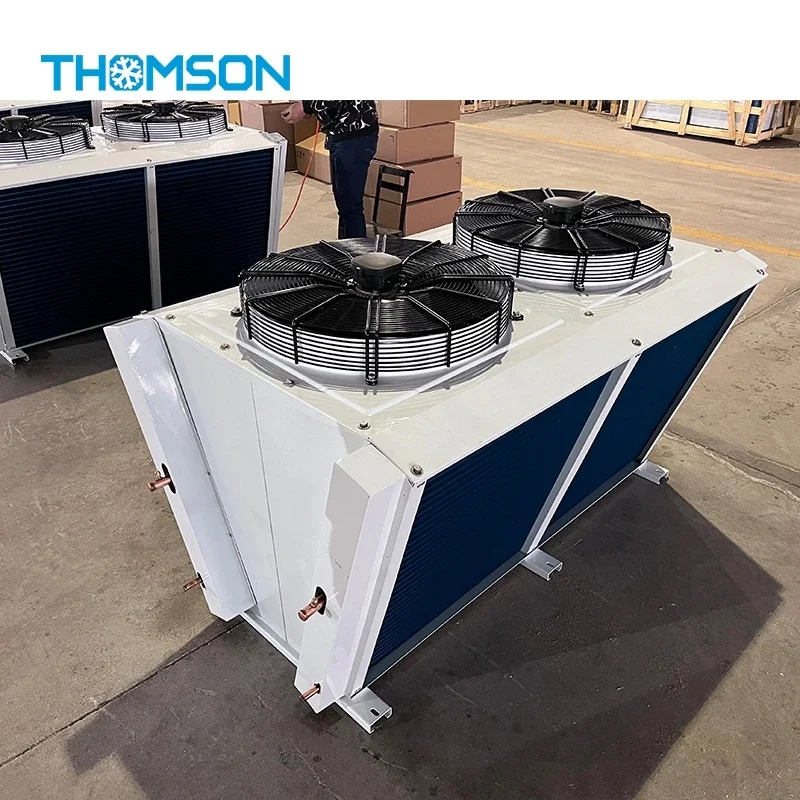

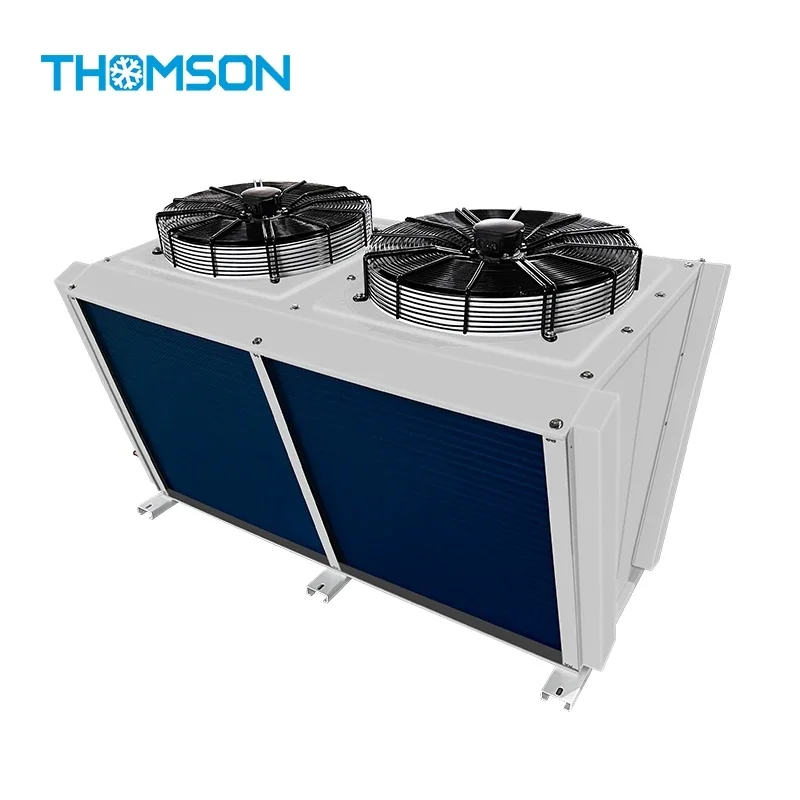

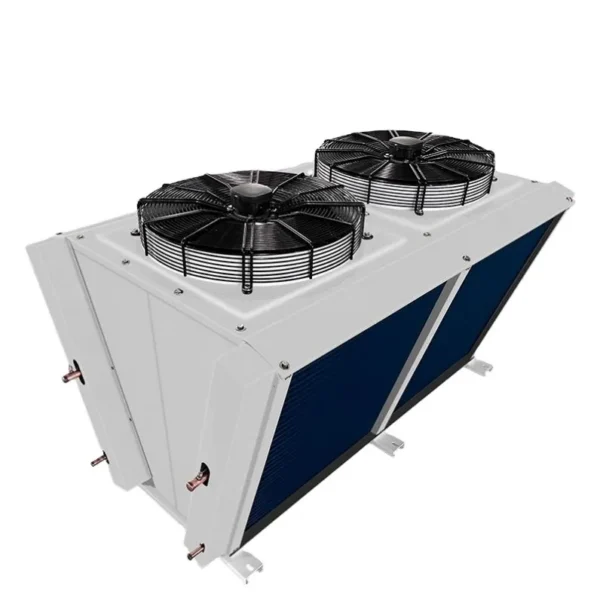

The air cooled condenser listed here carries 380V /50HZ, type Condenser, documented exactly as the manufacturer publishes it. Made by THOMSON REFRIGERATION TECHNOLOGY(DALIAN) CO., LTD. (3 years on the platform, typical reply ≤9h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Cooled Condenser
- Motor Power Supply: 380V /50HZ
- Heat Transfer Capacity: 55.6KW
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Refrigeration Parts
- Type: Condenser
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Condenser |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 185 |
| Place Of Origin | Guangdong, China |
| Brand Name | REFTECH |
| Product Type | Condenser |
| Cooling Method | Air Cooling |
| Heat Transfer Capacity | 55.6KW |
| Heat Transfer Area | 141㎡ |
| Fan NO. | 2 |
| MOQ | 1pcs |
| Keyword | High-performance |
| Description | Cold Storage Refrigeration System |
| Motor Power Supply | 380V /50HZ |
| Color | White,Green,Black,Customized |
| Selling Units | Single item |
| Single Package Size | 5000X5000X5000 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Model | KV502A3-LN | KV502A4-LN | KV602A3-LN | KV602A4-LN |
R22 Capacity | 38.3KW | 42.2KW | 55.6KW | 62.5KW |
R404A Capacity | 41.5KW | 45.6KW | 60.7KW | 67.3KW |
R134A Capacity | 38.6KW | 42.7KW | 55.9KW | 61.7KW |
Surface | 113㎡ | 150㎡ | 141㎡ | 188㎡ |
Fan Mot. | 500mmx2 | 500mmx2 | 600mmx2 | 600mmx2 |
Pole Number | 6P | 6P | 6P | 6P |
Air Flow | 9300m³/h | 9000m³/h | 14800m³/h | 14200m³/h |
Fan Mot. Power | 460W | 460W | 1000W | 1000W |
Net Weight | 145KG | 160KG | 185KG | 210KG |
Model | Dimension mm | ||||
L | W | H | |||
KV502A3-LN | 1384 | 1000 | 960 | ||
KV502A4-LN | 1384 | 1000 | 960 | ||
KV602A3-LN | 1684 | 1000 | 970 | ||
KV602A4-LN | 1684 | 1000 | 970 | ||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $1084 / set
- 10+ set: US $1047 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled condenser?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled condenser be supplied for my local voltage?
The standard configuration is 380V /50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by THOMSON REFRIGERATION TECHNOLOGY(DALIAN) CO., LTD., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full THOMSON REFRIGERATION TECHNOLOGY(DALIAN) CO., LTD. range on HVACR Nexus.
