The air cooled water chiller listed here carries 33KW, 380V-50Hz or other, documented exactly as the manufacturer publishes it. Made by Shanghai Topaire Air Conditioning Co., Ltd. (9 years on the platform, typical reply ≤12h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Cooled Water Chiller
- Power: 380V-50Hz or other
- Operating Voltage: 380V-50Hz
- Cooling Capacity: 33KW
- Heating Capacity: 35KW
- Refrigerant: R410a
- Warranty: 2 Years
Technical Specifications
| Type | Chiller |
|---|---|
| Operating Voltage | 380V-50Hz |
| Mounting Type | Floor Standing |
| Warranty | 2 Years |
| Place Of Origin | Shanghai, China |
| Brand Name | ICECOHVAC |

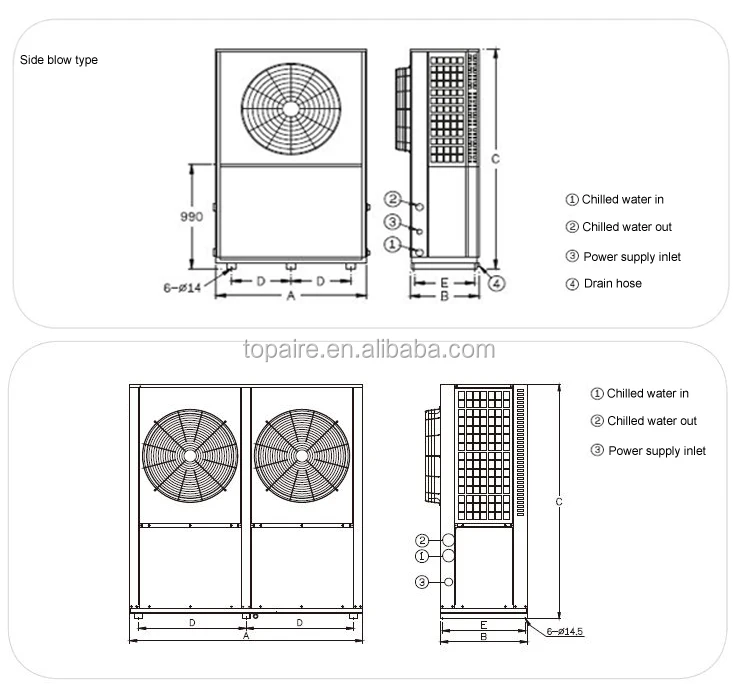

| Dimension(L*W*H) | 1180*1100*1500mm |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Function | cooling/heating |
| Refrigerant | R410a |
| Product Name | Mini water chiller |
| Cooling Capacity | 33KW |
| Heating Capacity | 35KW |
| Net Weight | 270KG |
| Fan Type | Axial Fan |
| Starting Currect | 100A |
| Power | 380V-50Hz or other |
| Packaging Details | Our product standard export packing is wooden box |
| Port Of Dispatch | shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 5000 sets per Year |
Product Details

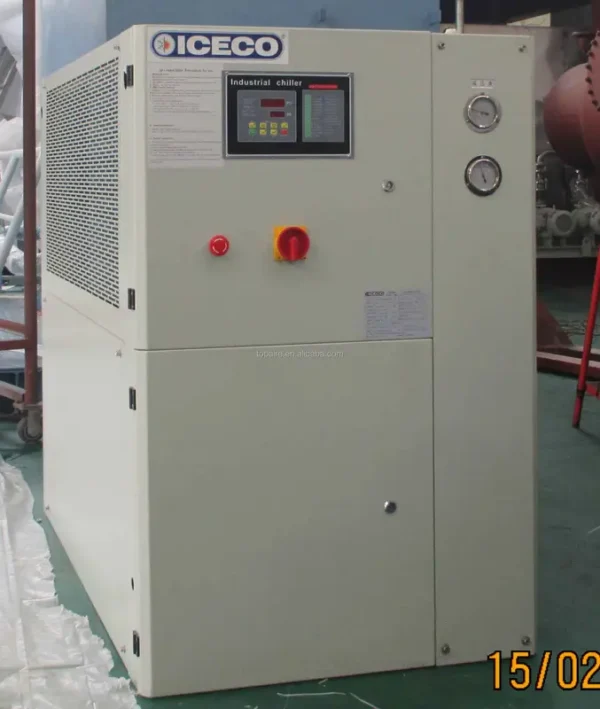

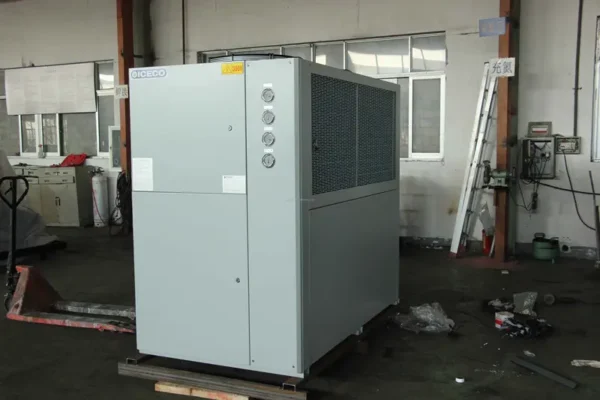

Air Cooled Water Chiller and Heat Pump with Axial Fans, Scroll Compressors,
Water Pump and Storage Tank
IHAW(H) Series R-410a Version
Cooling capacity 8.8kw -48kw
FEATURES
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSORS
Single phase (models.05~10) compressors, 3-phase scroll compressor (models.12.5~30), with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
Models 7~10 are available also with 3-phase scroll compressor and models.12.5 with single phase scroll
compressor.
AXIAL FANS
External rotor type axial fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, provided with a protective outlet grille.
EVAPORATOR
High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins, protected with flexible plastic grill.
REFRIGERANT CIRCUIT
Copper tube connection with charge valve, filter drier (filter for models. 05~8.5), gas-liquid separator, thermostatic expansion valve (expansion capillary tubes for mod. 05~8.5), low pressure switch with automatic reset, high pressure switch with manual reset. The heat pump unit is completed also with 4-way valve, liquid receiver and one-way valve.
HYDRONIC CIRCUIT
Built with air vent valve, water drain connection, water circuit safety valve, water pump, male-threaded hydraulic connectors and inertial water storage tank.
ELECTRIC PANEL

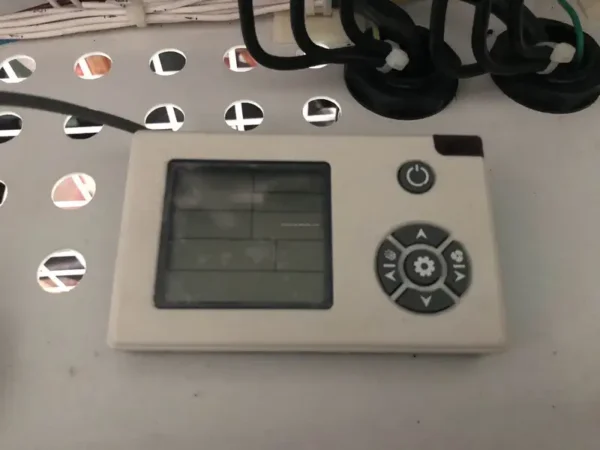

consists of: Compressor contactor; Water pump contactor; Compressor protection breaker; Water pump protection breaker Fan motor protection breaker; Control circuit protection breaker; Phase sequence relay (only for 3-phase power supplied units); Fan speed regulator (Optional); Programmable microprocessor controller;

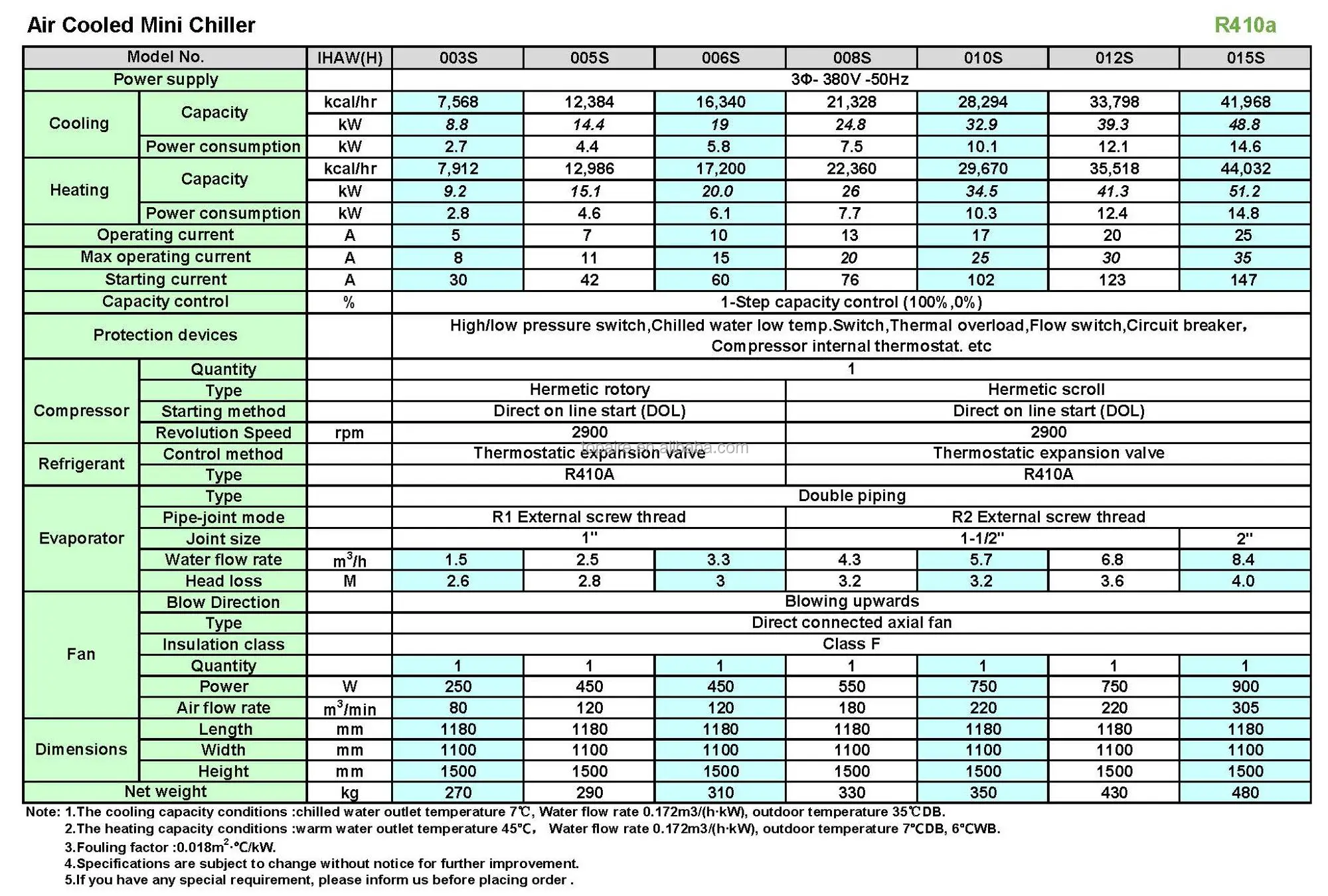

SPECIFICATIONS
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled water chiller be supplied for my local voltage?
The standard configuration is 380V-50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

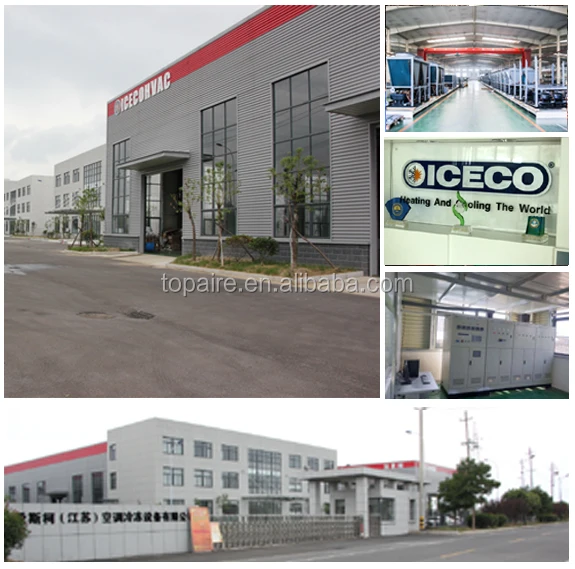

About the Manufacturer
