Air curtain — 380 V, power source Electric. The complete factory specification follows. Made by Shenyang Jinchen Weiye Cooling & Heating Equipment Co., Ltd. (14 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Curtain
- Power Source: Electric
- Voltage: 380 V
- Material: steel
- Warranty: 1 Year
- Place Of Origin: Liaoning, China
- Type: PTC Heater
Technical Specifications
| Type | PTC Heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V |
| Material | steel |
| Core Components | Motor, Other |
| Key Selling Points | Remote Control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Liaoning, China |
| Brand Name | Jinchen |
| Dimension(L*W*H) | 1500*260*260mm |
| Working Temperature Range | -20 – 40 ℃ |
| Selling Units | Single item |
| Single Package Size | 150X26X26 cm |
| Single Gross Weight | 36.0 kg |
Product Details
Axial flow temperature control heating air curtain

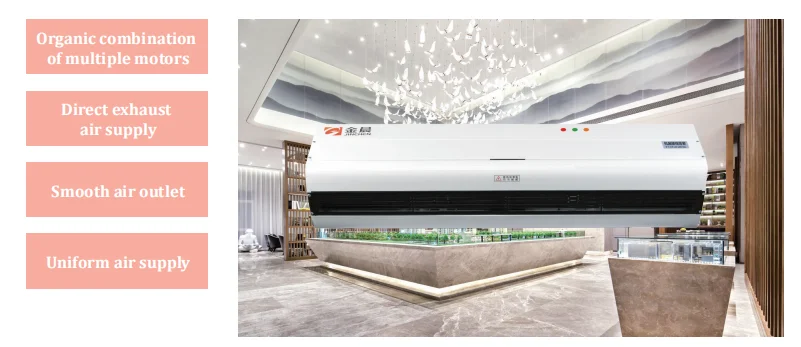

Organic combination of multiple motors, direct exhaust air supply, smooth air outlet, and uniform air supply

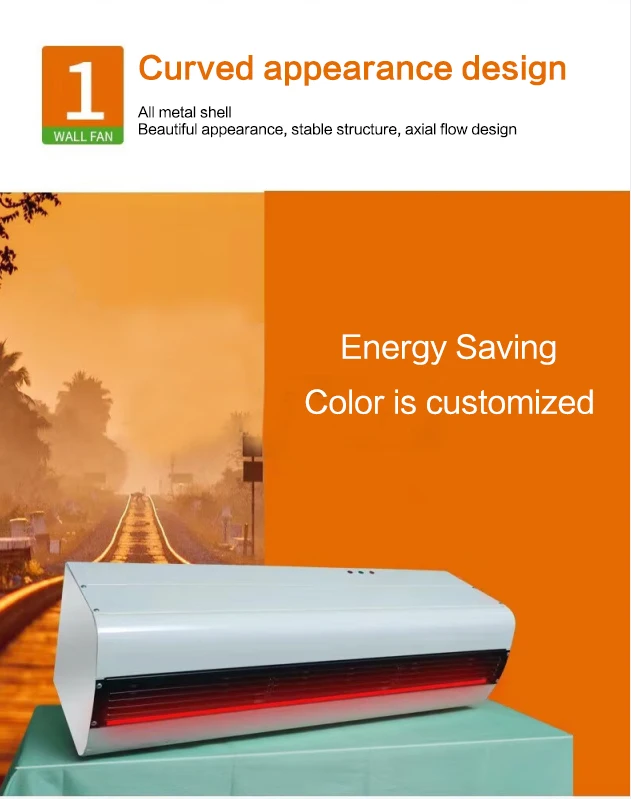

Axial flow streamline appearance stable structure strong wind high insulating height air curtain
By using axial motor with high wind pressure and reasonable wind volume, the Axial Mute Series Air Curtain works to prevent cold air outside and enjoys good performance in generating reliable wind.
The product takes advantage of streamline appearance as well as stable structure to make the insulating effects quickly and efficiently.

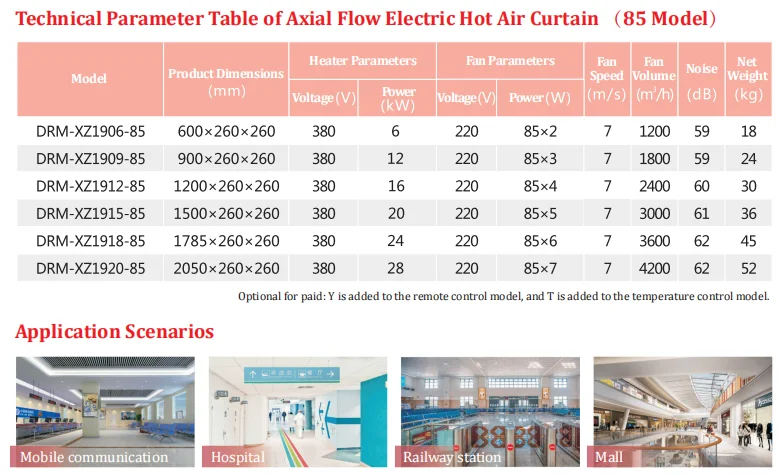

| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1906-85 | 600*260*260 | 6 | 85*2 | 1200 | 7 |
| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1909-85 | 900*260*260 | 12 | 85*3 | 1800 | 7 |
| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1912-85 | 1200*260*260 | 16 | 85*4 | 2400 | 7 |
| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1915-85 | 1500*260*260 | 20 | 85*5 | 3000 | 7 |
| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1918-85 | 1785*260*260 | 24 | 85*6 | 3600 | 7 |
| Model | Machine Size(mm) | Heating Power(KW) | Motor Power(W) | Air Volume(m³/h) | Wind Speed(m/s) |
| DRM-XZ1920-85 | 2050*260*260 | 28 | 85*7 | 4200 | 7 |
J-ust for indoor cooling and heating
I-nnovation for wise and accurate HVAC solutions
N-atural persuit for the healthy indoor air ventilation
C-reative for sustainable environment and reduce energy loss
H-ospitality for HVAC solutions of global commercial and industrial cases
E-fforts for customerized air curtain & air heaters in large-scale industrial plants
N-ow for life quality and production satisfaction
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $290 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air curtain be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
