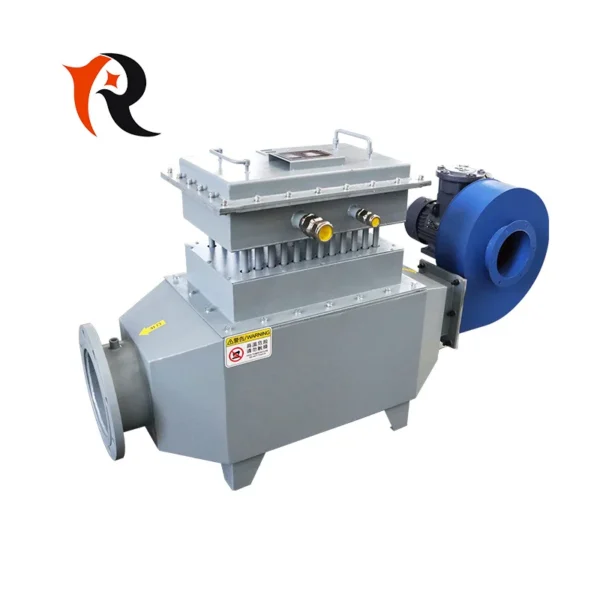

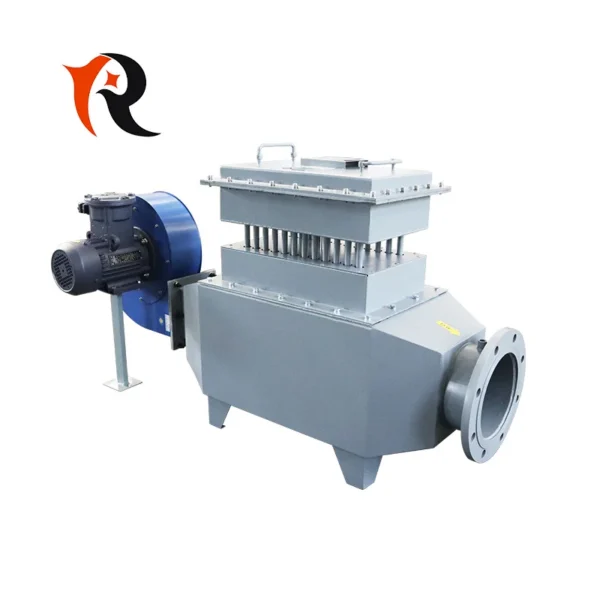

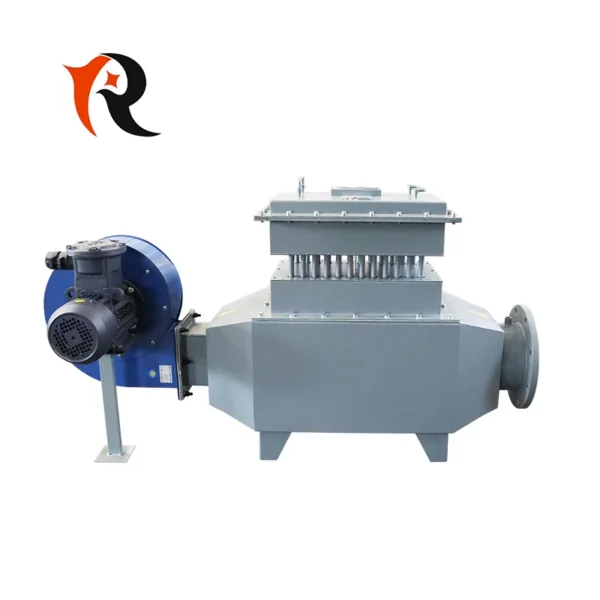

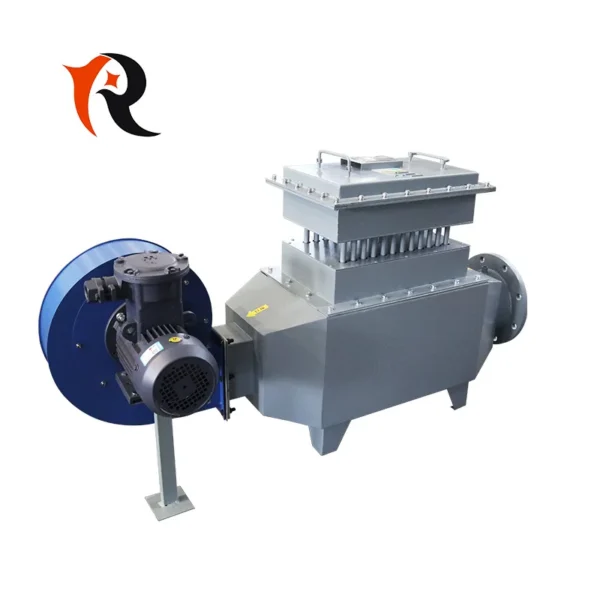

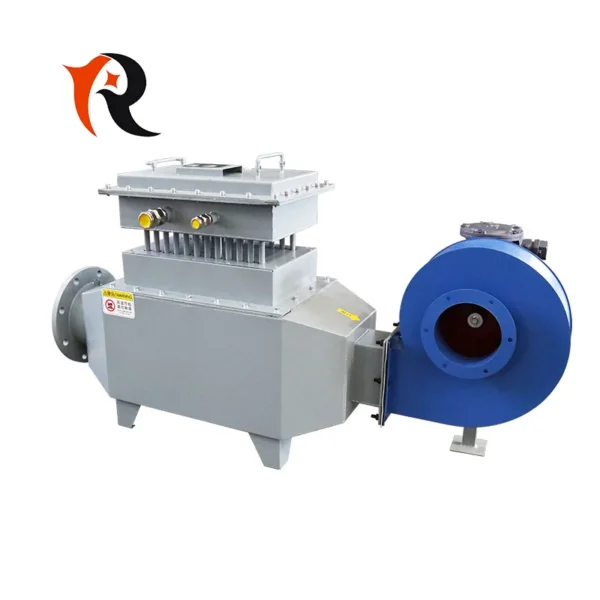

Air Duct Heater, Explosion-proof, 380 V, 0-300C

This air duct heater is published with the manufacturer’s full specification — 380 V, heating capacity 0-300C, Electric. Made by Yancheng Xinrong Electronic Industries Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Duct Heater

• Power Source: Electric
• Power: 10KW-1000KW
• Voltage: 380 V
• Heating Capacity: 0-300C, Electric
• Material: Stainless Steel
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

Duct heaters are used in mines is mainly used for air heating in the duct, specifications are divided into low temperature, medium temperature, high temperature three forms, the common place in the structure is the use of steel plate to support the electric pipe to reduce the vibration of the electric pipe, the junction box is equipped with overtemperature control device. In addition to the control of the overtemperature protection, but also installed between the fan and the heater, to ensure that the electric heater must be started after the fan, before and after the heater added a differential pressure device, in case of fan failure, the channel heater heating gas pressure generally should not exceed 0.3Kg/cm2, if you need to exceed the above pressure, please choose the circulating electric heater; Low temperature heater gas heating higher temperature does not exceed 160℃; Medium temperature type does not exceed 260℃; High temperature type does not exceed 500℃.

Working condition application overview

In the mine operation, the safety issue has always been one of the most important considerations, miners in the harsh low temperature working environment, facing a variety of potential dangers, in order to ensure the safety of miners, mine explosion-proof electric heater came into being.

Mine explosion-proof electric heater is a kind of heating equipment specially designed for the mine environment, it uses special explosion-proof structure and materials, can operate safely in the flammable and explosive mine environment, mine explosion-proof electric heater has explosion-proof, anti-corrosion, high temperature resistance and other characteristics, can effectively meet the heating needs of miners, provide heat sources for mine operations, in the cold mine environment, Miners need to keep their bodies warm to improve work efficiency and comfort, mine explosion-proof electric heaters can quickly and stably provide heat to meet heating needs. In the low temperature environment, the mining equipment will freeze and affect the normal operation, and the mine explosion-proof electric heater can also prevent the equipment from freezing.

Description

	Technical Parameters
Heat efficiency	≥95%
Voltage	380V-660V 3Phase 50Hz/60Hz
Wattage	10KW/100KW/1000KW
Size	1100*500*800mm
Material	Carbon Steel/Stainless Steel

Technical specifications
Model	Power(KW)	Size (L* W* H, mm)	Outlet Diameter	Power of Blower
XR-FD-10	10	300*300*300	DN100	0.37KW
XR-FD-20	20	500*300*400	DN200	0.37KW
XR-FD-30	30	400*400*400	DN300	0.75KW
XR-FD-40	40	500*400*400	DN300	0.75KW
XR-FD-50	50	600*400*400	DN350	1.1KW
XR-FD-60	60	700*400*400	DN350	1.5KW
XR-FD-80	80	700*500*500	DN350	2.2KW
XR-FD-100	100	900*400*500	DN350	3KW-2
XR-FD-120	120	1000*400*500	DN350	5.5KW-2
XR-FD-150	150	700*750*500	DN400	5.5KW-2
XR-FD-180	180	800*750*500	DN400	7.5KW-2
XR-FD-200	200	800*750*600	DN450	7.5KW-2
XR-FD-250	250	1000*750*600	DN500	15KW
XR-FD-300	300	1200*750*600	DN500	15KW
XR-FD-350	350	1000*800*900	DN500	15KW-2
XR-FD-420	420	1200*800*900	DN500	15KW-2
XR-FD-480	480	1400*800*900	DN500	15KW-2
XR-FD-600	600	1600*1000*1000	DN600	18.5KW-2
XR-FD-800	800	1800*1000*1000	DN600	18.5KW-2
XR-FD-1000	1000	2000*1000*1000	DN600	30KW-2

Application

Air duct electric heater is mainly used to heat the required air flow from the initial temperature to the required air temperature, up to 500 ° C. It has been widely used in aerospace, weapons industry, chemical industry and many scientific research and production laboratories in colleges and universities. It is especially suitable for automatic temperature control and high flow and high temperature combined system and accessory test. The electric air heater can be used in a wide range: it can heat any gas, and the generated hot air is dry and water-free, non-conductive, non-burning, non-explosive, non-chemical corrosion, pollution-free, safe and reliable, and the heated space is heated fast (controllable).

Customer site

Fine workmanship, quality assurance We are honest, professional and persistent, to bring you excellent products and quality service. Please feel free to choose us, let us witness the power of quality together.

Company Profile

Yancheng Xinrong Electronic Industrial Co.,Ltd. is a comprehensive high-tech enterprise focusing on design, production and sales for Air Duct Heater , Pipeline Heater , Thermal Oil Heater and electric heating elements , which is located on Yancheng City,Jiangsu Province, China.For a long time, the company is specialized on supplying the superior technical solution, our products have been export to many countries, such as USA, European countries, Middle East, South America, Asia, Africa etc. Since foundation, we have clients in more than 30 countries all over the world.The company has always attached great importance to the early research and development of products and quality control during the production process.The research and development is guided by a technical team with more than 20 years of practical research and development experience in the electric heating industry. At the same time, the company has a group of R&D, production and quality control teams with rich experience in electric thermal machinery manufacturing.Coupled with the automatic production line introduced at the beginning of the company's establishment, the electric heating products have a good quality assurance in the whole process from design and development, test demonstration to production and manufacturing, and inspecting each heater before shipment, including the quality of product performance, appearance, size and other key quality control aspects. Excellent, with high stability and consistency. In recent years, our company keep developing the new products constantly, with high quality, competitive price, the perfect services to reach the special request from customers. Our company has obtained CE mark and ISO 9001 international quality system certificate.

Certificate

Q1. Is your company a factory or a trade?

A1. We have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer, providing OEM/ODM services to our customers.

Q2. This is the first time for me to use this kind of product. Can you provide the design scheme?
A2. We are a professional integrated solution supplier, we will provide you with our solutions and drawings for your reference.

Q3. What data do I need to provide so that you can help me design the product I need?
A3. You need to tell us the volume you need to heat, the temperature difference, the hourly wind flow rate, the heating medium,and the use environment. Then we can design the style you need for you.

Q4. How long do you usually take to make delivery?
A4. We will deliver the goods within 15 working days after confirming the drawing with you.

Q5. What kind of transportation do you usually use?
A5. We generally use sea, land and air transport, according to your needs to choose the right mode of transport for you.

Product packaging and transportation

Equipment packaging 1) Packing in imported wooden cases 2) The tray can be customized according to customer needs

1) Express (sample order) or sea (bulk order) 2) Global shipping services

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $660 / set
  • 5–19 set: US $640 / set
  • 20–49 set: US $620 / set
  • 50+ set: US $600 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air duct heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air duct heater carry?

It is supplied with CE, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the air duct heater be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
