Air Handling Unit, 2000-40000, 3PH-380V-415V-50Hz

Key specification for this air handling unit: airflow 2000-40000, power source 3PH-380V-415V-50Hz. Everything below is reproduced from the factory data sheet. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Handling Unit

• Power Source: 3PH-380V-415V-50Hz
• Operating Voltage: 380/415V
• Cooling Capacity: 11-57kw
• Airflow: 2000-40000
• Warranty: 2 Years
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

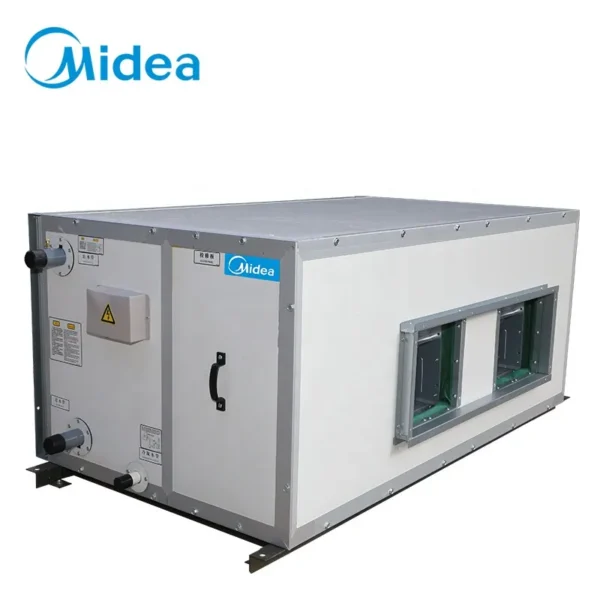

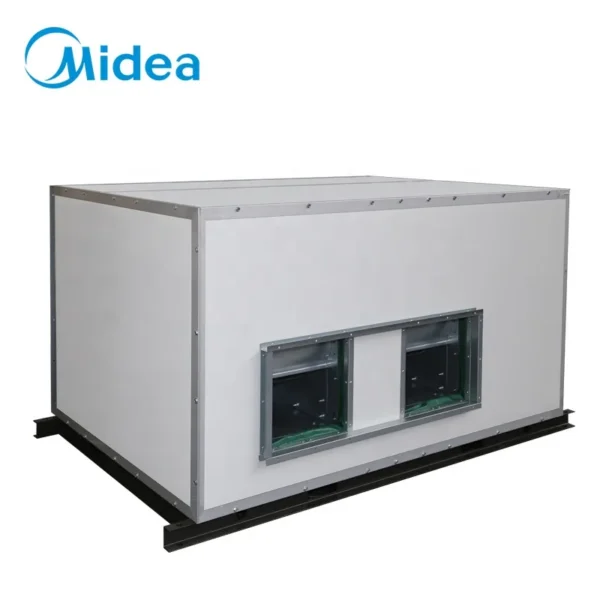

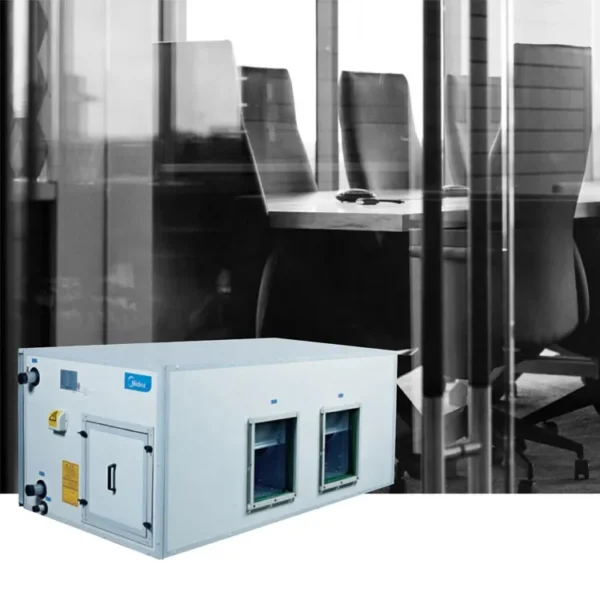

Air Handling Unit
Midea AHUs have been widely used in most part of the world for a couple of years. Now, the 3d generation AHU has been launched to provide you with more comfortable and convenient. It adapts unitary structure design, more outstanding cold-bridge free performance, lower air leakage and more elegant appearance. There are 3 types -suspended type, horizontal type and vertical type, including 66 standard models, and the air flow rate is available from 2,000m3/h to 40,000m3/h. Different external static pressure(ESP) can be customized to meet different kinds of applications.

Orientation

Unit handling orientation is determined by location of pipe connection while facing unit in the direction of air flow. The unit below is left-handed connection unit, otherwise is right-handed connection unit.

High strength, high reliability

Panels are double-skin with injection of high density polyurethane. The outer skin is anti-corrosion color-coated steel sheet, the inner skin is galvanized steel sheet. The unit cabinet consists of panels attaching to each other by combining with male and female aluminum alloy cards and sealing strip, tighten with concealed bolts.

Outstanding cold-bridge free structure

The density of polyurethane injection is 50kg/m3(thermal conductivity factor K<=0.0224W/m2*K). Unit cabinet is constructed by panels with male and female aluminum alloy cards and sealing strip. The service door(or service panel) is plastic-steel frame with polyurethane injection panel and rubber sealing strip.

Low air leakage rate

Double skin panel, unitary structure design, less connecting joints, multi sealing strips in the contactsurfaces, around sealing service door/panel, all ensure almost total air can be supplied to the air-conditionedroom. The air leakage rate is less than 0.29%. Units will not sweat when exterior room temperature is 27℃, relative humidity is 90%.

· Simple structural components

· Less at-site work

High performance heat exchanger

· Copper pipe and aluminum fin type heat exchanger, optimal choice of fin spacing and number of rows. · Fins are coated with anticorrosive layers, assure longer coil life and lower maintenance cost. · Optimal water circuits design, increased heat exchange effciency and decreased water resistance, improving unit performance efficiency.

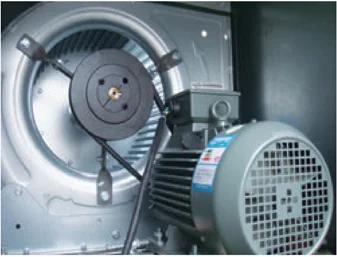

Stable air supply fan assembly

***Yilida brand centrifugal fan, high performance efficiency, 3-phase, class "F"insulation and IP54 protection AC motor. ***Belt drive, optimal selection of drive ratio, increase fan/motor assembly efficiency, easy for maintenance. ***Service door or service panel is equipped for inspection of motor and fan.

Low noise design

***Optimal fan selection, excellent working condition. efficient operation. ***Flexible connection at air outlet, minimizes vibration transmision. ***Equip with shock absorbers, decreases vitbration, low noise. Tighten cabinet, secure against noise leakage.

Related Products

Company Introduction

Midea CAC

Midea CAC is a key division of Midea Group, a leading producer of consumer appliances and provider of heating, ventilation and air conditioning solutions. Midea CAC has continued with the tradition of innovation upon which it was founded, and emerged as a global leader in HVAC industry.A strong drive for advancement has created a groundbreaking R&D department that has placed Midea CAC at the forefront ofa competitive field. Through these independent efforts and joint cooperation with other globalenterprises, Midea CAC has supplied thousands of innovative solutions to customers worldwide.

After Sales Service

FAQ

01.How to get accurate quotation as soon as possible? —-Please provide your company name,contact info,project name. 02.What size house or building do you have? —-I have drawing or purchase quantity. 03. What is your ZIP code? This helps us match you with a top-rated equipment in your area. —-ZIP Code***** 04.Whats your project name,company name and e-mail? This is helpful for filing customer information

Packing&Shipping

Contact US

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $35000 / set
  • 2–2 set: US $33000 / set
  • 3+ set: US $30000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 380/415V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Beijing Midea Overseas Engineering&technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Beijing Midea Overseas Engineering&technology Co., Ltd. range on HVACR Nexus.
