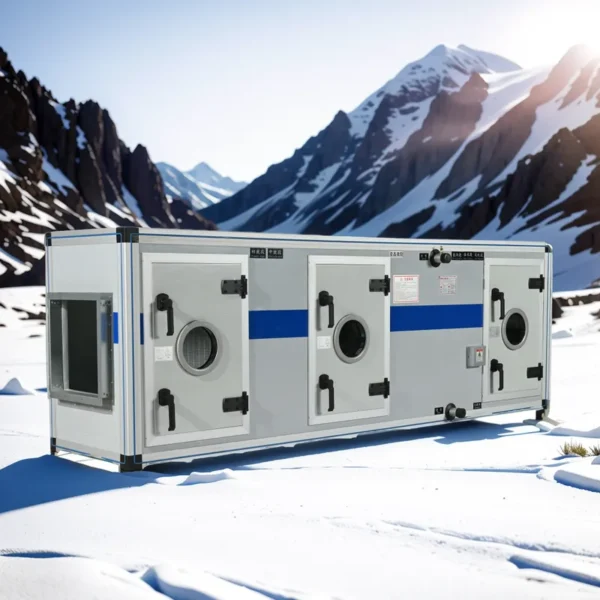

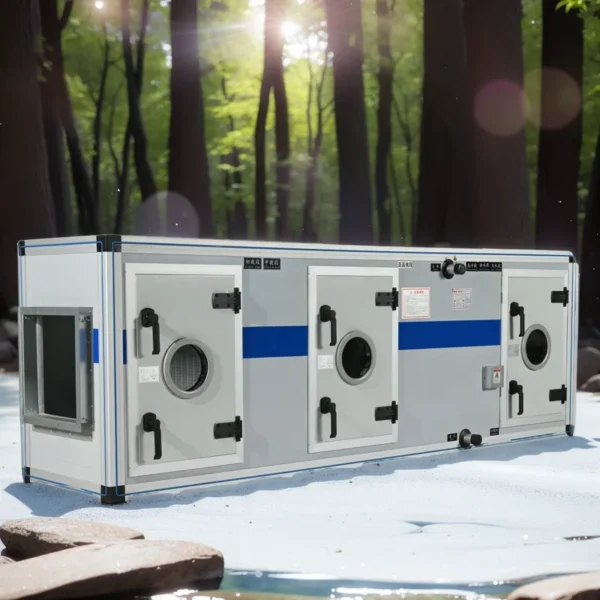

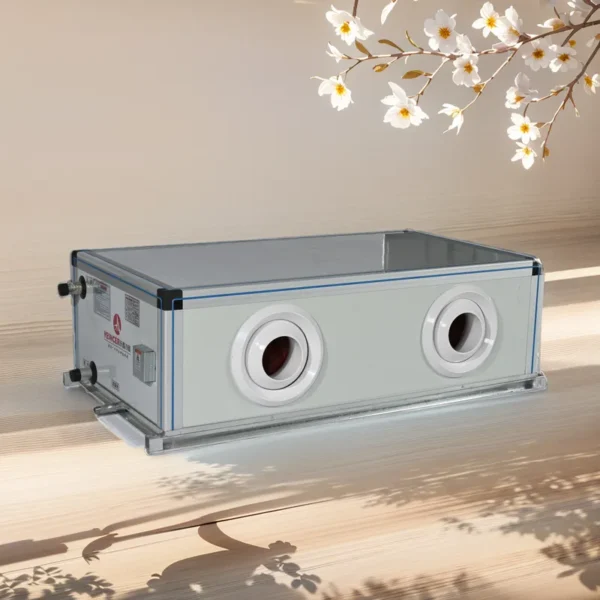

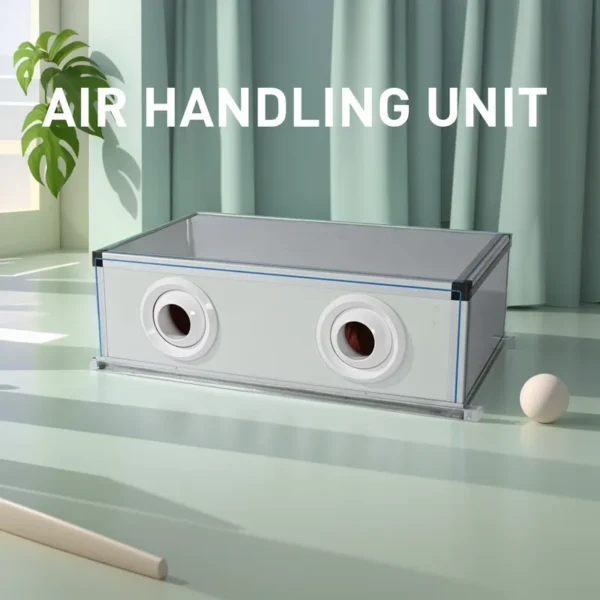

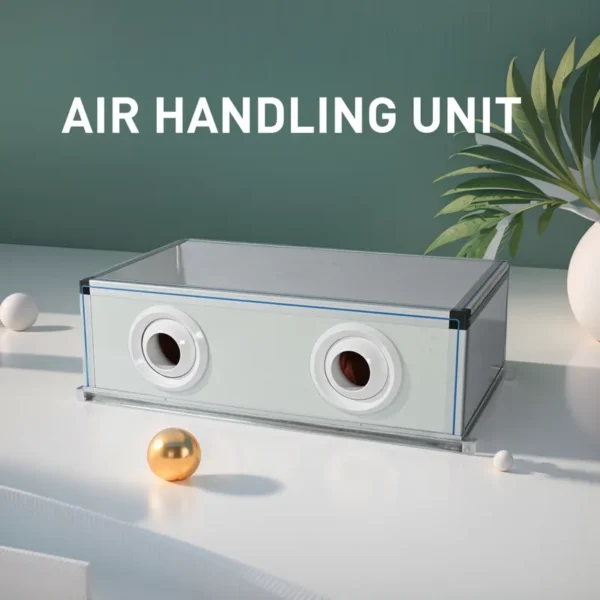

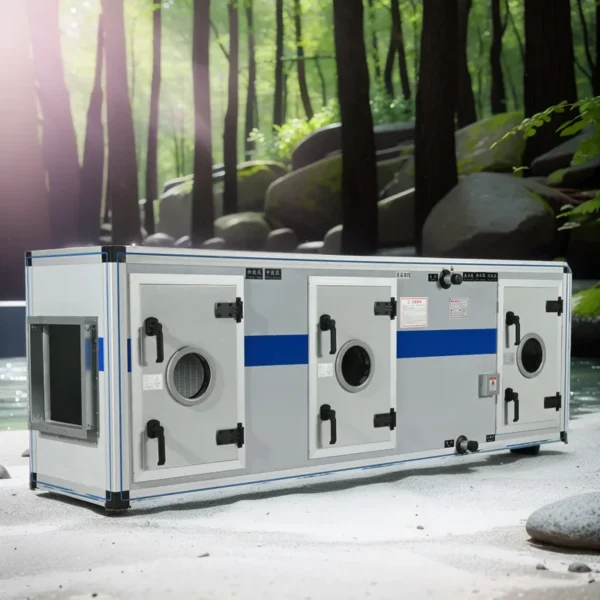

Air Handling Unit, 3500m³

Key specification for this air handling unit: airflow 3500m³/h, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Operating Voltage: 220 VAC
• Cooling Capacity: 8.4 to 140.5kw
• Heating Capacity: 12.5 to 221kw
• Airflow: 3500m³/h
• Warranty: 3 Years
• Place Of Origin: Hebei, China

Technical Specifications

Product Details

Hvac Large Air Volume Ahu Handled Air Unit Cabinet Air Handling Unit For Commercial

Products Description

Coils

Structure: Copper tube through hydrophilic Al fins Copper pipe diameter:φ 12.88mm Fin thickness: 0.15mm Fin Spacing: 10 FPI Number of rows of cooper tube: 6 rows Maximum working pressure: 1.6M Pa = 16BAR (test pressure: 2.5MPa)

Filtration

Filtration of dust particles Filter material · Non-woven fabric as filter material Filter can be draw out easy to clean.

Product Parameters

Model	Rated air flow m3/h	External total pressure Pa					Fan					Noise dB(A)
				4 Rows	6 Rows	8 Rows	Type	Power kW	Sets
KD(X)-1.5	1500	260	200	146	Direct connecting external rotor or belt drive centrifugal fan	0.32	1	55
KD(X)-2	2000	258	198	145			0.55	1	58
KD(X)-2.5	2500	256	200	146			0.55	1	58
KD(X)-3	3000	246	192	136			0.75	1	59
KD(X)-4	4000	256	198	146			0.55×2	2	60
KD(X)-5	5000	246	200	150			0.55×2	2	62
KD(X)-6	6000	246	192	138			0.55×2	2	62
KD(X)-7	7000	267	230	178			0.8×2	2	63
KD(X)-8	8000	355	305	252			0.8×2	2	63
KD(X)-10	10000	406	355	308			1.5×2	2	66
KD(X)-12	12000	460	400	346			1.8×2	2	69
KD(X)-13.5	13500	468	408	350			2.2×2	2	72
KD(X)-15	15000	510	446	395			3.0×2	2	73

AHU Cooling Capacity: (Return air condition)

Model	Rated air flow m3/h	Cooling Capacity KW					Water Flow t/h
				4 Rows	6 Rows	8 Rows	4 Rows	6 Rows	8 Rows
KD(X)-1.5	1500	8.4	10	11.3	1.60	2.11	2.62
KD(X)-2	2000	11.2	15.16	19.5	1.92	2.62	3.38
KD(X)-2.5	2500	13.9	18.96	24.6	2.39	3.26	4.25
KD(X)-3	3000	16.8	22.8	29.5	2.87	3.91	7.06
KD(X)-4	4000	22.1	30.23	39.39	3.8	5.2	7.76
KD(X)-5	5000	27.6	37.7	49.1	4.76	6.5	8.4
KD(X)-6	6000	33.26	45.33	60.9	5.73	7.81	8.76
KD(X)-7	7000	47.6	58.3	71.4	8.2	10	12.1
KD(X)-8	8000	49.6	66.4	82.6	8.6	10.3	13.2
KD(X)-10	10000	57.6	78.7	93.9	9.9	13.5	16.1
KD(X)-12	12000	69.6	88.1	112.5	12	15.1	19.3
KD(X)-13.5	13500	78.3	99.0	126.4	13.5	17.0	21.8
KD(X)-15	15000	87.0	110.0	140.5	15.0	18.9	24.2

AHU Heating Capacity: (Return air condition)

Model	Rated air flow m3/h	Heating Capacity KW					Water Flow t/h
				4 Rows	6 Rows	8 Rows	4 Rows	6 Rows	8 Rows
KD(X)-1.5	1500	12.5	17.6	21.2	1.5	1.9	2.3
KD(X)-2	2000	17.8	22.8	29.5	1.9	2.3	2.9
KD(X)-2.5	2500	21.8	28.5	36.1	2.3	2.9	3.5
KD(X)-3	3000	26.1	34.2	44.2	2.9	3.5	4.2
KD(X)-4	4000	34.8	45.6	59	3.5	4.2	5.5
KD(X)-5	5000	43.6	57	73.7	4.2	5.4	6.7
KD(X)-6	6000	52.3	68.3	88.4	5.2	6.2	7.6
KD(X)-7	7000	66	79.4	103.2	6	7.3	11.9
KD(X)-8	8000	72	91.1	117	7.5	9.0	12.5
KD(X)-10	10000	87.1	113.9	149.4	8.7	9.8	12.7
KD(X)-12	12000	104.5	136.7	176	9.0	11.7	15.2
KD(X)-13.5	13500	117.6	153.8	199	11.8	13.2	19.6
KD(X)-15	15000	130.7	170.9	221	13	15.7	22

Product Size

Model	L  mm	W  mm	H  mm	m*n	N	DNXX(in)	E	F
KD(X)-1.5	1105	700	500	320*200		DN32(5/4)	304	4Rows: F=99, 6Rows: F=165, 8Rows: F=231
KD(X)-2	1105	840	500	320*200		DN32(5/4)	304
KD(X)-2.5	1105	980	500	400*200		DN40(3/2)	304
KD(X)-3	1105	1120	500	400*250		DN40(3/2)	304
KD(X)-4	1105	1400	500	2-320*200	600	DN40(3/2)	304
KD(X)-5	1105	1680	500	2-400*200	700	DN40(3/2)	304
KD(X)-6	1105	1960	500	2-400*250	760	DN40(3/2)	304
KD(X)-7	1105	1960	580	2-400*250	760	DN40(3/2)	380
KD(X)-8	1105	1960	620	2-500*250	820	DN50(2)	418
KD(X)-10	1305	2080	680	2-500*320	820	DN50(2)	494
KD(X)-12	1305	2180	740	2-500*400	900	DN50(2)	570
KD(X)-13.5	1305	2280	780	2-500*400	900	DN50(2)	508
KD(X)-15	1305	2340	810	2-630*400	1000	DN50(2)	684

Company Profile

Our company has been committed to the central air-conditioning industry for 15+ years. Our main products are air source heat pumps, chillers, fan coils, air handling units, rooftop packaged ac units, etc., which can provide you with one-stop procurement services. Our company has R&D laboratories and professional R&D personnel, which can fully meet your customized needs. Hope to cooperate with you to achieve a win-win situation.

VR

Certifications

We have passed the CRAA and CCC certificate issued by the country's highest authoritative testing organization. Also passed the quality management system certification ISO9001, environmental management certification system ISO14001, occupational health and safety management system certification ISO45001. Our products are also in line with EU production standards, have obtained CE certificates, and have passed the test certificate of the German authoritative testing organization TUV.

Our Customers

After Sales Service

Normal Process:

A. Delivery: After the goods are dispatched, send the relevant documents or courier number to the customer to remind the customer
that the goods have been dispatched. During the period, we will continue to track the logistics information, and notify the
customer at any time if there is an update. Before the delivery is about to be dispatched, the customer should be notified to pay
attention to the receipt.

B. Receipt: After receiving the goods, contact the customer to see if there is any damage during transportation; if the product is
damaged, please send a picture to the customer for verification. If it affects the use, you can negotiate the compensation amount
or send a new product replacement directly If some parts are damaged and are easily available locally, we can advise customers to
purchase and replace them locally, and we will bear the cost

C. Installation: Technical guidance, drawings or video guidance can be provided, and engineers can also be sent to install on site
if necessary.

D. Use: Free training for customers on, operation and use, daily maintenance and precautions

E. Warranty: machine warranty for 3-5 years, control warranty for 1 year, damage during the warranty period, free repairs, beyond
the warranty period, we can still provide repair services, we need to charge a fee as appropriate

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $800 / piece
  • 100–499 piece: US $600 / piece
  • 500+ piece: US $400 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 220 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. range on HVACR Nexus.
