The air handling unit listed here carries cooling capacity 8.4-168 Kw, refrigerant Chilled water, documented exactly as the manufacturer publishes it. Made by Shandong Shengpan Environmental Technology Co., Ltd. (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Model Number: SPECYLRF-40CW
- Cooling Capacity: 8.4-168 Kw
- Heating Capacity: 9.6-185 Kw
- Refrigerant: Chilled water
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | Chilled water |
| Mounting Type | Floor Standing |
| Compressor Brand | No |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | Regular Filter |
| Application | Hospital, Hotel, School, Plant, Warehouse |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Fan, Chilled water coil, Filter |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 400 |
| Brand Name | SPE |
| Model Number | SPECYLRF-40CW |
| Dimension(L*W*H) | 3000*1800*2000mm |
| Product Name | Air Handling Unit AHU |
| Function | Cooling Heating |
| Cooling Capacity | 8.4-168 Kw |
| Heating Capacity | 9.6-185 Kw |
| Fan Type | Centrifugal Fan |
| Finned Heat Exchanger | Copper tube+Hydrophilic AL fins |
| Filter | G4+F8 |
| Customized | Support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

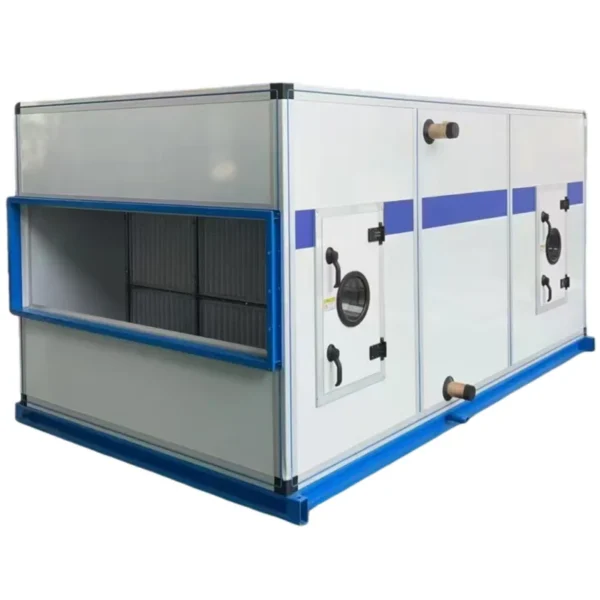

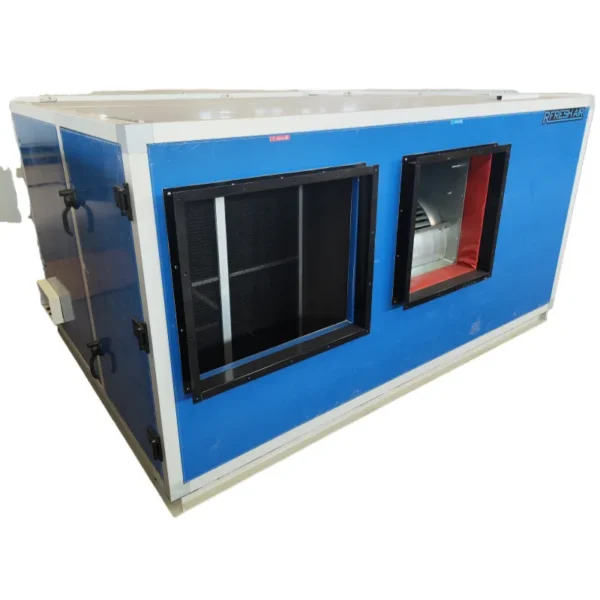

Multifunctional modular combined air handling unit

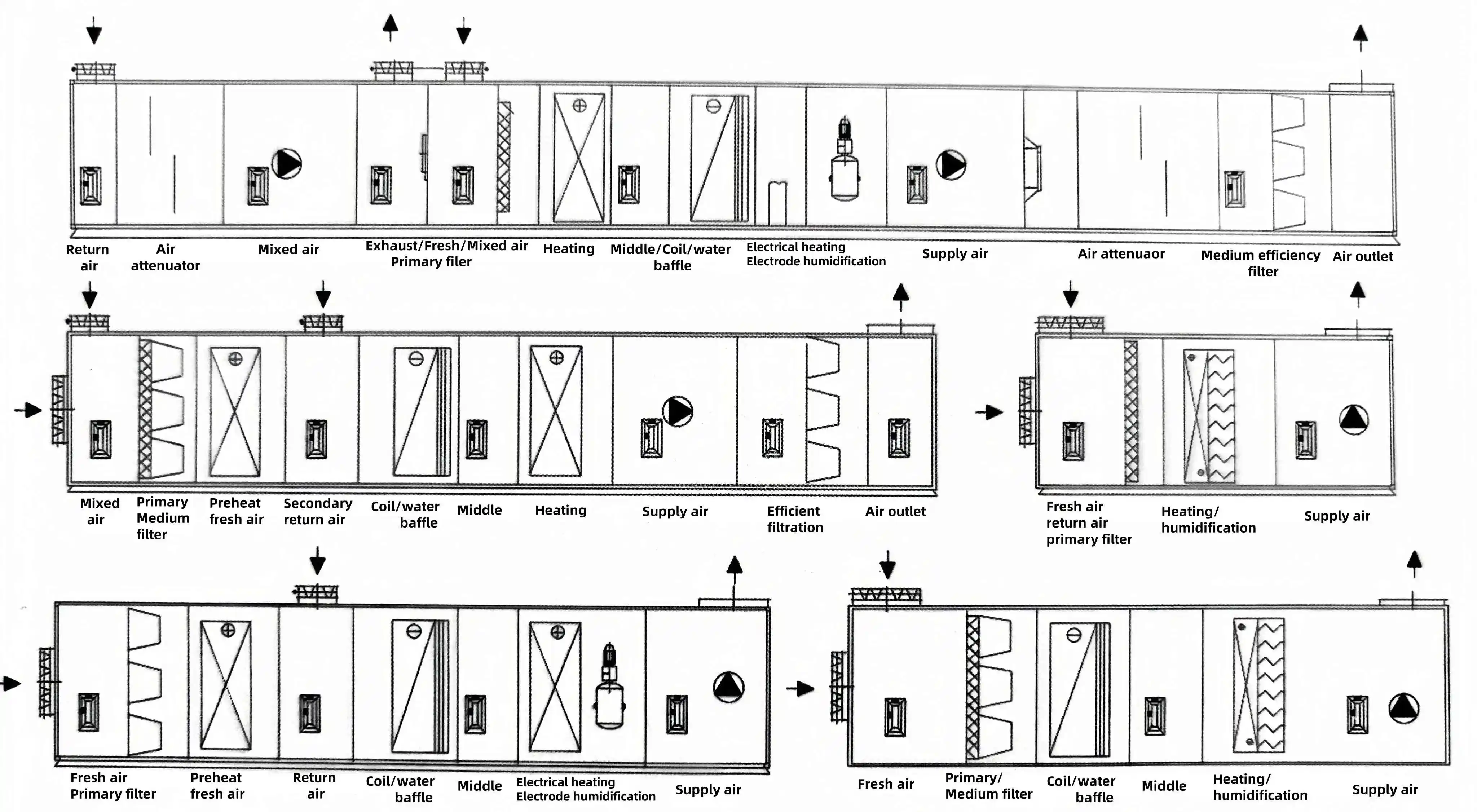

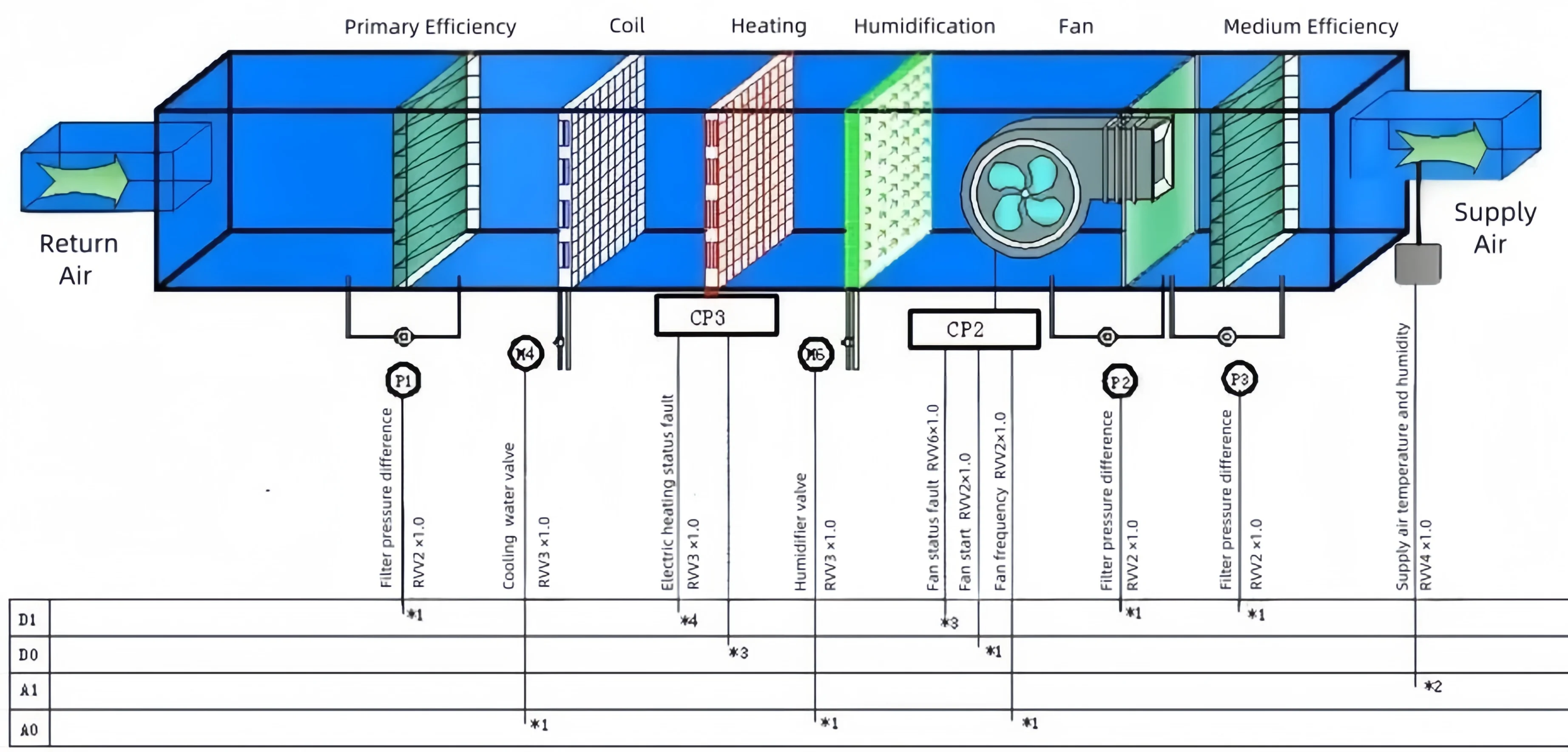

Modular air handling unit is an air handling equipment assembled from various air handling functional sections. Suitable for air conditioning systems with resistance greater than 100Pa. The air handling functional sections of the unit include air mixing, flow equalization, filtration, cooling, primary and secondary heating, dehumidification, humidification, supply fan, return fan, water spraying, noise reduction, heat recovery, and other units. Suitable for air purification systems in various clean factories, such as industrial electronics factories, precision machinery manufacturing factories, textile workshops, automotive spraying workshops, GMP pharmaceutical factories, cosmetics, food factories, pure water workshops, hospital operating departments, ICUs, and other occasions.

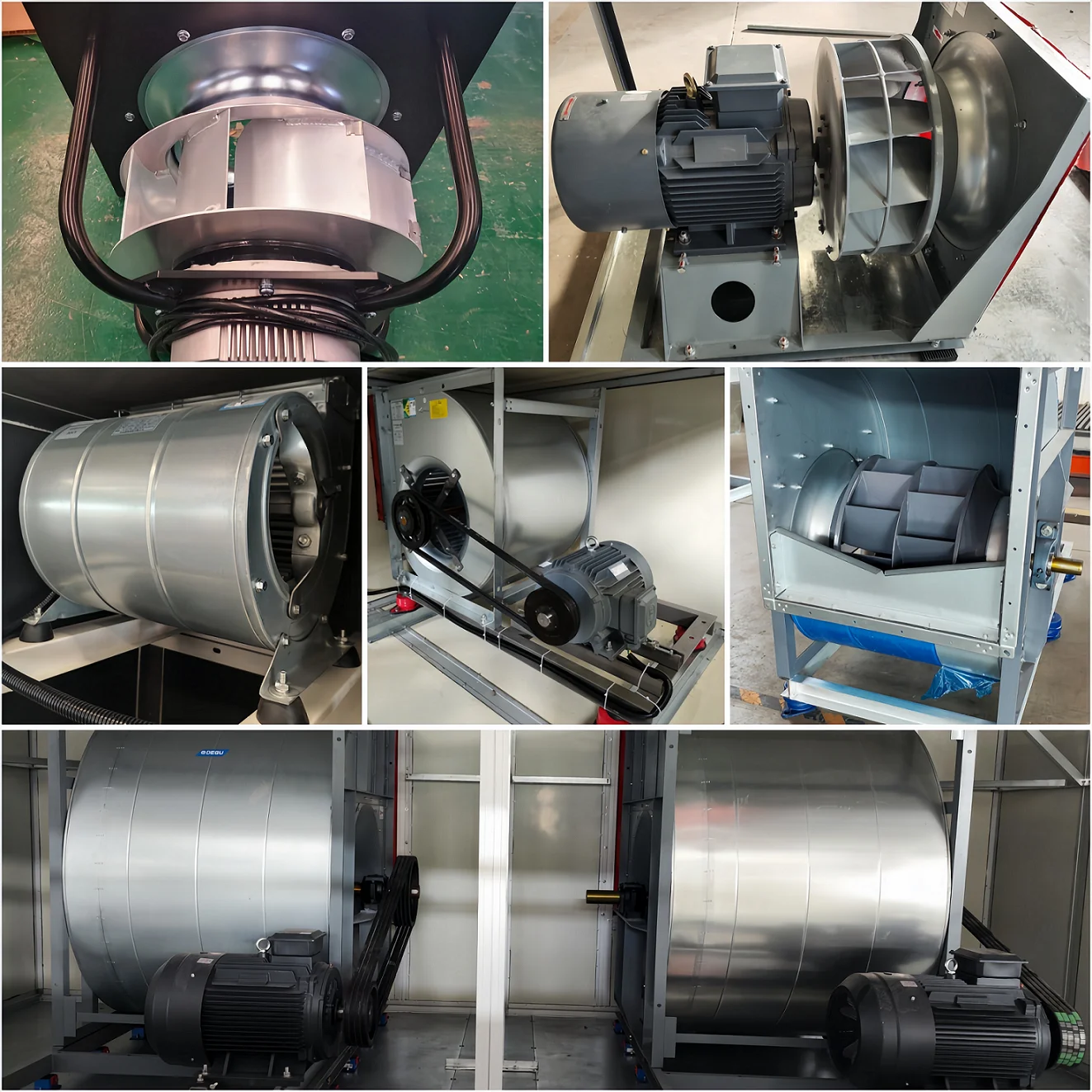

1-EC brushless fan，large volume demand can provide EC fans wall 2-Single inlet backward curve fan 3-External rotor fan，direct drive 4-Double inlet centrifugal fan，Belt pulley drive，According to ESP requirements, choose a forward or backward curve impeller 5-Can optimal selection YILIDA brand fans，with AMCA certificate，obtain lower noise levels 6-Configure fixed frequency or variable frequency motors as needed，Special environment configuration includes high-altitude, moisture-proof, and explosion-proof motors

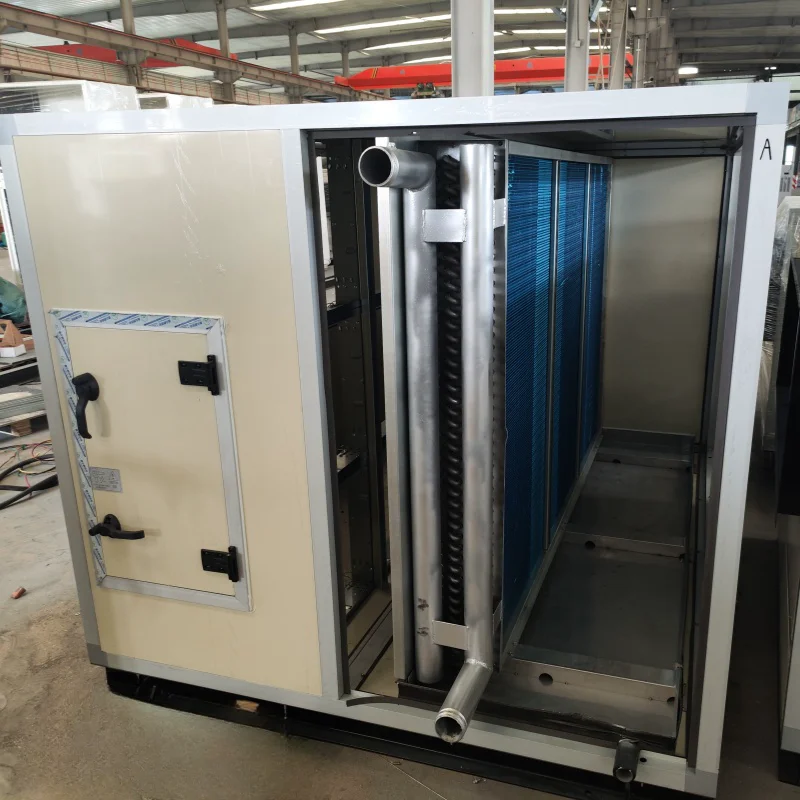

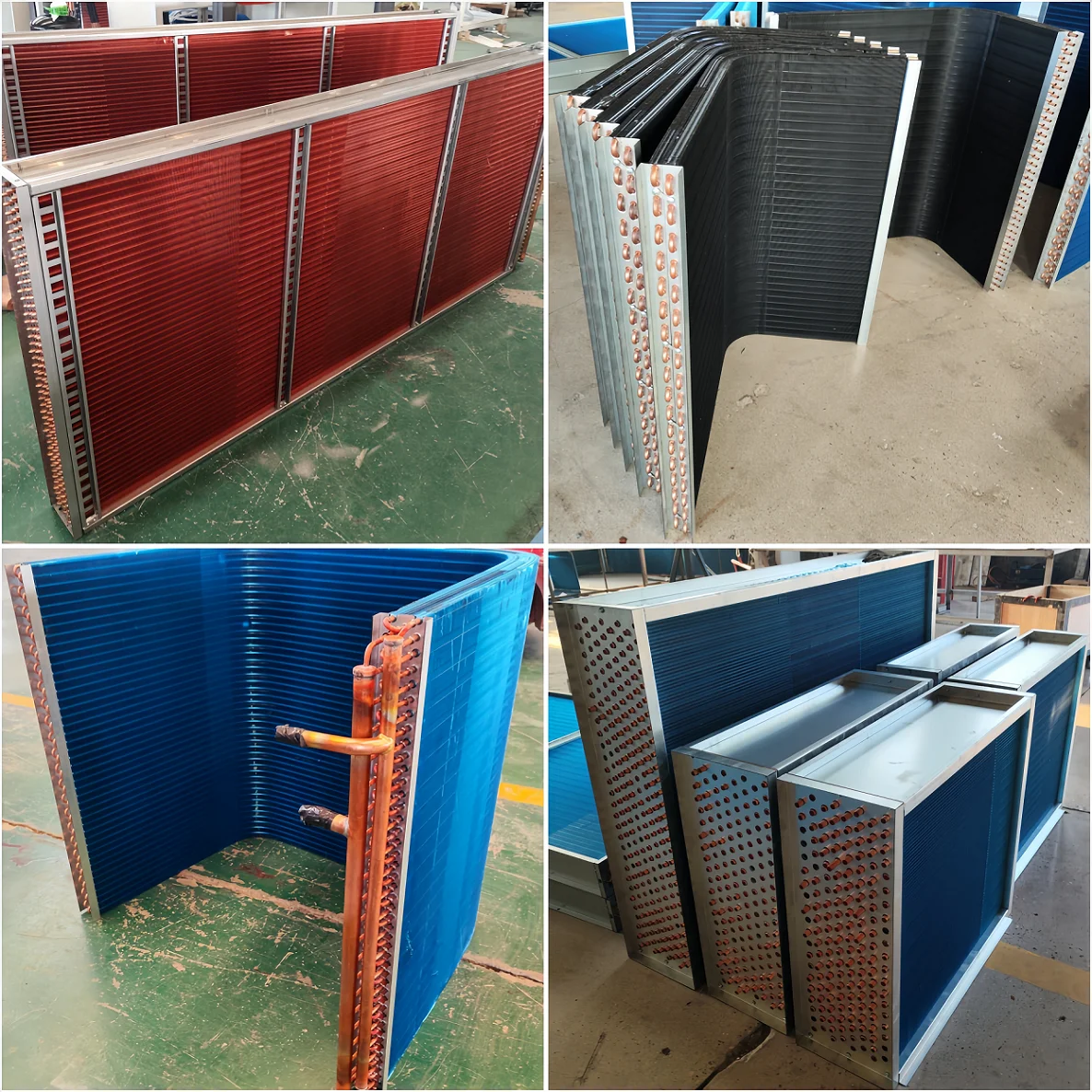

1-Chilled water coil standard configuration：φ12.7mm copper tube & hydrophilic aluminum foil fins 2-DX coil standard configuration：φ7mm internal thread copper tube & hydrophilic aluminum foil fins 3-Provide customized materials coils according to different applications 4-According to environmental requirements，provide Epoxy resin & Nano & Electrophoresis etc. Anti corrosion process

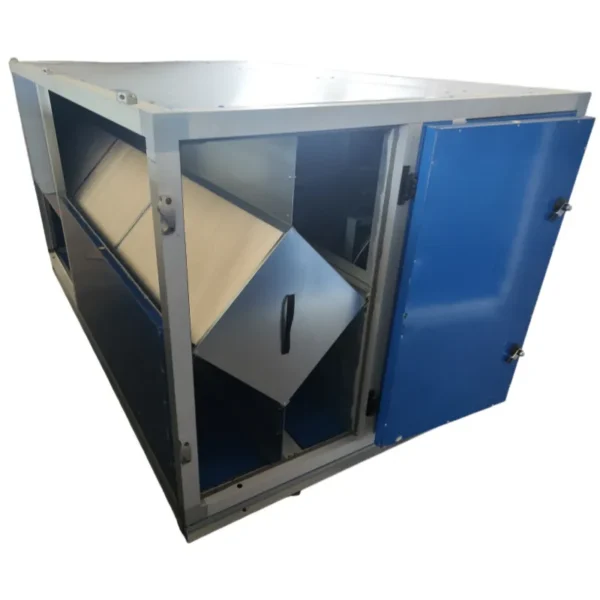

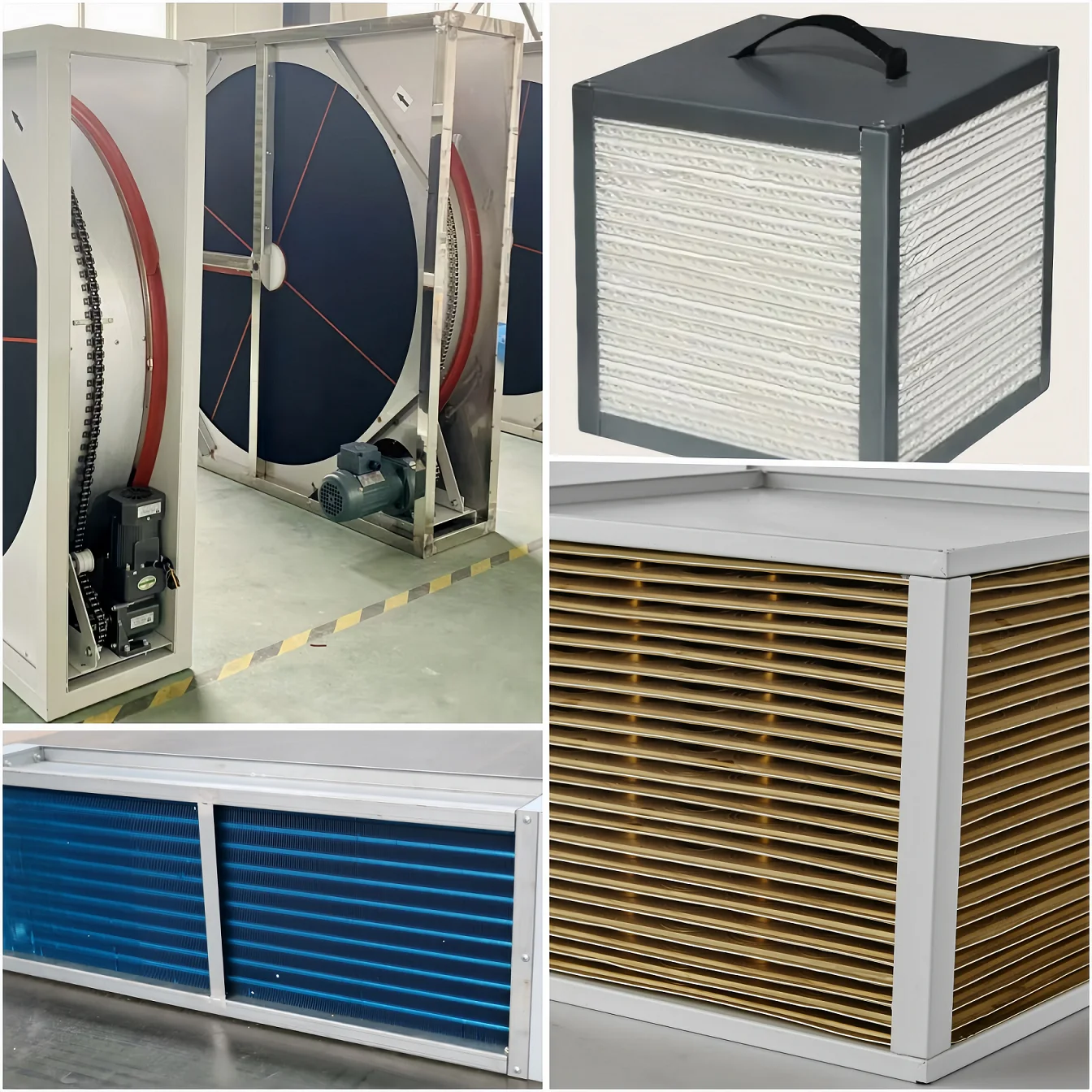

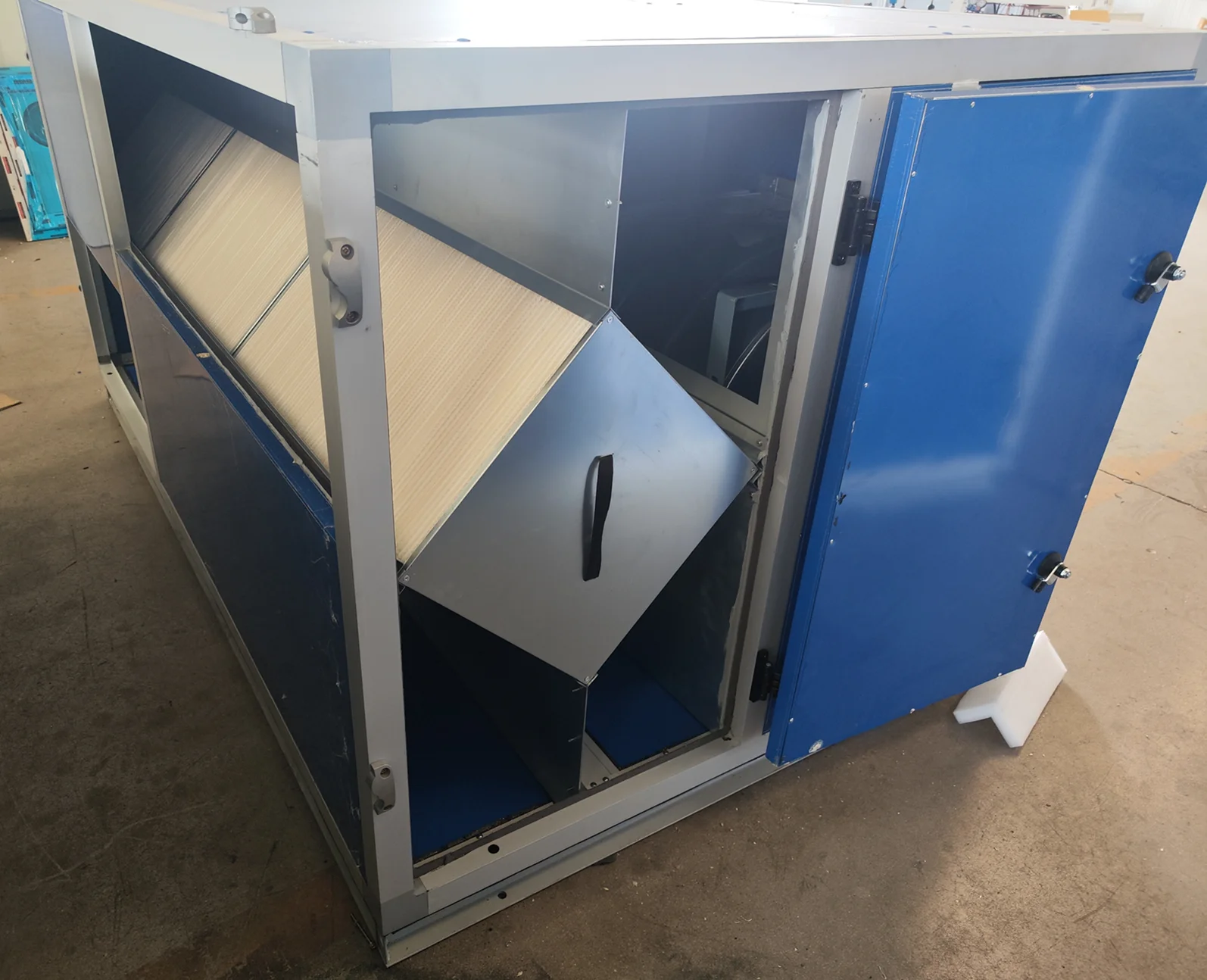

1-Plate type heat recovery，total heat recovery & sensible heat recovery 2-Rotary type（thermal wheel） heat recovery 3-heat pipe type heat recovery 4-Customized intermediate media based heat recovery（Run around coil），Circulating medium: water or ethylene glycol

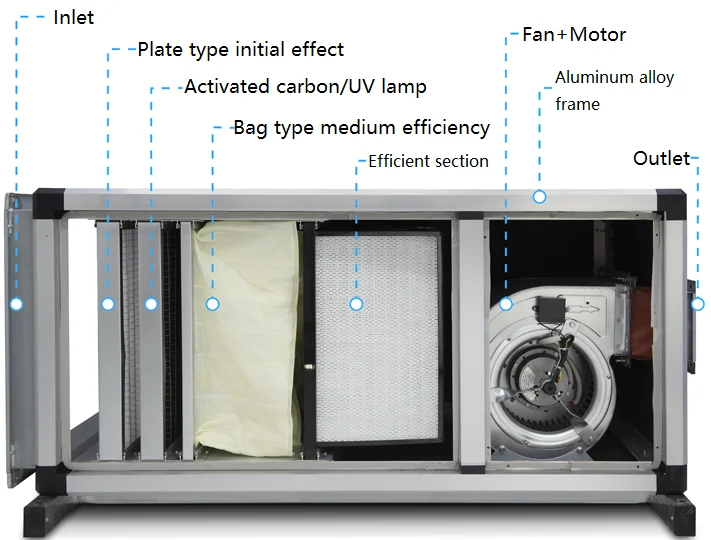

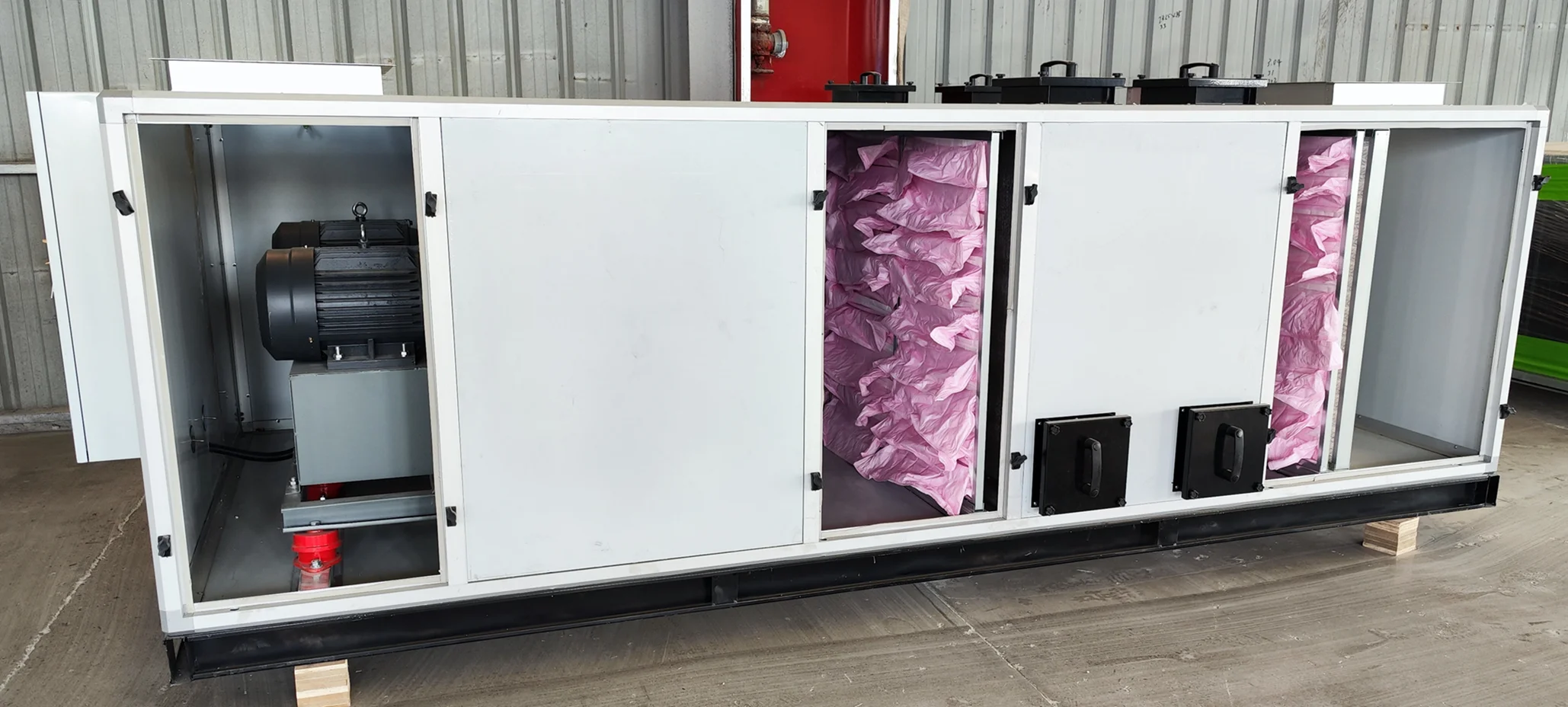

1-Primary filtration+Medium filtration+High efficiency filtration，Any combination configuration 2-Optional-UV sterilization lamp 3-Optional-Ozone sterilization 4-Optional-Activated carbon adsorption filtration

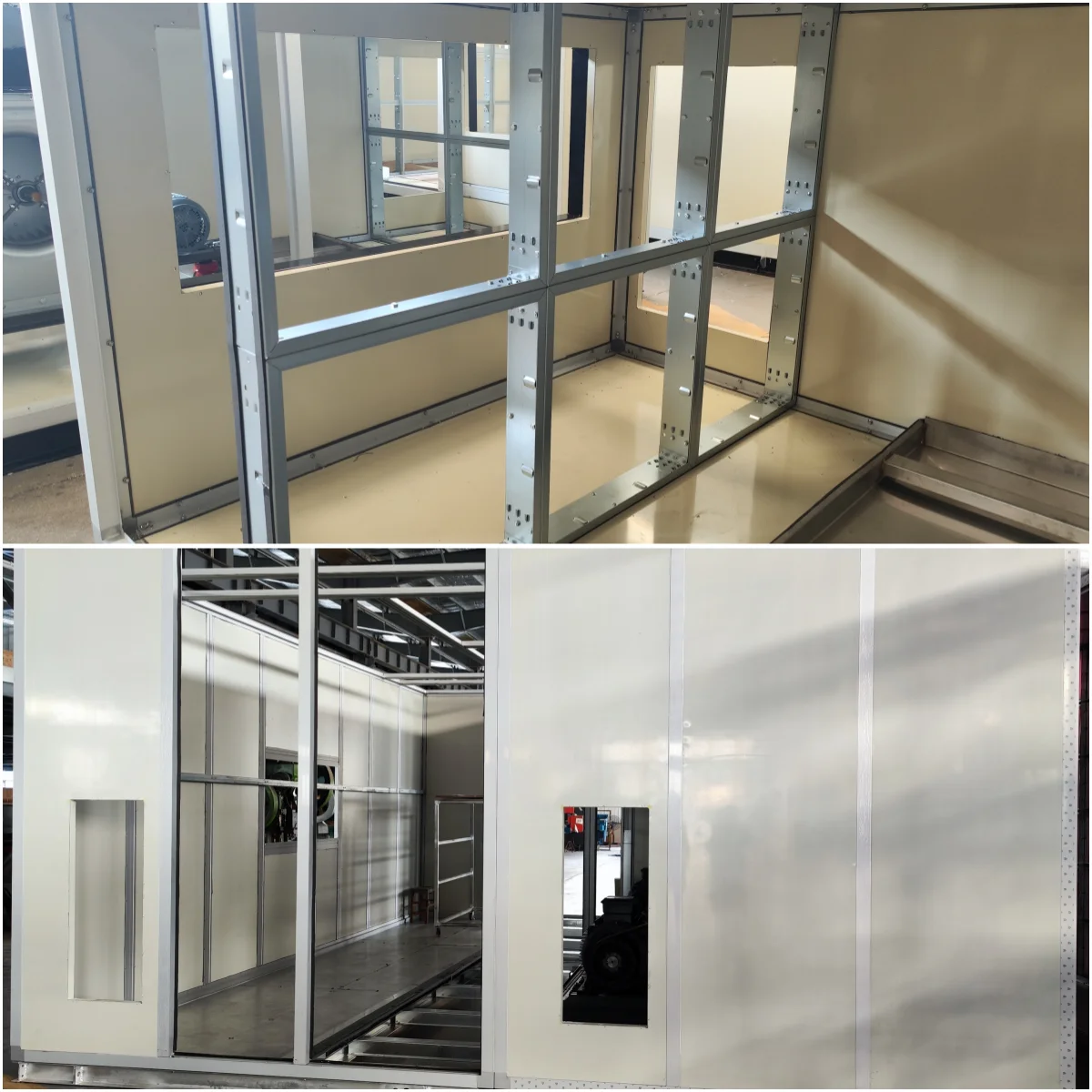

1-Aluminum alloy frame，thickness 1.2mm or 1.4mm 2-Internally and externally wrapped color steel plate 3-Board option-Polyurethane high-pressure foam board，thickness 30mm or 50mm 4-Board option-Polyethylene foam board，thickness 30mm or 50mm 5-Drain pan：Customizable galvanized sheet spray coating or stainless steel material
Multifunctional modular combined air handling unit | ||||||||
Q1.Are you factory or trade company?
Q2.Are there any order requirements?
A:We are manufacture,with OEM service.
Q2.Are there any order requirements?
A:We will appreciate it a lot if you can offer us your product performance requirements and operation environment, so that we can customize optimal production to meet your every requirement.
(1) Air volume
(2)Cooling/heating capacity
(3) Cooling/heating area
(4) Power and voltage
Q3.What are your Before-sale services？
A:(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
Q4.What are your In-Sale services？
A:(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
Q5.What are your After-sale services?
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation for non-human factor damages,within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's
two-way communication.
two-way communication.
Q6.How long is the delivery time?
A:Generally it is 1-7 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
