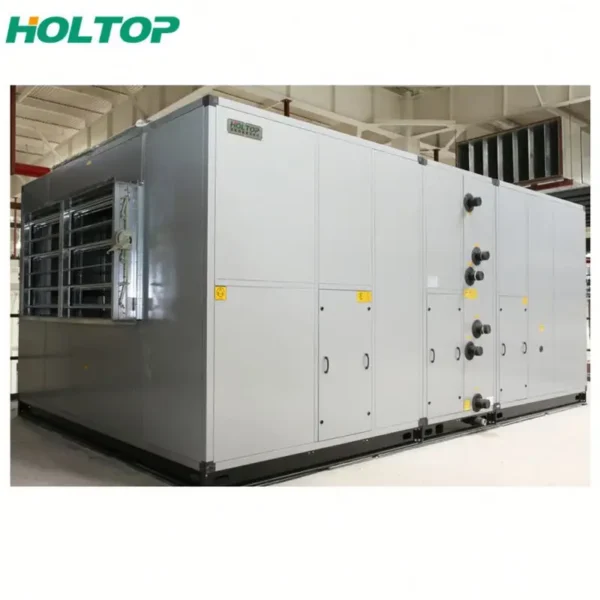

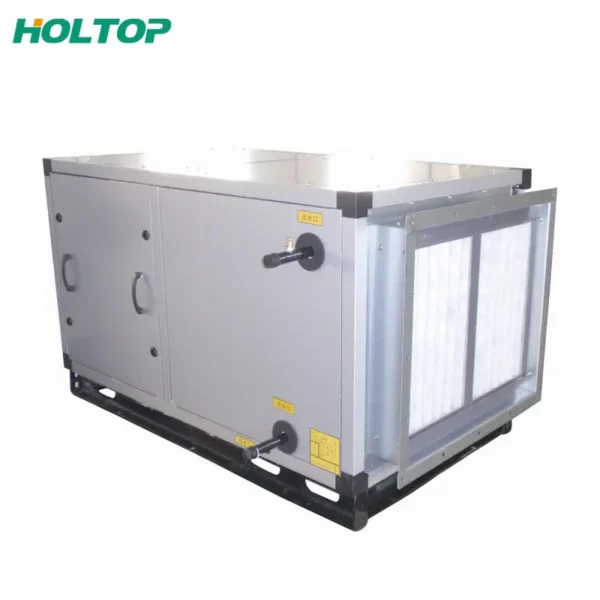

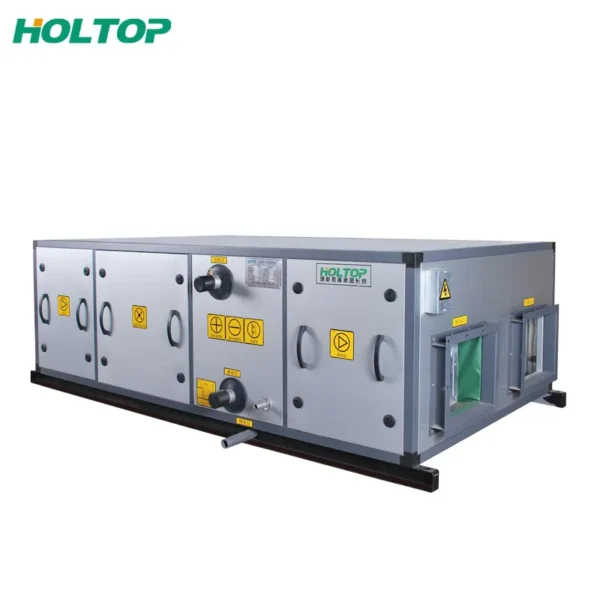

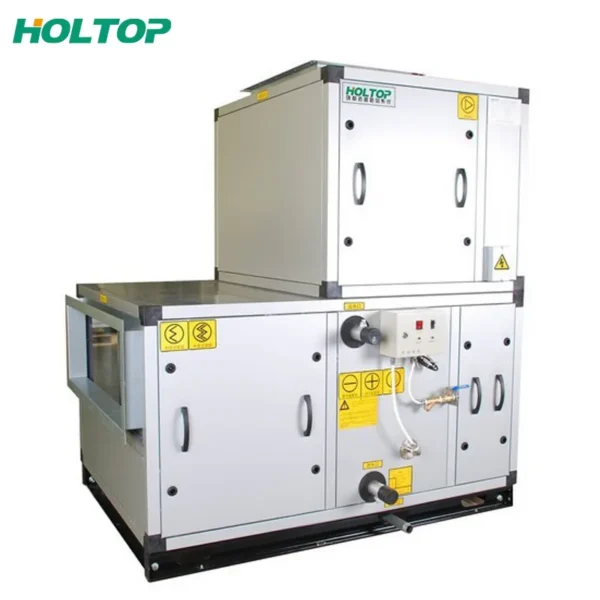

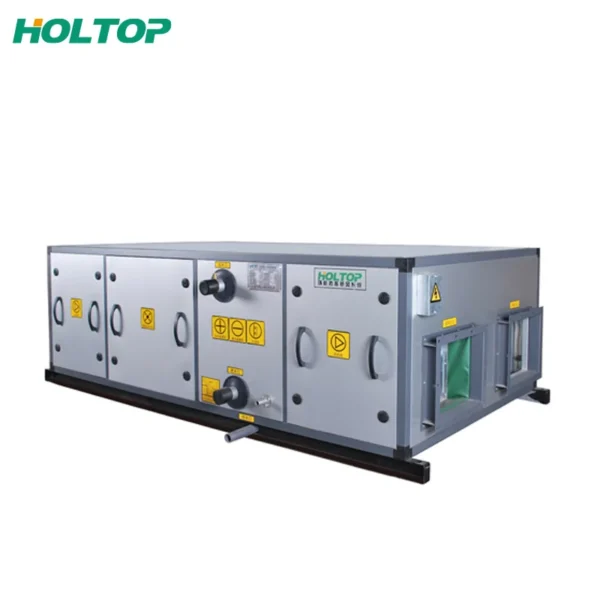

Air handling unit — 51.2KW, type Air Handling Unit. The complete factory specification follows. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Supply Fan Power: 186W *2
- Cooling Capacity: 51.2KW
- Airflow Range: 2500 m3/h
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Application: Heat recovery,adjust cold/heat/humidity
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | AC |
| Key Selling Points | Energy Saving, Eco-Friendly, Low Maintenance Cost, Easy To Operate, Competitive Price, High-Accuracy, Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, Engine |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 1000 |
| Brand Name | Holtop |
| Dimension(L*W*H) | customized |
| Medium | chilled water |
| Cooling Capacity | 51.2KW |
| Function | Air Conditioner Terminal Unit |
| Air To Air Heat Recovery Device | Sensible/Enthaply heat core |
| Airflow Range | 2500 m3/h |
| Filter | G3 |
| Fan Type | EC fan |
| Application | Heat recovery,adjust cold/heat/humidity |
| Supply Fan Power | 186W *2 |
| Product | Modular Air Handling Unit |
| Selling Units | Single item |
| Single Package Size | 200X200X150 cm |
| Single Gross Weight | 2000.0 kg |
Product Details
Modular Air Handling Unit 5ton crac air handling unit 300kw
Specification of Model HJK-025Z1Y (25S) FCU
Selection Table of AHU
Working principle
1. Both supply fan and exhaust fan are built inside tobring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.
2. Built-in heat exchanger (rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing indoor air to the coming fresh air,thus fresh air is precooled or preheated.
3. Various functional sections such as filter section,cooling/heating section, humidifying section etc.can be combined together to meet different air treatment requirements.
Main Typical Combinations
Combination mode 1:
Wheel + Coarse filter (medium filter) + Cooling coil (heating coil)+ Humidification + Fan
Combination mode 2:
Plate heat exchanger + Coarse filter (medium filter) + Mixed air +Cooling coil (heating coil) + Fan
AHU functional Section -Heat Exchanger Section
1)Rotary heat exchanger (heat recovery wheel) is mainly used in building ventilation or in the air supply, discharge system of air conditioning equipment. The wheel transfers the energy (cold or heat) contained in exhaust air to the fresh air supplied to indoor.It’s a piece of important equipment and a key technology in the field of construction energy saving.
2)Plate Heat Exchanger Section
| (1) Sensible heat exchanger is made of pure aluminum foils which is specially designed for air to air heat exchanger, high efficiency, washable and minimizing cross contamination. (2) Enthalpy heat exchanger is made of special E.R paper, the membrane fiber gap is very small which only allow moisture molecule goes through so laten heat recovered. This feature can avoid the harmful gas or odor from stale air mix up with fresh air. (3) No moving part inside, easy to maintain and no extra running costs. |  |

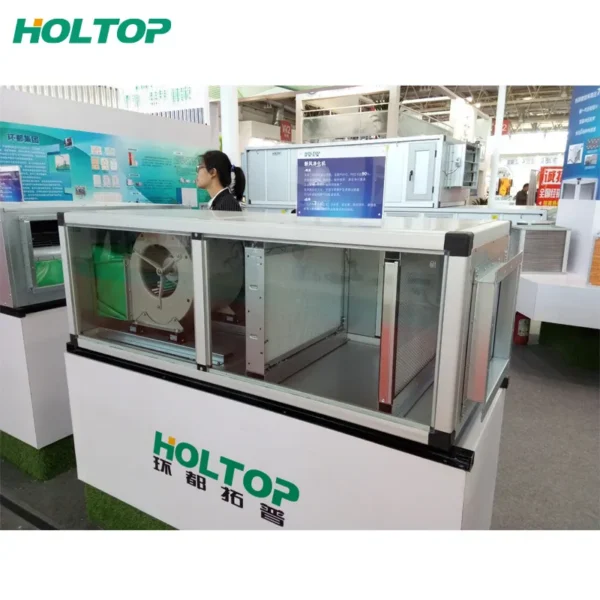

FAN SECTION
We offer different types of fans such as direct driven centrifugal fan, belt driven DIDW forward centrifugal fan, and belt driven DIDW backward centrifugal fan etc..
Air filter
In order to ensure heat exchanging efficiency and cleanness, combination of G3 coarse filter and F5 medium filter is selected as standard configuration in HJK AHU.
Air Handling Unit HAVC System Project
1. How to select the suitable models?
Please send us the airflow, temperature and R.H. of the outdoor air and return air, and the cooling and heating capacity you need, or you may send us the equipment specifications of the whole project, we can help you to design the unit and recommend the suitable models for you.
2. What’s the functional sections of the AHU?
Mixing section, Filtration section, Heat recovery section, Cooling or heating coils section, Humidifying section, Fan section, Muffler section, etc..
PLEASE Click the following link to get more product information:
1) ECO-SMART HEPA ERV , ErP2018 eco design DMTH series
2) ECO-SMART Plus ERV , Eco design DCTP series
3) Ductless Eco Clean Wall Mounted ERV
4) Ductles Eco Clean Floor standing ERV
5) Slim design ERV, thinner design to save installation space
6) Convention TH series ERV, cheap and simple
7) Plate heat exchanger: counterflowsensible heat exchanger
8) Cross counterflow sensible heat exchanger
9) Total heat exchanger _enthalpy type
10) Rotary heat exchanger
11) Air handling units
Click to Send Your Inquiry Here Now to Get the Best Price
Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products includes energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop professional project solution team can also offer customized hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–14 set: US $6999 / set
- 15+ set: US $5999 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
