This air handling unit is published with the manufacturer’s full specification — 7.5kw-55kw, refrigerant R134a, R-410A. Made by Shandong Shengpan Environmental Technology Co., Ltd. (4 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Model Number: SPECYLRF-08DX
- Cooling Capacity: 7.5kw-55kw
- Heating Capacity: 8kw-60kw
- Refrigerant: R134a, R-410A
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | R134a, R-410A |
| Mounting Type | Floor Standing |
| Compressor Brand | Copeland, Danfoss |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Hospital, Hotel, School, Plant, Warehouse |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Compressor, Condenser, Evaporator, PTC electric heating, Electrode humidification |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 300 |
| Brand Name | SPE |
| Model Number | SPECYLRF-08DX |
| Dimension(L*W*H) | Customized |
| Product Name | Air Handling Unit AHU |
| Function | Cooling Ventilation Humidification Air Purifier |
| Cooling Capacity | 7.5kw-55kw |
| Heating Capacity | 8kw-60kw |
| Compressor | Scroll Compressor |
| DX Coil | Internal thread copper tube+Hydrophilic AL fins |
| Fan Type | Forward-curved Blades |
| Humidifier Type | Electrode Humidifier |
| Customzied | Support |
| Selling Units | Single item |
| Single Package Size | 60X60X11 cm |
| Single Gross Weight | 10.0 kg |
Product Details
Air conditioning outdoor unit
1：Danfoss/Copeland/Panasonic, an internationally renowned brand compressor
2：According to the ambient temperature, an ultra-low
temperature host suitable for extremely cold climates can be configured
3：Provide cold and heat sources for the use environment
temperature host suitable for extremely cold climates can be configured
3：Provide cold and heat sources for the use environment
1：Provide a variety of air volume, pressure, and power fans as needed
2：Can be configured with various specifications such as EC
brushless, variable frequency explosion-proof, forward tilt, and backward tilt
brushless, variable frequency explosion-proof, forward tilt, and backward tilt

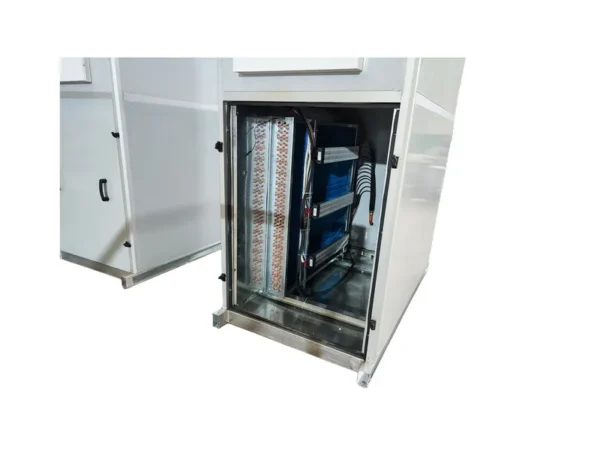

1：Configure appropriate condensers and evaporators based on the required cooling capacity for the usage area
2：Heatingsection:Configure PTC electric heating, hot water heating, steam heating, natural gas heating, etc. as needed
3：Humidification section:Configure electrode humidification, wet film humidification, high-pressure micro mist
humidification,steam humidification, etc. as needed
3：Humidification section:Configure electrode humidification, wet film humidification, high-pressure micro mist
humidification,steam humidification, etc. as needed

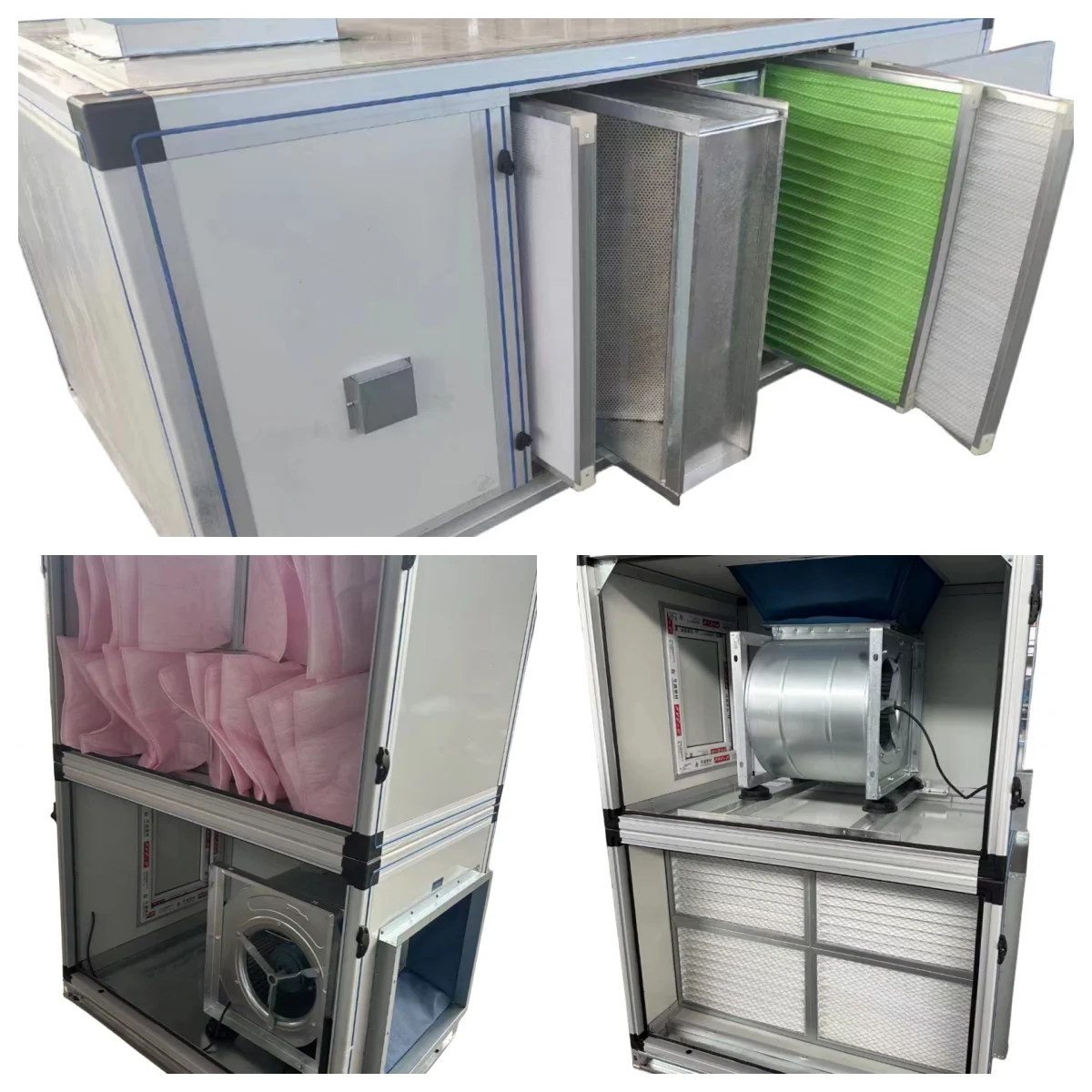

1：Initial efficiency G4+medium efficiency F8+efficient H13 purification and filtration can be configured according to actual needs
2：Special industries can configure micro Electrostatic precipitator+activated carbon filtration+ultraviolet sterilization+ozone
sterilization and other dedusting and sterilization function section
2：Special industries can configure micro Electrostatic precipitator+activated carbon filtration+ultraviolet sterilization+ozone
sterilization and other dedusting and sterilization function section
1：Single chip microcomputer and PLC control system
2：Provide motor overload protection, heating windless power outage
protection,and humidification leakage protection
3：Alarm after blockage in the purification filtration section
4：Reserve 485 interface and provide modbus protocol; Integrated PLC system to achieve automatic adjustment and control of positive
and negative pressure in the usage environment according to special needs
protection,and humidification leakage protection
3：Alarm after blockage in the purification filtration section
4：Reserve 485 interface and provide modbus protocol; Integrated PLC system to achieve automatic adjustment and control of positive
and negative pressure in the usage environment according to special needs
Please provide the data Choose the right product for you |
1：The highest temperature in summer and lowest temperature in winter in the city, as well as the altitude |
2：Required purification level |
3：The length, width, and ceiling height of the purification area |
4：Is there any heating equipment in the purification area |
5：Do we need constant temperature and humidity function? |
6：Do you need sterilization function? |
7：Does the control system require a PLC |
Q1.Are you factory or trade company?
Q2.Are there any order requirements?
A:We are manufacture,with OEM service.
Q2.Are there any order requirements?
A:We will appreciate it a lot if you can offer us your product performance requirements and operation environment, so that we can customize optimal production to meet your every requirement.
(1) Air volume
(2)Cooling/heating capacity
(3) Cooling/heating area
(4) Power and voltage
Q3.What are your Before-sale services？
A:(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
Q4.What are your In-Sale services？
A:(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
Q5.What are your After-sale services?
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
A:(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers
installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation for non-human factor damages,within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's
two-way communication.
two-way communication.
Q6.How long is the delivery time?
A:Generally it is 1-7 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
