This air handling unit is published with the manufacturer’s full specification — airflow 4000m³/h, type Air Handling Unit. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Operating Voltage: 380/400 VAC
- Cooling Capacity Range: 25.5Kw
- Heating Capacity Range: 30.7Kw
- Airflow: 4000m³/h
- Warranty: 1 Year
- Place Of Origin: Beijing, China

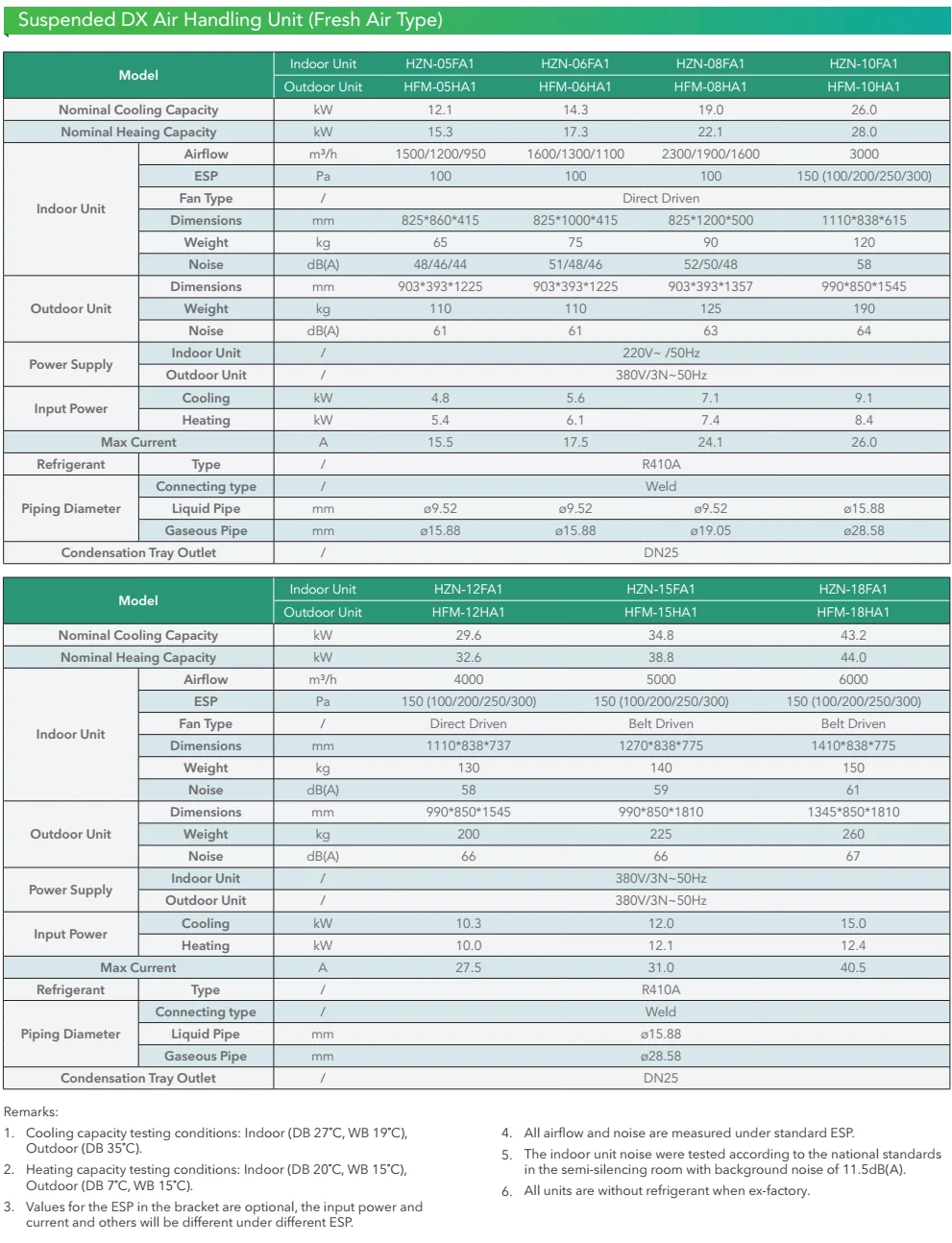

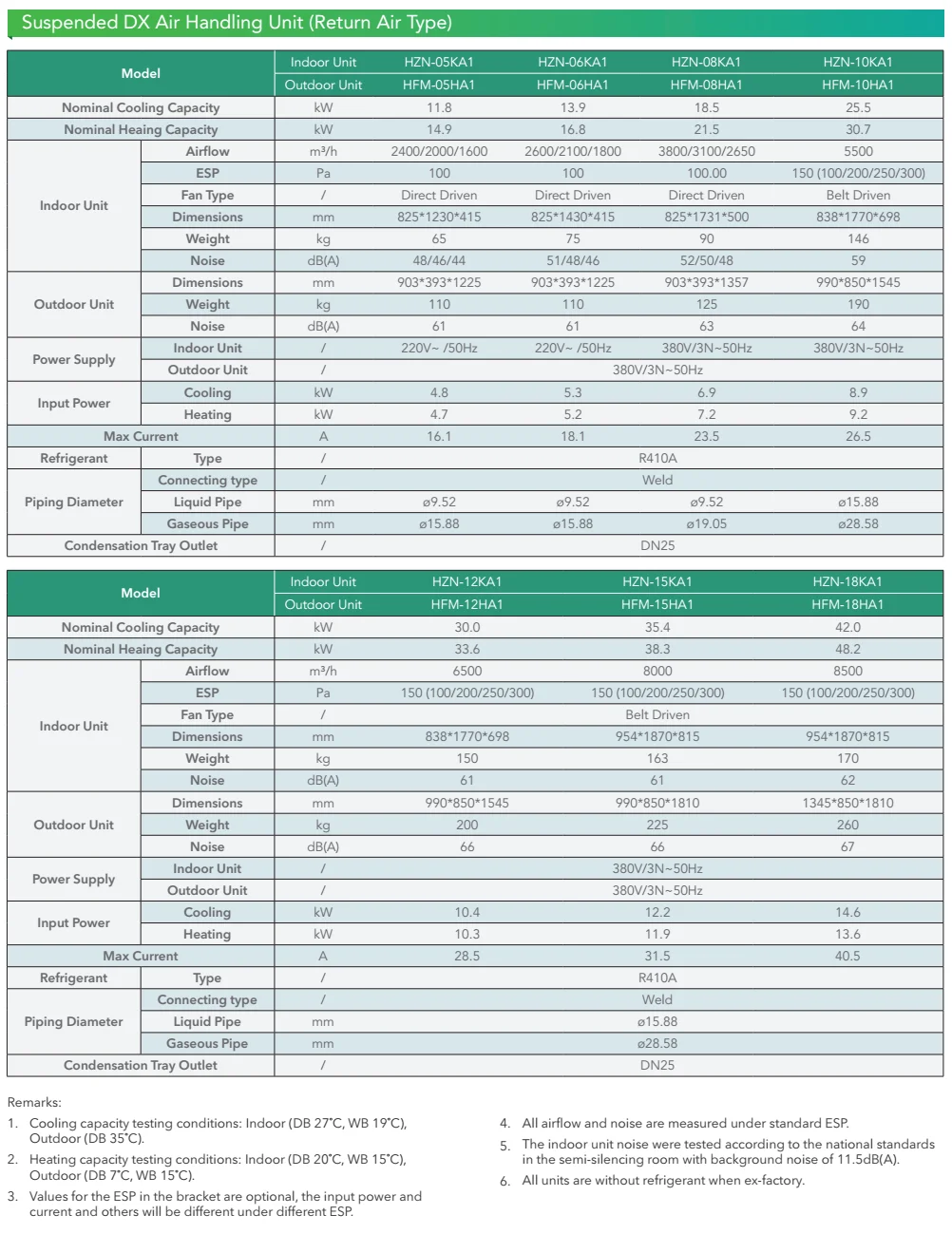

Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 4000m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 1500 KG |
| Brand Name | Airwoods / Benclimate / Holtop |
| Dimension(L*W*H) | customized size |
| Cooling Capacity Range | 25.5Kw |
| Heating Capacity Range | 30.7Kw |
| Humidifier Type | Wet film/dry steam/double gasified/electrode/electricity heating |
| ESP | 150 (100/200/250/300) |
| Optional Control | PLC/DDC (with actuator and valves) |
| Fan Type | Belt-driven |
| Insulation Thickness | 25/50mm |
| Air To Air Heat Recovery Device | Sensible/Enthaply heat wheel |
| Products | AHU with DX coil |
| Packaging Details | standard plywood FAHUahu with DX coil |
| Port Of Dispatch | Guangzhou or Tianjin |
| Selling Units | Single item |
| Single Package Size | 100X50X150 cm |
| Single Gross Weight | 110.0 kg |
| Supply Ability | 5000 units per Month |
Product Details

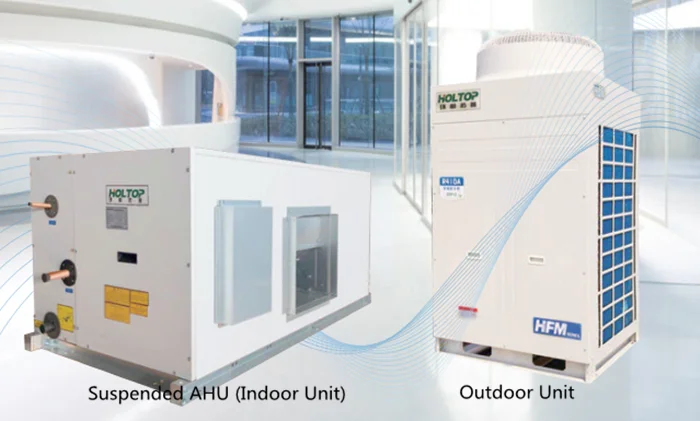

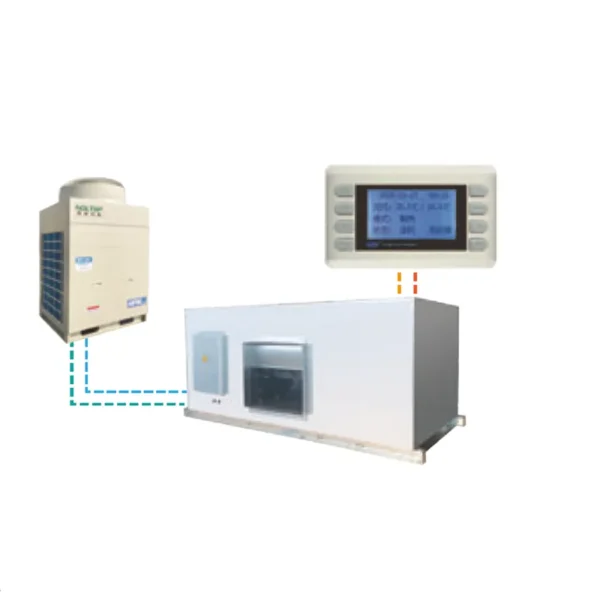

Air Handler AHU DX coil Air Handling Unit Direct Expansion Coil
Combined with core technology of HOLTOP AHU, DX (Direct Expansion) coil AHU provide both AHU and outdoor condensing unit. It’s an flexible and simple solution for all building area, such as mall, office,Cinema,School etc.
Compared with other centralized and semi-centralized air handling systems, the DX Coil Air Handling system layout is simpler and more flexible, so it is widely used in shopping malls, office buildings, apartments, theaters, schools and other places.

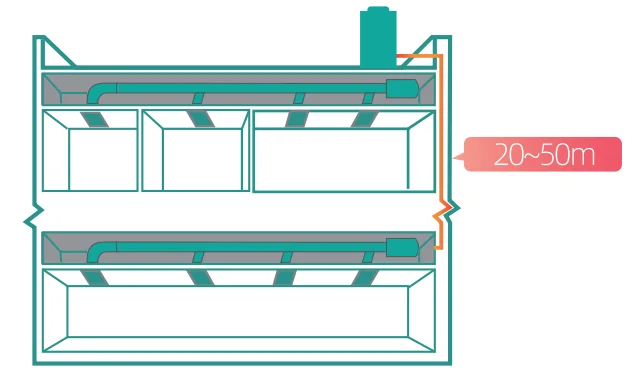

| Long piping design The pipe connection length between indoor unit and outdoor unit can reach 50m, and the maximum drop can reach 25m. The indoor unit and outdoor unit can be installed on site more flexibly. |

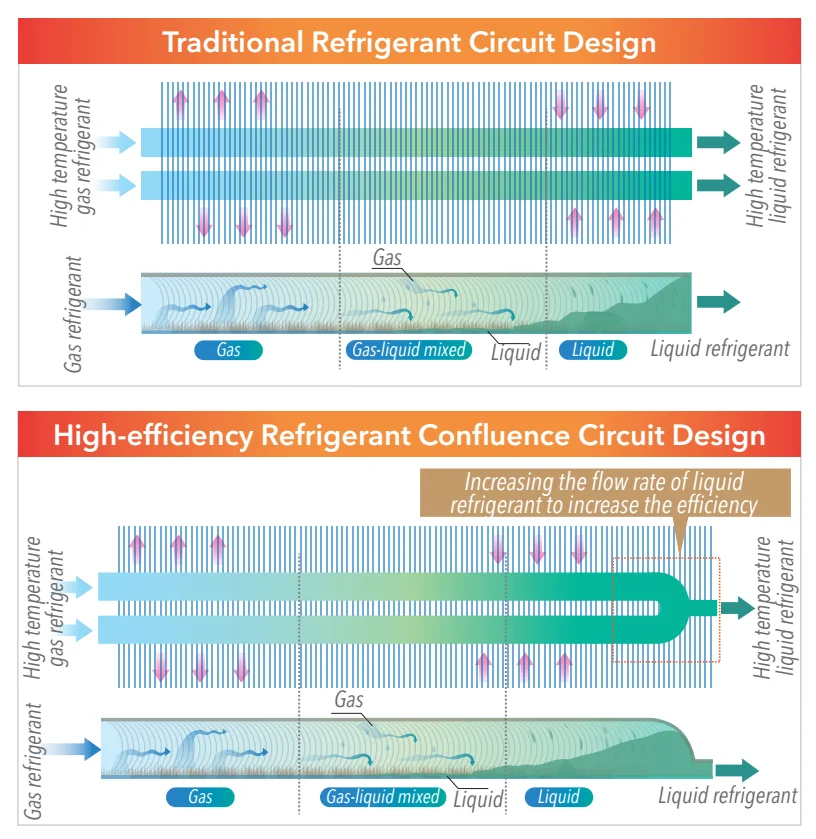

Efficient refrigerant heat exchange flow path
Efficient two-in-one refrigerant confluence technology improves the liquid phase flow rate of the refrigerant, improves the overall heat transfer coefficient of the heat exchanger, and improves supercooling and strengthens the refrigerant transmission distance.

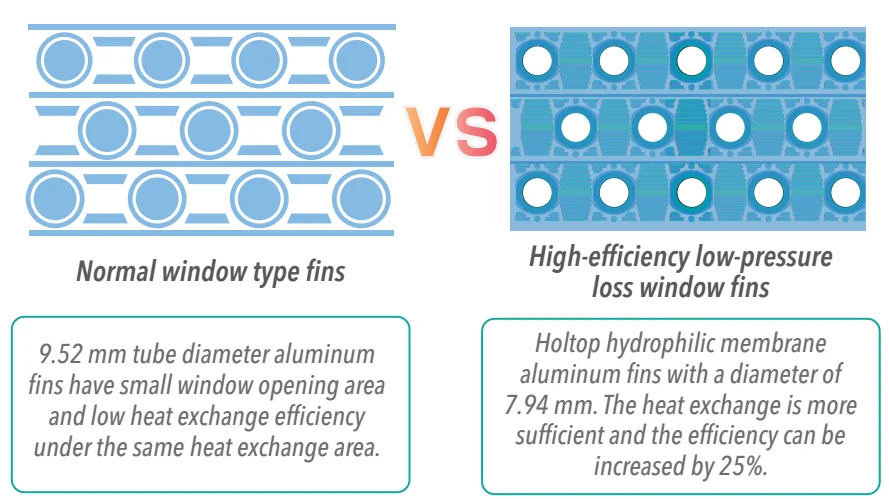

High efficient heat exchange fins
The innovative high-efficiency low-pressure loss window fins are made of hydrophilic membrane aluminum, which can improve the heat transfer wet film heat transfer coefficient and improve the overall heat exchange performance of the unit.
Comfort Control System
The wire controller is simple and convenient, flexible in application, and widely used in small and medium-s
Functional control system
Building systems based on the MODBUS protocol can be directly connected to the centralized control system through the MODBUS communication interface standard on the unit, no need to access conversion equipment, and are suitable for large and mediumsized air-conditioning locations.
Dual Temperature Sensors
Innovative design with two temperature sensors, one at return vent, and one at the control panel, to detect the indoor temperature around the room, and make sure the hot wind(winter heating mode) would be sent to each corner of the room uniformly.

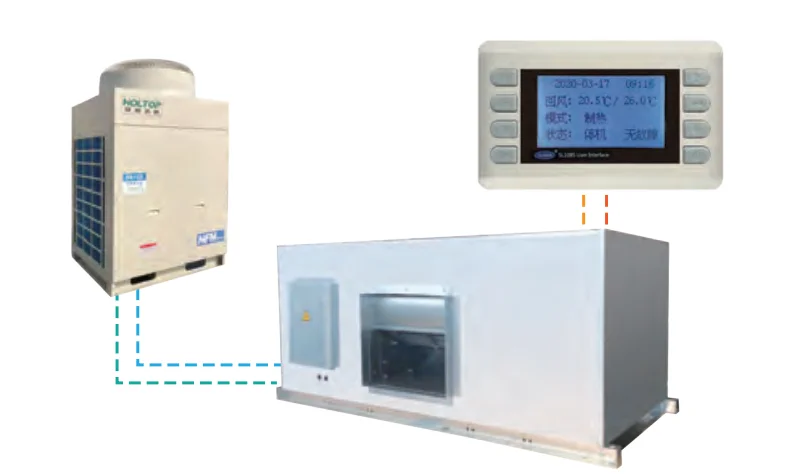

Control network topology diagram

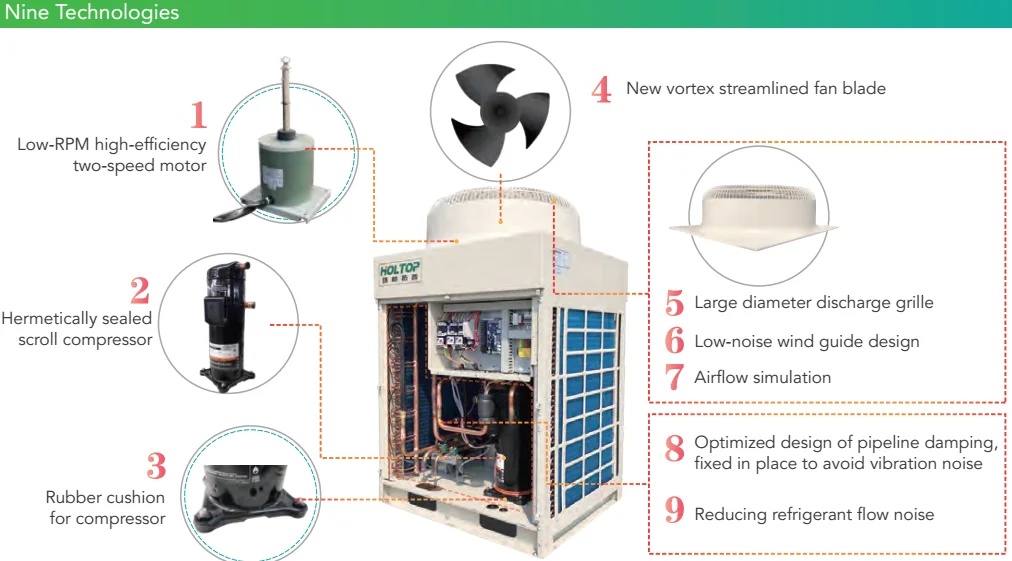

Advanced silencing technology, More quiet and reliable operation

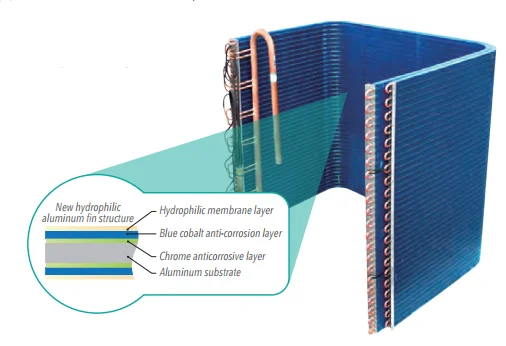

High efficient heat exchanger
| New U-shaped heat exchanger As the core element of the refrigeration system, the heat exchanger directly determines whether the air conditioning system is reliable and energy-saving. | U-shaped heat exchanger structure The copper tube adopts φ7.94 thread copper tube, the flow rate is moderate, and the comprehensive performance of heat exchange defrosting is optimal. |
Green Refrigerant
The Holtop HFM series SUSPENDED DX AIR HANDLING UNIT uses R410A as refrigerant, with zero ODP, to avoid damage to the ozone layer and at the same time, greatly improve cooling capacity.
Easy maintenance
The whole unit uses frameless foaming boards to construct, and self-tapping screws to connect these boards, making it very easy to be disassembled for maintenance.
High ESP Design – Easy Selection
The indoor unit generates a high ESP, making it possible to cover the whole area to avoid uneven distribution of temperature. Such feature makes solution and design much easier.
Wide Operation Temperature Range
Even at 15°C, the cooling function can be activated normally; Heating function can be activated at -10°C in

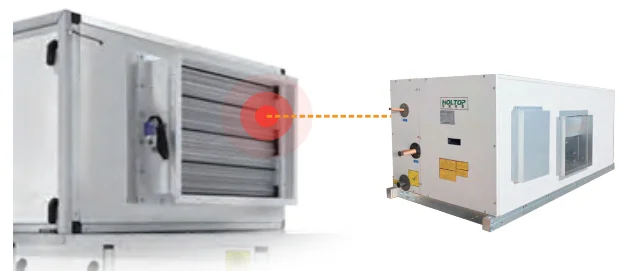

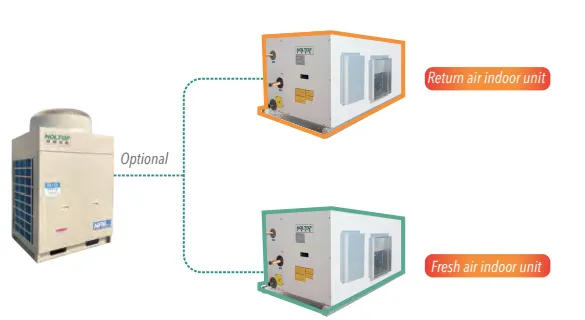

Both return air and fresh air indoor units available
The HFM outdoor unit can work with both return air and fresh air Indoor unit, to meet different customers’ need

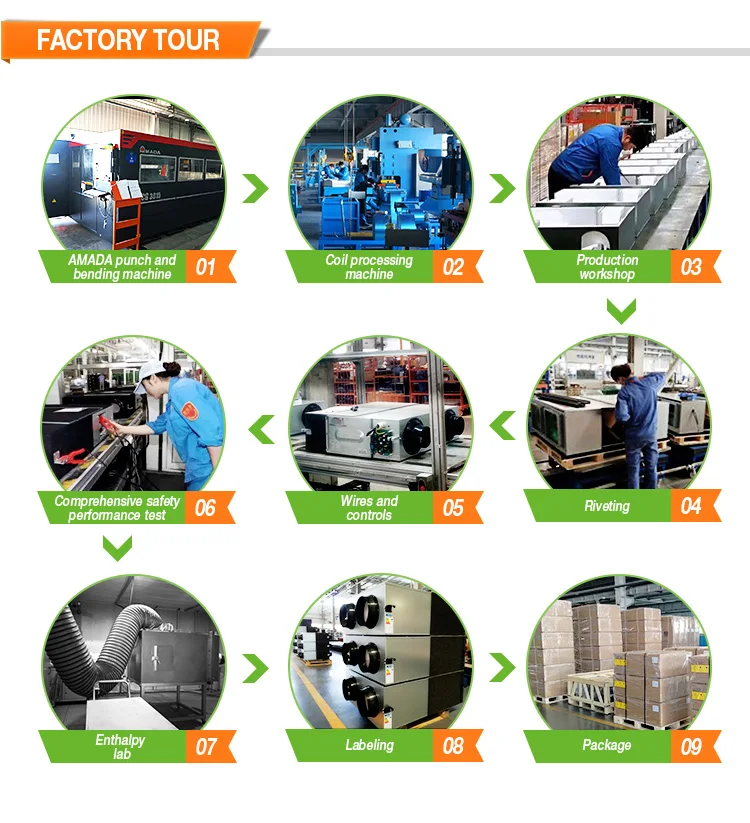

Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products includes energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop professional project solution team can also offer customized hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service.

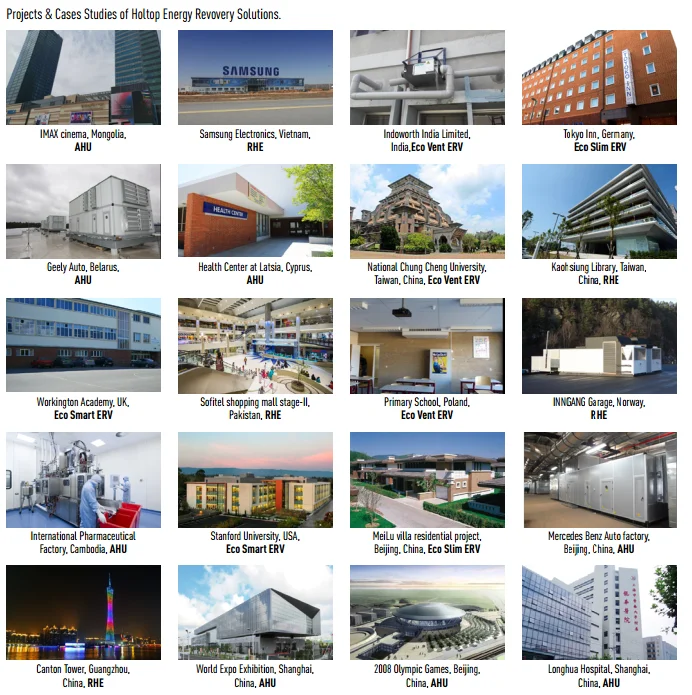

Project Reference
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $8000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
