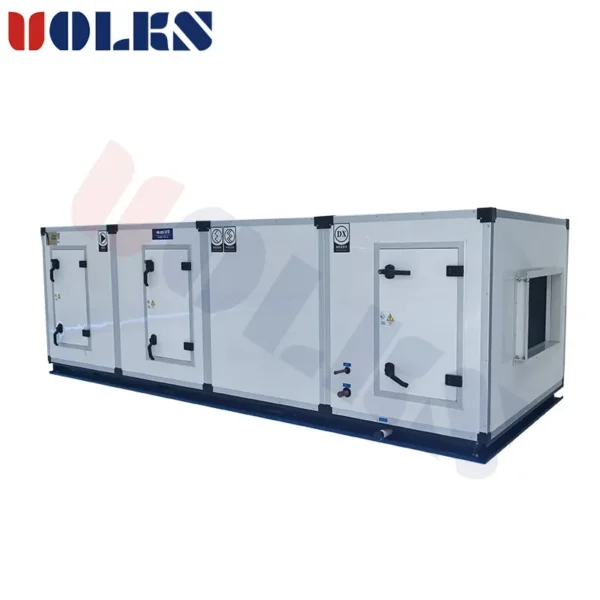

Air Handling Unit, HVAC

Air handling unit — type Air Handling Unit. The complete factory specification follows. Made by Shandong Volks Air Conditioner Group Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Warranty: 2 Years
• Warranty Of Core Components: 1 Year
• Place Of Origin: Shandong, China
• Application: Hospital
• Type: Air Handling Unit
• Mounting Type: Ceiling Mount

Technical Specifications

Product Details

Products Description

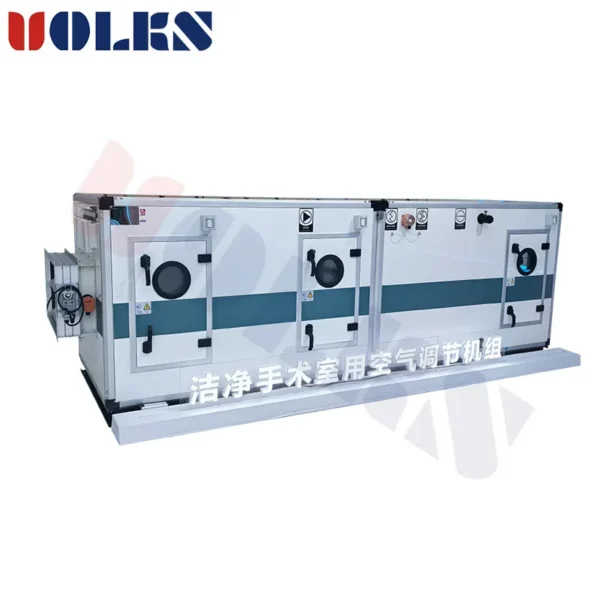

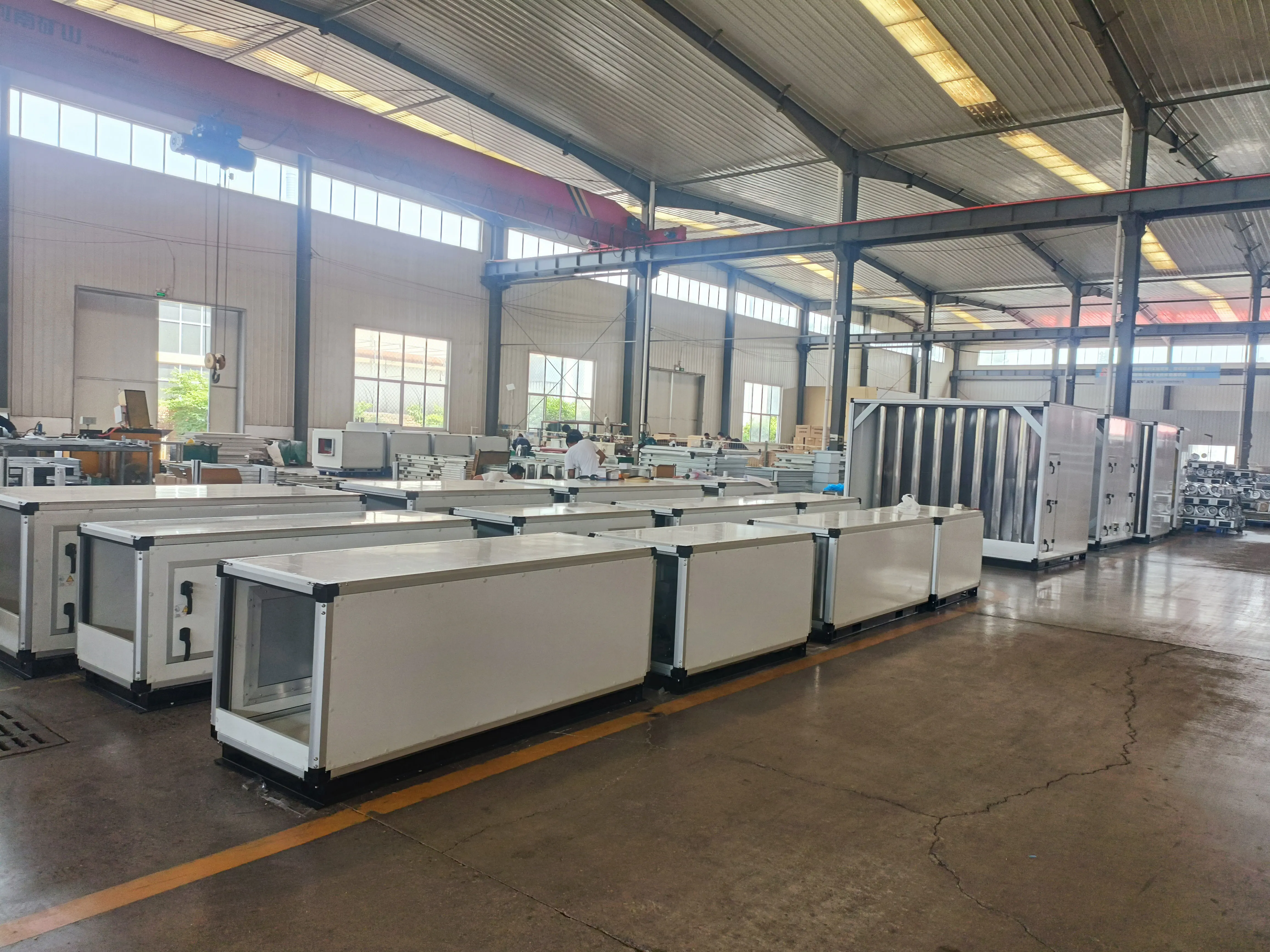

AHU

VOLKS combined air-handling units can provide a variety of functional segment combinations according to customerrequirements, and can be widely used in subways, exhibition centers, airports, offices buildings, hotels, restaurants,theaters, shopping malls,gymnasiums, state administrative organs, electronics, precision machinery, textiles, medicine,food, petrochemicals, tobacco and grass and other occasions. If the unit is installed near the coast or surrounded bycorrosive environments ,such as paper mills,ironworks, chemical plants, etc., customers need to consult with the factory so as to avoid corrosive environments hindering the stability of the product's long-term operation. voLKS combined air handling units can be configured with intelligent control system according to customer's demand,which is widely used in process air conditioning places and comfort air conditioning places.
The control system can choose industrial-grade high-precision controllers with high reliability, fast operation speed,
stronganti-interference ability, etc., with high-quality sensors, actuators, etc., to ensure the control accuracy and stability of theuser's system, which can realize the automatic control of process air conditioning for hospital operating rooms, pharmaceutical factories, electronic factories, precision laboratories and so on.

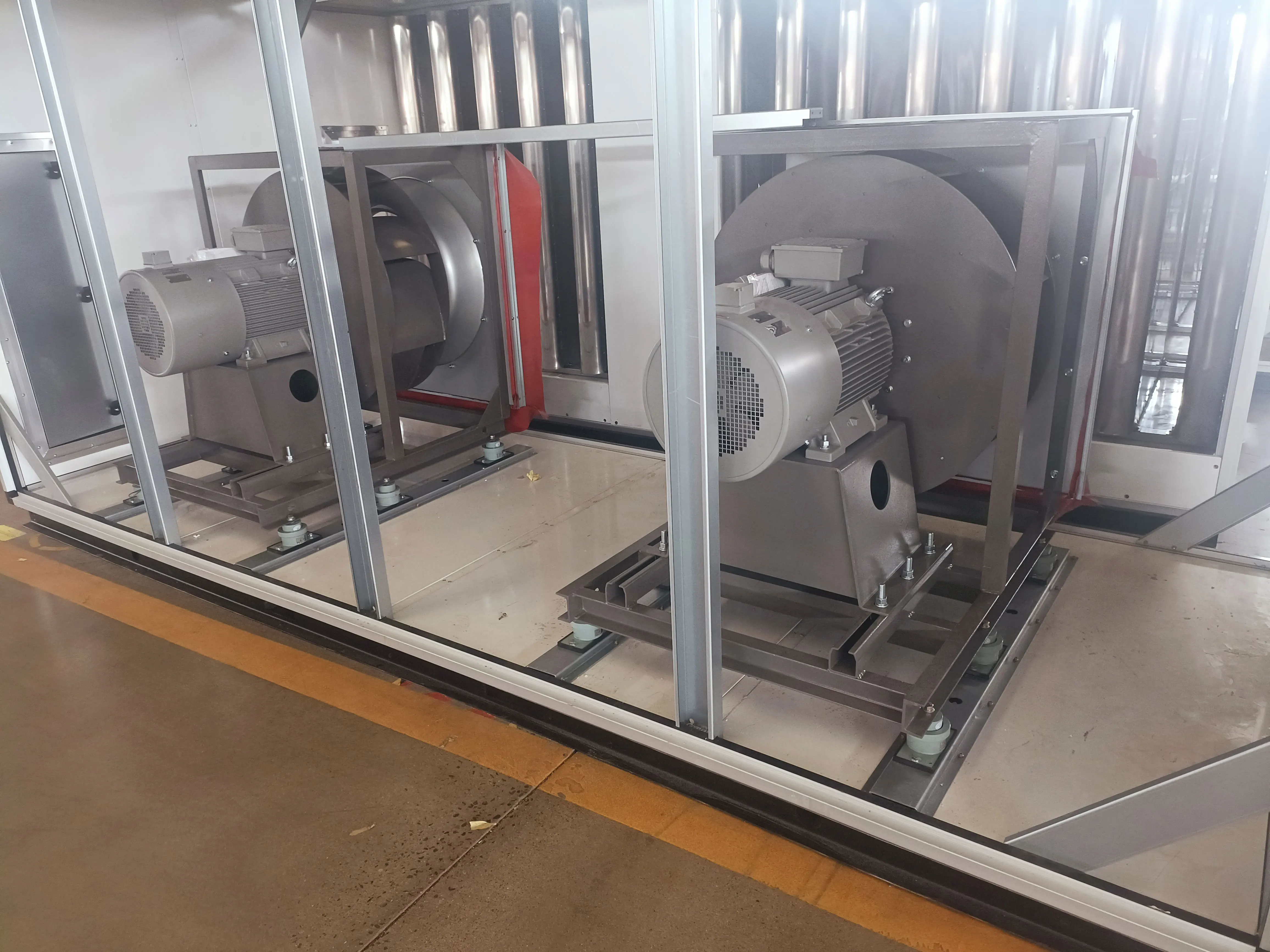

Details Images

Self-developed mortise and tenon structure

The overall foam-molded box is surrounded by an aluminum alloy frame. featuring concave and convex grooves. During installation,
these grooves form a sealing structure through the interlocking of yin and yang modules, resembling a mortise and tenon joint. The bolts and embedded nuts are tightened to create a torsionally rigid and sealed box. The mechanical strength of this box complies with the European standard EN1886D1, and its air leakage rate meets the requirements of the European standard EN1886L1.

No cold bridge, not easy to rust

The interior of the box is isolated from the outside by high-pressure foamed polyurethane and professionally designed rubber
sealing strips , thereby effectively preventing cold bridges from occurring, and the cold bridge factor can reach the European
standard EN1886 TB1 level. The outer wall plate of the cabinet is wrapped in the aluminum frame, and the corners of the sheet
metal are isolated from the humid air to prevent rusting to the maximum extent.

Internal flat clean and hygienic

The interior of the box is seamlessly and neatly assembled, eliminating gaps and dust accumulation corners. The water pan employs
a V-shaped de sign with a longitudinal slope, ensuring complete drainage of condensate during operation and preventing bacterial
growth, thereby satisfying cleanliness and hygiene standards.

Good heat preservation performance

The box panel is made of low thermal conductivity polyurethane and internal and external double-laver steel plate one-time foam
molding, foam density > 50kg/m3, with good thermal insulation and noise reduction performance, box heat preservation performance
can reach the European standard EN1886 T2 level.

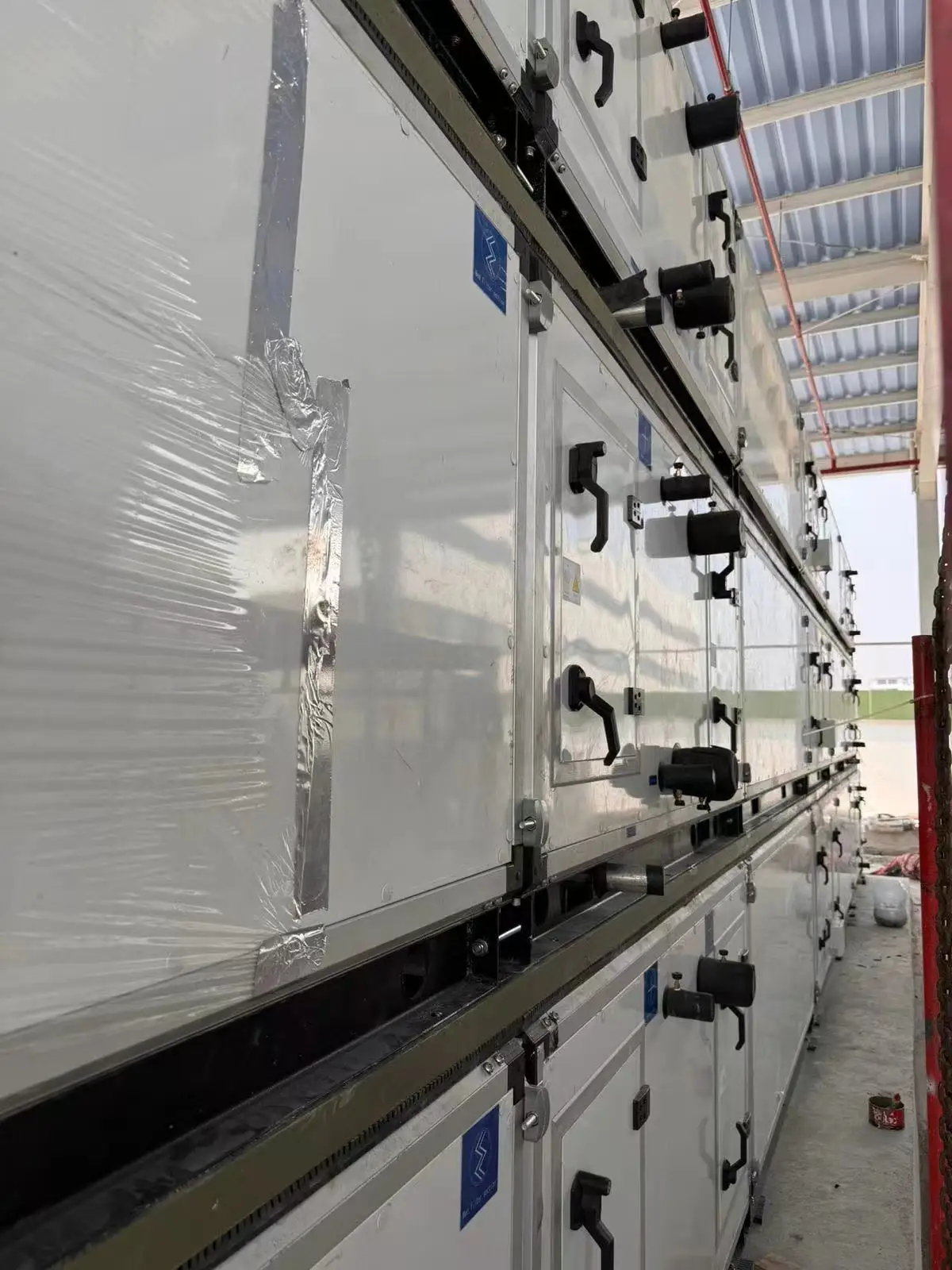

Access door designed with aerospace technology

The access door, designed with aviation technology, is molded integrally through foaming process, featuring high strength, minimal
deformation, and a double sealing mechanism to prevent leakage. Additionally, it is equipped with a safety pressure relief device
to ensure safe operation.

Product Paramenters

Unit Left/Right Type Judgement

Facing the direction of airflow, the inlet and outlet pipes are on the left side for the left type,and vice versa for the right type.

Air volume table(Partial parameter)

Unit Specifications VAC			Head-on wind speed of coil（m³/h）
				2.00	2.25	2.50	2.80	3.00	3.50
06	07	1567	1762	1958	2193	2351	2742
06	08	1790	2014	2238	2506	2685	3133
06	09	2207	2783	2758	3089	3311	3862
06	10	2527	2843	3158	3537	3791	4422
08	10	3610	4061	4512	5053	5415	6318
08	11	4067	4575	5083	5964	6101	7117
08	12	4524	5089	5655	6334	6786	7917
08	13	4981	5604	6226	6974	7472	8717
08	14	5438	6118	6798	7614	8157	9517

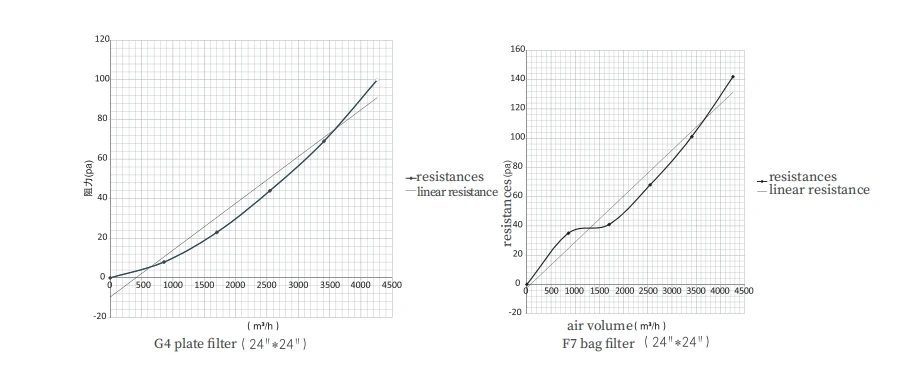

Filter section

Note: According to user's needs

1.Optional—nylon filter (not recommended for built-in), multi-layer metal filter.

2.The filtration area of the plate and bag filter is the same but the thickness is different, the plate thickness is 46mm, the bag thickness is 381mm.

3.The external filter can be drawn from the side and the built-in can be removed from the front.

4. The built-in filter installation form is divided into chute and frame: in general, the comfortable occasions adopt the form of chute. The purification occasions employ a frame structure.

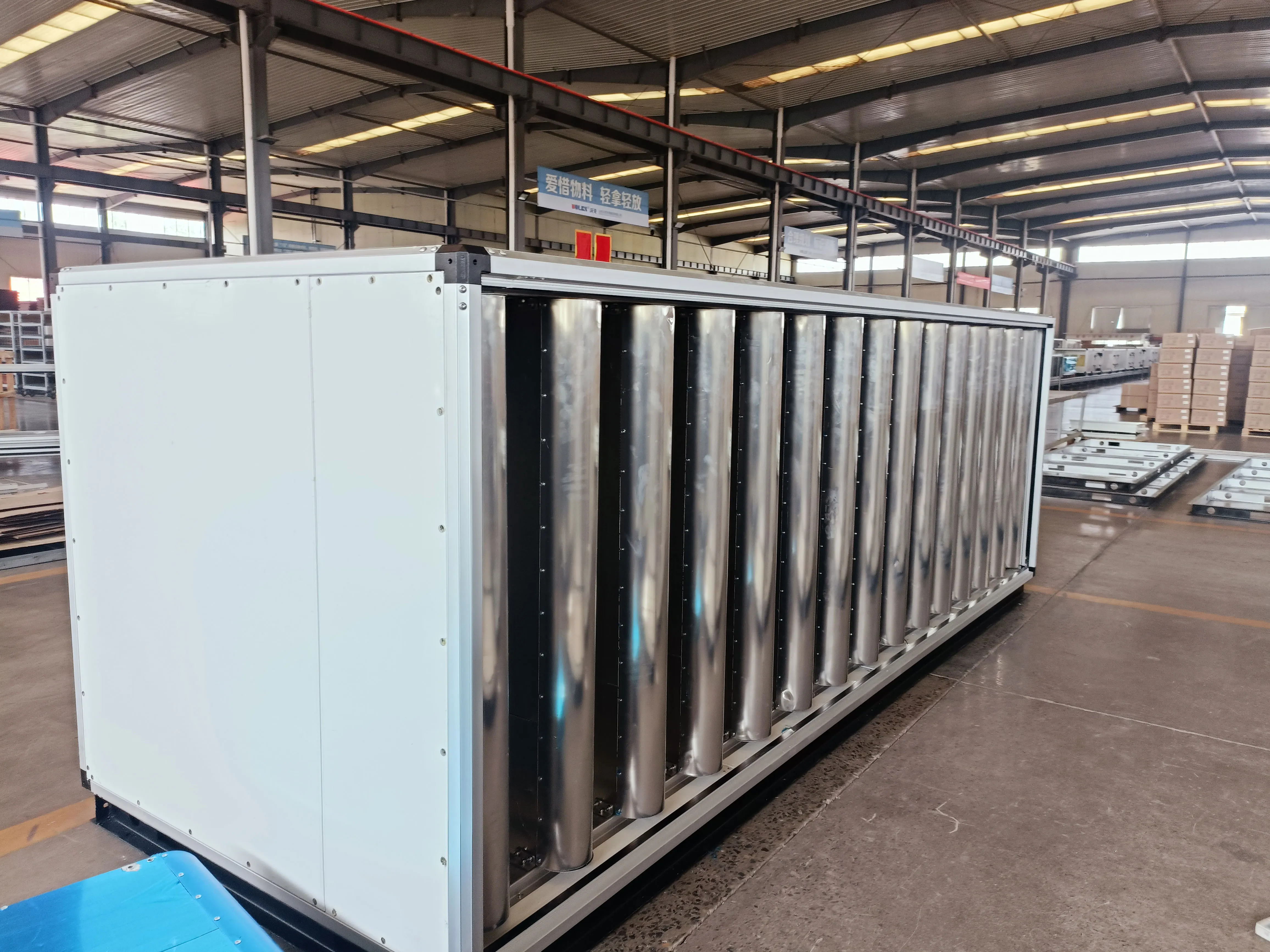

Cooling and heating section

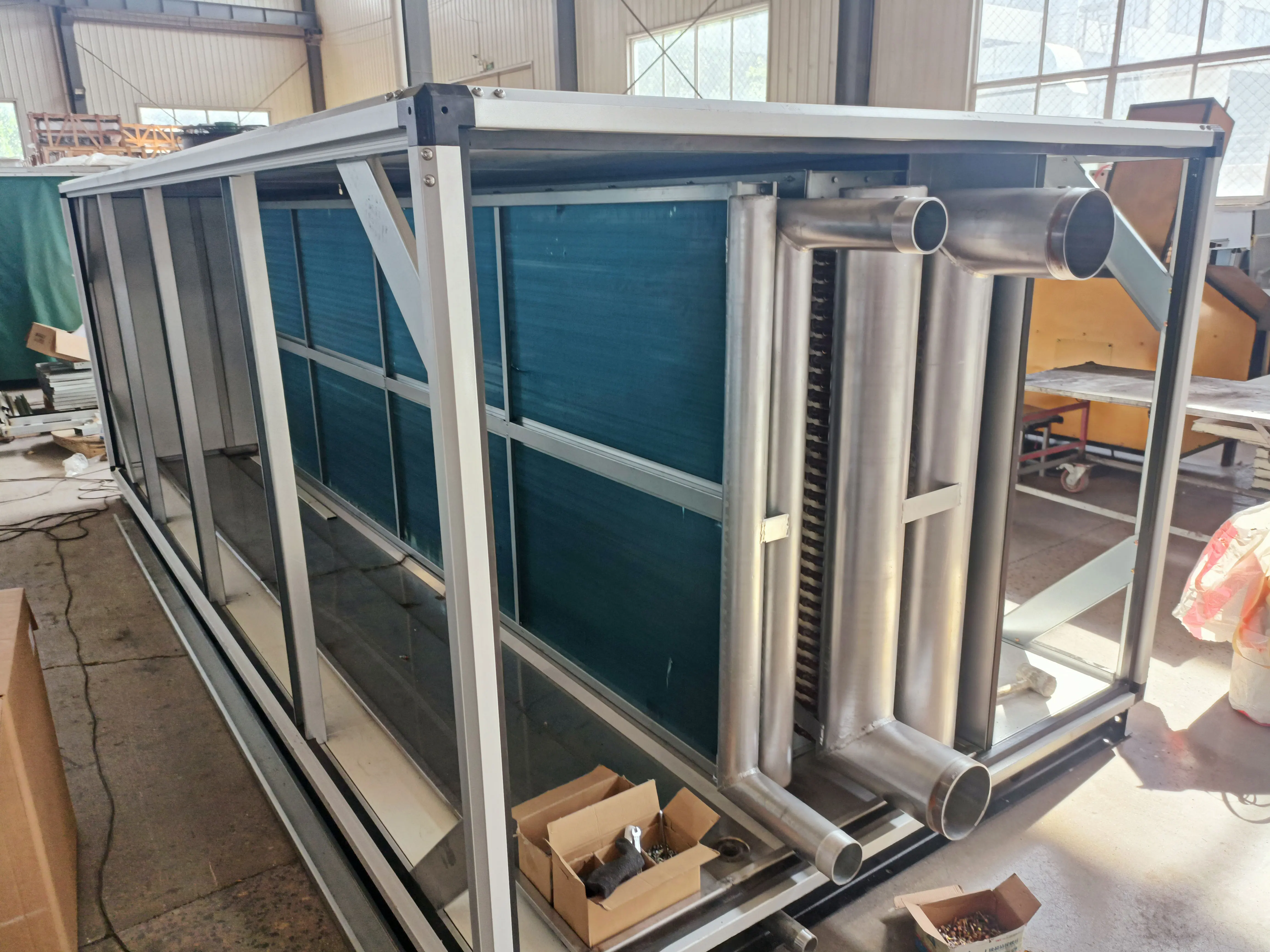

Cooling and heating coil using copper tubes, aluminum fins, aluminum alloy fins using mechanical expansion process fixed to the copper tube, fins spaced at 8-14 pieces /inch; coil end plate made of galvanized steel, the collection pipe is made of steel pipe,the upper part is equipped with air vent, the lower part is equipped with a drain port, water supply and return pipe are standard specitications tor the steel pipe: coil wind speed uniformity at the inlet cross-section of the wind is greater than 80%, the coil undergoes factory testing at a pressure of 2.4MPa, suitable for working pressure below 1.6MPa; water supply, return water, condensate water connections are located on the same side of the unit casing.; A water baffle can be installed behind the coil upon request, even at high wind speed, water droplets will not be blown out. The water receiving plate is made of steel plate and is finished with plastic spraying, with heat preservation outside to prevent condensation, and the lowest point of the water receiving plate is equippedwith a drainage pipe, which can discharge the condensation water smoothly.

Cooling Performance Table Parameters(Part)

Units Specifications VAC			Rated air volume m/h	Fresh air condition			Return air condition
						4-row			4-row
						Sensible cooling capacity kW	Total cooling capacity kW	Sensible cooling capacity kW	Total cooling capacity kW
06	07	1958	9	21	8	9
06	08	2238	11	24	9	11
06	09	2758	13	29	11	13
06	10	3158	15	33	12	15
07	10	3610	17	38	14	17
07	11	4067	19	43	16	20
08	10	4512	21	47	18	22
08	11	5083	24	53	20	24
08	12	5655	27	59	22	27

Hot water coil Performance Table Parameters(Part)

Units Specifications VAC			Rated air volume m/h	Fresh aircondition (inlet air dry-bulbtemperature 7°C)			Return air condition (inlet airdry-bulb temperature 15°C)
						Total heating capacity KW			Total heating capacity KW
						1 row	2 row	1 row	2 row
06	07	1958	12	18	9	14
06	08	2238	14	20	10	16
06	09	2758	17	25	12	20
06	10	3158	20	29	14	23
07	10	3610	23	33	16	26
07	11	4067	26	37	18	29
08	10	4512	28	41	20	32
08	11	5083	32	46	23	36
08	12	5655	36	52	25	41

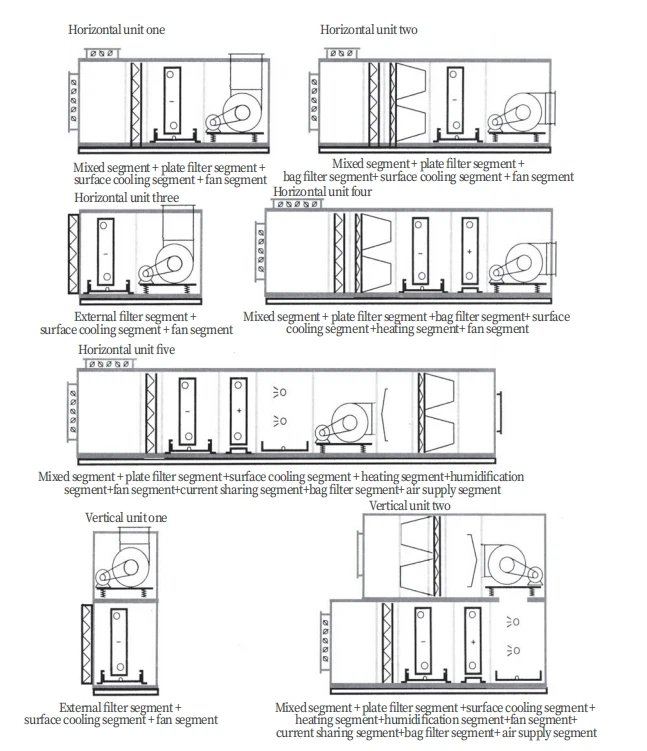

Common function segment combination(Part)

Installation Instructions

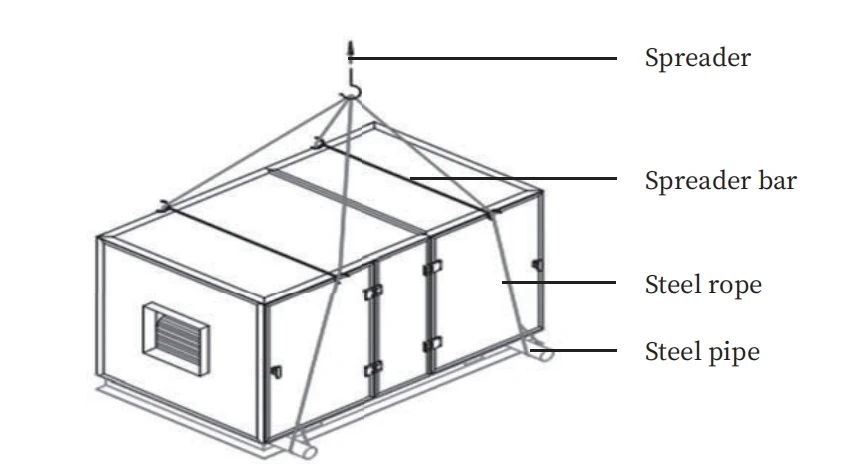

Hoisting method

For safety, lifting must be operated according to the method shown in the drawing. When lifting, the place where the steel rope
touches the box should be padded with hard cardboard or other materials to prevent the steel rope from abrading the unit.

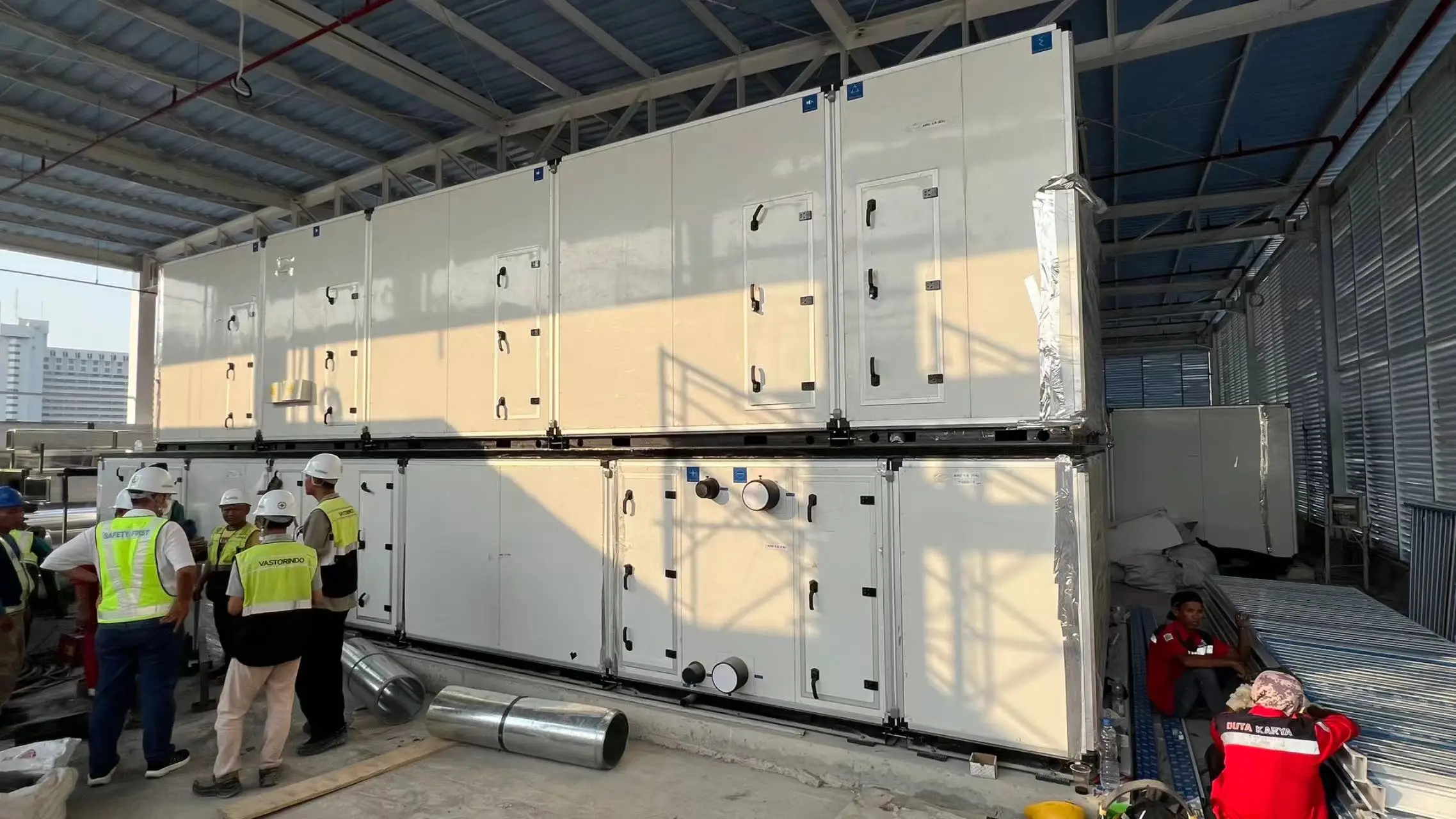

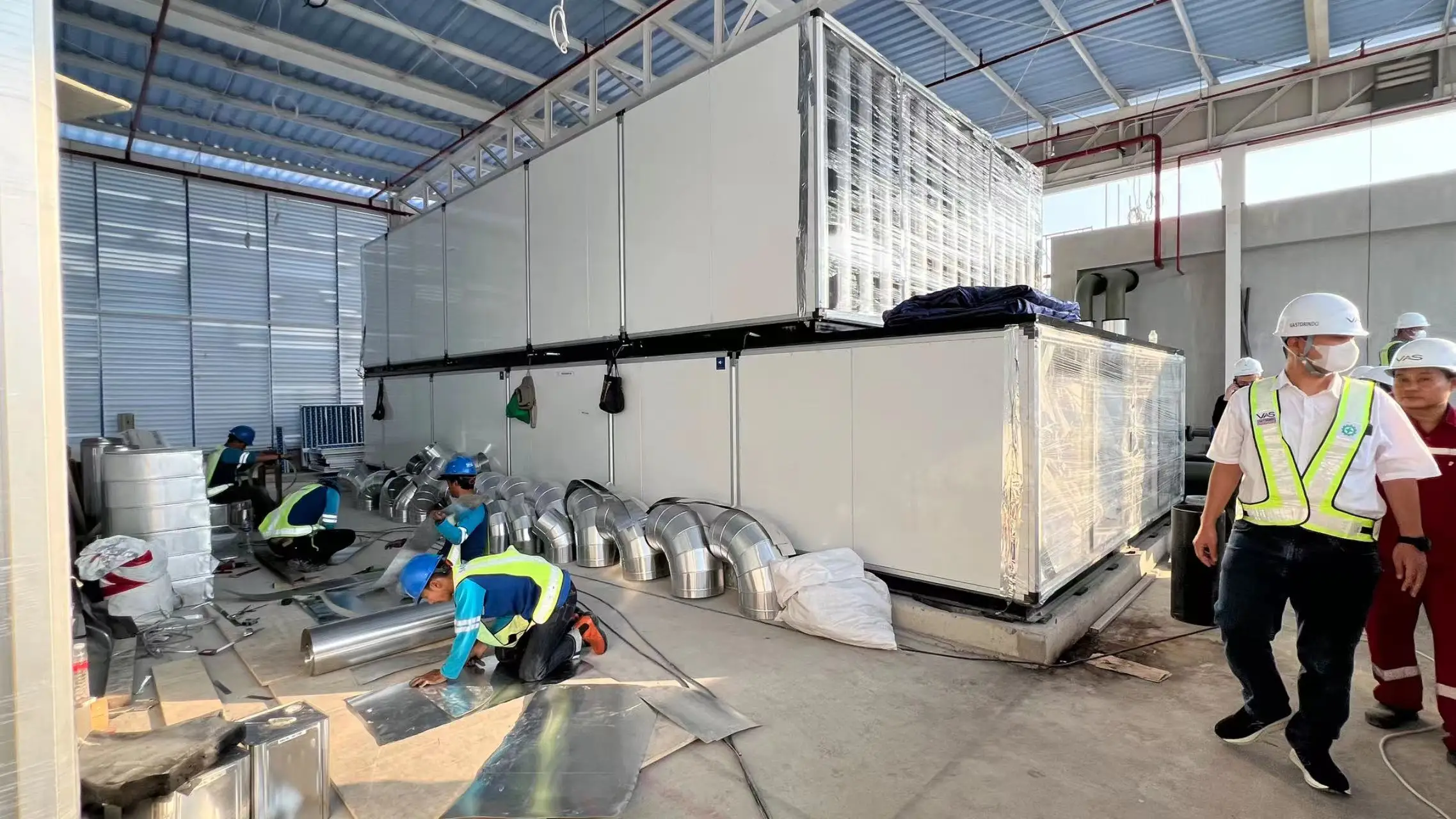

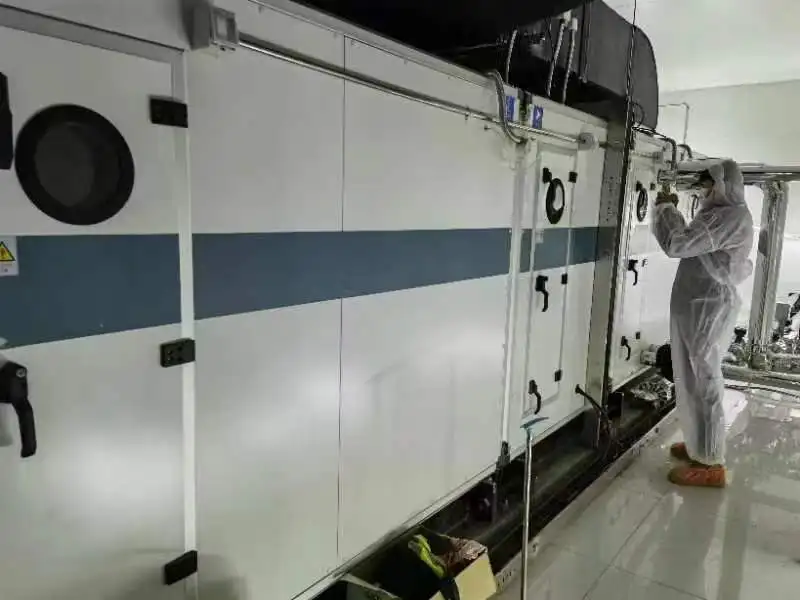

Unit installation

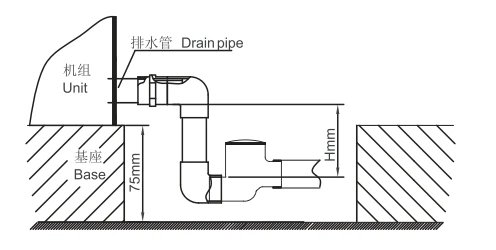

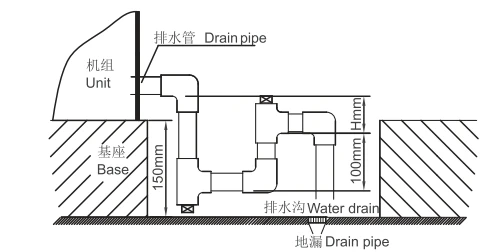

U-shaped water seal installation diagram

H=Unit inside static pressure(mmH2O)+20

Increase the height of the base when the negative pressure inside the machine exceeds 750 Pa.

Floating ball type water seal installation diagram

H=Unit inside static pressure(mmH2O)+20

Increase the height of the base when the negative pressure insidethe machine exceeds 750 Pa.

1.All structural air conditioning units should be installed on a horizontal basis.

2.Around the unit, especially the unit piping and fan and motor access door side, there should be sufficient space for daily inspection and regular maintenance of the unit.
3.Condensate outlet must be connected to a "U" type drainage pipe or float type water seal before connecting to the outer tube.

4.When connecting the coil in and out of the water pipe, balance the force against excessive force to avoid damage to the coil.

5.The motor of the air conditioning unit should be connected to an overload-protected power supply with ground protection.

6.Flexible connection between the air conditioning unit and the external air duct should be used to avoid transmission of vibration.

Company Profile

Shandong Volks Air Conditioning Group

Shandong Volks Air Conditioning Group, started from an HVAC manufacturing plant in 1993. After nearly 30 years of development, it
becomes to be a high-tech enterprise with advanced production equipment and modern workshop which covers nearly 200,000 ㎡ in
Dezhou . It is a supplier of integrated solutions for air source heat pump and central air-conditioning systems. Our business
covers development, design, production, sales, installation and maintenance.

The company attaches great importance to all-staff technical progress and technological innovation, and forms a team of industry experts, technical authorities and company technicians and also gained lots of national patents. We passed CRAA, IS09001:2015 system, IS014001 and HSAS18001:2007 system, AAA credit rating and other international and domestic certificates.

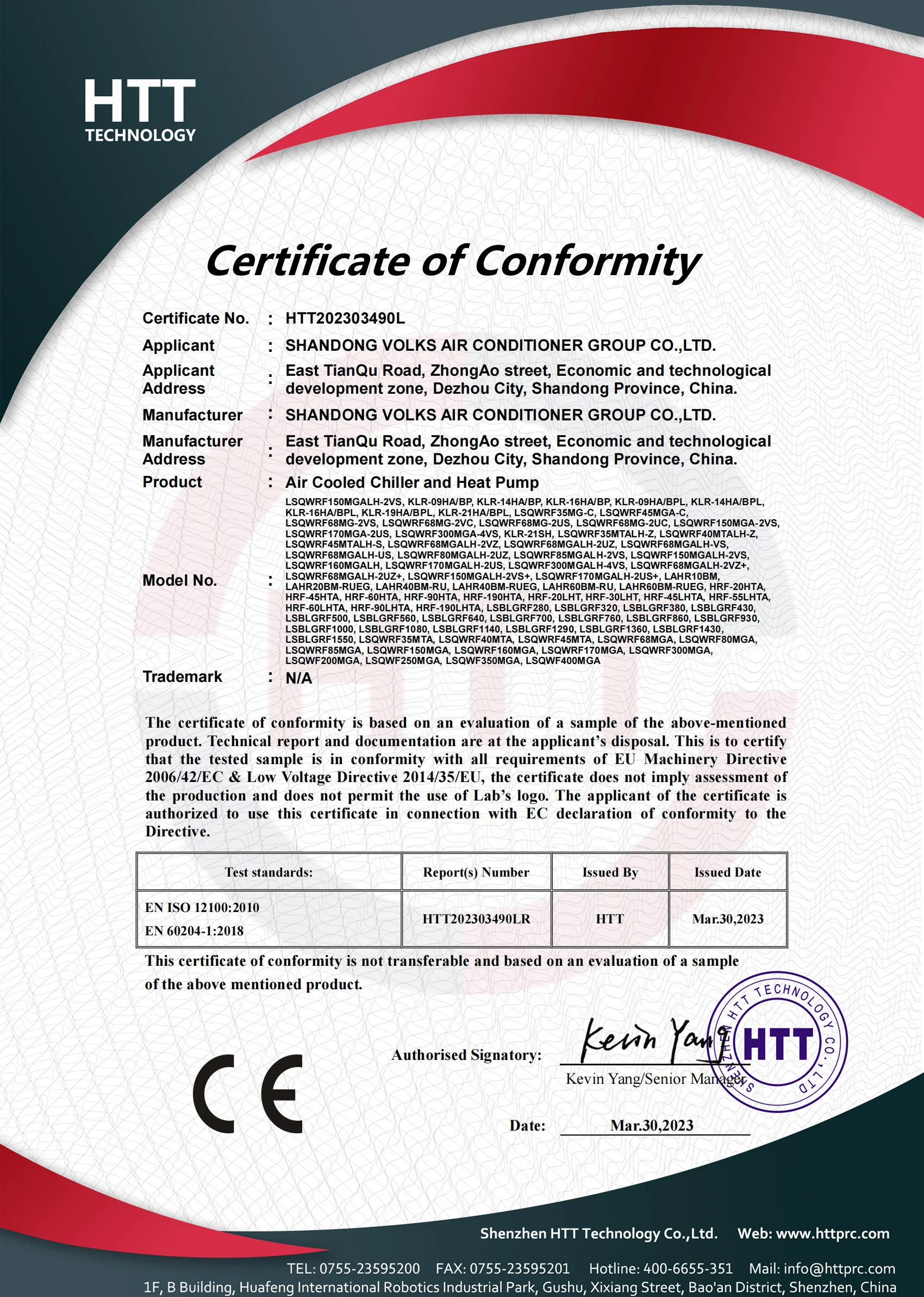

We also have import and export right . The products have obtained the EU CE certification, SGS factory certification and ROHS certificate. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established four major labs:national standard central air conditioning laboratory, national standard central air conditioning terminal laboratory, ultra-low temperature -35℃ air-cooled heat pump experiment and drying laboratory.
