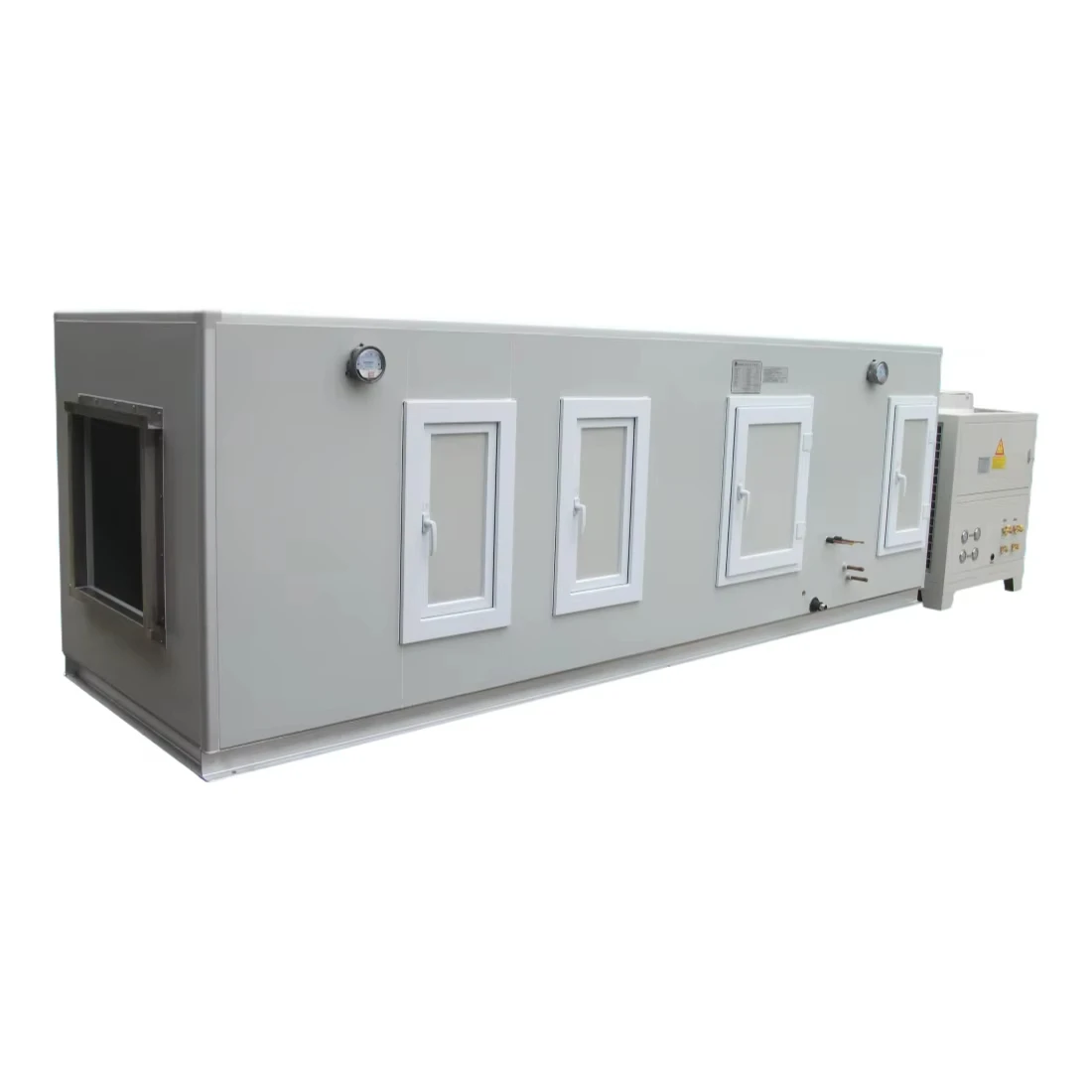

Air handling unit — refrigerant R134a, type Combined air conditioning unit. The complete factory specification follows. Made by KIMSENG HARDWARE COMPANY LIMITED (1 year on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Refrigerant: R134a
- Warranty: 3 Years
- Place Of Origin: Shandong
- Application: Commercial
- Type: Combined air conditioning unit
- Mounting Type: Floor Standing
Technical Specifications
| Type | Combined air conditioning unit |
|---|---|
| Refrigerant | R134a |
| Mounting Type | Floor Standing |
| Compressor Brand | Other |
| Fan Motors Type | DC |
| Motor Type | Brushless Motor, DC Motor, AC Motor, Brush Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Application | Commercial |
| Key Selling Points | High productivity |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Other |
| Place Of Origin | Shandong |
| Weight (Kg) | 2000 |
| Brand Name | Kaister |
| Dimension(L*W*H) | Customized |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

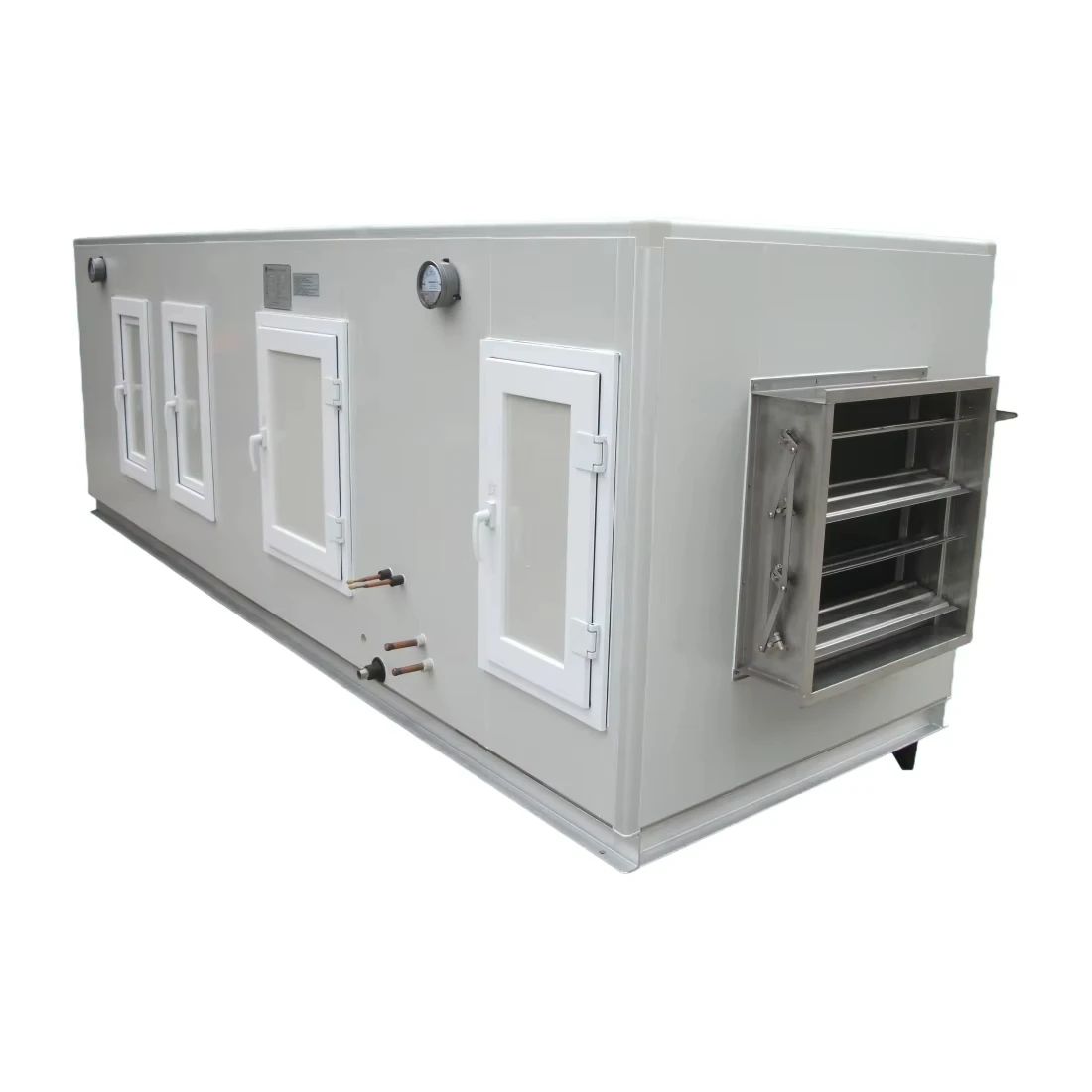

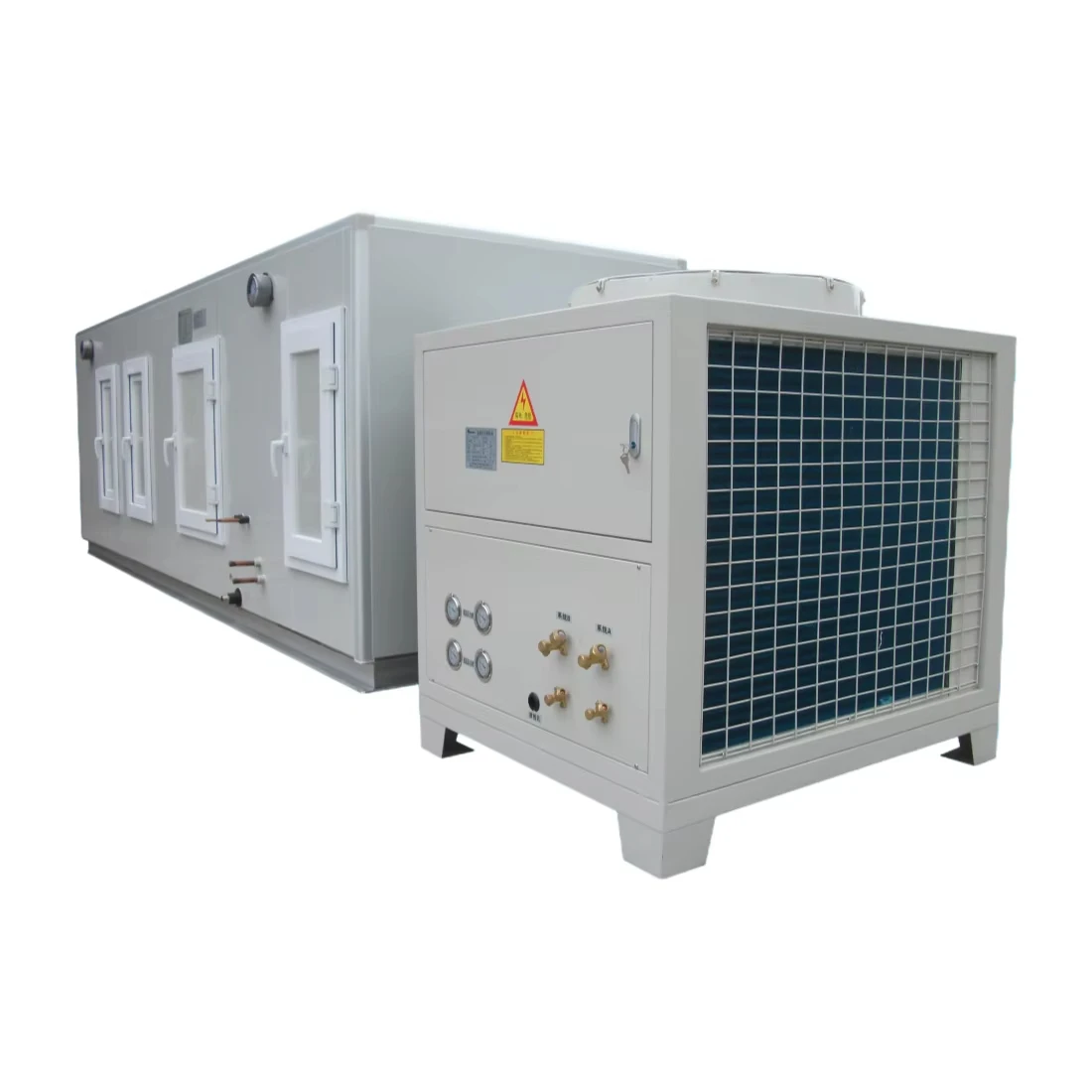

Direct expansion air conditioning units are divided into three categories: air-cooled constant temperature and humidity machines ,air-cooled air conditioning units, and deep dehumidification fresh air conditioning units. The air-cooled constant temperature and humidity machine is mainly designed for environments with strict requirements for temperature and humidity, as well as cleanliness, such as pharmaceutical factories, medical and health institutions, biological products, precision machining, optical instrument manufacturing, electronic industry production and packaging testing. The unit adopts a direct expansion evaporative coil with multiple models. The unit has the advantages of flexible design, easy installation, and expandable control.
Advantage：
Air cooled air conditioning units are suitable for environments with air cleanliness and temperature and humidity control functions, such as pharmaceutical factories, medical and health institutions, biological products, precision machining, optical instrument manufacturing, electronic industry production and packaging testing. They are suitable for air conditioning purification areas ranging from ten to several thousand square meters. Equipped with a direct expansion evaporator coil, it has the characteristics of simple system, easy installation, and low cost. The deep dehumidification fresh air unit is specially developed for temperature and humidity control air conditioning system solutions. The fresh air processed by this unit can independently bear indoor humidity load. The circulating fan unit can operate under high-temperature chilled water dry conditions, without the production of condensed water, preventing bacterial growth, and ensuring cleanliness and hygiene. The system does not require reheating and operates in an energy-efficient manner. The operating environment of the unit is corrosive, such as seaside, chemical area, smelting plant, etc., which may affect the long-term stability of the equipment. Customers should take corresponding protective measures.

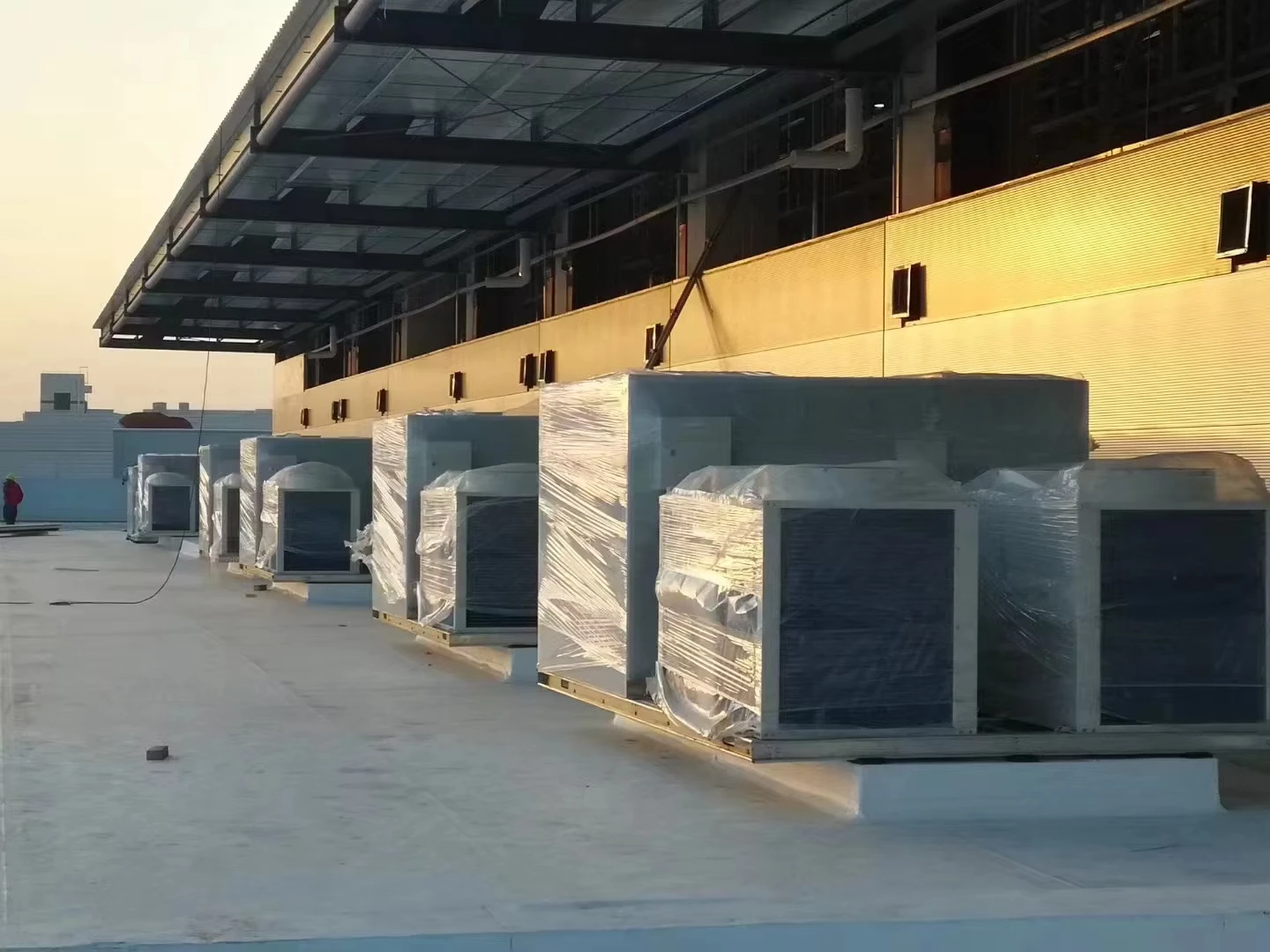

Installation instructions for external machines
The installation location of the outdoor unit should be far away from flammable, explosive, dusty, low-lying, and high-temperature places; Please ensure that there is sufficient space around the unit for air intake, exhaust, and maintenance: Any obstacle will affect the cooling/heating capacity of the unit and cause inconvenience for future unit maintenance and upkeep
attention
1.All structural types of air conditioning units should be installed on a horizontal foundation. 2. Adequate space should be left around the unit, especially on the side of the maintenance door for the unit piping, fans, and motors, to facilitate daily inspection and regular maintenance of the unit. 3. The condensate outlet must first be connected to a "U" – shaped drainage pipe or a spherical water seal before being connected to the outer pipe. 4.When connecting the inlet and outlet pipes of the coil, the force should be balanced and not too strong to avoid damaging the coil. 5. The motor of the air conditioning unit should be connected to a power supply with overload protection and grounding protection. 6. Flexible connections should be used between the air conditioning unit and the external air duct to avoid the transmission of vibration.
◆ Precautions for using the internal unit
1.Before each operation of the unit, the valves of its water and air ducts should be checked and kept in normal operating condition. 2. Regularly check the connection, operation, and transmission of moving parts such as fans and motors, and adjust them in a timely manner. 3. The initial filter should be cleaned with clean water or detergent according to the degree of dirt, and the frequency of cleaning depends on the environment in which it is used. 4. When the resistance of the medium efficiency filter rises to twice the initial resistance, it should be cleaned or replaced. 5. It is necessary to ensure that the steam valve of the steam coil is closed before the fan stops. 6. It is necessary to ensure that the steam humidifier closes the steam valve before the fan stops. 7. If the customer provides their own electrical control cabinet, it is necessary to ensure that the fan is turned on before turning on the electric heating. It is recommended to turn off the electric heating and steam valve 5 minutes before the fan stops. The overheat protection switch for electric heating needs to be connected to the electric heating protection circuit.
Packaging & Shipping
FAQ
1. who are we? We are based in Shandong, China, start from 2014,sell to Domestic Market(84.00%),Eastern Europe(3.00%),Mid East(3.00%),South Asia(2.00%),South America(2.00%),Oceania(2.00%),North America(1.00%),Southern Europe(1.00%),Central America(1.00%),Africa(1.00%). There are total about 301-500 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Air Cooled Water Chiller; Rooftop Packaged Unit; Fan Coil Unit; Ground Source Heat Pump; Air Handing Unit 4. what services can we provide? Accepted Delivery Terms: FOB； Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C,Cash; Language Spoken:English,Chinese,Spanish,Russian
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $386.4 / piece
- Ships from: TH
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by KIMSENG HARDWARE COMPANY LIMITED. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full KIMSENG HARDWARE COMPANY LIMITED range on HVACR Nexus.
