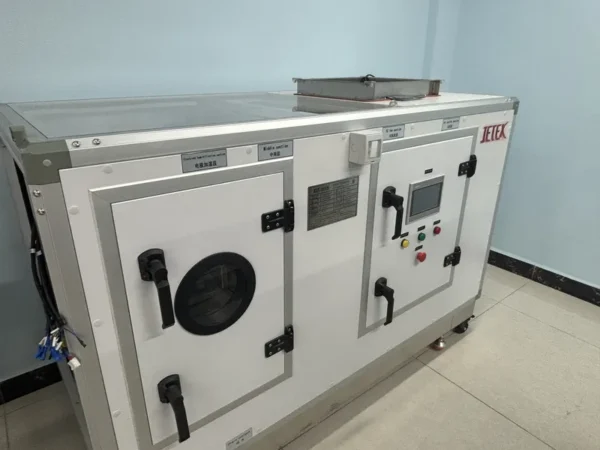

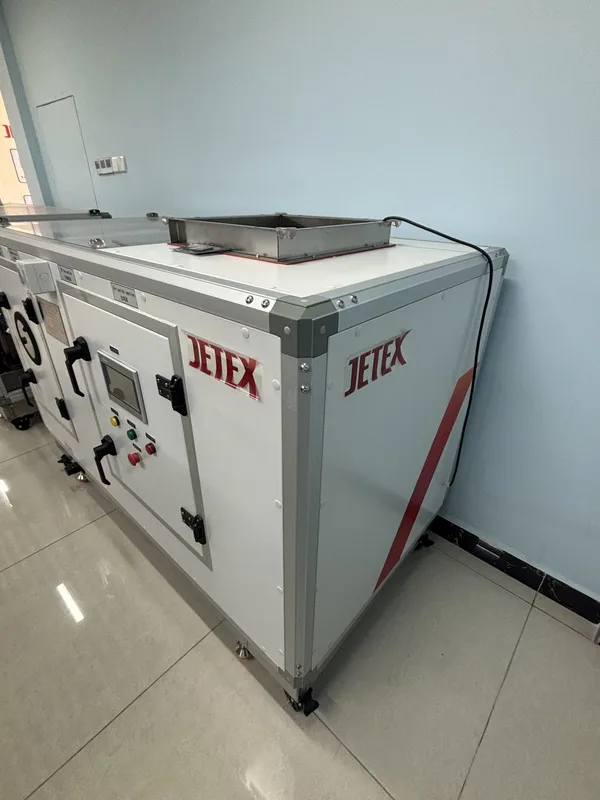

Air handling unit — type Air Handling Unit. The complete factory specification follows. Made by Guangzhou Jetex -Lloyd`s Machinery Limited (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Hospital, Hotel, School, Warehouse, Apartment, Plant, Mall, Cleanroom
- Type: Air Handling Unit
- Mounting Type: Floor Standing
- Fan Motors Type: Brushless
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | Brushless |
| Motor Type | Brushless Motor |
| Filter Type | High-Efficiency Particulate Air Filter, Regular Filter |
| Application | Hospital, Hotel, School, Warehouse, Apartment, Plant, Mall, Cleanroom |
| Key Selling Points | Easy To Operate, Famous Brand Low Voltage Components, Energy Saving, R410A, Accurate Temperature Control, High air speed and high air capacity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 800 |
| Brand Name | Jetex |
| Dimension(L*W*H) | Customizable |
| Frame | Thermal break aluminum alloy frame with high-density sealing gasket |
| Casing Structure & Insulation | double-skin with Polyurethane foam insulation |
| Panel Thickness | 50mm,80mm ,etc |
| Cooling/Heating Coil | High-quality copper tubes with blue-wave aluminum fins |
| Heater | PTC heating ,hot water,steam heating,etc |
| Heat Recovery Unit | panel type and rotary wheel type |
| Other Functions | customization is available based on customer requirements |
| Filters | G4 panel-type filters, F5~F9 bag-type,H11 sub-high efficiency filters |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Dual Rotary Evaporative Heat Recovery Air Handling Unit (AHU)
The Dual Rotary Evaporative Heat Recovery Air Handling Unit (AHU) is a high-efficiency HVAC solution that combines advanced heat recovery technology with full air handling functions. By integrating dual rotary heat exchangers and evaporative heat exchange technology, the unit effectively recovers energy from exhaust air and reduces cooling and heating load of the entire HVAC system
uD83DuDD39 Working Principle
The AHU adopts two rotary heat exchangers installed between the fresh air and exhaust air streams. Exhaust air transfers heat and moisture to the incoming fresh air through the rotary wheels.
The heat-recovery unit re-uses the air from the building to warm or cool new fresh air. A typical unit features two fans, one to reuse the building air (Return Fan), and the other to bring in fresh air (Supply Fan). What makes a heat recovery unit unique is the heat-exchange core. The core transfers heat from the outgoing stream to the incoming stream in the same way that the radiator in your car transfers heat from the engine's coolant to the outside air.
We can implement different types of heat-exchangers which best accommodate your air temperature requirements.
Our Heat Recovery AHU Product Highlights
1. Integrated dual rotary heat recovery system
1. Integrated dual rotary heat recovery system
Recovers both sensible and latent heat from exhaust air, significantly reducing HVAC energy consumption.
2. Evaporative heat exchange design
Enhances cooling performance and improves overall system efficiency,ideal for hot and dry climates.
3. Complete air handling functions
Equipped with filtration, cooling and heating sections to meet various project requirements.
4. Modular AHU structure
Easy installation, flexible configuration and convenient maintenance for large-scale projects.
5. Customized HVAC solution
Airflow, heat recovery efficiency, control system and coil configuration can be customized.
This AHU is widely used in industrial and commercial buildings where energy saving, fresh air supply and stable indoor air quality are required.
This AHU is widely used in industrial and commercial buildings where energy saving, fresh air supply and stable indoor air quality are required.
Airports and railway stations
Hospitals
Commercial Buildings
Specification
Product | Dual Rotary Evaporative Heat Recovery AHU | Application | Industrial plants and factories,Warehouses and logistics centers,Airports and railway stations commercial buildings,Hospitals etc. |
Brand | Jetex | ERV Type | panel type,rotary wheel heat recovery . |
Model | Heat Recovery Series | Airflow | 2000~100000 CMH |
Mounting Type | Floor standing or ceiling mounted | core components | belt drive motor or EC fan motor |
Frame | Thermal break aluminum alloy frame with high-density sealing gasket | Casing Structure & Insulation | double-skin with Polyurethane foam insulation |
Filters | G4 panel-type primary filters, F5~F9 bag-type medium-efficiency filters,H11 filters etc. | Cooling/Heating coil | High-quality copper tubes with blue-wave aluminum fins |
Humidifier type | Wet film/dry steam / high pressure micro mist | Other functions | customization is available based on customer requirements |
Cooling Capacity | 12kW + | Heating capacity | 17.9+ |
Rows | 2-8 rows | Warranty | 1 year |
Company Profile
Guangzhou Jetex-Lloyd’s Machinery Ltd. is a professional manufacturer specializing in the R&D, production and engineering solutions of air handling equipment for over 30 years. With a 10,000+ m2 factory, advanced manufacturing facilities and an experienced technical team, we provide high-quality HVAC terminal products widely used in pharmaceutical plants, cleanrooms, laboratories, electronics, lithium battery production, commercial buildings, hotels and shopping malls.
We are also a long-term supplier of Foxconn for more than 20 years, serving multiple Fortune 500 companies and international partners.
Our Worldwide Successful Cases
Foxconn-India Bengaluru Park
EVE Energy Industrial Park
TIANMA Xiameng Park
Packing & Delivery
For Shipment: The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
FAQ
Q1: Is this unit an HRU or an AHU? A: This unit is a heat recovery air handling unit (AHU) with complete air treatment functions, not a standard HRU. Q2: Is it suitable for hot climate regions? A: Yes. The evaporative heat exchange design makes it especially suitable for Middle East and Southeast Asia markets. Q3: Can the unit be customized? A: Yes. Airflow, heat recovery system, coils and control configuration can be customized according to project requirements.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $5000 / set
- 10–29 set: US $4900 / set
- 30+ set: US $4800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
