Key specification for this air handling units: power source Pneumatic, model number GBS-STD10. Everything below is reproduced from the factory data sheet. Made by Jinan Shineeast Fluid Systems Equipment Co., Ltd. (17 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Air Handling Units
- Model Number: GBS-STD10
- Power Source: Pneumatic
- Horsepower: none
- Power: none
- Warranty: 12 Months
- Place Of Origin: Shandong, China
Technical Specifications
| Application | machine tool industry |
|---|---|
| Structure | Piston Pump |
| Power Source | Pneumatic |
| Outlet Size | none |
| Motor | none |
| Warranty | 12 Months |
| Customized Support | OEM, ODM, OBM |
| Horsepower | none |
| Pressure | High Pressure |
| Model Number | GBS-STD10 |
| Place Of Origin | Shandong, China |
| Brand Name | Shineeast |
| Pressure Ratio | 10-100:1 |
| Air Driven Pressure | 3-8 bar |
| Air Inlet Connection | NPT 3/8 |
| Air Outlet Connection | NPT 1/4 |
| Min Inlet Pressure | 0.1 bar |
| Max Outlet Pressure | 800 bar |
| Medium | Inert Gases and Corrosive Gases |
| Power | none |
| Selling Units | Single item |
| Single Package Size | 80X60X110 cm |
| Single Gross Weight | 39.500 kg |
Product Details
Product Description

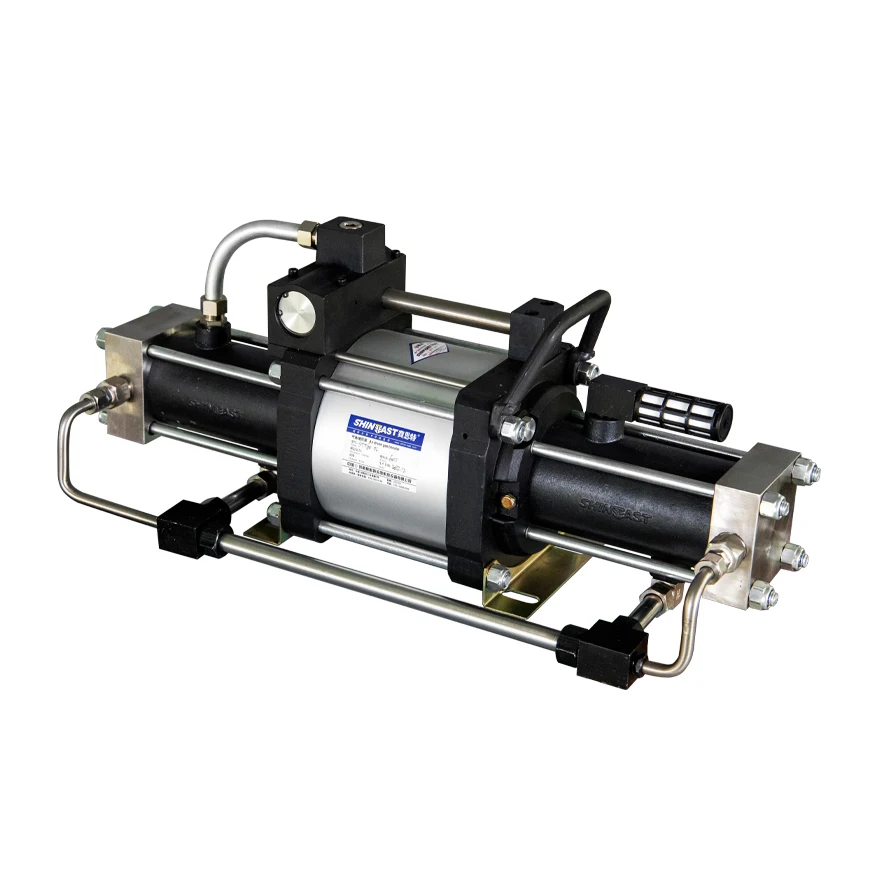

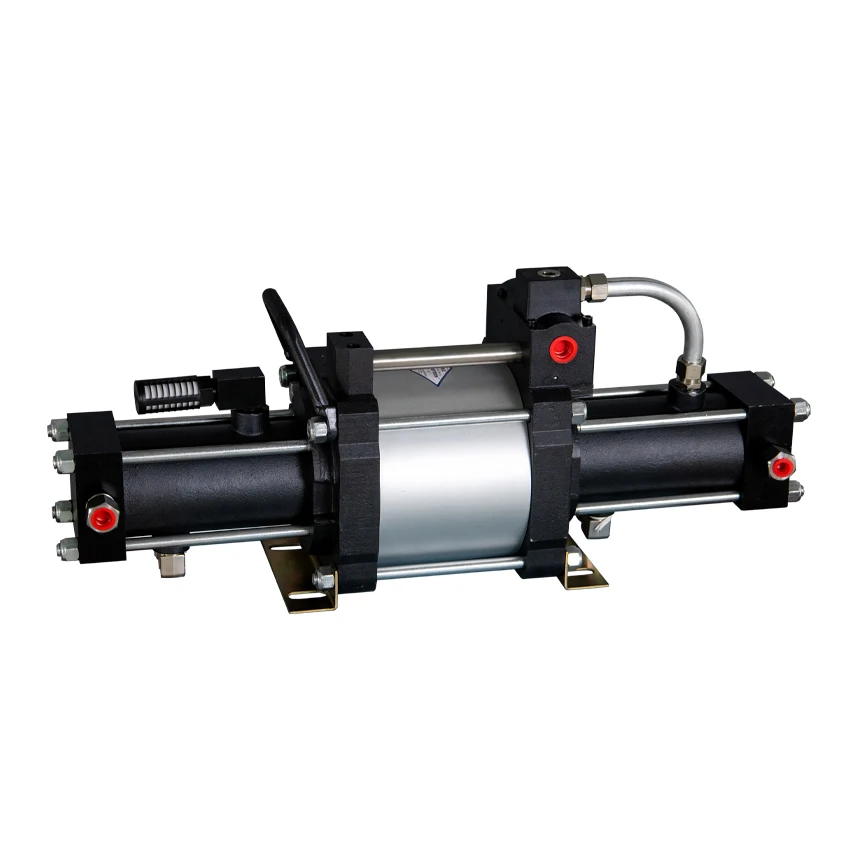

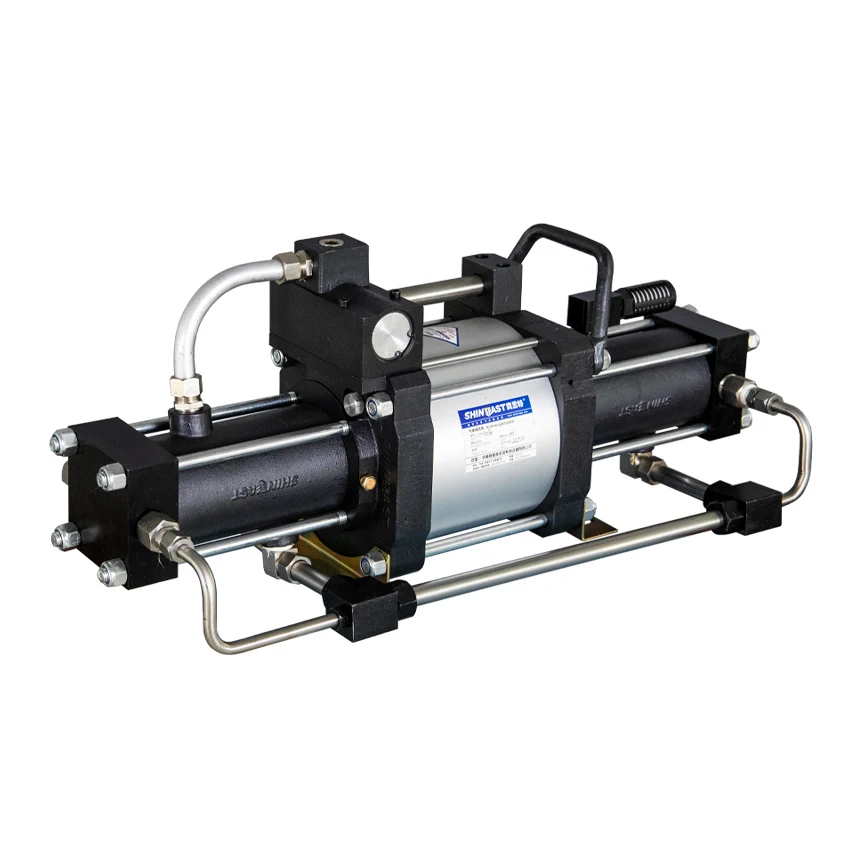

1. The STT series gas booster pump is a single-stage booster pump. In order to achieve the required pressure, the input gas pressure at the gas input port must be pre-increased to a certain extent.
2. The pre-increase pressure varies depending on the maximum pressure reached.
3. The maximum pressure can be increased to 80 Mpa.

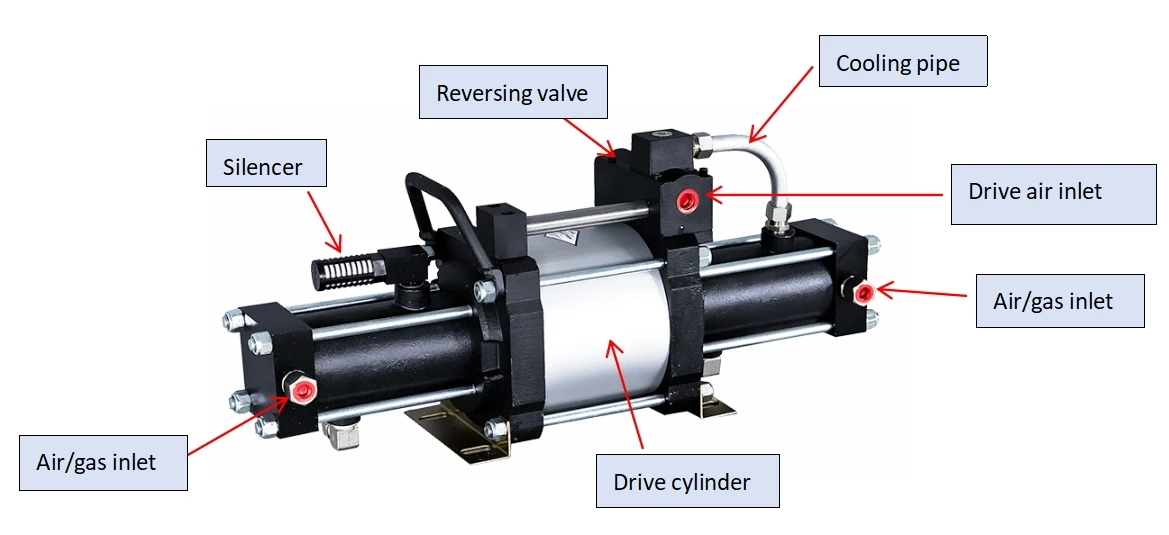

4. The reversing method of this series of gas booster pumps is exactly the same as that of the STA series.
5. The difference is that this series of gas booster pumps is a double-headed pump manufactured on the basis of the STA series.
6. The entire pump is made of aluminum alloy and stainless steel.
7. The driving piston diameter of this series of pumps is 160 mm, the driving gas pressure is <8 bar, and the pump heads at both ends are equipped with exhaust cooling.
8. The two inlets and two outlets can be connected with pipelines according to user requirements when leaving the factory.
Typical applications are as follows.
* Providing static and burst testing of valves, fittings, pressure vessels, etc.Static and dynamic testing of aerospace accessories after maintenance *Safety valve calibration
*Bubbling test in water for valves and wellhead devices Testing of air pressure regulators Testing of automotive braking systems
*Communication cable inflation equipment
*Nitrogen filling of aircraft tyres and hydraulic accumulators *High-pressure ammonia filling in auxiliary injection moulding
*Compression of ultra pure gases (CO2 supercritical extraction) *Testing of high-pressure gas systems and instruments *Destructive
testing of address specimens Demineralisation, e.g. reverse osmosis and desalination *Providing pressure to test or calibrate gas
components *Powering sonic equipment to record down hole fluid depths *Studies of high-pressure gas flow patterns.
*Bubbling test in water for valves and wellhead devices Testing of air pressure regulators Testing of automotive braking systems
*Communication cable inflation equipment
*Nitrogen filling of aircraft tyres and hydraulic accumulators *High-pressure ammonia filling in auxiliary injection moulding
*Compression of ultra pure gases (CO2 supercritical extraction) *Testing of high-pressure gas systems and instruments *Destructive
testing of address specimens Demineralisation, e.g. reverse osmosis and desalination *Providing pressure to test or calibrate gas
components *Powering sonic equipment to record down hole fluid depths *Studies of high-pressure gas flow patterns.

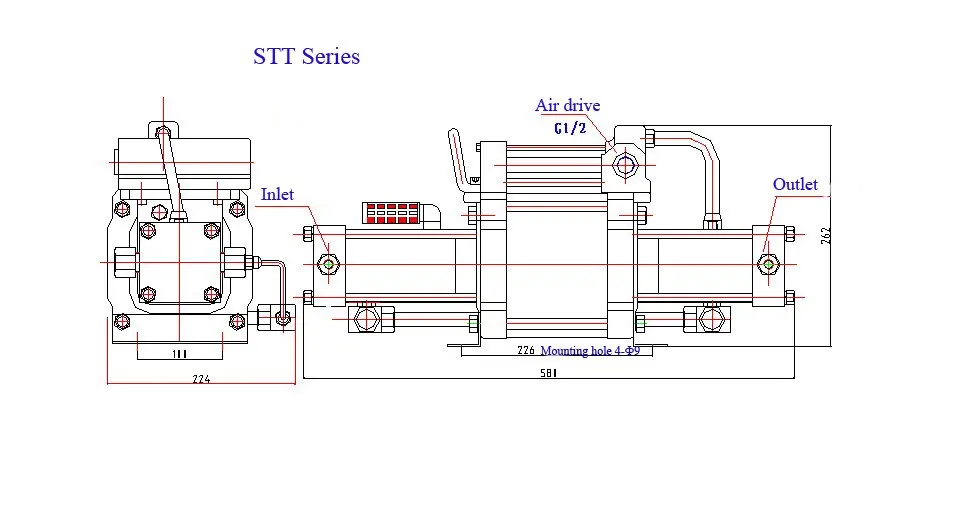

Specification
Item | Parameters |

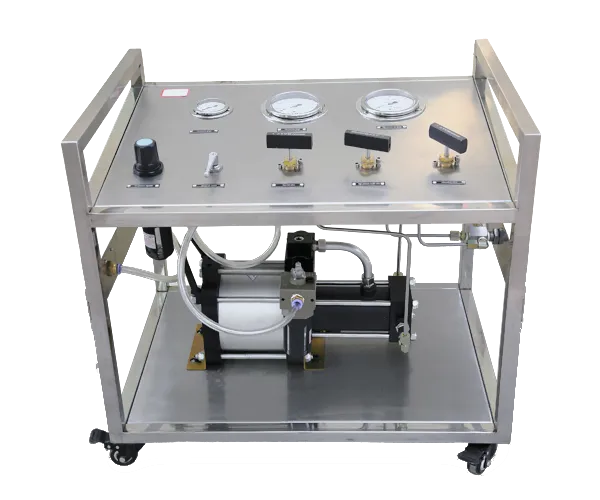

Model name | Air driven gas booster pump system |
Model No. | STT Series |
Min inlet pressure | 0.1 bar |
Max outlet pressure | 800 bar |
Pressure ratios | 25-100:1 |
Air driven pressure | 3-8 bar |
power source | Pneumatic |
Air inlet Connection | NPT 3/8 |
Air outlet Connection | NPT 1/4 |
Medium | Inert Gases and Corrosive Gases |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

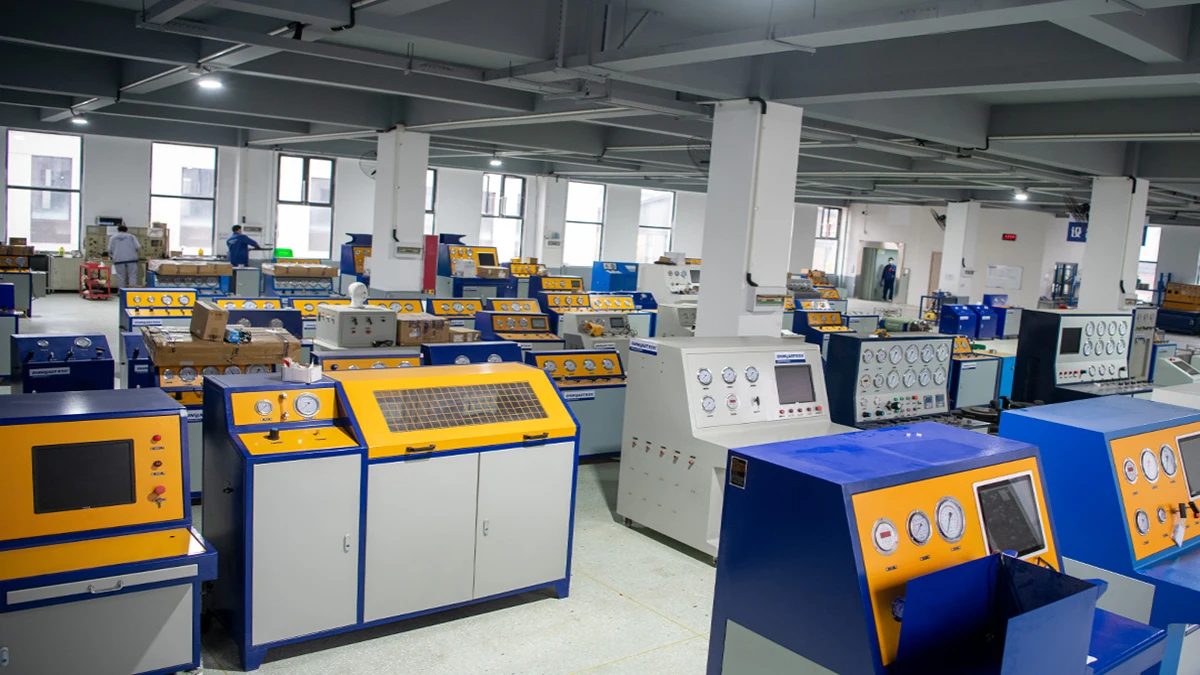

Company Profile
Jinan Shineeast Fluid Systems Equipment Co., Ltd., founded in 2001, is a professional manufacturer of highly engineered fluid and gas handling equipment designed to generate, store and control high pressure gases and liquids. Shineeast is headquartered in Jinan city, Shandong province, China, which is near to Beijing airport. In addition to offering a comprehensive range of pneumatic driven liquid pumps, air pressure boosters, pneumatic driven gas boosters, N2/O2 filling machine, FM200/HFC227ea filling equipment, CO2/LPG filling machine, impulse/fatigue test machine for hoses/tubes, high pressure valves, fittings and accessories, power packages and pressure test machines, valve and pipe fittings test equipments, whole test lines for gas cylinders, and related equipments, CNG vehicle refitting test equipments and the oil and gas field special controls and test equipments, we customize and build power packs and test rigs. Our main manufacturing locations are fully registered to ISO9001. Our products are widely used in industry, machine tool industry, diesel engine industry, aerospace industry, automobile manufacturing, household electrical appliances, industrial electronics industry, shipbuilding industry, petrochemical industry, oil and gas field, CNG vehicle conversion industry, pressure test industry and other fields. Shineeast also has a strong commitment to providing you with high quality products as well as excellent service and technical support; and we have built an enviable reputation for quality in the world market. This helps to keep Shineeast as the best choice for all of your high pressure requirements. Our continued investment in technology ensures that Shineeast will stay at the leading edge of high pressure technology. We are here to solve your problems. Please contact us to discuss your requirements or visit our website at www.shine-east.com for more information.
FAQ
1. who are we?
We are based in Shandong, China, start from 2008,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pneumatic booster booster pump,burst pressure test bench,Pressure test machine,Pneumatic Clinching Machine,gas cylinder test machine
4. why should you buy from us not from other suppliers?
Shineeast has over 22 years of R&D and production experience in fluid pressure exchange and controlling field. Qualified and motivated company members are developing, designing, manufacturing and internationally marketing products that are worldwide emplo
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2008,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pneumatic booster booster pump,burst pressure test bench,Pressure test machine,Pneumatic Clinching Machine,gas cylinder test machine
4. why should you buy from us not from other suppliers?
Shineeast has over 22 years of R&D and production experience in fluid pressure exchange and controlling field. Qualified and motivated company members are developing, designing, manufacturing and internationally marketing products that are worldwide emplo
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Escrow;
Language Spoken:English,Chinese,Russian
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 Months warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Shineeast Fluid Systems Equipment Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jinan Shineeast Fluid Systems Equipment Co., Ltd. range on HVACR Nexus.
See more in Air Handling Units on HVACR Nexus.
