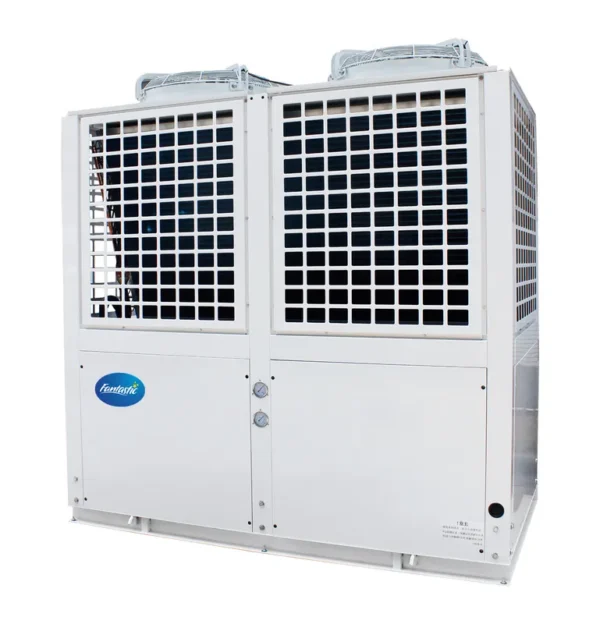

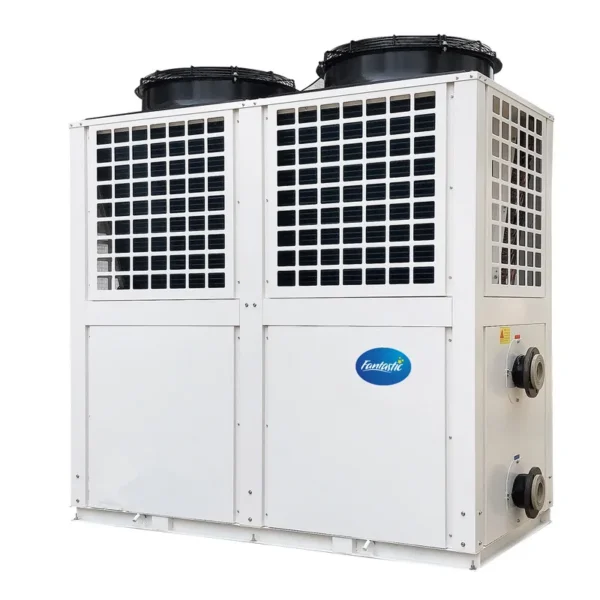

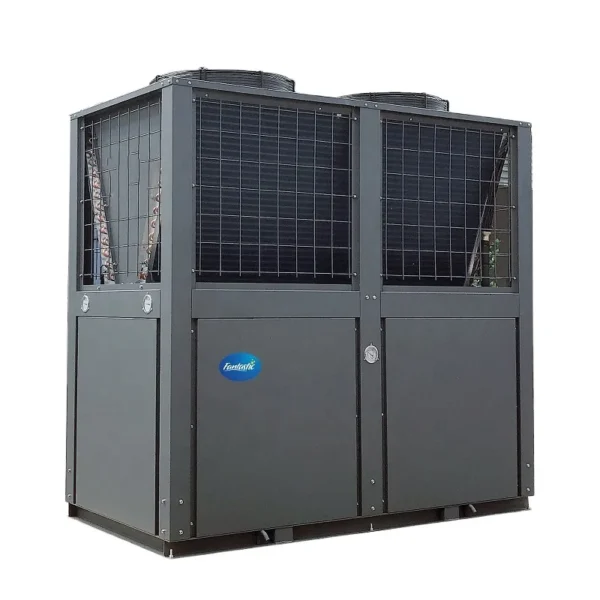

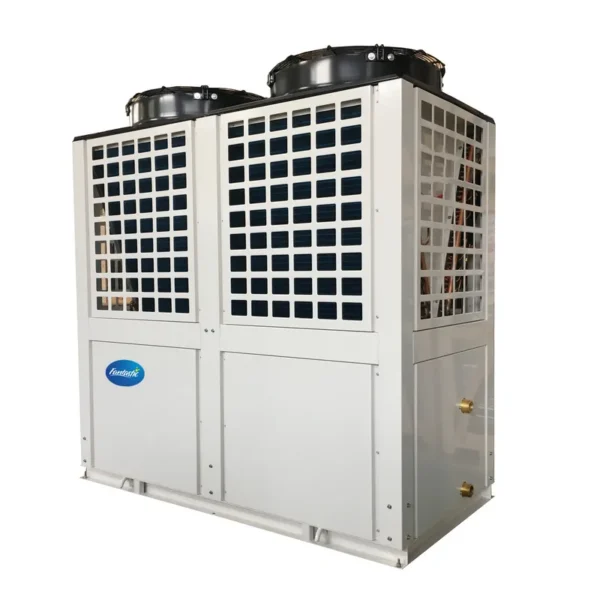

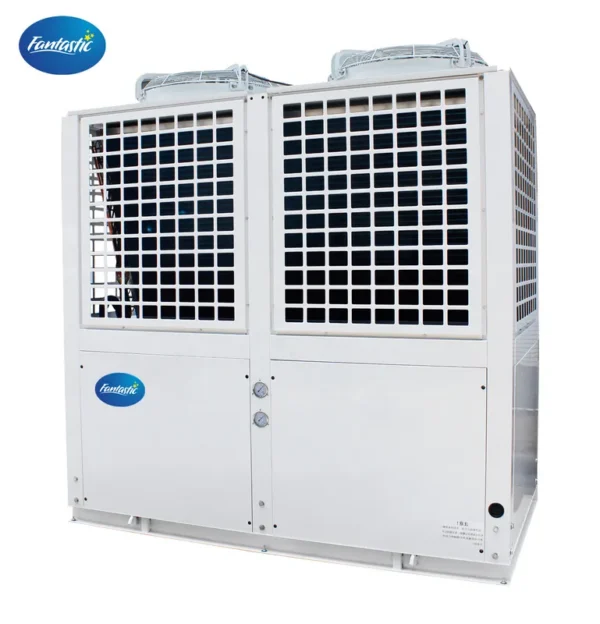

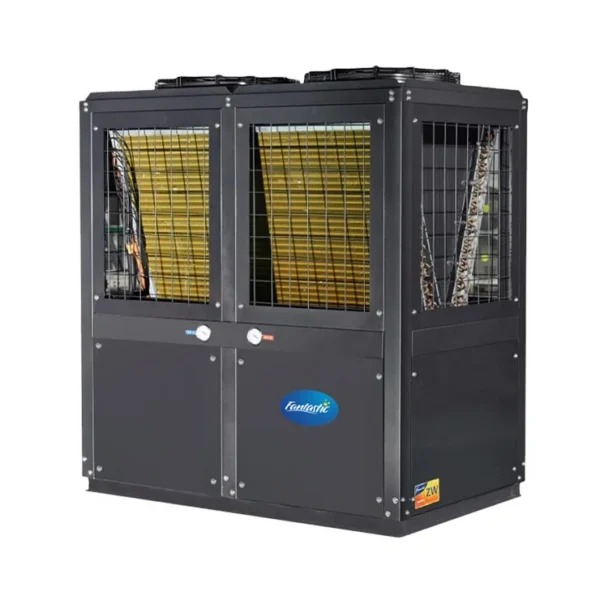

Air to Water Heat Pump, 120KW, Inverter, R32, EVI

The air to water heat pump listed here carries 120KW, power source Electric, documented exactly as the manufacturer publishes it. Made by Fantastic Energy Saving Equipment Factory (7 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air To Water Heat Pump

• Model Number: FEIHC300S
• Power Source: Electric
• Power: 380V/3ph/50HZ
• Heating Capacity: 120KW
• Housing Material: Metal
• Refrigerant: R32/R410a

Technical Specifications

Product Details

Product Description

FANTASTIC R32 CE A+++ BAFA EVI DC Inverter Heat Pump For Heating Cooling Hot Water

1. Heating Capacity: EVI DC Inverter 6KW 10KW  12KW 15KW 18KW 24KW 30KW 36KW 45KW 60KW 75KW 90KW 150KW 180KW  Inverter Heat Pump ASHP

2. Power Supply : 220V 1PH /380V 3PH

3. Best Selling Market: Germany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria,
Switzerland,USA, Canada,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia,New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.etc.

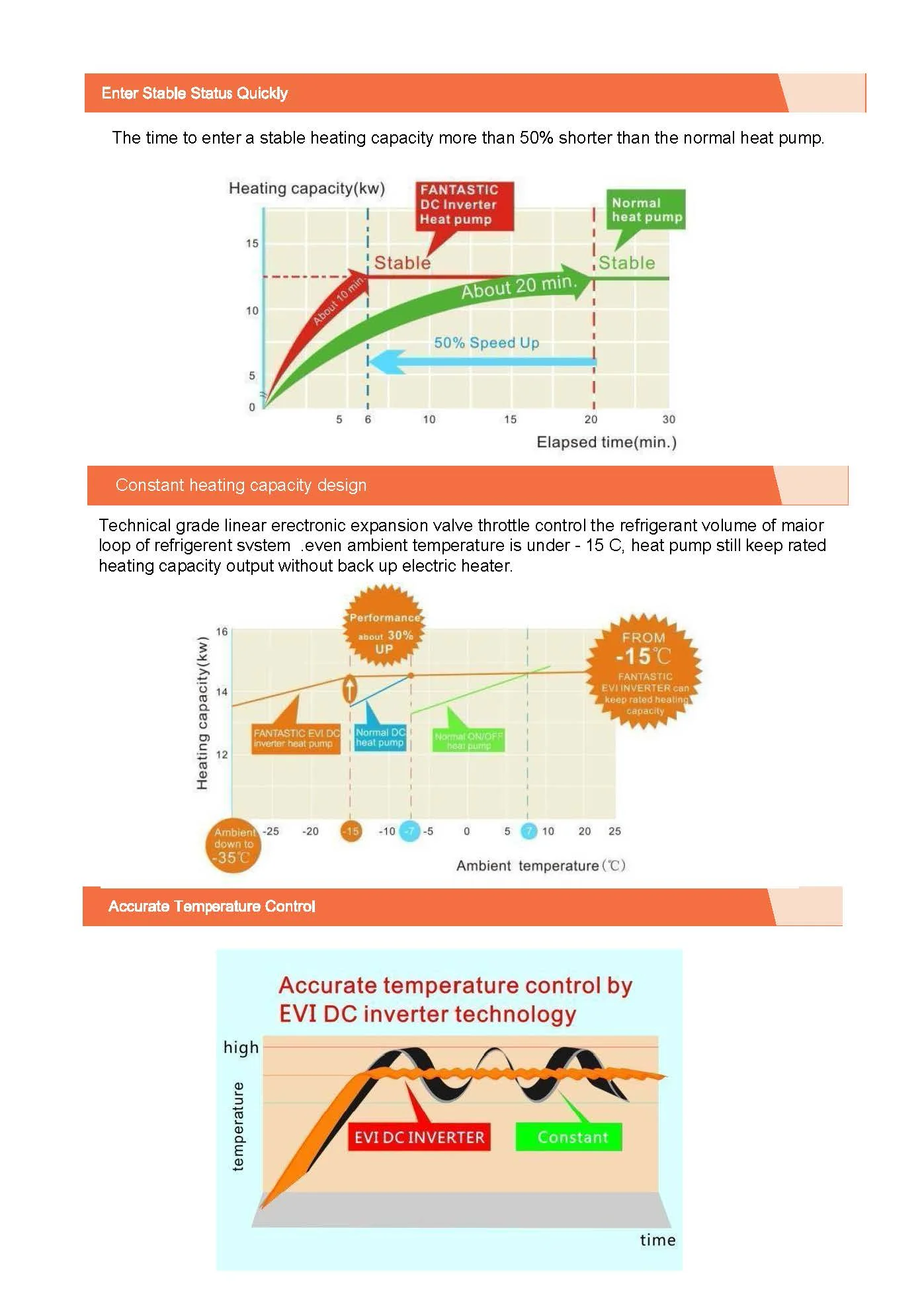

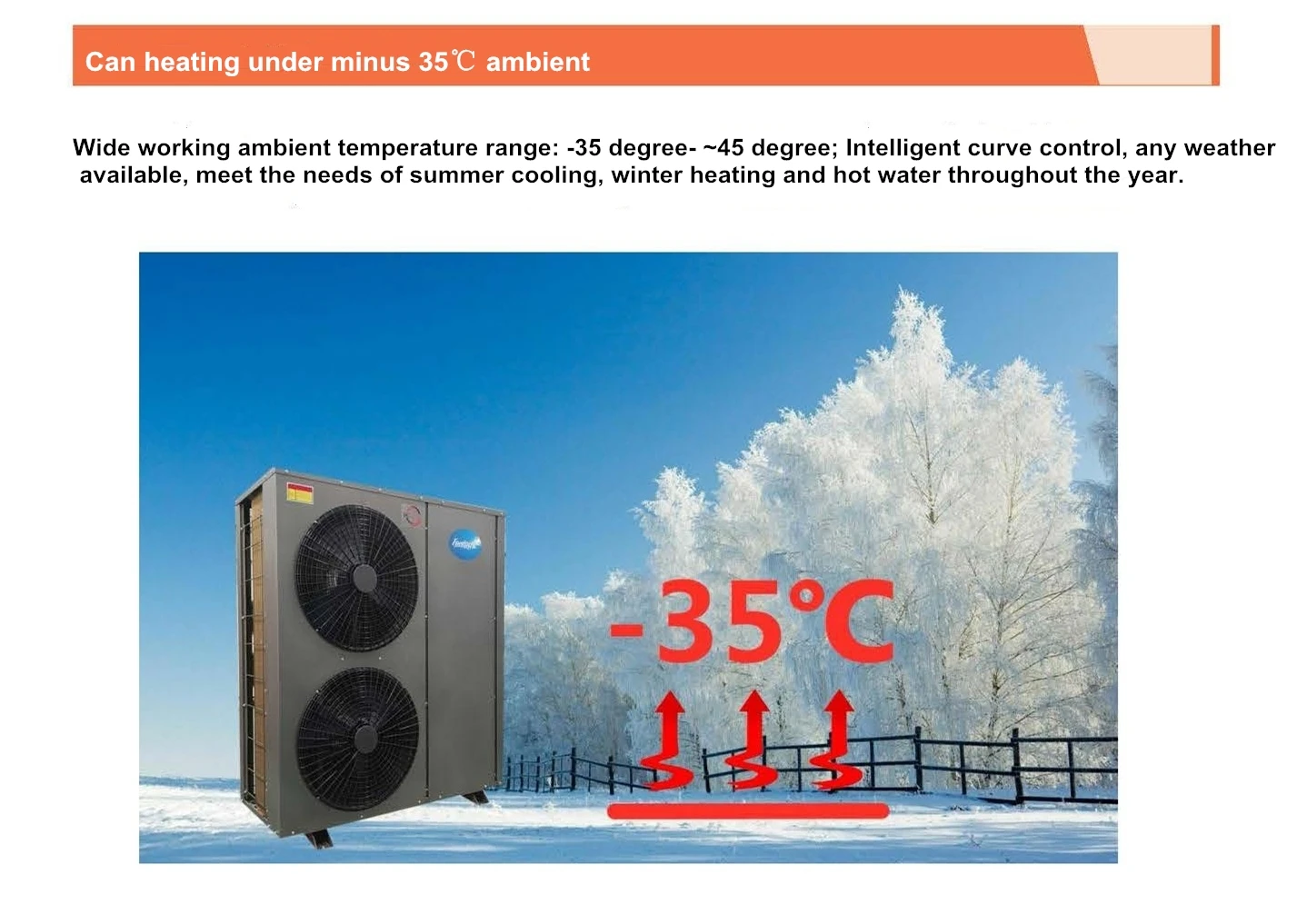

4. Ambient Temp of Using: Minus 35C, max 60C Hot Water Output

5. Certificate: ISO9001, CE, EMC, BAFA, SG – READY, Scop, A+++ ERP Energy Label, ROHS

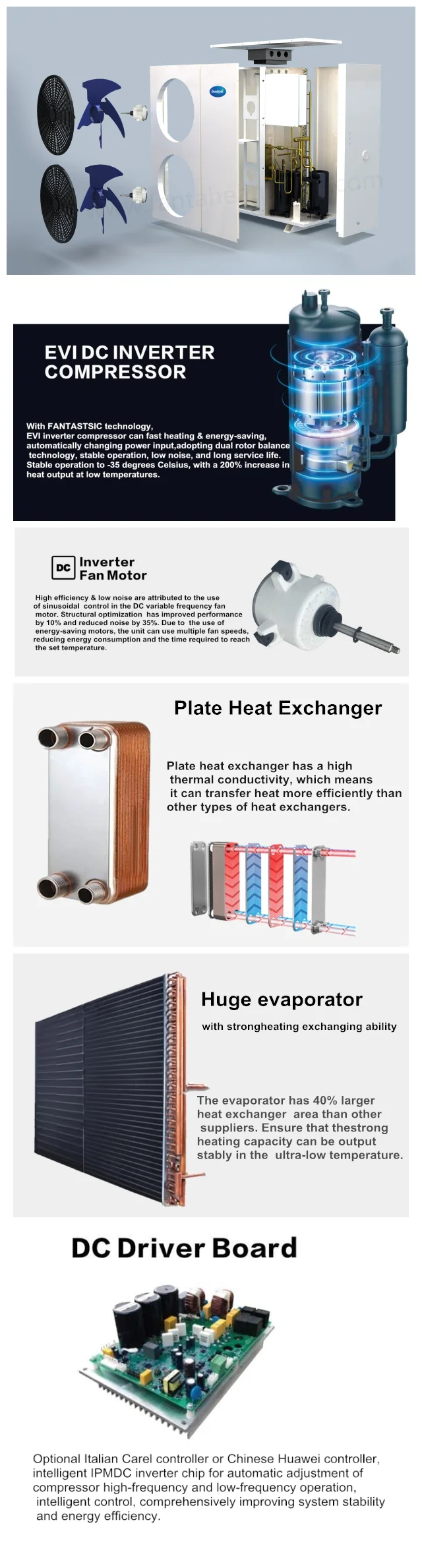

6. *Panasonic* or “Copeland” dual-rotor Compressor for EVI DC Inverter Heat Pump Series

7. High COP to be 5.65

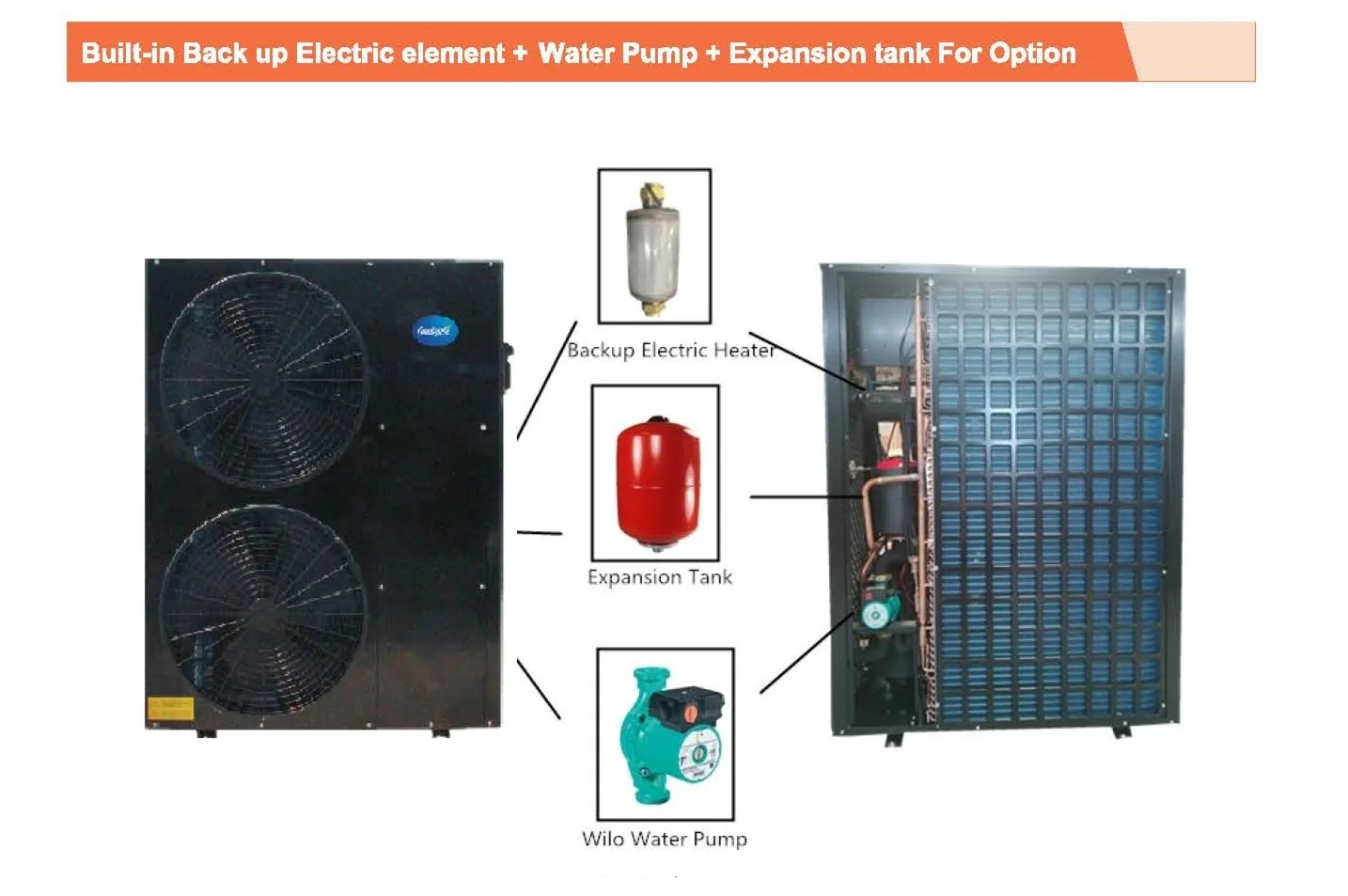

8. All in One Heat Pump design with built in water pump, expansion tank ,electric element and dc inverter brushless fan motor. (Low Noise less than 54dB)

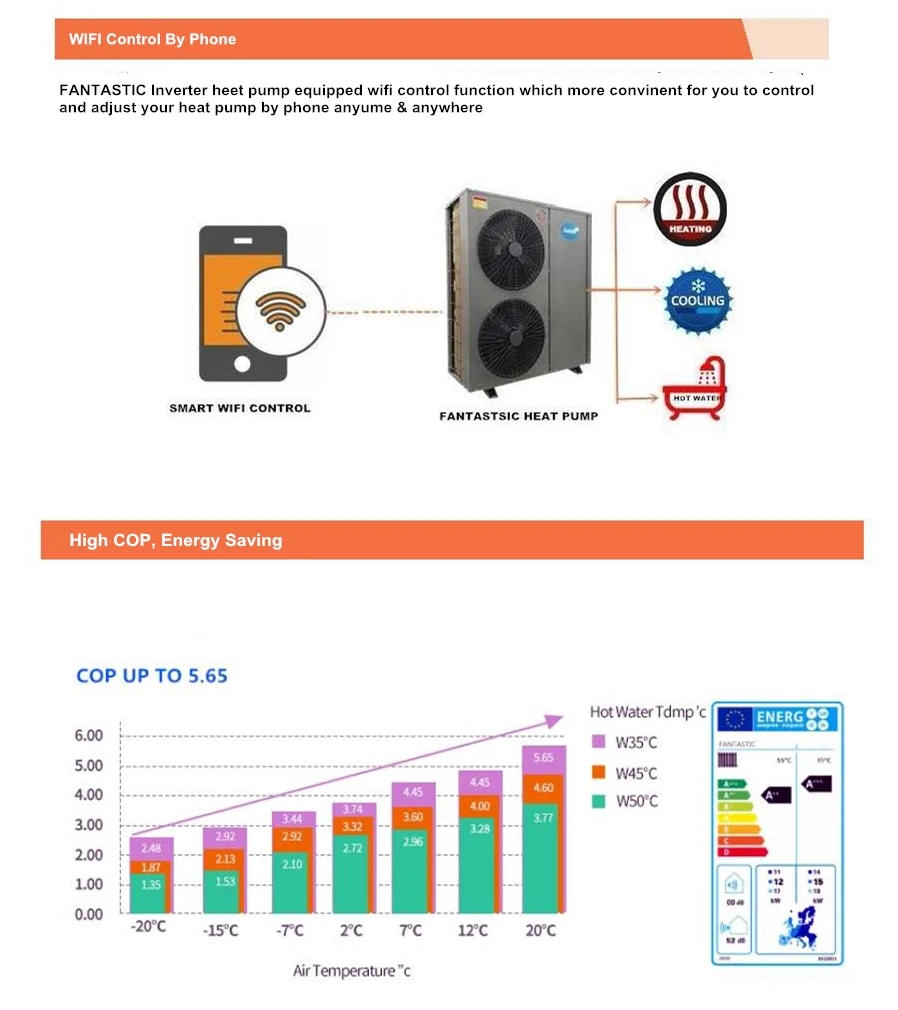

9. FANTASTIC Inverter heat pump equipped wifi control function by phone which more convinent for you to control and

adjust your heat pump by phone anytime & anywhere

10. Multi-Function :

① Base function : Space heating/ cooling & domestic hot water ,

② Heating curve function to make out different water temp. by different ambient temp. automatically as a best

energy saving and meet heating demand logic.

③ Real time display of current heating capacity and COP function

④ Room temperature compens ation function

⑤ Automatic switch of other auxiliary heat sources

⑥ Wifi control by phone anytime& anywhere.

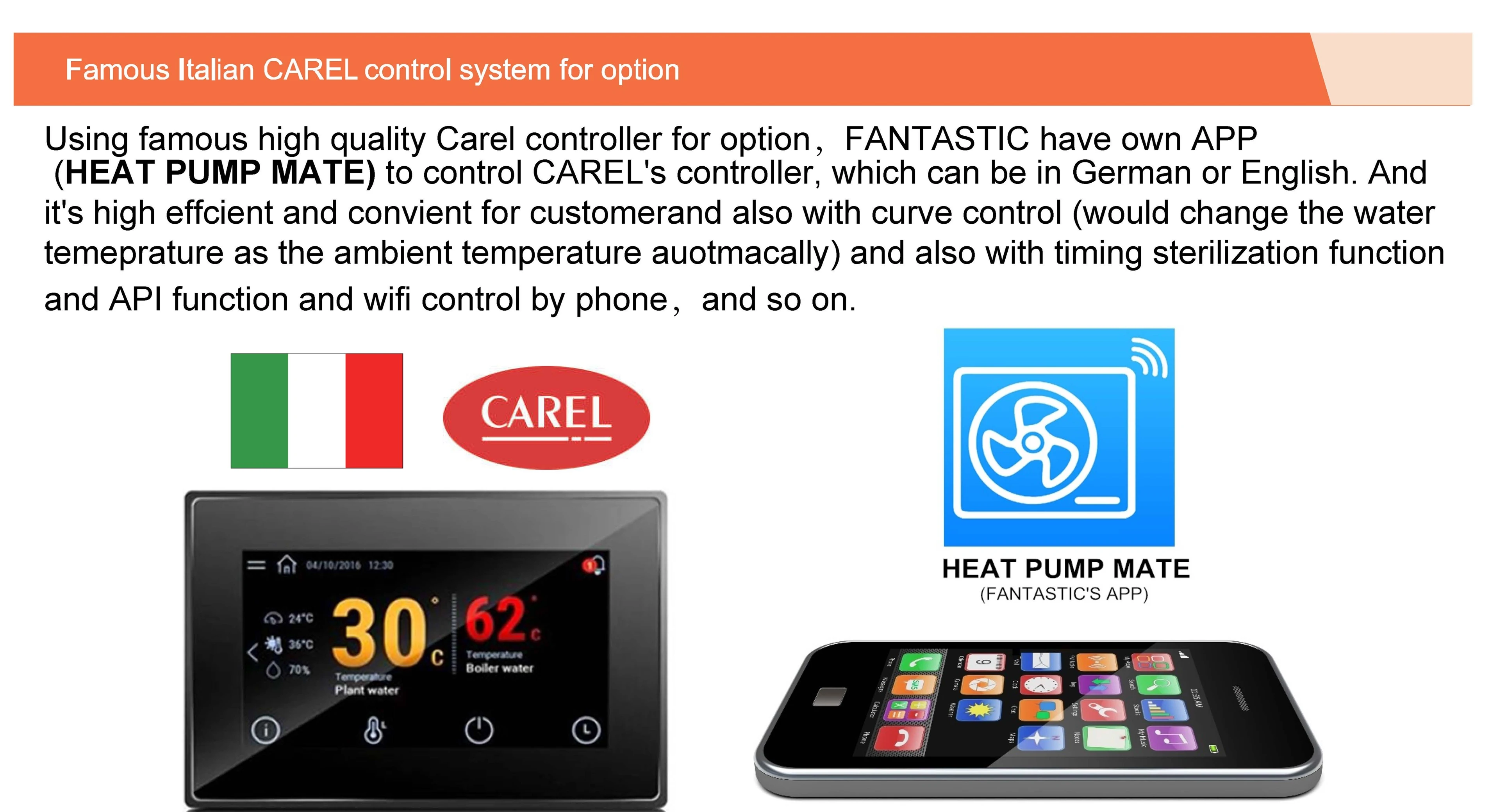

⑦ Carel controller for option with timing sterilization function and APl function,FANTASTIC have own heat pump control APP ( HEAT PUMP MATE).

⑧ Various system protection functions.etc.

MODEL	FEIHC020S	FEIHC035S	FEIHC040S	FEIHC050S	FEIHC060S
Power input [V/PH/Hz]	220-240V,1N~/50Hz 60Hz					220-240V,1N~/50Hz 60Hz	220-240V,1N~/50Hz 60Hz	220-240V,1N~/50Hz 60Hz	220-240V,1N~/50Hz 60Hz
SCOP(Averange)	4.6	4.65	4.85	4.76	4.9
Heating Capacity
Heating Capacity Range :	2500 ~ 6780 W	2500 ~10300 W	4000 ~ 12600 W	5000 ~ 16500 W	6200 ~ 20500 W
Heating condition: air DB/WB 7/6°C, water in/out 30/35°C
Heating capacity [kW]	6	10	12	15	18
Input power [kW]	1.36	2.08	2.67	3.3	3.9
Input current [A]	6.31	9.65	12.38	15.00	17.73
COP	4.41	4.42	4.5	4.4	4.62
Heating condition: air DB/WB 7/6°C, water in/out 50/55°C
Heating capacity [kW]	5.5	8.5	10.9	13.5	16.3
Input power [kW]	1.96	2.98	3.73	4.82	5.64
Input current [A]	9.08	13.82	17.30	21.91	25.64
COP	2.81	2.85	2.92	2.8	2.89
Cooling Capacity
Cooling Capacity Range :	1800 ~ 6200 W	2200 ~ 8600 W	3500 ~ 10800 W	4200 ~ 13000 W	5500 ~ 17500 W
Cooling condition: air DB 35°C, water in/out 12/7°C
Cooling capacity [kW]	5	7.6	10.1	12.6	15
Input power [kW]	1.73	2.59	3.36	4.26	4.93
Input current [A]	8.02	12.01	15.58	19.36	22.41
EER	2.88	2.93	3.01	2.96	3.04
Hot Water Capacity
Hot Water Capacity Range ：	2900 ~ 8200 W	3727 ~ 12300 W	4969 ~ 16400 W	6212 ~ 20500 W	7454 ~ 24600 W
Heating condition: air DB/WB 20/15°C, water from 15°C to 55°C
Heating capacity [kW]	8.2	12.3	16.4	20.5	24.6
Input power [kW]	1.70	2.69	3.50	4.48	5.37
COP	4.82	4.57	4.69	4.58	4.58
Max running current [A]	23	26.5	33.5	21.9	23.1
Noise [dBA]	47	48	50	52	53
Controller	DC inverter controller (WIFI)
Fan motor	Match-Well / WELLING
Refrigerant Flow Control	EEV
Heat exchanger	Plate Heat Exchanger(Water) Fin-tube heat exchanger(Air)
Water pump (Built-in for option)	Wiilo (Built-in for option)
Expansion tank (Built-in for option)	2L	2L	2L	5L	5L
Auxiliary electric element (Built-in for option)	3KW	3KW	3KW	3KW	3KW
Refrigerant	R32
Water flow [m3/h]	1	1.5	2	2.4	3

Certifications

Customers Feedback

Product Photos

Packing & Delivery

Company Profile

Established in 2002, FANTASTIC is one of the largest manufacturers of house heating/cooling heat pumps and swimming pool heat pumps and hot water heat pumps and other kinds of heat pump products in China.

With more than 500 professional staffs and 15 production lines focusing on heat pump manufacturing and technologies, 80% of staffs are more than 10 years experience. with 232,000 sqm workshop plant, 1 million set of annual production output .

FANTASTIC owns many unique technologies and patents, and products are certified CE, ROHS, BAFA, ,A+++ for Europe ,UV UL for North America ,, SAA, WATERMARK, STANDARD MARK, C-TICK ,SAA for Australia, ISO9001 and so on by TUV.

Technical testing

Warranty

Warranty

The warranty is 2 years at least.

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–49 piece: US $7800 / piece
  • 50+ piece: US $7520 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air to water heat pump?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
