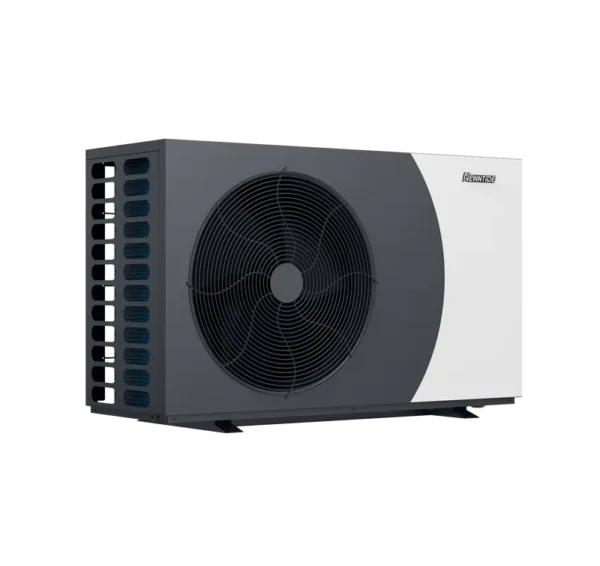

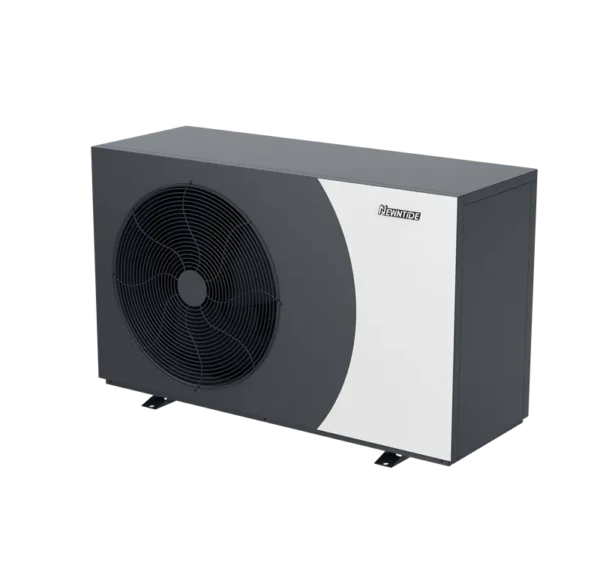

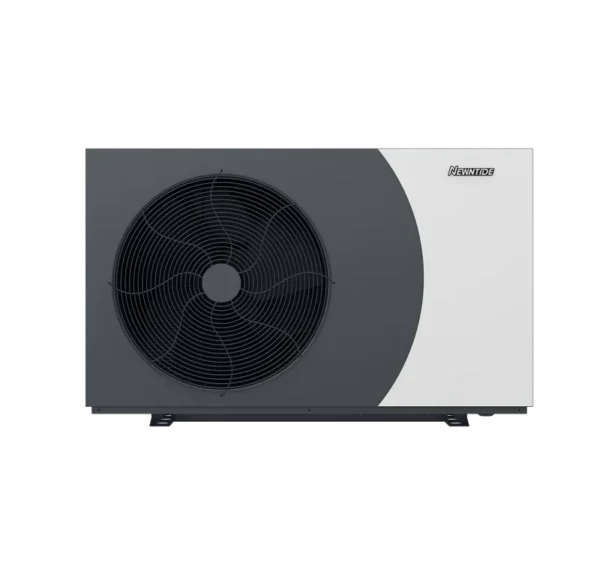

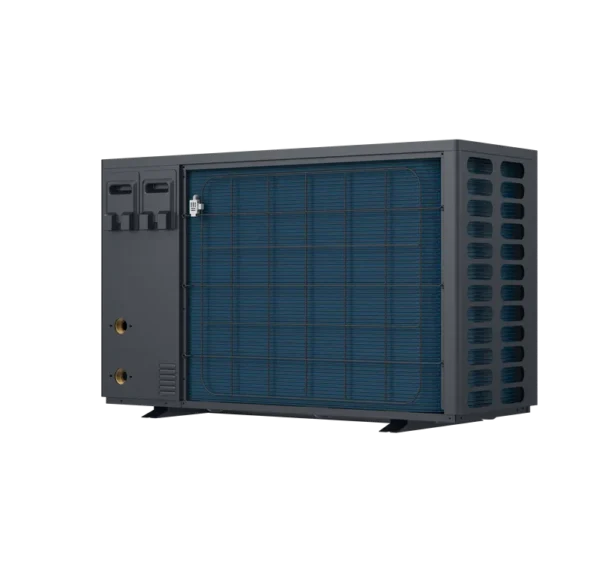

Air to Water Heat Pump, R32, 220-240V~

Key specification for this air to water heat pump: power supply 220-240V~/50Hz, capacity 0. Everything below is reproduced from the factory data sheet. Made by Guangdong Newntide New Energy Technology Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air To Water Heat Pump

• Model Number: Sunpro Series
• Power Source: Electric
• Power Supply (V/Ph/Hz): 220-240V~/50Hz
• Capacity: 0
• Heating Capacity (KW): 9kw/13kw/16kw/20kw
• Housing Material: Other

Technical Specifications

Product Details

Product Description

Product Parameters

Mode:NE-

F90HCR4INEMV2

F130HCR4INEMV2

F160HCR4INEMV2

F160HCR4TINEMV2

F200HCR4TINEMV2

[Space Heating]

Pmax (Equivalent Maximum Heat Production)

kW

9.00

13.00

16.00

16.00

20.00

ErP Level (EN14825 Average climate, W35℃/W55℃)

A+++/A++

Sound Power Level (EN12021-1 ,W35℃/W55℃)

dB(A)

55

60

65

65

67

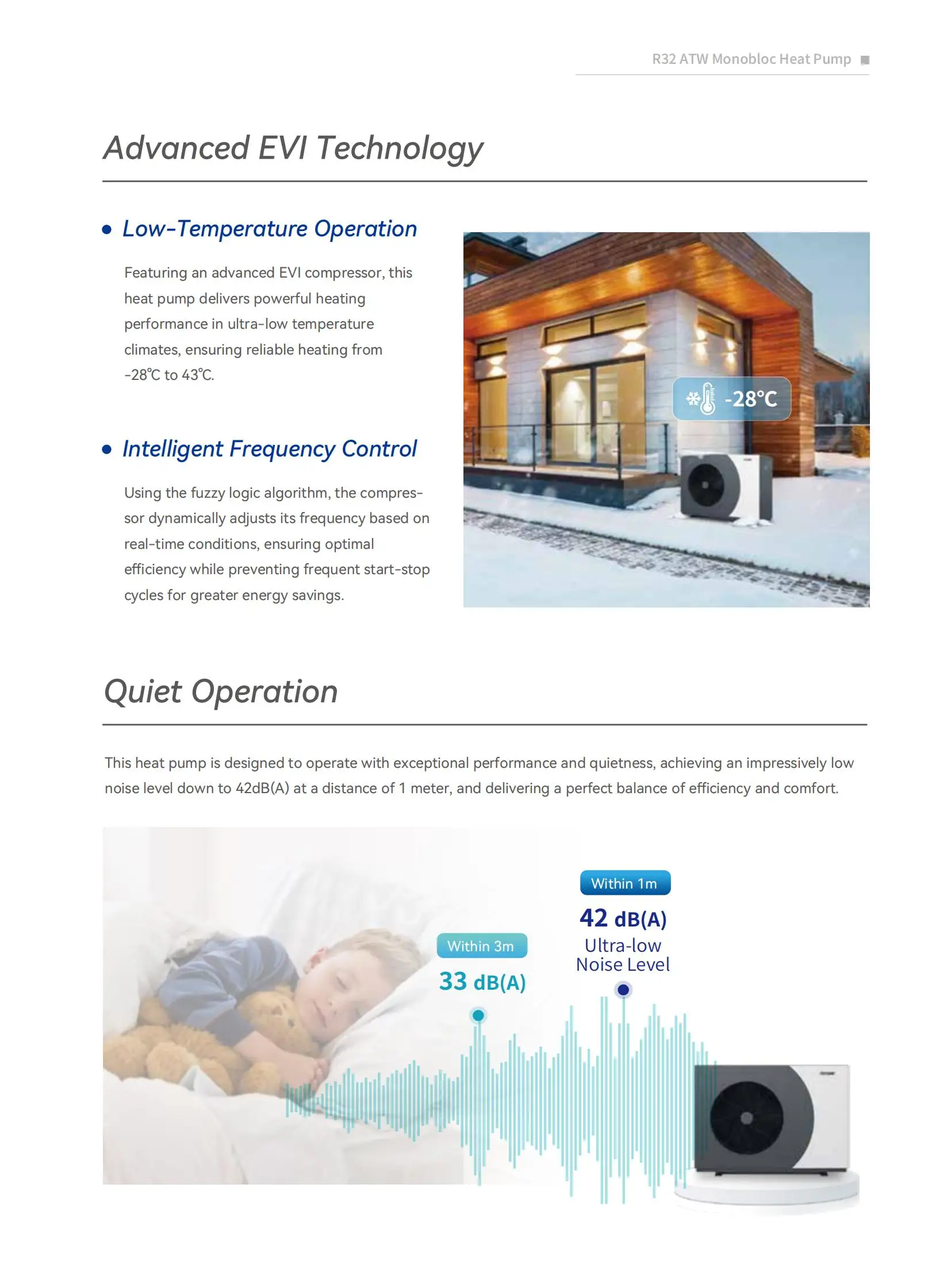

Sound Pressure Level at 1m(W35℃/W55℃)

dB(A)

42

46

51

51

53

Sound Pressure Level at 3m(W35℃/W55℃)

dB(A)

33

37

42

42

44

Sound Pressure Level at 5m(W35℃/W55℃)

dB(A)

29

33

38

38

40

[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.

Heating Capacity

kW

2.72~9.03

3.94~13.06

4.83~16.09

4.83~16.09

6.36~20.25

Power Input

kW

0.46~2.01

0.67~2.93

0.82~3.73

0.82~3.73

1.08~4.70

COP

W/W

5.91~4.49

5.88~4.46

5.89~4.31

5.89~4.31

5.89~4.31

[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C.

Heating Capacity

kW

2.45~9.01

3.55~13.00

4.35~16.05

4.35~16.05

5.72~20.15

Power Input

kW

0.63~3.09

0.92~4.45

1.13~5.54

1.13~5.54

1.49~7.01

COP

W/W

3.89~2.92

3.86~2.92

3.85~2.90

3.85~2.90

3.84~2.87

[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.

Cooling Capacity

kW

2.09~6.26

2.95~8.78

3.92~13.01

3.92~13.01

4.61~15.35

Power Input

kW

0.47~2.21

0.66~3.09

0.88~4.58

0.88~4.58

1.04~5.48

EER

W/W

4.45~2.83

4.47~2.84

4.45~2.84

4.45~2.84

4.43~2.80

[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.

Heating Capacity

kW

9.33

13.90

16.81

16.81

21.65

Power Input

kW

2.14

3.21

3.91

3.91

5.02

COP

W/W

4.36

4.33

4.30

4.30

4.31

Prated（Pdesignh, Average climate, W35℃）

kW

5.7

8.8

12.2

12.2

14.0

ηs（Average climate , W35℃/）

%

179

179

180

180

179

SCOP （EN14825 Average climate, W35℃）

W/W

4.55

4.55

4.57

4.57

4.55

Prated（Pdesignh, Average climate, W55℃）

kW

5.5

8.8

12.2

12.2

14.0

ηs（Average climate , W55℃）

%

131

131

131

131

131

SCOP （EN14825 Average climate, W55℃）

W/W

3.35

3.35

3.36

3.36

3.35

Max. Power Input

kW

6.8(3.8+3)

7.7(4.7+3)

10.5(7.5+3)

10.5(7.5+3) 13.5(7.5+6) 16.5(7.5+9)

11.5(8.5+3) 14.5(8.5+6) 17.5(8.5+9)

Max. Running Current

A

31(17.3+13.7)

35.1(21.4+13.7)

48.5(34.8+13.7)

26.7(13.0+13.7) 22.1(13.0+9.1) 26.7(13.0+13.7)

28.7(15.0+13.7) 24.1(15.0+9.1) 28.7(15.0+13.7)

Max. Outlet Water Temperature

℃

60

Operating Ambient Temperature Range

℃

-28~43

Power Supply

220-240V~/50Hz

380~415V/3N~/ 50Hz

Rated Water Flow Rate

m³/h

1.55

2.24

2.75

2.75

3.44

Water Pressure Drop

kPa

30

40

50

50

60

Compressor

GMCC

Circulating Pump

Shinhoo GPA25-7.5H/130

Shinhoo GPA25-9HW/130

Shinhoo GPA25-11H/130

Water Side Heat Exchanger

Plate heat exchanger

Air Side Heat Exchanger

Finned heat exchanger

Fan/Motor

DC motor

Fan Quantity

1

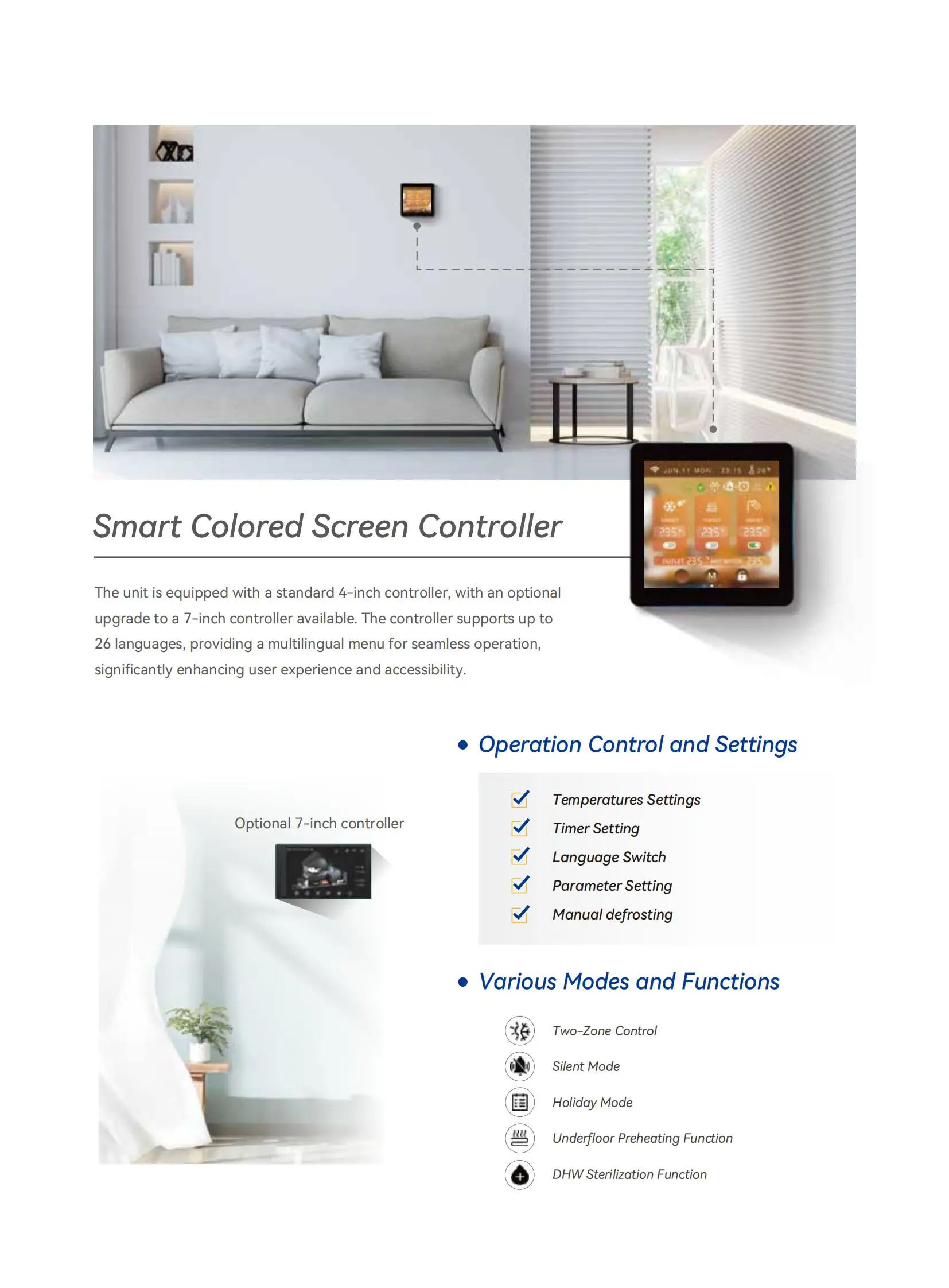

Display

4-inch Colored Touch Screen

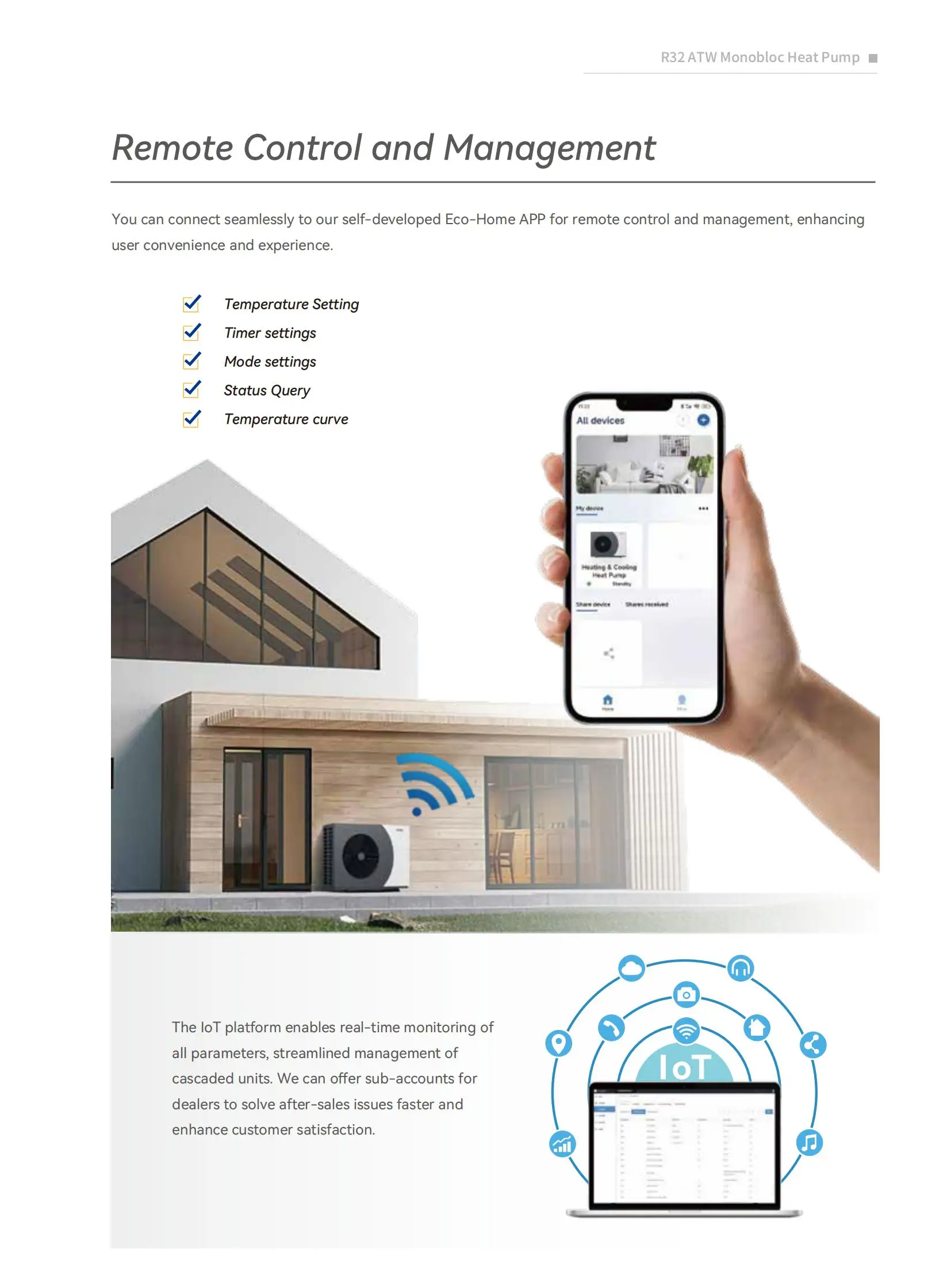

Remote Control

Yes

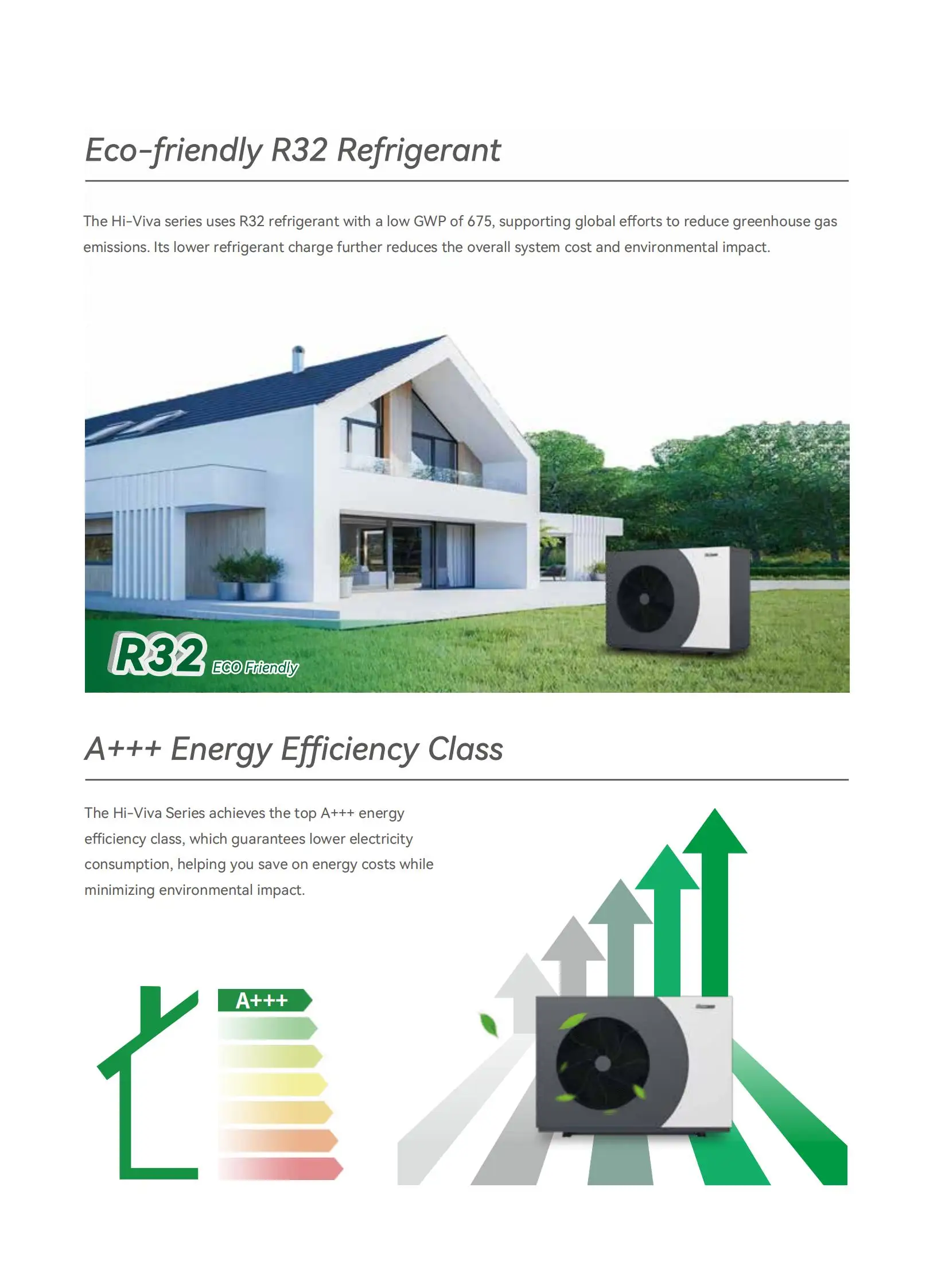

Refrigerant Type

R32

Refrigerant Weight

kg

1.4

1.60

2.30

2.30

2.67

Water Pipe Connection

inch

G1 1/4"

Ingress Protection Rating

IPX4

Electric Shock Protection Class

Ⅰ

Net Weight

kg

90

118

157

162

168

Why Choose NEWNTIDE?

FAQ

Q: How many years have your company been in heat pump industry?

A: We are the NO.1 heat pump exporter in China. We NEWNTIDE has full experience in the field of heat pumps for more than 19 years. NEW ENERGY has kept growing rapidly during these years since it was established. In 2019, our turnover reached an amount of 101 million US dollars and in the same year NEWNTIDE was loaded on the China's New OTC market.

Q: Do you accept OEM & ODM?
A: Yes. We can produce NEWNTIDE standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new product.

Q: How about the channel management?
A: First, in order to lead global positive market competition, NEWNTIDE will not sell the same product to two clients in one
region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients or offer NEWNTIDE's own brand products and services to dealers.

Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.

Q: How long is your Heat Pump delivery time?
A: Generally, it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q: What are your terms of payment for heat pump?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance, balance before shipment. Alibaba trade assurance payment available. L/C Payment available only with 1 million+ USD dealing amount.

Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.

Ordering and Pricing

• Minimum order quantity: 10 piece
• Volume pricing:
  • 10–99 piece: US $3628 / piece
  • 100+ piece: US $3168 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air to water heat pump?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air to water heat pump be supplied for my local voltage?

The standard configuration is 220-240V~/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangdong Newntide New Energy Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Newntide New Energy Technology Co., Ltd. range on HVACR Nexus.
