Aluminum alloy axial fan — 220v, power source Electric. The complete factory specification follows. Made by Guangzhou Xinfeng Fan Co., Ltd. (13 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Aluminum Alloy Axial Fan
- Power Source: Electric
- Voltage: 220v
- Blade Material: Aluminum Alloy
- Warranty: 1 Year
- Certification: CCC
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220v |
|---|---|
| Type | Adjustable Blade Axial Fan |
| Blade Material | Aluminum Alloy |
| Mounting Type | Other |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Suifeng |
| Certification | CCC |
| Hub Diameter | 200mm |
| Blade Width | 81mm*66mm |
| Diameter | 595 |
| Function | Exhaust Air |
| Selling Units | Single item |
Product Details

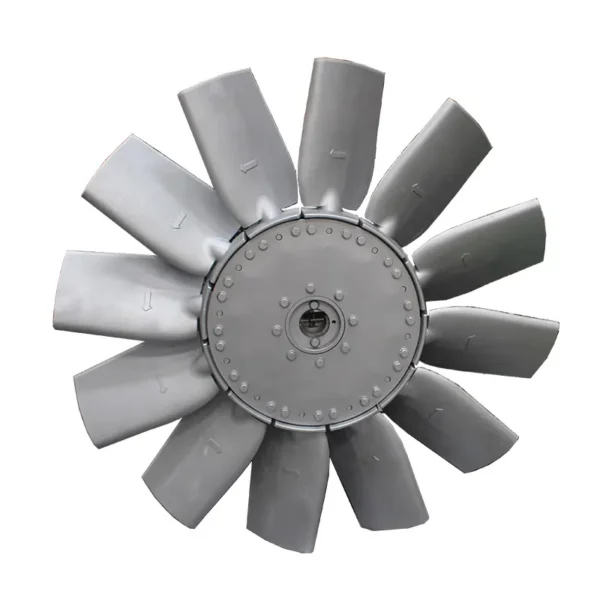

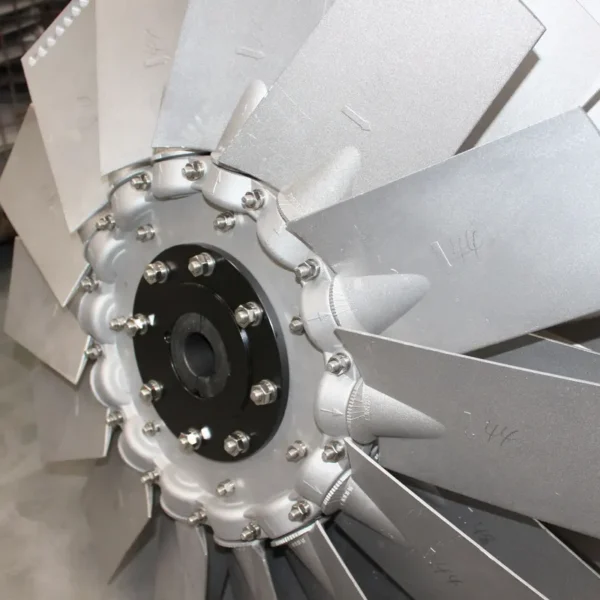

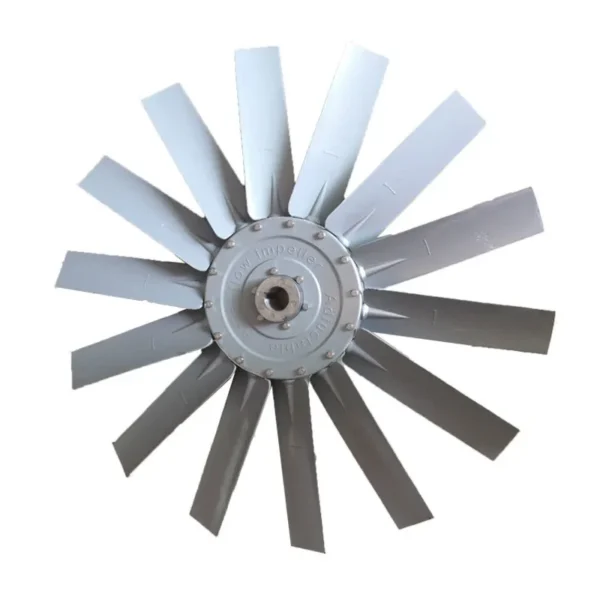

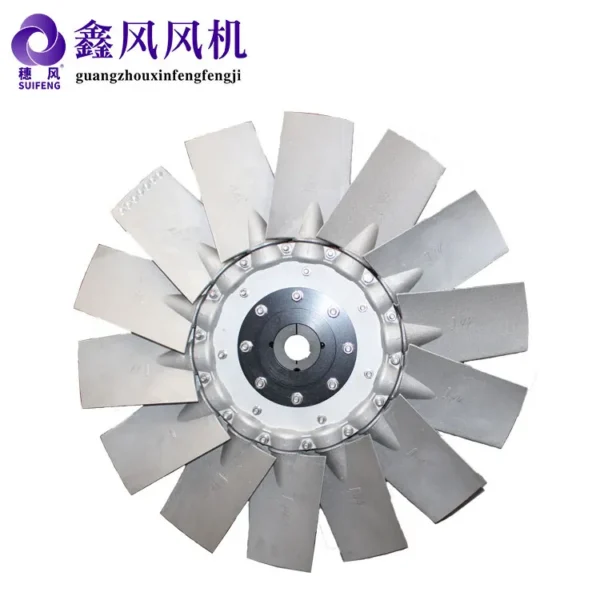

Adjustable aluminum alloy blades:
The blade is a variable cross-section space warp wing blade, Wheel housing with no wind on the clip, Structure is Precision die casting aluminum alloy forming, the blade of a clamping type wheel housing location, The blade fixed position by a clamping type wheel casing, The blade installation angle can be adjusted according to user needs, Can also be adjusted to make the blades generate the reverse flow, Realization of the need to reverse ventilation.Can be divided into positive and negative blade symmetric positive and reverse direction ventilation. There are six kind of blade installation angle ,is from 15° to 40°, can be used for static stepless regulation.
| Eight blades | ||||||
| Model | Description | axle hole (mm) | outside diameters (mm) | hub diameter (mm) | Leaf blade width (mm) | safe speed of rotation (r/min) |
| 3.15 | 1,The structure is use aluminum alloy Accurate Die Casting. 2,The blade installation angle can be adjusted according to user needs. 3,There are six kind of the installation angle,there are 15 – 40, can be used for static stepless regulation. | 14,16,19,24,28 | 310 | 150 | 71X60 | 2900 |
| 3.55 | 350 | 150 | 71X60 | 2900 | ||
| 4 | 395 | 150 | 71X60 | 2900 | ||
| 4.5 | 445 | 150 | 71X60 | 2900 | ||
| 5 | 495 | 150 | 71X60 | 1450 | ||
| 5.6 | 555 | 150 | 71X60 | 1450 | ||
| 6 | 595 | 150 | 71X60 | 1450 | ||
| 6.3 | 625 | 150 | 71X60 | 1450 | ||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $19 / piece
- 20+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this aluminum alloy axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this aluminum alloy axial fan carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the aluminum alloy axial fan be supplied for my local voltage?
The standard configuration is 220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Xinfeng Fan Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Xinfeng Fan Co., Ltd. range on HVACR Nexus.
