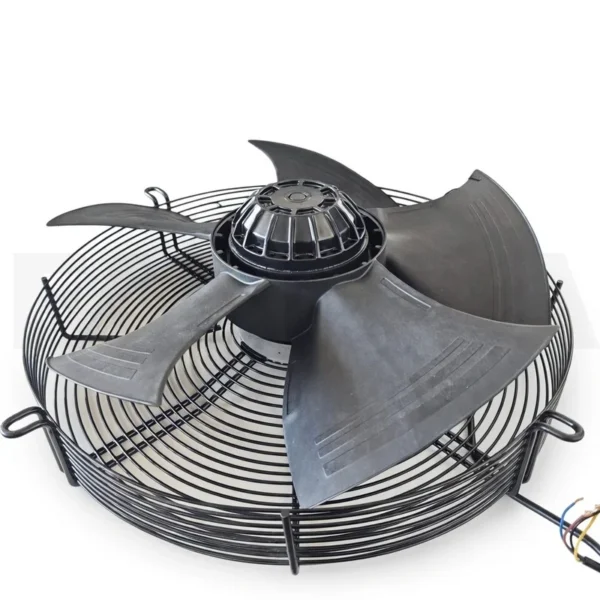

Key specification for this axial exhaust fan: 380V, max. air flow 9000/11000m3 /H. Everything below is reproduced from the factory data sheet. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Exhaust Fan
- Model Number: FG4K500-4APL-30
- Power Source: Other
- Power Consumption: 750/1000±10%W
- Voltage: 380V
- Nominal Voltage: 380V
- Nominal Voltage Range: 342~418V
Technical Specifications
| Voltage | 380V |
|---|---|
| Speed | 1350/1550±5% min -1 |
| Type | ac axial fan |
| Material | Propylene with glass-fiber reinforced |
| Blade Material | Propylene with glass-fiber reinforced |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Other |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | FANOVA |
| Model Number | FG4K500-4APL-30 |
| Fan Type | AC Axial Fan |
| Nominal Voltage | 380V |
| Nominal Voltage Range | 342~418V |
| Frequency | 50/60Hz |
| Current Draw | 1.5/1.8±10%A |
| Speed(RPM) | 1350/1550±5%min -1 |
| Power Consumption | 750/1000±10%W |
| Sound Pressure Level | 80/82±5%dB(A) |
| Max. Air Flow | 9000/11000m3 /H |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Item | Details |
Type | FG4K500-4APL-30 |
Model | AC137 |
Phase | ~ 3~ |
Nominal Voltage | VAC 380 |
Nominal Voltage Range | VAC 342~418 |
Frequency | Hz 50/60 |
Current Draw | A 1.5/1.8 ± 10% |
Speed (RPM) | min⁻¹ 1350/1550 ± 5% |
Power Consumption | W 750/1000 ± 10% |
Sound Pressure Level | dB(A) 80/82 ± 5% |
Max. Air Flow | m³/H 9000/11000 |
Insulation Class | ~ Class F |
Degree of Protection | IP54 |
Electrical Characteristics | |
Item | Details |
Operating Temperature | -25°C to 60°C |
Storage Temperature | -40°C to 75°C |
Operating Humidity | 5% to 90% RH |
Storage Humidity | 5% to 95% RH |
Thermal Protection | Cut-off temperature: 150-160°C; replacement temperature: 100-130°C |
Life Expectancy | 30,000 Hours (L10), at 40°C room, humidity 15%-65% RH |

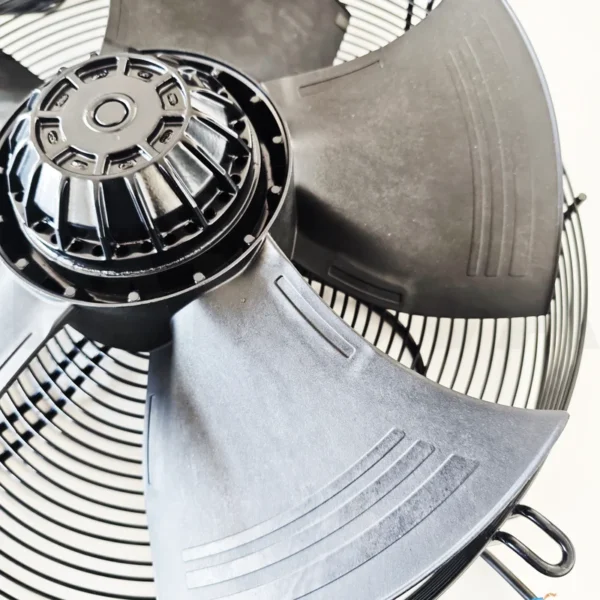

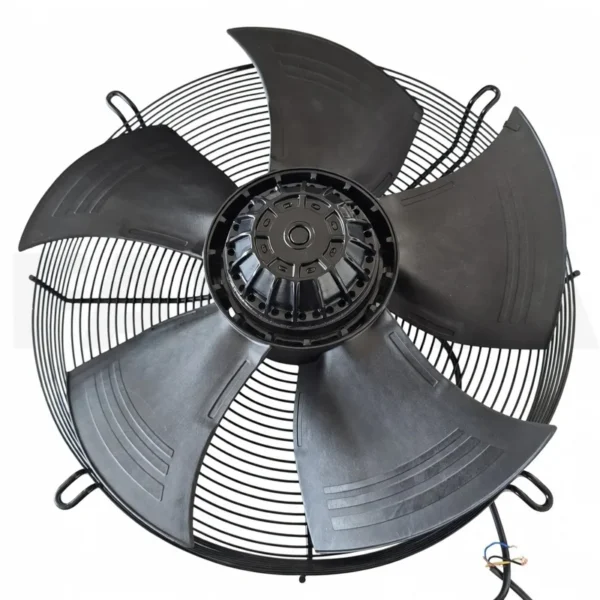

Impeller Diameter | 500mm |
Number of Blades | 5 |
Impeller Material | Propylene with glass-fiber reinforced |
Direction of Rotation | Anti-clockwise, viewed toward rotor |
Installation Position | Any |
Motor Bearing | Ball bearing |
Surface of Rotor | Coated in black |
Valid For Approval/Standard | RoHS |
Test Conditions Ⅰ. The test data is obtained under the specified environmental conditions and installation method. Ⅱ. Input Voltage — Operating Voltage Ⅲ. Temperature — Room Temperature Ⅴ. Humidity — 65% RH 6. Safety Requirements When removing the fan, do not lift it by the lead wire. Excessive force on the lead wire may cause the internal solder joints to detach. Do not plug or unplug the fan connector while the fan is running. If the fan does not operate after starting, do not touch the impeller, rotor, or other components. Professional technicians should inspect the fan to prevent sudden startup that may cause personal injury. Due to the soft-start feature of the fan, do not touch the impeller or other components during power-on or low-speed operation to avoid personal injury. The fan should be operated under the guidance of qualified personnel. Keep this product out of reach of children. If the power cord is worn or damaged, it must be returned to the factory for repair or replaced under the manufacturer's guidance. As part of the fan assembly, the motor is not recommended to be used alone without an impeller or load. Please read this technical manual carefully before use.
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
Product Drawing / Aerodynamic Performance Charts / Connection Diagram
Contact us for detailed specifications
Applications
HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
Product packaging
Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.
Related Products
Company Profile
Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.
FAQ
Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $25 / piece
- 50–99 piece: US $20 / piece
- 100+ piece: US $15 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial exhaust fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
