Axial fan — 12 V, 24 V, 48 V, 54.6CFM. The complete factory specification follows. Made by Shenzhen Poweryear Technology Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Fan
- Model Number: PY-9225M
- Power Source: Electric
- Voltage: 12 V, 24 V, 48 V
- AIR FLOW: 54.6CFM

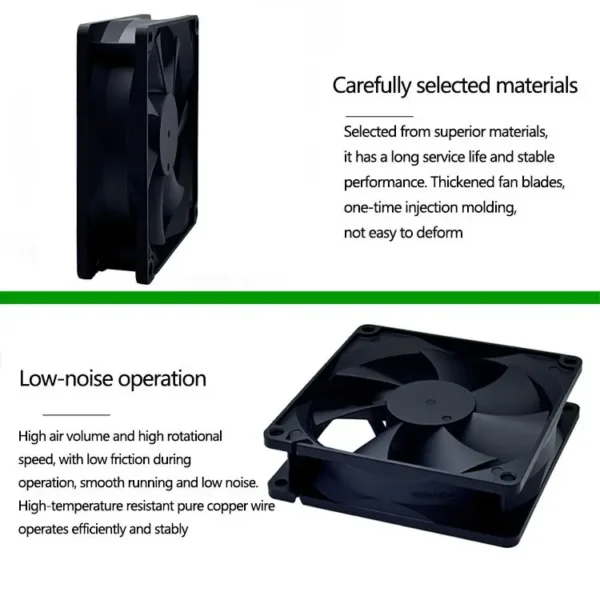

- Material: PBT
- Blade Material: PBT
Technical Specifications
| Voltage | 12 V, 24 V, 48 V |
|---|---|
| Type | dc cooling fan |
| Material | PBT |
| Blade Material | PBT |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Poweryear |
| Model Number | PY-9225M |
| Rated Current | 0.22A |
| Noise Level | 36dBA |
| Weight | 80±8g |
| AIR FLOW | 54.6CFM |
| Life Time | 30000 hours |
| Selling Units | Single item |
| Single Package Size | 9.2X9.2X2.5 cm |
| Single Gross Weight | 0.1 kg |
Product Details

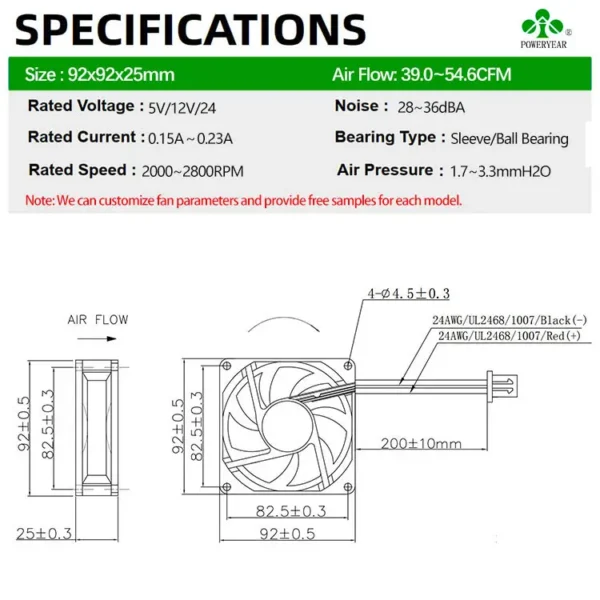

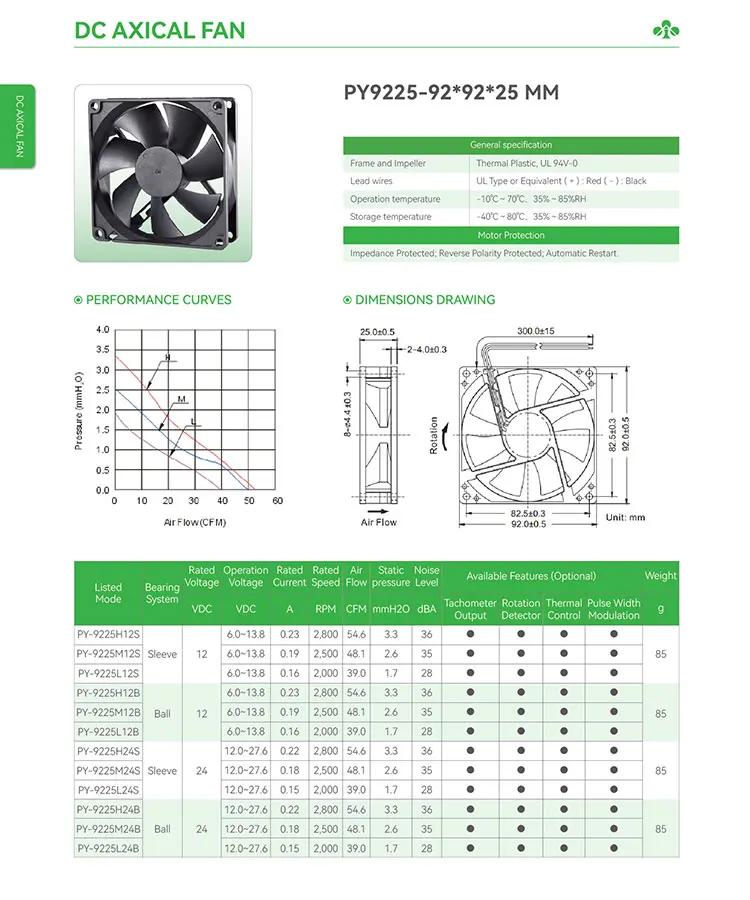

Size | 92*92*25mm DC Cooling Fan 7 leaves(Length* Width *Thickness) | ||||||
Rated Voltage | 5V 12V 24V | ||||||
Model | PY9225 | ||||||
Main Parameter | – Speed: 2800 RPM (Measured at 5 minutes after starting,under 25℃ 65%RH ambient) – Air Flow: 54.6CFM (AT zero static pressure; rated voltage) – Air Pressure: 3.3mmH2O (At zero airflow; rated voltage) – Noise Level:36dBA (Measured with an acoustic microphone standing 1M away from the running fan in a test chamber with backgroud noise level below 10dB(A)) | ||||||

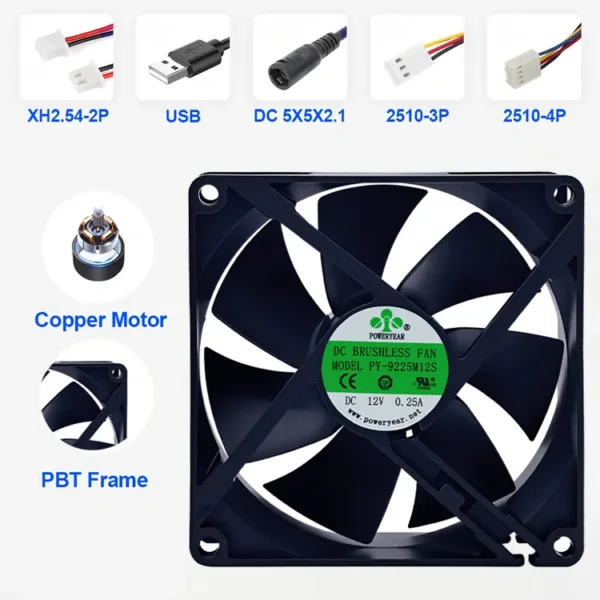

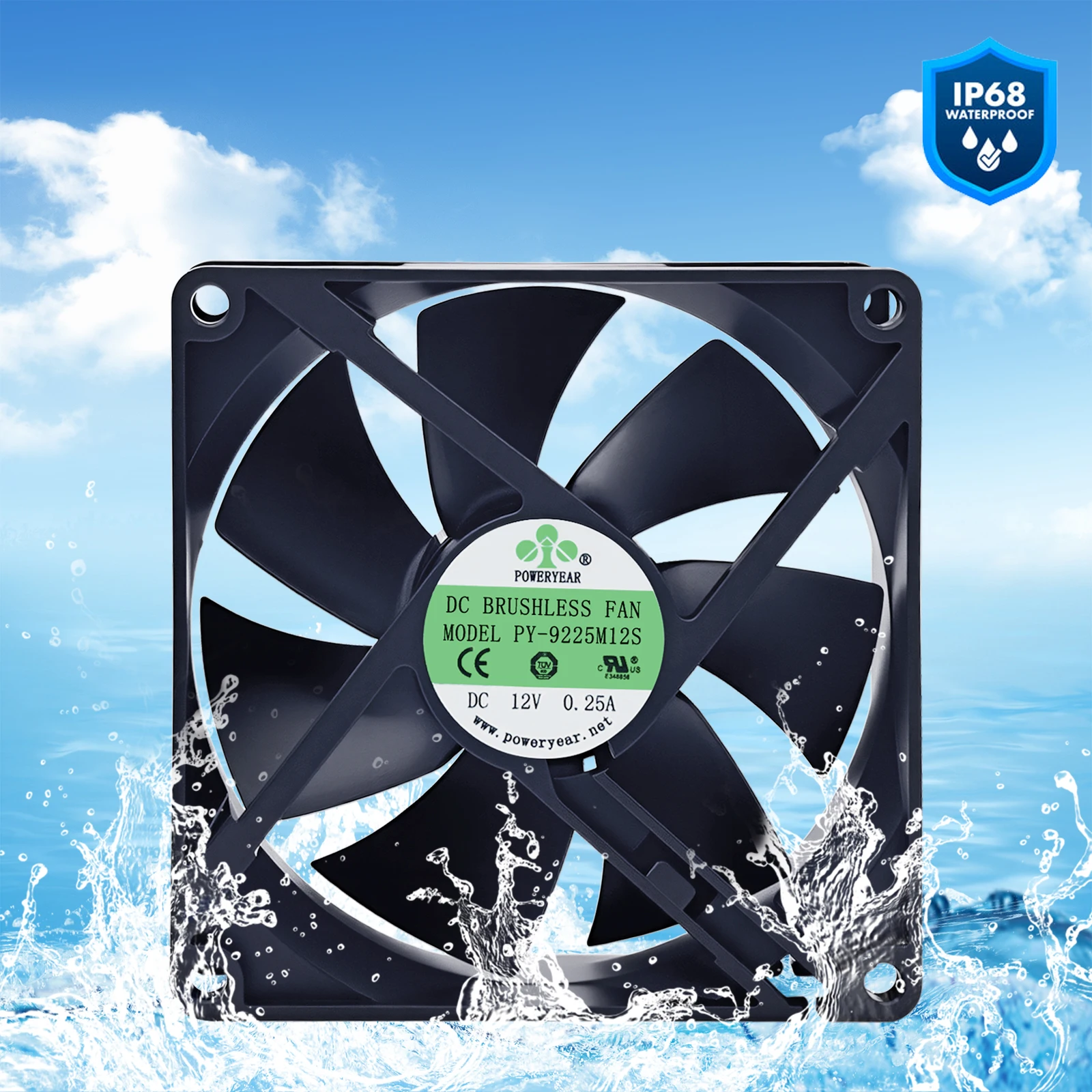

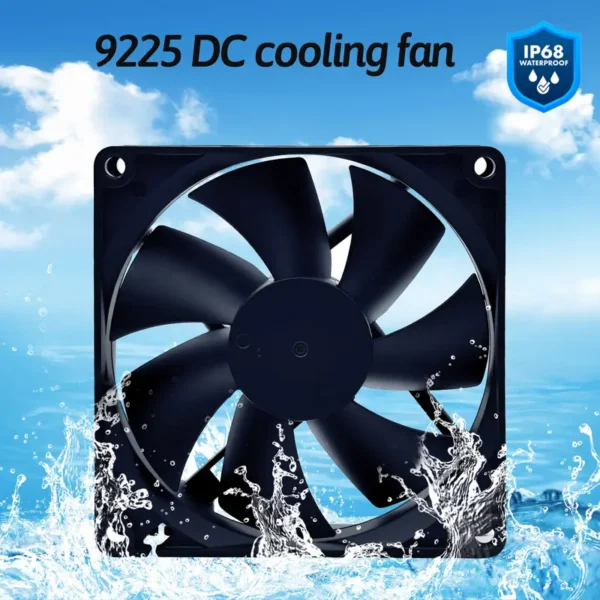

Specifications options | AS,RD,FG,PWM,Temperature Control ,IP56,IP68 | ||||||
Certification | IS09001,UL, TUV, CE, UKCA,CCC, RoHS, and IATF16949. | ||||||
Norminal Voltage | DC5V DC12V DC24V DC48V | ||||||
Applications | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory,Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Advertising Company, Other | ||||||
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–199 piece: US $2.5 / piece
- 200–999 piece: US $2.1 / piece
- 1000+ piece: US $1.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial fan be supplied for my local voltage?
The standard configuration is 12 V, 24 V, 48 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Poweryear Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Poweryear Technology Co., Ltd. range on HVACR Nexus.
