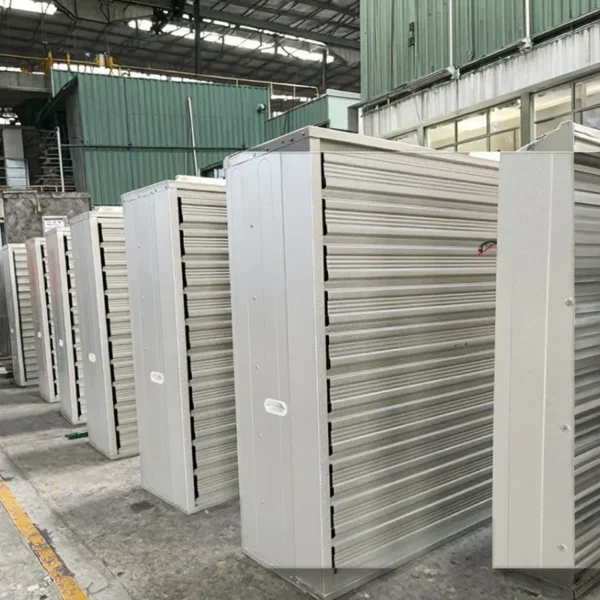

Axial Flow Exhaust Fan, 230V/380V, Wall, Stainless, Steel

Key specification for this axial flow exhaust fan: 380V,220V,230V,415V or as your request, 1.1KW. Everything below is reproduced from the factory data sheet. Made by Shandong Xinyu Runhua Machinery Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Axial Flow Exhaust Fan

• Model Number: 1380
• Power: 1.1KW
• Voltage: 380V,220V,230V,415V or as your request
• Material: Steel , Stainless Steel
• Blade Material: Stainless Steel
• Speed: 1400rpm

Technical Specifications

Product Details

Products Description

Product Features:

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.

2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,
utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Centrifugal Push-Pull Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

XINYURUNHUA Heavy hammer type fans is mainly composed of blades, belt pulley and flange, blade hub, belt, bearing, blade support,shutters, frame, protection mesh, motor and other components. The motor drives the blades to generate airflow. To prevent outdoor dust and foreign matter from entering, and to avoid the effects of rain, snow and wind.

Model	Diameter biades	Air flow	Import power	Noise
710 -(28inch)	710mm	18600	370w	≤64
900 -(35inch)	900mm	21000	750w	≤64
1000-(40inch)	1000mm	36800	750w	≤64
1250 -(50inch)	1250mm	44000	1100w	≤64
1400 -(55inch)	1400mm	54000	1500w	≤64

Details Images

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.

Centrifugal System

1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

Fan Blades

1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

Belt

Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

Safe Net

Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.

Successful Project

High quality Industrial Factory/Poultry farm Greenhouse Ventilation Exhaust Fan with low price.

XINYURUNHUA Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Project in Thailand

Project in India

Project in Russia

Company Profile

Shandong Xinyu Runhua Machinery Co., Ltd. is a leading manufacturer of ventilation and control system, a well-known manufacturer of ventilation and refrigeration equipment, heating equipment and livestock machinery. Our company integrates research and development, production, sales and maintenance services, specialized in manufacturing poultry and greenhouse exhaust fans, feed silo, evaporative cooling pads, circulating fans, axial flow fans, feeding and drinking system,etc for more than 10 years.
We provide our customers with high-quality and affordable livestock machines. Each machine is adjusted and precisely tested before leaving our factory, making it easier for customers to install and produce the best possible results. At the same time, we can also provide OEM or ODM services for customers. All products have passed strict quality control and have passed the certificates such as CE and ISO9001 and are widely used in agriculture, greenhouse, animal husbandry, textile and other industries.

Certifications

XINYURUNHUA has been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”YUMANCANG'' and "XINYURUNHUA".

Exhibition

XINYURUNHUA Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers.

Our Service

XINYURUNHUA has more than 10 years of professional design and production experience, more than 300 efficient R & D and production team.

SPre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.

Packaging And Shipping

XINYURUNHUA Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc. Global service, Annual sales over $ 30 million

Small parts are packed in cartons and packed by manual forklift trucks.

FAQ

Q1： Is your company a manufacturer or a trading company?

A1：We are the biggest and professional manufacturer of ventilation equipmentcooling equipment and Heating equipment for poultry,workshop and greenhouse in China.

Q1：Can you make our own brand?

A1:Yes we can provide OEM&ODM Service.We can put your own logo on the products.

Q: What is your minimum order quantity?

A: We can accept small quantitybut the freight will be hiah

Q: What voltage you can do?

A:Our normal voltages is 380V-50HZ-3PhaseThe voltage and Frequency can be customized

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $169 / piece
  • 100–199 piece: US $136 / piece
  • 200+ piece: US $135 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial flow exhaust fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this axial flow exhaust fan carry?

It is supplied with ce, CCC, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the axial flow exhaust fan be supplied for my local voltage?

The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
