Key specification for this axial flow fan: 110V/220V, 18W. Everything below is reproduced from the factory data sheet. Made by Zhejiang Lavfill Electrical Technology Co., Ltd. (11 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Fan
- Model Number: LFI-13SI
- Power: 18W
- Voltage: 110V/220V
- Blade Material: Plastic
- Material: ABS
- Motor Material: 100% Copper
Technical Specifications
| Voltage | 110V/220V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | AC |
| Mounting Type | Duct Fan |
| Warranty | 3 Years |
| After-Sales Service Provided | No after-sales service |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM/LAVFILL |
| Model Number | LFI-13SI |
| Material | ABS |
| Motor Type | Slide Bearing / Ball Bearing |
| Motor Material | 100% Copper |
| Speed | 2400rpm |
| Thermal Protection | Yes |
| Power | 18W |
| Outlet Size | 150mm |
| Product Name | 150mm 6 inch inline axial flow fan duct fan duct fan |
| Packaging Details | Neutral Package/ Customized Package 150mm 6 inch inline axial flow fan duct fan duct fan |
| Port Of Dispatch | Ningbo Port, Shanghai Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 200000 pieces per Month 150mm 6 inch inline axial flow fan duct fan duct fan |
Product Details
Product Features
- The fan is suitable for inline duct mounting in suspended ceiling
- Flexible inline installation booster

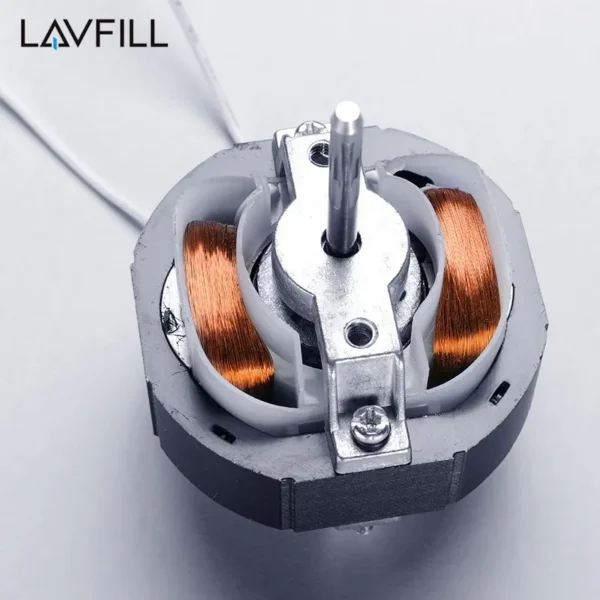

- Shaded pole motor with thermo cut-off
- Ball bearing motor to reduce friction for long life operation
- Operating temperature range -10°C~ 40°C
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
Specification
Dimension
Unit: mm
| Article No. | A | B |
| LFI-09SI | φ99 | 98 |
| LFI-13SI | φ149 | 118 |
Technical Parameter
| Article No. | Category | Rated Voltage | Rated Voltage | Power | Air Volume | Noise |
| LFI-09SI | Inline ducted Fan | 110V~,60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz | 50/60Hz | 12W | 130m³/h | 34dB |
| LFI-13SI | 18W | 320m³/h | 35dB |
Product Display

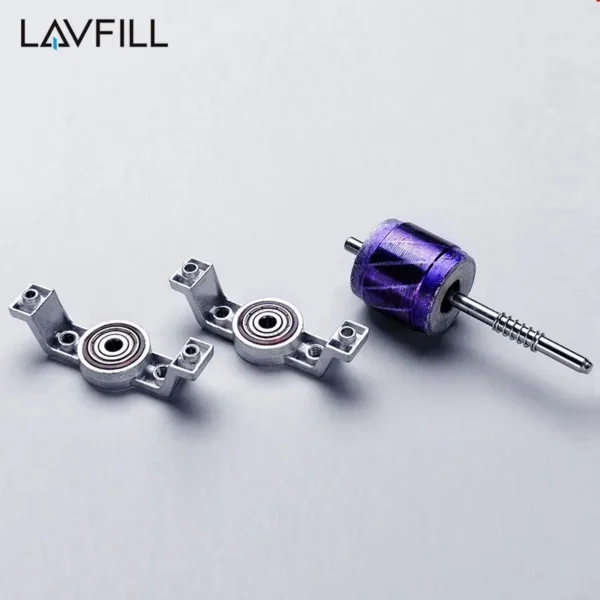

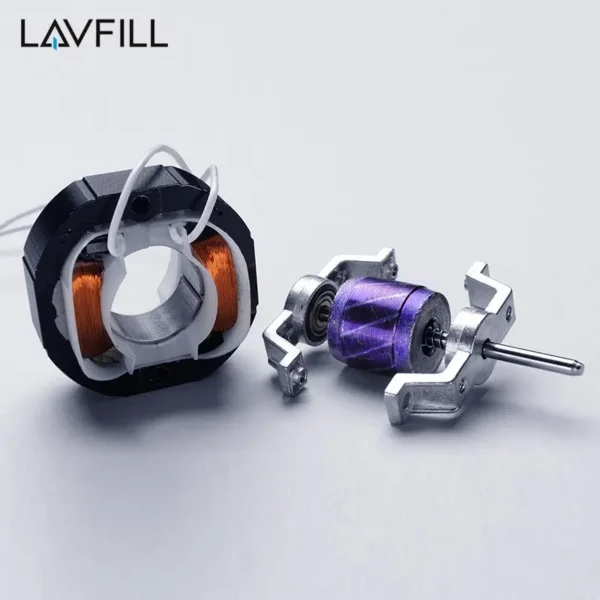

Exploded View
INSTALLATION
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–2999 piece: US $5.08 / piece
- 3000+ piece: US $3.58 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Lavfill Electrical Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Lavfill Electrical Technology Co., Ltd. range on HVACR Nexus.
