The axial flow fan listed here carries 120 V, AC 220V~240V, 380 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Zhongshan Pengfei Electrical Appliance Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: 120 V, AC 220V~240V, 380 V
- Material: Carbon Steel
- Blade Material: Plastic
- Speed: 1350RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 120 V, AC 220V~240V, 380 V |
|---|---|
| Speed | 1350RPM |
| Type | exhaust fan |
| Material | Carbon Steel |
| Blade Material | Plastic |

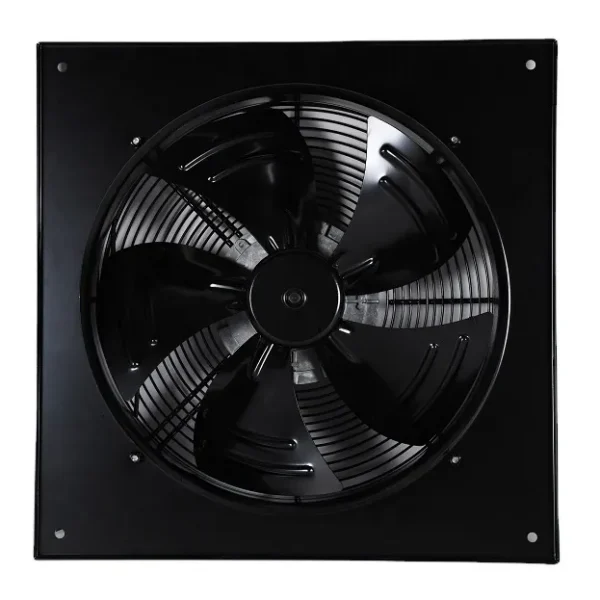

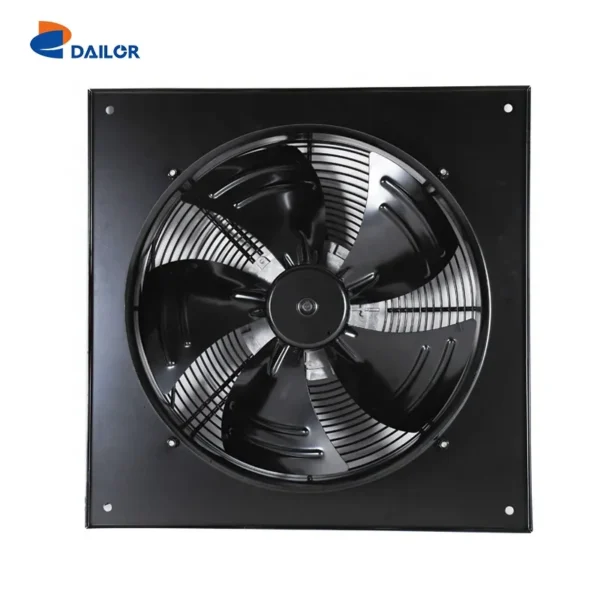

| Mounting Type | Wall Fan, Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Dailor |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

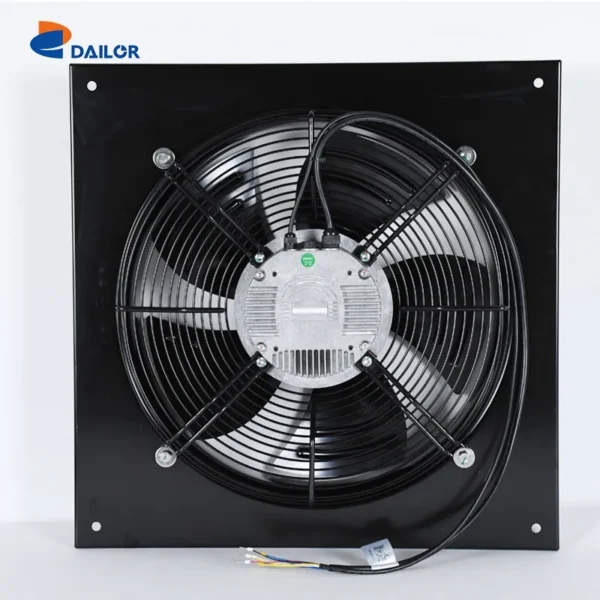

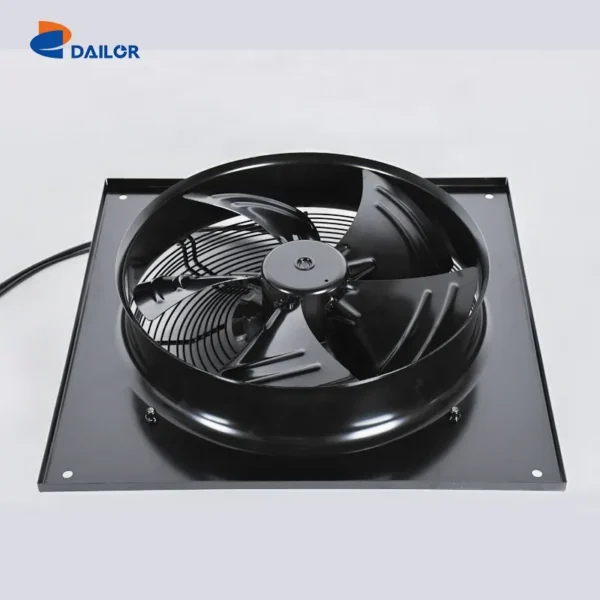

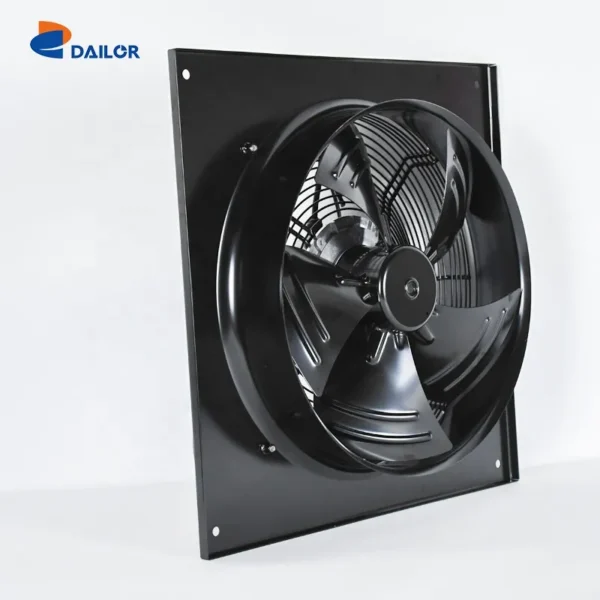

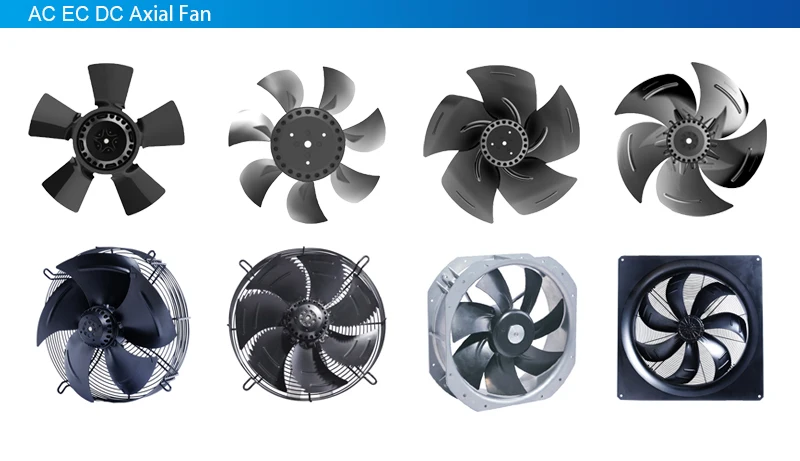

AC/EC/DC External Rotor Motor Powered Axial Fan
1.The external rotor motor powered axial fan has the characteristics of the characteristics of compact structure, reliable operation, low noise, easy installation and high efficiency, etc. 2.There are single-phase and three-phase power input types for the external rotor motor powered axial fan. And the axial fans are widely used in the industries of industries of evaporator, condenser, water cooler, heat pump, IT&Telecom and ventilation, ect. 3.The external rotor motor has a low start current, and is IP54 protection level, insulation class F evaluated. 4.There’s a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs built-in thermal protector for the three-phase motor, please note us while placing the order. 5.The normal input voltages/frequency for our single-phase motor are 115V, 230V, 50/60Hz, and for three-phase motor are 380V, 460V, 50/60Hz. We can accommodate the voltage and frequency to customer’s requirements. 6.Average life of our motors The bearing used on our motor is maintenance free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions. 7.The external rotor motor powered fans are CCC, CE, RoHs, UL and cUL approval.
General Parameter | ||

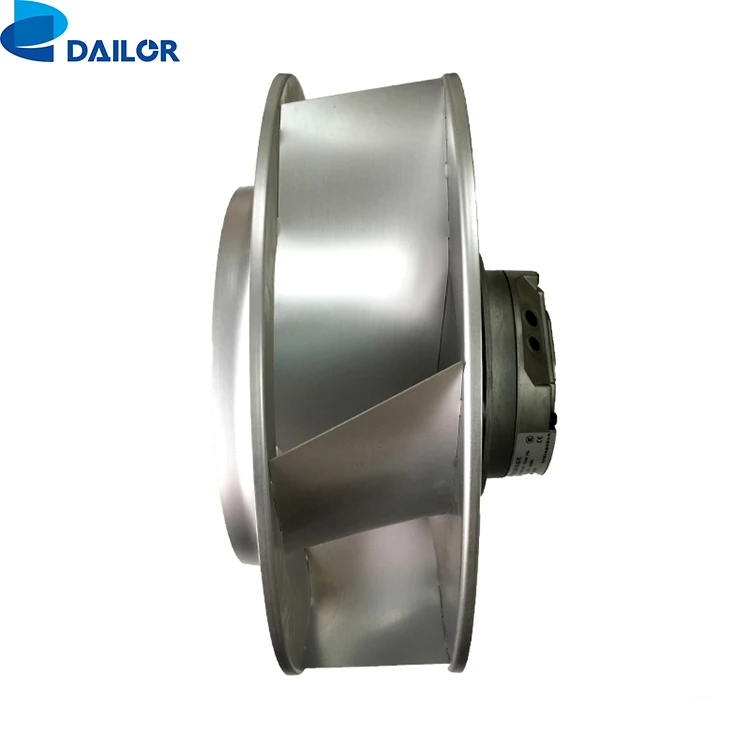

Backward Centrifugal Fan Sizes | 133mm ~ 560mm | |
Forward Centrifugal Fan Sizes | 120mm ~ 250mm | |
Axial Fan Sizes | 200mm ~ 900mm | |
Voltage | AC Input: 210V, 220V, 230V, 380V, 400V DC Input: 12V, 24V, 48V EC Input: 210V, 220V, 230V, 380V, 400V (or customized) | |
Power | Up to 2300W | |
Speed | Up to 3300RPM | |
Airflow | Up to 32500m3/h | |
Speed Control | Speed controller (AC) or PWM/0-10V Input (DC&EC) | |
Approvals | CCC, CE, RoHs, UL, CUL | |
Specification
>>>Airfoil Profiled AC Axial Fan
250/300/350/400/450/500/560/630/710/800mm
>>>Airfoil Profiled EC/DC Axial Fan
250/300/350/400/450/500mm
>>>AC Axial Fan
200/250/300/315/330/350/380/400/420/450/500/550/600/630/710/800/900mm
>>>EC Axial Fan
200/250/300/350/400/450/500/630/710/800mm
>>>DC Axial Fan
200/250/300/450mm
Please contact us for more product details!
Products Description
Φ200 AC Axial Fan | ||||||||||||||||
Model | Nominal Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Capacitor (μF) | Airflow m³/h/CFM | Noise (dB) | ||||||||
DYWF.A2S-200S-5DIA00 | 115/120 220/230 | 50 | 0.20 | 45 | 2650 | 2 | 700/411 | 54 | ||||||||
220/230 | 60 | 0.26 | 56 | 2950 | 29501.0 | 770/452 | 56 | |||||||||
DYWF.A2S-200S-7DIA15 | 115/120 | 50 | 0.57 | 60 | 2650 | 6 | 880/518 | 60 | ||||||||
60 | 0.58 | 67 | 3000 | 1000/576 | 64 | |||||||||||
Material of Rotor | Aluminum casting | |||||||||||||||
Protection Class | IP44 | |||||||||||||||
Insulation Class | F | |||||||||||||||
Bearing System | Maintenance-free ball bearing | |||||||||||||||
Operating Temperature | -30℃ to +60℃ | |||||||||||||||

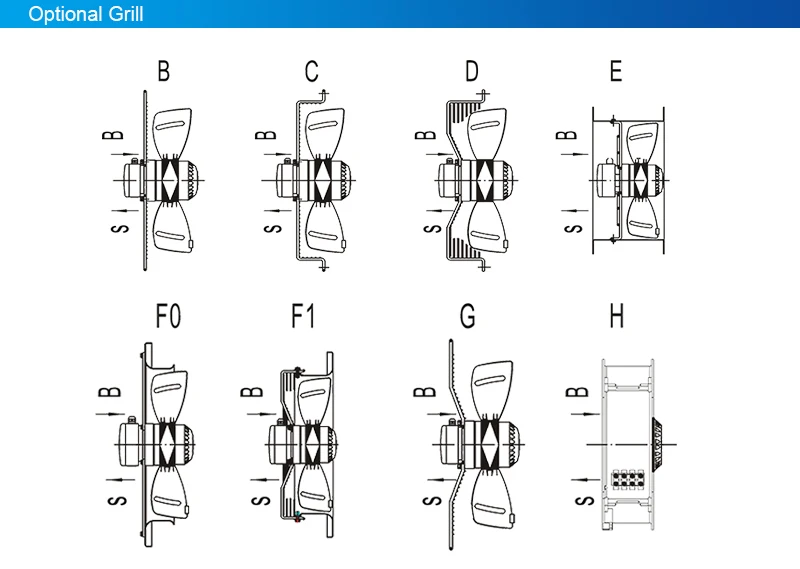

Optional Grill
A- w/o grill
B- flat grill
C- flat grill w/sidepiece
C- flat grill w/sidepiece
D- concave guard grill with sidepiece
E- round mounting duct
F0- type F0 mounting plate
F0- type F0 mounting plate
F1- type F1 mounting plate
G- flat concave guard grill
H- aluminum mounting frame
Φ200 DC Axial Fan | ||||||||||||||
Model | Nominal Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Noise (dB) | Applicable Temp. (℃) | |||||||
DDC92-A200 | 24 | / | 3.9 | 95 | 2590 | 70 | -20 ~ +60 | |||||||
Material of Rotor | Aluminum casting | |||||||||||||
Protection Class | IP44 | |||||||||||||
Protection Class | B | |||||||||||||
Bearing System | Maintenance-free ball bearing | |||||||||||||
Wire Diagram | Contact us for details | |||||||||||||
NO. | Speed (RPM) | Input Power (W) |
1 | 3046 | 89.6 |
2 | 3010 | 90.6 |
3 | 2872 | 97.3 |
4 | 2737 | 104.7 |
5 | 1876 | 26.0 |
6 | 1852 | 26.4 |
7 | 1797 | 28.0 |
8 | 1729 | 30.2 |
Mechanical Parameter (only for EC/DC, not suitable for AC motor fan): | ||
Direction of Rotation | Anti-clockwise/Clockwise | |
Direction of Air flow | Intake/Exhaust | |
Insulation Class | B/F | |
Bearing | Maintenance-free ball bearing | |
Line undervoltage Motor current limitatin Locked-rotor protectionSoft start Thermal protector | ||
Operation mode | (S1) | |
Protection Type | IP44/IP54 | |
Operating Temperature | -25℃ to +60℃ | |
Technical features: | Control input 0~10VDC/PWM Output 10VDC+10%. max.10mA Tach output Alarm relay | |
Main Application
>> AC/EC/DC Axial Fan
Applicable to large air volume, low static pressure, system resistance of smaller occasions
• Air Conditioning Terminal
• Condenser
• Evaporator
• Condenser
• Evaporator
• Air Conditioning Fan
• Exhaust Ventilation
• Cold Storage
• Equipment heat radiation
• HVAC industry
• Air Handly Unit
• Other related Industries
Company Profile

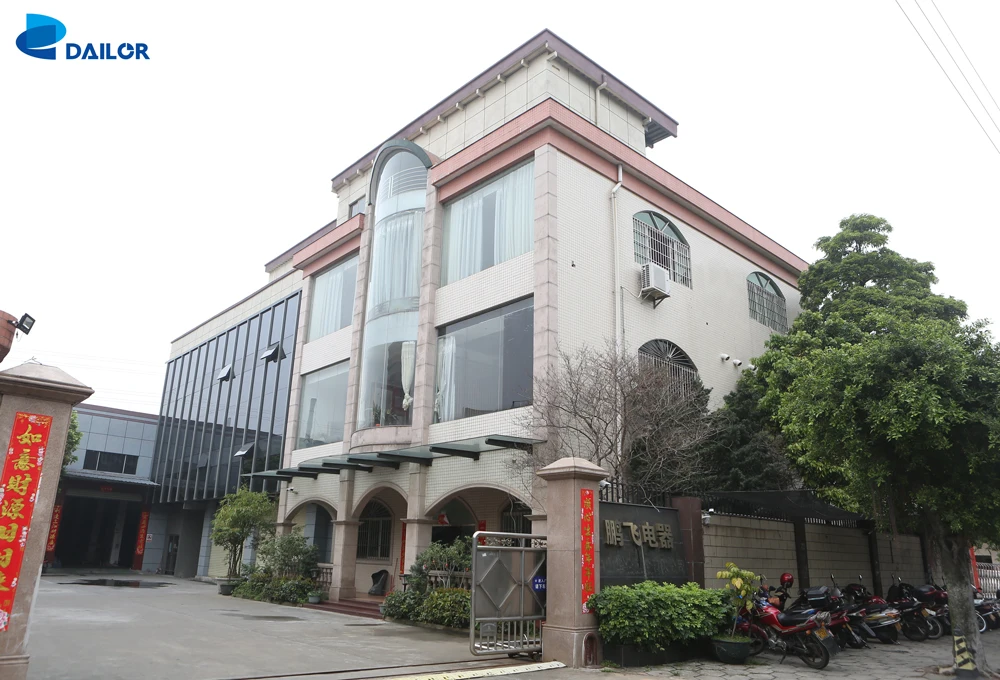

Zhongshan Pengfei Electric Appliance Co., Ltd
was founded in 2004, is located in Dongsheng Town, Zhongshan City, where it is an industrial town, specializing in micro motor accessories, motor research, development, and production.Our company has more than 50 independent intellectual property patents. We have passed ISO9001quality system certification and environmental protection certification. According to the customer requirements of different markets, it has produced products that confirmed with the certification standards of CE, CQC, ROHS and so on. We have more than 20000 square meters of production workshop. Fix equipment includes high-speed punches, automatic die casting machines, injection molding machines, robots, mold development equipment, motor testing equipment and so on. All kinds of molds are more than 2000 sets. And we have more than 10000 kinds of motor accessories products, the main products are motor stator and rotor chips, motor zinc, and aluminum brackets(end covers), motor insulation coil skeletons and other motor hardware and plastic products. We have been named as a "micro motor accessories supermarket" in the industry.
With many advanced production equipments, we guarantee the quality and delivery time in the development and production of motor, design the most optimized products according to the cost and quality requirements provided by customers.
we are pound to accumulate wide and international customers with stable product quality and excellent technological advantages. If you are looking for a reliable supplier in custom electric motors, we believe we are your correct choice and trustworthy partner in China.
Certifications and Patents
Our Advantages
FAQ
1.Q: I don't find the specification that meets our requirement.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15 days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalogue.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.
2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15 days after payment.
3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.
4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.
5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
Send us messages to get more information and catalogue.
Ordering and Pricing
- Minimum order quantity: 30 piece
- Volume pricing:
- 30–499 piece: US $35.6 / piece
- 500–4999 piece: US $22 / piece
- 5000+ piece: US $20.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 30 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 120 V, AC 220V~240V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
