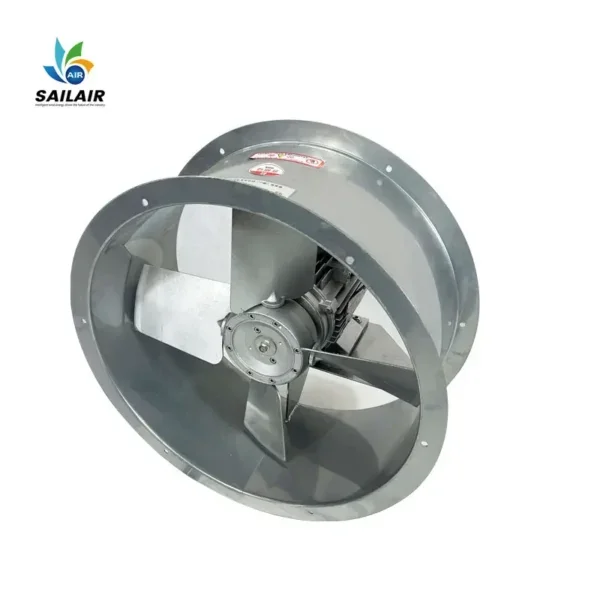

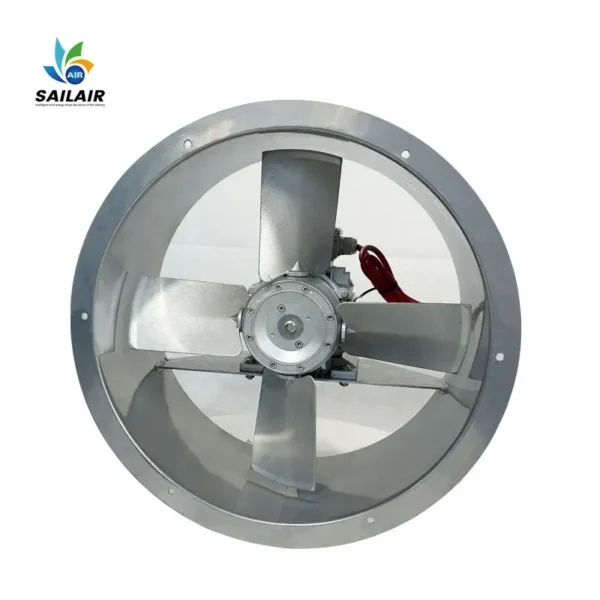

Axial Flow Fan, 300mm, 0.37kW, Stainless, Steel

Axial flow fan — voltage 380V220V415V, air flow 2000-3500m3/h. The complete factory specification follows. Made by Weifang Sailair Ventilation Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Axial Flow Fan

• Model Number: GKFB3-2-0.37KW
• Power Source: Electric
• Power: 0.37KW
• Voltage: 380V220V415V
• Air Flow: 2000-3500m3/h
• Material: Stainless Steel

Technical Specifications

Product Details

Products Description

1.High-temperature axial flow fans are widely used in drying equipment for tobacco, wood, fruits and vegetables, and
medicinalmaterials.resistance to high temperature and high humidity, large air volume, high air pressure, low noise, high efficiency and energy
2.The fan features a novel structure, an attractive appearance, and superior performance. It boasts characteristics such as saving, and easy maintenance.
3.Due to factors such as different quantities (of fans), varying impeller diameters, adjustable blade installation angles, and different main shaft rotational speeds, the air volume, air pressure, and power consumption (of each fan) also differ.

The products in this series adopt a direct connection structure where the impeller is directly mounted on the motor shaft. Under allowable conditions, the circumferential speed of the impeller matches three rotational speeds: 2900 rpm (revolutions per minute), 1450 rpm, and 960 rpm.

This series of products is divided into 10 models based on impeller diameter, arranged in numerical order. The models correspond to impeller diameters of 10 units (specific unit to be confirmed, e.g., decimeters or inches) with required angles for sizes 3,3.5, 4, 5, 5.6, 6, 7, 8, 9, and 10.

Product details

Thickened stainless steel Frame

^{1、Thickened panels 304 stainless steel 2、structural robustness 3、corrosion resistance 4、without rust or deformation, delivering smoother power output 5、extending the fan's service life. 6、It represents a dual assurance of reliability and durability.}

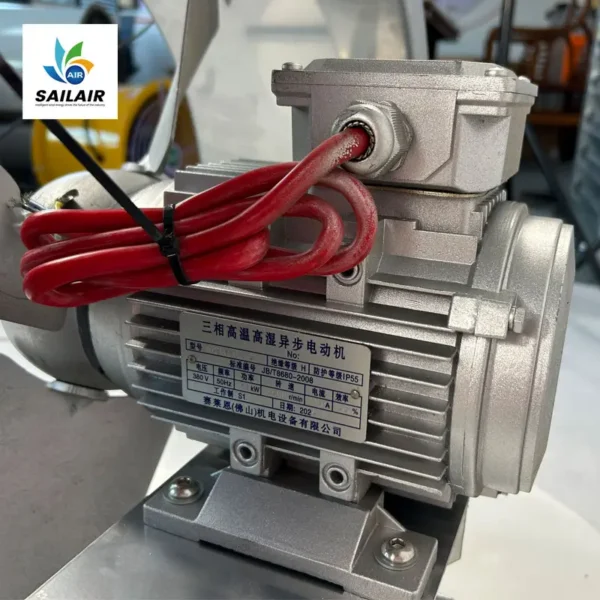

High-power motor with pure copper windings

The fan is equipped with a high-power pure copper motor, which integrates high-purity copper windings and high-quality silicon steel sheets. This ensures efficient power conversion and robust power output, while also delivering low heat generation, stable operation, and a significantly extended lifespan.

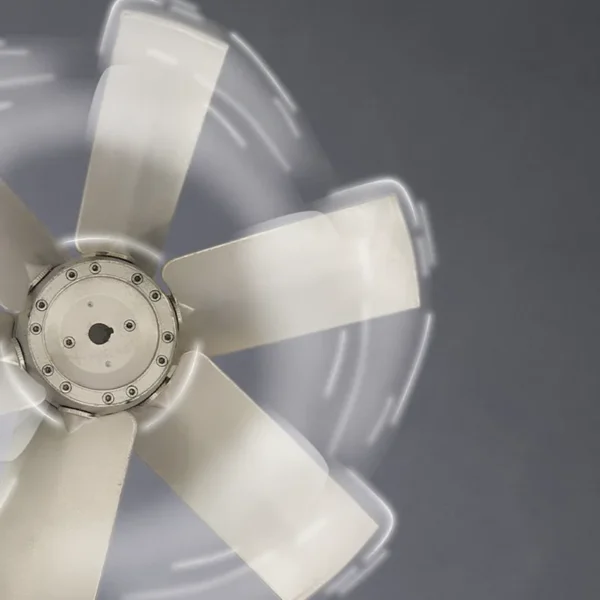

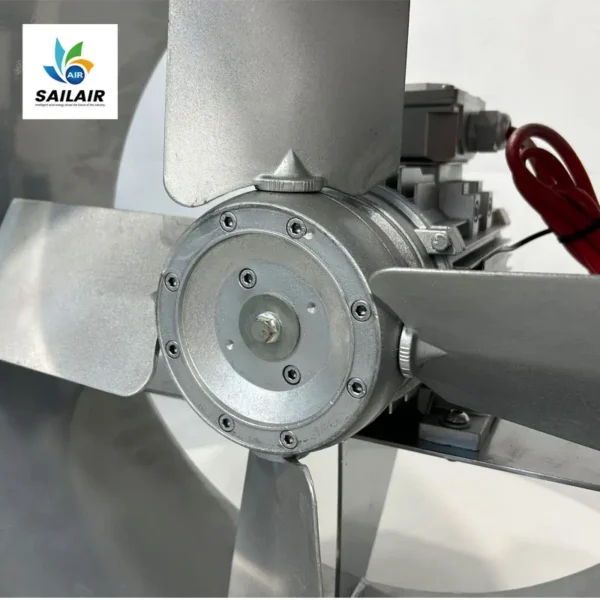

Reinforced steel fan blades

Reinforced steel fan blades with high hardness that resist deformation and detachment. The impeller undergoes strict dynamic balancing calibration, offering excellent aerodynamics, high air volume, low noise, dust resistance, anti-rust and corrosion protection, ensuring smooth operation.

Product Paramenters

More Selectable Mechanical Parameters
Classification & Specification	Dimensions (mm)	Power (KW)	Speed (r/min)	Air Volume (m³/h)	Total Pressure (Pa)	Noise (dBA)	Number of Blades
High-Temp & High-Humidity Type 3 – 4 Poles – 180W – 380V – Straight Blades	375*315*200	0.18-4	1450	1900-1200	40-50	62	7
High-Temp & High-Humidity Type 3 – 2 Poles – 370W – 380V – Straight Blades	375*315*200	0.37-2	2900	2000-3500	140-200	68	7
High-Temp & High-Humidity Type 3 – 2 Poles – 370W – 380V – Curved Blades	375*315*200	0.37-2	2900	2000-3500	140-200	68	4
High-Temp & High-Humidity Type 3.5 – 2 Poles – 550W – 380V – Curved Blades	420*365*200	0.55-2	2900	2800-5000	230-300	74	4
High-Temp & High-Humidity Type 4 – 2 Poles – 550W – 380V – Straight Blades	475*415*200	0.55-2	2900	3200-6000	230-300	74	6
High-Temp & High-Humidity Type 4 – 4 Poles – 550W – 380V – Curved Blades	475*415*200	0.55-4	1450	3200-5200	110-130	74	4
High-Temp & High-Humidity Type 4 – 2 Poles – 750W – 380V – Straight Blades	475*415*200	0.75-2	2900	4000-6500	250-330	76	6
High-Temp & High-Humidity Type 4 – 2 Poles – 1.1KW – 380V – Straight Blades	475*415*200	1.1-2	2900	5000-7000	270-380	78	6
High-Temp & High-Humidity Type 4 – 2 Poles – 1.1KW – 380V – Curved Blades	475*415*200	1.1-2	2900	5000-7000	270-380	78	4
High-Temp & High-Humidity Type 5 – 4 Poles – 550W – 380V – Straight Blades	575*515*200	0.55-4	1450	5000-7800	115-160	70	6
High-Temp & High-Humidity Type 5 – 4 Poles – 550W – 380V – Curved Blades	575*515*200	0.55-4	1450	5000-7800	115-160	70	6
High-Temp & High-Humidity Type 5 – 4 Poles – 750W – 380V – Straight Blades	575*515*200	0.75-4	1450	5300-8900	140-180	72	6
High-Temp & High-Humidity Type 5 – 4 Poles – 750W – 380V – Curved Blades	575*515*200	0.75-4	1450	5300-8900	140-180	72	6
High-Temp & High-Humidity Type 5 – 4 Poles – 1.1KW – 380V – Straight Blades	575*515*200	1.1-4	1450	6500-9600	200-220	76	6
High-Temp & High-Humidity Type 5 – 4 Poles – 1.1KW – 380V – Curved Blades	575*515*200	1.1-4	1450	6500-9600	200-220	76	6
High-Temp & High-Humidity Type 5.5 – 4 Poles – 750W – 380V – Straight Blades	620*565*200	0.75-4	1450	5600-9200	140-180	72	6
High-Temp & High-Humidity Type 5.5 – 4 Poles – 1.1KW – 380V – Straight Blades	620*565*200	1.1-4	1450	7600-11000	195-230	78	6
High-Temp & High-Humidity Type 6 – 4 Poles – 1.1KW – 380V – Straight Blades	675*615*200	1.1-4	1450	8000-12600	195-230	78	6
High-Temp & High-Humidity Type 6 – 4 Poles – 1.1KW – 380V – Curved Blades	675*615*200	1.1-4	1450	8000-12600	195-230	78	6
High-Temp & High-Humidity Type 6 – 4 Poles – 1.5KW – 380V – Straight Blades	675*615*200	1.5-4	1450	9000-15000	250-280	80	6
High-Temp & High-Humidity Type 6 – 4 Poles – 1.5KW – 380V – Curved Blades	675*615*200	1.5-4	1450	9000-15000	250-280	80	6
High-Temp & High-Humidity Type 7 – 4 Poles – 1.5KW – 380V – Straight Blades	775*715*200	1.5-4	1450	12000-18000	180-250	80	6
High-Temp & High-Humidity Type 7 – 4 Poles – 1.5KW – 380V – Curved Blades	775*715*200	1.5-4	1450	12000-18000	180-250	80	6
High-Temp & High-Humidity Type 7 – 4 Poles – 2.2KW – 380V – Straight Blades	775*715*200	2.2-4	1450	14500-22000	210-280	82	6
High-Temp & High-Humidity Type 7 – 4 Poles – 2.2KW – 380V – Curved Blades	775*715*200	2.2-4	1450	14500-22000	210-280	82	6
High-Temp & High-Humidity Type 8 – 4 Poles – 2.2KW – 380V – Straight Blades	875*815*200	2.2-4	1450	16000-27000	200-330	84	6
High-Temp & High-Humidity Type 8 – 4 Poles – 2.2KW – 380V – Curved Blades	875*815*200	2.2-4	1450	16000-27000	200-330	84	6
High-Temp & High-Humidity Type 8 – 4 Poles – 3KW – 380V – Straight Blades	875*815*200	3-4	1450	21000-32000	210-340	85	8
High-Temp & High-Humidity Type 8 – 4 Poles – 3KW – 380V – Curved Blades	875*815*200	3-4	1450	21000-32000	210-340	85	8
High-Temp & High-Humidity Type 8 – 4 Poles – 4KW – 380V – Straight Blades	875*815*200	4-4	1450	23000-33000	310-410	86	8
High-Temp & High-Humidity Type 8 – 4 Poles – 4KW – 380V – Curved Blades	875*815*200	4-4	1450	23000-33000	310-410	86	8
High-Temp & High-Humidity Type 9 – 4 Poles – 5.5KW – 380V – Straight Blades	975*915*200	5.5-4	1450	26000-40000	300-460	88	8
High-Temp & High-Humidity Type 10 – 4 Poles – 7.5KW – 380V – Straight Blades	1075*1015*200	7.5-4	1450	39000-48000	350-490	90	8

Application

Supermarket Ventilation

Greenhouse Ventilation

Industrial Ventilation

Hospitality Ventilation

Restaurant Ventilation

Kitchen Ventilation

Company Profile

About Us

Weifang Sailair Ventilation Equipment Co., Ltd. is located in Qingzhou City, a key industrial base in Shandong Province. As a professional manufacturer specializing in the R&D, production, and sales of high-efficiency and reliable industrial and agricultural ventilation equipment, we are committed to providing customized air flow solutions for clients across various industries. Our goal is to optimize environments, enhance efficiency, and ensure the comfort and safety of production and operational spaces.

SAILAIR focuses on the research and manufacturing of fans, operating three modern fan production lines equipped with advanced machinery . Quality is always our top priority, and we have successfully obtained ISO9001 International Quality Management System Certification, China Compulsory Certification (CCC), and EU CE Safety Certification, ensuring our products meet stringent domestic and international standards.

Currently, we have a team of 25 experienced professionals covering core areas such as technical R&D, lean production, quality control, and sales service. With mature craftsmanship and efficient management, our annual production capacity reaches 200,000 units, enabling us to reliably supply a wide range of fan products, including axial fans, centrifugal fans, industrial exhaust fans, duct fans, and external rotor fans. .

Since its establishment, the company has always adhered to the business principles of talent-oriented and honest, with "reasonable price", "high-quality products", "punctual delivery" and "good reputation service" as the basic principles. The company looks forward to becoming your loyal friends and partners, to create a mutually beneficial and win-win future!

Certifications

Loading & delivery

FAQ

Q1: Are you a factory or a trading company?
A1: We are a ventilation equipment supplier integrating R&D, production, and sales. OEM and ODM cooperation are welcome.
Q2: What payment methods do you accept?
A2: We accept T/T, PayPal, L/C, and Western Union. If you have special requirements, we will do our best to accommodate your needs.
Q3: What is the delivery time?
A3: Usually, sample orders take 3-5 days, and bulk orders take 15-20 days. However, if you need them urgently, we can complete them within 15 days after receiving your payment.
Q4: Do you provide free samples?
A4: Yes, we can provide free samples. You only need to cover the express shipping cost. If you are satisfied with our samples and place a subsequent order, we will refund the previous sample shipping fee.
Q5: Can I visit your factory?
A5: Of course, you are welcome anytime. We can also pick you up from the airport or train station. We welcome both domestic and international partners to contact us and visit our factory.
Q6: Can you guarantee the quality?
A6: Absolutely. We have over 10 years of experience in this field. We have a strong team, professional designs, skilled production processes, meticulous material selection, exquisite craftsmanship, and strict quality control. We highly value our reputation.
Q7: How do you protect my rights if I place an order?
A7: Customers are advised to place orders through Alibaba to maximize the protection of your rights. Additionally, we offer a 12-month free warranty, so you never have to worry about after-sales service. We will always be here to support your business!

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–49 set: US $61.6 / set
  • 50–99 set: US $55.2 / set
  • 100+ set: US $54 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial flow fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this axial flow fan carry?

It is supplied with CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the axial flow fan be supplied for my local voltage?

The standard configuration is 380V220V415V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
