This axial flow fan is published with the manufacturer’s full specification — 220V, 380V, 1659 CFM. Made by Henan Superfan Electronic Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: 350FZY
- Power (Watts): 140~150W
- Voltage – Rated: 220V, 380V
- Air Flow: 1659 CFM
- Frame Material: Metal
- Blade Material: Metal
Technical Specifications
| Mounting Type | Mounting Through Screw |
|---|---|
| Place Of Origin | Henan, China |
| Brand Name | Annewell |
| Model Number | 350FZY |
| Application | Industrial Equipment, Cabinet,PLC Control Cabinets,Welding Machine |
| Description | Simple Structure, Exquisite Appearance, Large Airflow, High Air Pressure, High Efficiency |
| RPM | 1350RPM |
| Power (Watts) | 140~150W |
| Voltage – Rated | 220V, 380V |
| Fan Static Pressure | 17.3 mmH2O |
| Series | AC Fan |

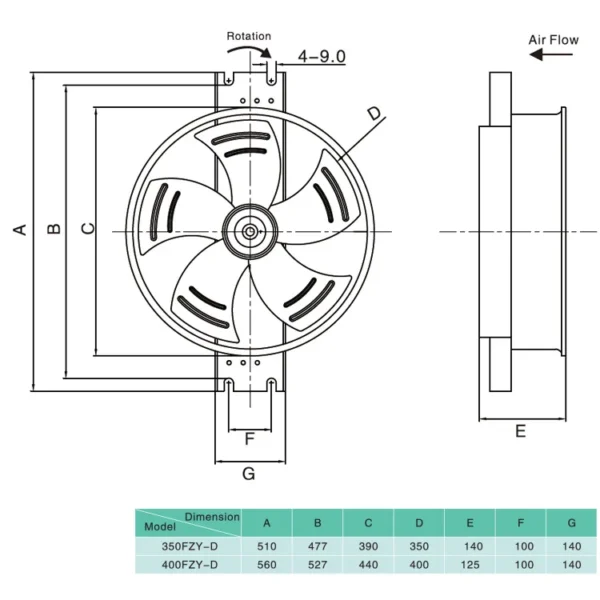

| Size / Dimension | 510X395X130 MM |
| Product Name | AC All Metal Axial Cooling Fan |
| Motor | Capacitor-Run External Rotor Induction Motor |
| Size | Impeller Diameter 350mm 350FZY2-D |
| Frame Material | Metal |
| Blade Material | Metal |
| Bearing | Dual Ball Bearing |
| Air Flow | 1659 CFM |
| Expectancy Life | 50000 Hours |
| Connecting Way | Lead Wire |
| Operation Temperature | -10~+65 Celsius degree |
| Selling Units | Single item |
| Single Package Size | 56X44.5X18 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Strong 350FZY2-D Metal Pipe External Rotor AC Exhaust Fan 380V Ball Bearing AC Industrial Cooling Fan 220v 350mm Axial Flow Fan
|
Listed Model | Bearing Type | Voltage (VAC) | Freq. (HZ) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Air Pressure (mmH2O) | Noise (dBA) | Phase | Capacitor (µF/V) | Weight (G) |
| 350FZY2-D | Ball | 220 | 50 | 0.48 | 150 | 1350 | 1659 | 17.3 | 63 | 1 | 4.0/450 | 5950 |
| 350FZY3-D | Ball | 380 | 50 | 0.35 | 140 | 1350 | 1659 | 17.3 | 63 | 3 | / | 5950 |
| 350FZY4-D | Ball | 380 | 50 | 0.40 | 140 | 1350 | 1659 | 17.3 | 63 | 1 | 2.0/630 | 5950 |
| FAQ |
1. Whatis a AC Axial Fan?
A AC fan is usually powered by AC 110/120V, 220/240V, 380/420V voltage, and dual voltage models are also available. AC fan runs 50 times per sec. to provide stable and continually air-flow. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard AC axial fan sizes include 60mm, 80mm, 92mm, 110mm, 120mm, 130mm, 140mm, 150mm, 172mm, 180mm, 200mm, 225mm, 254mm and 280mm.
2. How to choose a AC fan?
You should consider the points of blow:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)
-Connection: Lead Wire or Terminal
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
4. Are you a factory or a trading company?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team membe: 15
-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL,TUV,CE,CCC,SGS,ISO:9001-2008
5. What is the delivery time?
Sample lead time: 3~5 business days. Mass production delivery lead time: 1~3 weeks,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
6. Can you provide any sample? Is it free or extra?
Yes, we can offer the free samples for each model.
| Other Dimension | |||||
| 60*60*30mm | 80*80*25mm | 80*80*38mm | 92*92*25mm | 92*92*38mm | 110*110*25mm |
| 120*120*25mm | 120*120*32mm | 120*120*38mm | 135*135*38mm | 150*150*50mm | 160*160*62mm |
| 170*150*38mm | 172*150*50mm | ø172*51mm | 172*150*55mm | 180*180*60mm | 200*200*60mm |
| 205*205*72mm | ø220*60mm | ø254*89mm | 225*225*80mm | 280*280*80mm | 150FZY-D |
| 200FZY-D | 250FZY-D | 300FZY-D | 350FZY-D | 400FZY-D | |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $29.7 / piece
- 500–999 piece: US $28.2 / piece
- 1000–4999 piece: US $26.2 / piece
- 5000+ piece: US $24 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 220V, 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Superfan Electronic Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Superfan Electronic Equipment Co., Ltd. range on HVACR Nexus.
