Key specification for this axial flow fan: 12V, 24V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Cooling Technology Co., Ltd. (9 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Fan
- Model Number: CLD9225M12
- Power Source: Electric
- Voltage: 12V, 24V
- Material: Plastic
- Blade Material: Plastic
- Speed: 3 000 RPM
Technical Specifications
| Voltage | 12V, 24V |
|---|---|
| Speed | 3 000 RPM |
| Type | dc cooling fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | COOLING |
| Model Number | CLD9225M12 |
| Selling Units | Single item |
| Single Package Size | 20X10X20 cm |
| Single Gross Weight | 0.2 kg |
Product Details

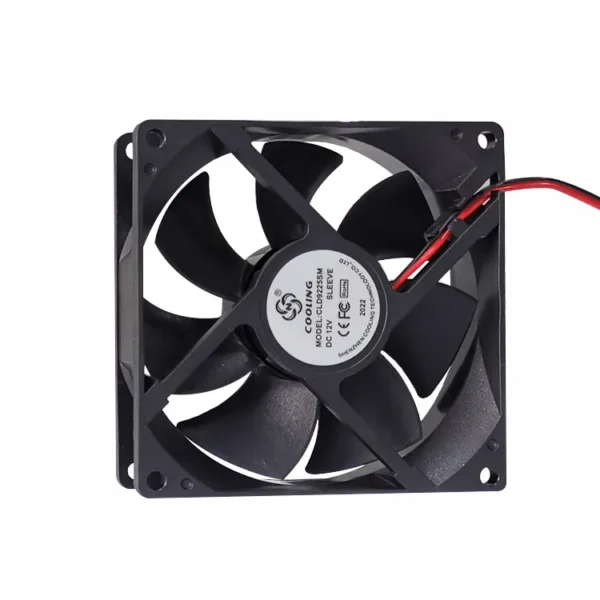

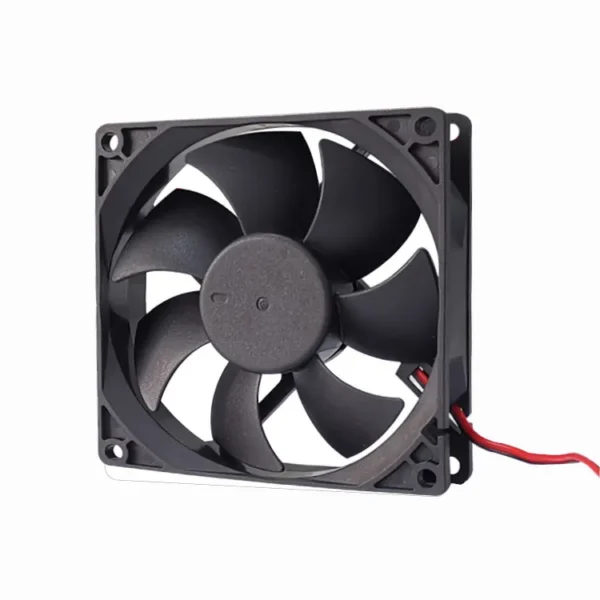

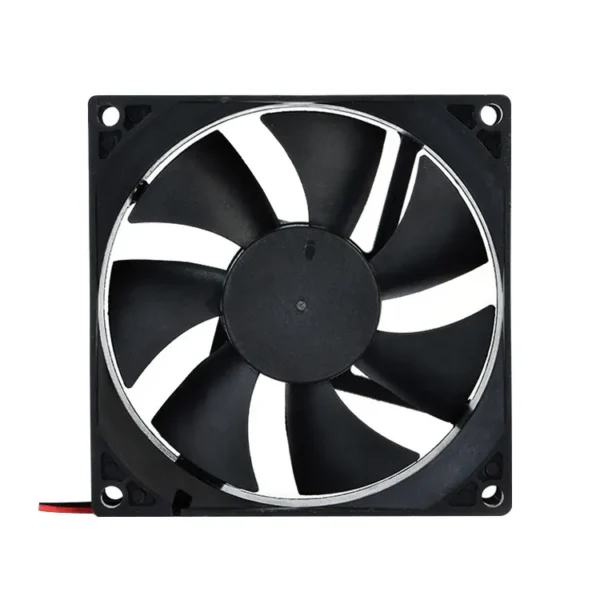

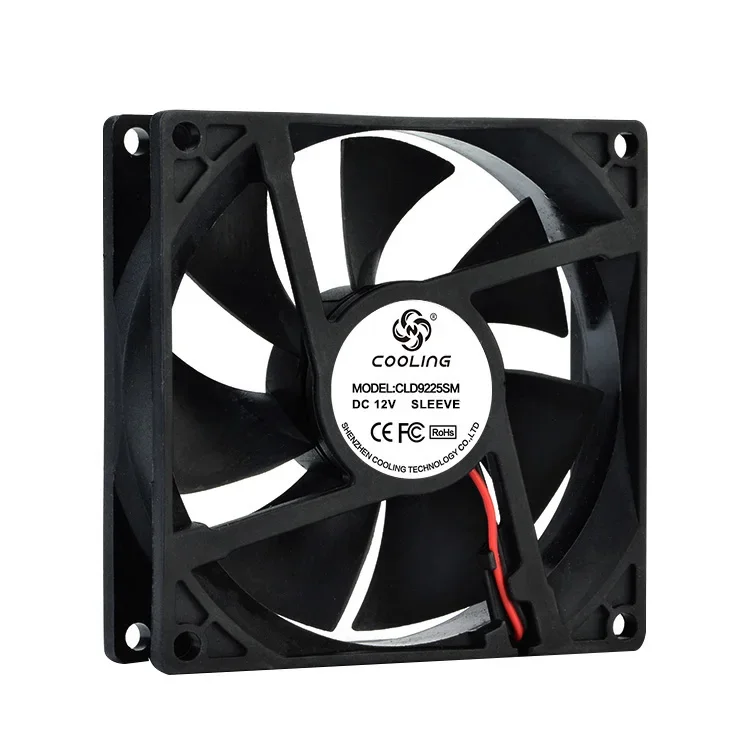

9225 DC Brushless Silent Cooling Fan 92x92x25mm 12V 24V Ventilation Fan
Key Features
- Standard size: 92x92x25mm
- DC brushless motor, maintenance-free
- Low noise & silent operation
- High airflow & strong heat dissipation
- 12V / 24V DC voltage optional
- Long lifespan, stable and durable
- Low power consumption, energy saving
- Suitable for continuous long-time working
Specifications
- Model: 9225

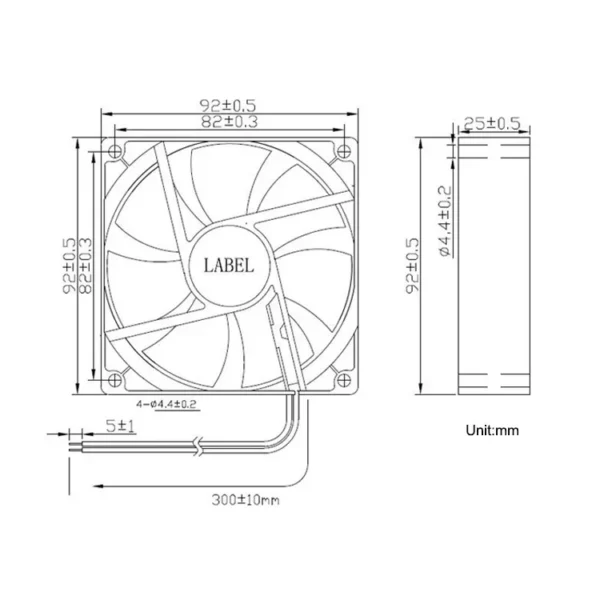

- Dimension: 92 x 92 x 25 mm
- Type: Brushless DC Axial Fan
- Voltage: 12V / 24V
- Bearing: Dual Ball Bearing / Sleeve Bearing (optional)
- Speed: Standard / High Speed optional
- Noise: Low noise design
- Application: Cooling & Ventilation
Application Scenarios
- Industrial control cabinet
- Power supply and inverter
- Audio and power amplifier
- Server and computer chassis
- Electrical equipment and instruments
- Ventilation and heat dissipation system
Why Choose Us
- Factory direct supply
- Stable quality and strict testing
- Support mass orders and customization
- Fast delivery and professional service
- Reliable performance for long-term use
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLD9225L12 | 12V | 0.12 | 1.44 | 2000 | 34.8 | 1.86 | 33.3 |
| CLD9225M12 | 12V | 0.16 | 1.92 | 2500 | 42.8 | 2.74 | 35.1 |
| CLD9225H12 | 12V | 0.2 | 2.4 | 3000 | 49.7 | 3.67 | 39.3 |
| CLD9225HH12 | 12V | 0.24 | 2.88 | 3500 | 59.2 | 5.21 | 44.4 |
| CLD9225L24 | 24V | 0.06 | 1.44 | 2000 | 34.8 | 1.86 | 33.3 |
| CLD9225M24 | 24V | 0.08 | 1.92 | 2500 | 42.8 | 2.74 | 35.1 |
| CLD9225H24 | 24V | 0.1 | 2.4 | 3000 | 49.7 | 3.67 | 39.3 |
| CLD9225HH24 | 24V | 0.12 | 2.88 | 3500 | 59.2 | 5.21 | 44.4 |
| CLD9225L48 | 48V | 0.03 | 1.44 | 2000 | 34.8 | 1.86 | 33.3 |
| CLD9225M48 | 48V | 0.04 | 1.92 | 2500 | 42.8 | 2.74 | 35.1 |
| CLD9225H48 | 48V | 0.05 | 2.4 | 3000 | 49.7 | 3.67 | 39.3 |
| CLD9225HH48 | 48V | 0.06 | 2.88 | 3500 | 59.2 | 5.21 | 44.4 |
| 15*15*4mm | 17*17*8mm | 18*18*4mm | 20*20*6mm | 20*20*10mm | 25*25*7mm |
| 25*25*10mm | 30*30*7mm | 30*30*10mm | 35*35*10mm | 40*40*7mm | 40*40*10mm |
| 40*40*20mm | 40*40*28mm | 40*40*56mm | 45*45*10mm | 50*50*10mm | 50*50*15mm |
| 50*50*20mm | 60*60*10mm | 60*60*15mm | 60*60*20mm | 60*60*25mm | 60*60*38mm |
| 70*70*15mm | 70*70*20mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*20mm |
| 80*80*25mm | 80*80*32mm | 80*80*38mm | 92*92*25mm | 92*92*38mm | 120*120*25mm |
| 120*120*32mm | 120*120*38mm | 140*140*20mm | 140*140*25mm | 150*150*50mm | 172*150*51mm |
| 180*180*60mm | 200*200*60mm | 220*60mm | 254*89mm |
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–1999 piece: US $0.65 / piece
- 2000–9999 piece: US $0.55 / piece
- 10000+ piece: US $0.45 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 12V, 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
