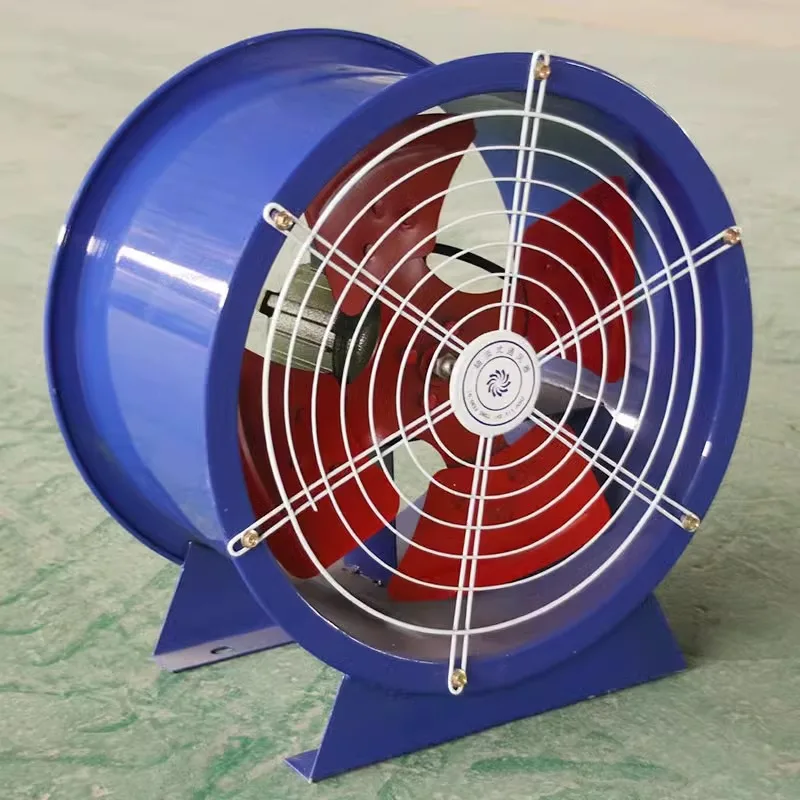

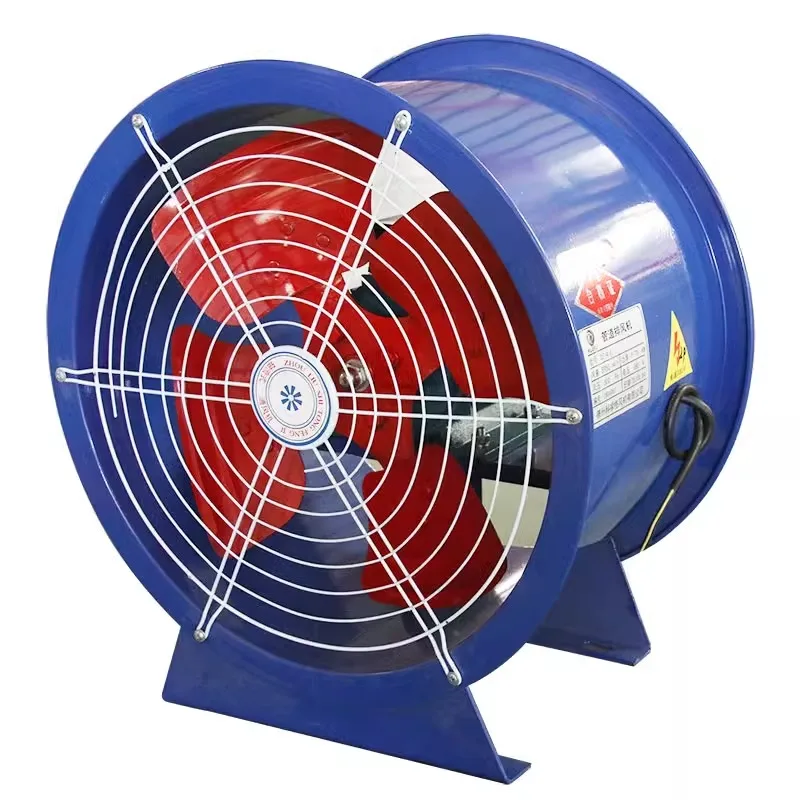

Axial flow fan — 230 V, power source Electric. The complete factory specification follows. Made by Dezhou Spruce Hvac Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
Model Number: T35
Power Source: Electric
Voltage: 230 V
Material: Stainless Steel
Blade Material: Carbon Steel
Warranty: 1 Year
Technical Specifications
Voltage
230 V
Type
Axial flow fan
Material
Stainless Steel
Blade Material
Carbon Steel
Bearing Type
Oil Bearing
Power Source
Electric
Warranty
1 Year
After-Sales Service Provided
Online support
Place Of Origin
Shandong, China
Brand Name
yunshan
Model Number
T35
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details

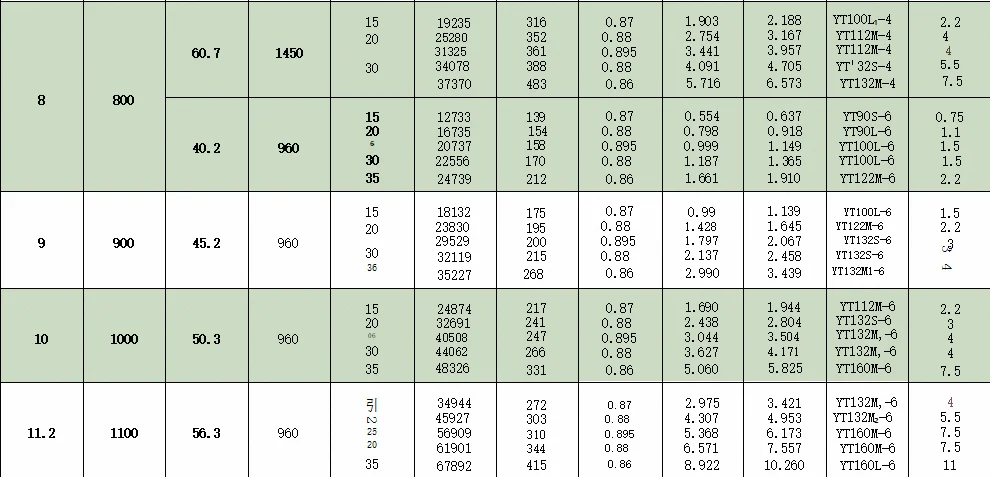

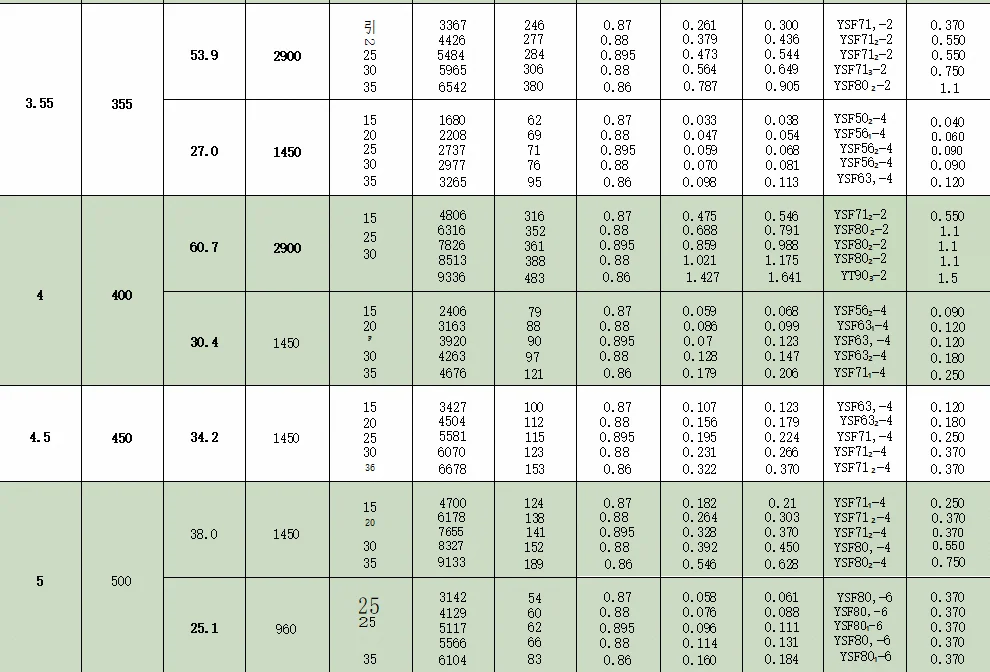

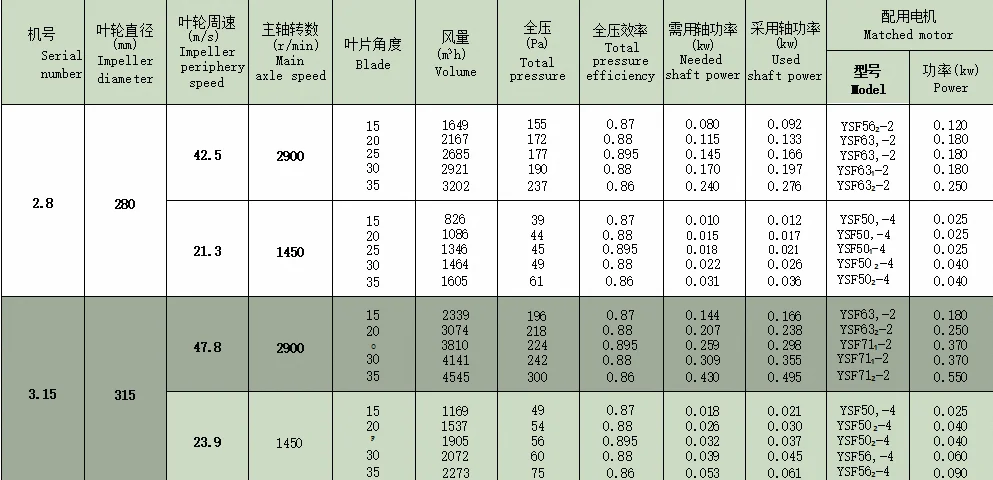

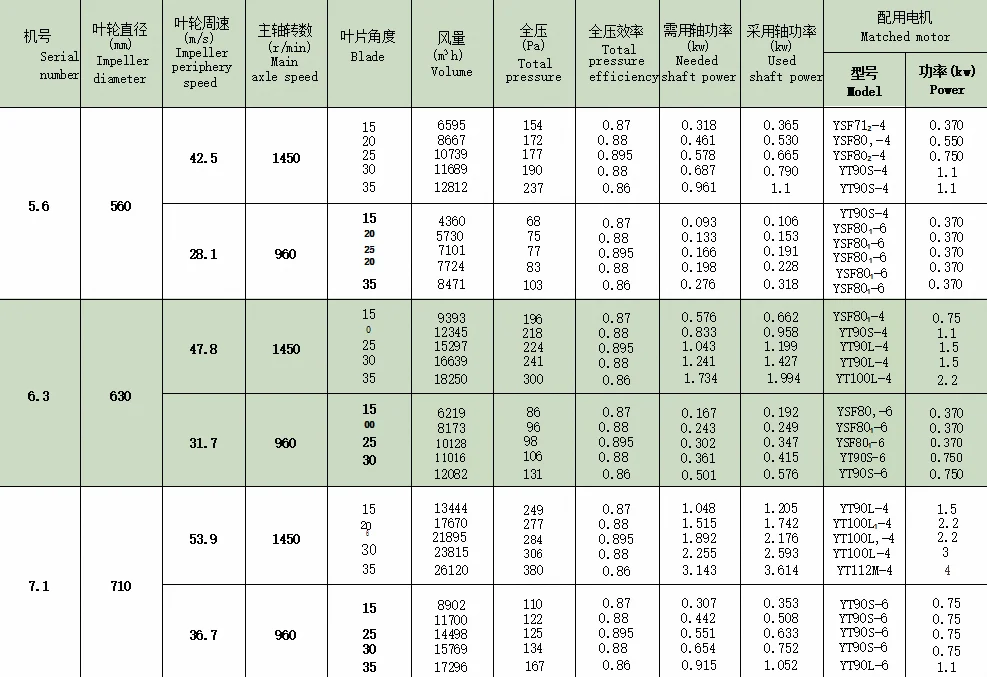

Through model experiment,the wing model of axial fan has been determined to be cylinder wheel hub structure.The modification design has been carried on,flow loss reduced in the structure,thus fan efficiency has been increased 77%in the terms of outlet round area,89.5%outlet circle area.The A sound level has been reduced 3.6db. Axial fan is divided into 13 serial numbers altogether.According to the impeller diameter,arranges for No 2.8,3.15,3.55,4,4.5,5,5.6,6.3,7.1,8,9,10,11.2 in turn.Every serial number is divided into 5 kinds of blade installation angle such as 15°,20°,25°,30°,35°and so on. All kinds of axial fan are adopted straight jointed structure of the impeller and the motor.Under 60m/in of the impeller's velocity,there are 3 kinds of rotational speeds to be matched,2900,1450 and 960r/Min. Non-corrosive Axial Fan made of glass fiber reinforced plastic material.Its metal parts are covered by anticorrosion level,and prevent corrosion effectively. Explosion-proof Axial Fan is a special-purpose one against explosion situation. It has explosion-proof electrical machinery,the essential spare part uses the static electricity surface layer or the non-ferrous metal,can prevent friction static electricity and electric spark effectively. Note:The matched motor is three-phases one.
Brand name
yunshan
product name
Smoke Exhaust Fan
Details Images
Application Scenarios
The axial fan suits in ventilation,deliver or exhaust in all kinds of civil and industry architectures. The anticorrosion axial fan is suitable in chemical plant,laboratory,basement,bathing pool and so on,to convey caustic,acid or alkali and high-moisture gas. explosion-proof axial fan is suitable in boiler (oil or gas as fuel),highly concentrated dust workshop,fuel depot,gas storage stands,high explosive cargo warehouse and so on,this situation has the explosion-proof request.
Company Profile
Dezhou SPRUCE HVAC Products Co., Ltd.
Dezhou SPRUCE HVAC Products Co., Ltd., located in Dezhou City, Shandong Province, China's northern industrial base of refrigeration and air conditioning, is a comprehensive company integrating design, production and sales of HVAC products. The company was founded in 2011, covers an area of 100,000 square meters, manufacturing workshop of 60,000 square meters, with more than 400 employees, we are equipped with confidential CNC machine tools and automated production lines, the company mainly produces fire and smoke prevention and exhaust systems, fresh air conditioning systems, industrial dust removal, air purification system related products. This includes a wide range of HVAC products from air handling units, chillers and heat pumps, centrifugal and axial fans, ductwork systems and air distribution systems. SPRUCE HVAC is a leading manufacturer of high-quality HVAC equipment, specializing in energy-efficient heating, ventilation and air conditioning solutions. With years of industry expertise, we are committed to providing reliable, innovative, and customized HVAC systems for chemical, aquaculture, commercial, industrial, and residential applications.
Product Packaging
Certifications
Customer Photos
FAQ
Q 1.What's the payment term? A. We accept T/T,LC,Western Union,Paypal. Q 2.What is the delivery time? A. It depends on order quantity,usually it will take about 3-5 days for sample production. Q 3.What's the package used for? A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for protection. Q 4.Would you accept to use our logo? A.It's no problem,we accept OEM service.
Q 5. What kind of certificates you have? A. Our company has ISO9001,CE, RoHS,SGS etc.
Ordering and Pricing
Minimum order quantity: 1 set
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
