Belt Driven Ventilation Fan, Axial, 110, aluminum

Key specification for this belt driven ventilation fan: rated voltage 110/120V 220/240V and other voltage, blade material aluminum. Everything below is reproduced from the factory data sheet. Made by Qingdao Damuyuan Machinery Manufacturing Co., Ltd. (4 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Belt Driven Ventilation Fan

• Model Number: 200-2000mm
• Voltage: Other, 120 V, 380v, 110v, 440v, 240v, custom
• Rated Voltage: 110/120V 220/240V and other voltage
• Blade Material: aluminum
• Material: Steel cases aluminum blades
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

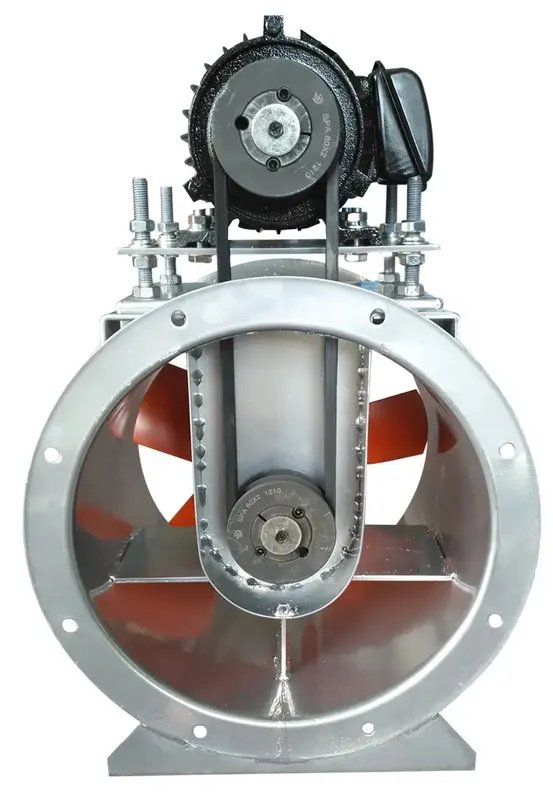

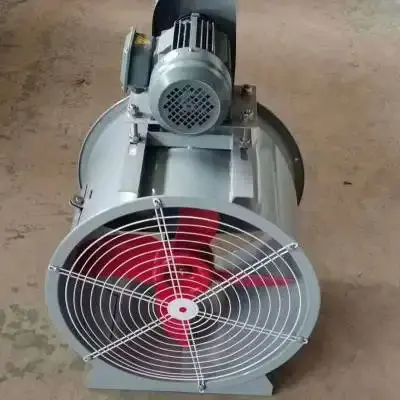

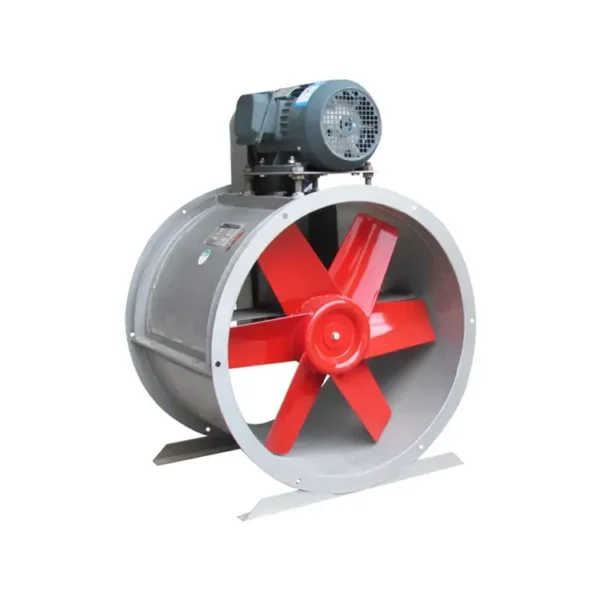

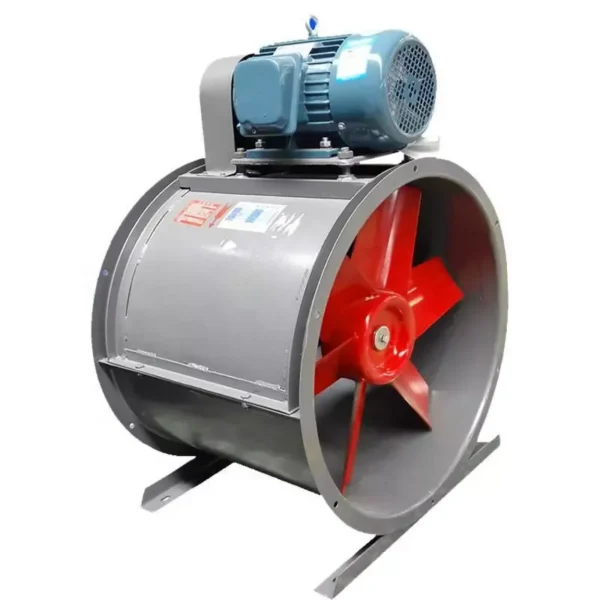

KT35-11 External Axial Fan

Product Introduction:

External Motor Axial Fan is suitable for ventilation in general factories, warehouses, offices, residential buildings or for heat dissipation. If the tube is removed, it can be used as a free fan.
1. It can also be installed in series in a long exhaust duct to increase the wind pressure in the pipeline. According to the needs of users, this series of products adopts the external gear of the motor (the motor is on the casing) in the structural design. The model is KT30. Its performance parameters are the same as those of the T30 fan.
2. It can also change the speed according to the user's needs to achieve the performance of the user. Its maximum function can discharge high temperature gas or moisture-proof gas.

Specification

The Technical data
Model	Rrotation speed (rpm)	Air volume  (m³/h)	Total pressure (pa)	Static pressure (pa)	Power (kw)
250mm	2900	2100-1400	90-126	50-81	0.18
		1450	1100-700	23-33	13-25	0.12
300mm	2900	3000-2000	120-150	60-120	0.37
		1450	1900-1200	40-50	20-30	0.18
350mm	2900	4600-3000	140-210	60-160	0.37
				5500-3500	160-220	60-170	0.55
		1450	2900-1800	50-65	20-40	0.25
400mm	2900	5000-3000	110-200	60-180	0.55
				6500-4000	160-250	70-200	0.75
				7000-4500	200-280	80-210	1.1
		1450	3500-2000	60-70	30-60	0.25
				4000-2500	70-78	35-52	0.37
				4300-2800	72-80	26-47	0.55
500mm	1450	6500-5300	125-135	60-90	0.37
				7000-5500	130-145	70-105	0.55
				8500-6000	138-150	80-100	0.75
		960	4600-3600	57-61	40-50	0.18
				5600-4000	60-66	40-48	0.25
550mm	1450	9000-6000	138-150	80-116	0.75
		960	6500-4600	61-75	42-50	0.37
600mm	1450	11500-7500	140-160	80-130	1.1
				13500-8000	160-180	80-130	1.5
				14500-8500	165-200	80-135	2.2
		960	8500-5000	57-85	45-55	0.37
				9600-5600	72-100	45-58	0.55
700mm	1450	17500-10000	180-220	140-175	1.5
				20000-12000	200-250	145-180	2.2
				21000-13000	220-300	150-185	3
		960	13000-8000	88-110	63-80	0.75
				14000-8600	96-130	65-82	1.1
800mm	1450	25000-15000	180-270	100-260	2.2
				27000-17000	210-300	120-260	3
				30000-20000	240-330	125-265	4
				33000-23000	270-350	125-270	5.5
		960	20000-13000	110-145	53-105	1.5
				22000-15000	120-155	50-100	2.2
900mm	1450	34000-20000	240-340	160-320	4
				36000-22000	250-350	150-310	5.5
				40000-24000	320-380	155-320	7.5
		960	22000-13000	100-140	70-120	2.2
				24000-15000	120-160	70-136	3
				28000-18000	140-180	75-140	4
1000mm	1450	36000-23000	250-400	160-370	5.5
				40000-28000	270-420	165-380	7.5
		960	31500-20000	150-220	90-170	4
				33000-21000	160-230	90-176	5.5

Packing & Delivery

We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.

Company Profile

Qingdao Damuyuan Machinery Manufacturing Co., LTD is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan, Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans. We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technical parameters are truth & reliable.

FAQ

Why choose Qingdao Damuyuan Machinery Manufacturing Co., LTD?
1. Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $129 / piece
  • 10–99 piece: US $99 / piece
  • 100+ piece: US $49 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this belt driven ventilation fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this belt driven ventilation fan carry?

It is supplied with CCC/CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the belt driven ventilation fan be supplied for my local voltage?

The standard configuration is Other, 120 V, 380v, 110v, 440v, 240v, custom. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
