Key specification for this biopharming ahu brushless motor: refrigerant Water, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Guangzhou Jetex -Lloyd`s Machinery Limited (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Biopharming Ahu Brushless Motor
- Model Number: JTAHM Series
- Refrigerant: Water
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Cleanroom
- Type: Air Handling Unit
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Floor Standing |
| Fan Motors Type | Brushless |
| Motor Type | Brushless Motor |
| Filter Type | High-Efficiency Particulate Air Filter, Activated Carbon Filter, Regular Filter, Electrostatic Filter |
| Application | Cleanroom |
| Key Selling Points | Competitive Price, Low Maintenance Cost, High Safety Level, Low Noise Level, Famous Brand Motor, Accurate Temperature Control, Long Service Life, Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2000 |
| Brand Name | Jetex |
| Model Number | JTAHM Series |
| Dimension(L*W*H) | customized based on detail needs |
| Frame | Thermal break aluminum alloy frame with high-density sealing gasket |
| Casing Structure & Insulation | double-skin with Polyurethane foam insulation |

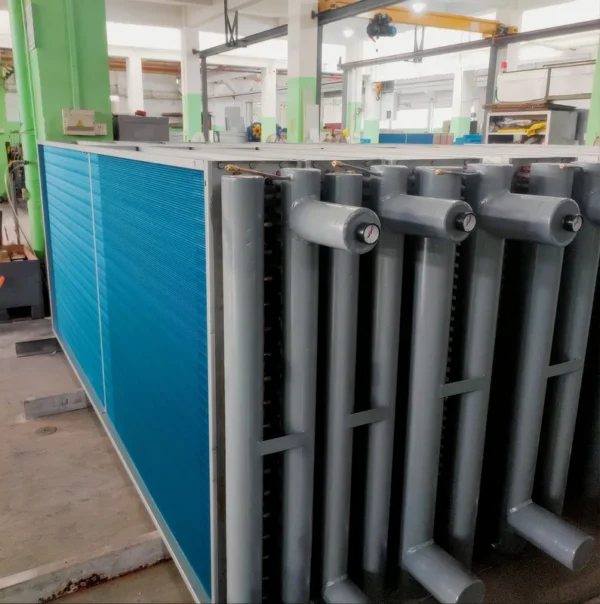

| Cooling/Heating Coil | High-quality copper tubes with blue-wave aluminum fins |
| Filters | G4 panel-type filters, F5~F9 bag-type,H11 sub-high efficiency filters |
| Other Functions | customization is available based on customer requirements |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
The JTAHM series of medical clean air conditioning units is developed in accordance with the requirements of the “Technical Code for Hospital Clean Operating Department” the “Code for Construction and Acceptance of Cleanrooms” and the “Air Handling Units for Clean Operating Rooms”.
Over the years, Jetex has been committed to the research and development of air conditioning equipment for industrial and biological purification.Our units provide a variety of thermal-humidity and purification-sterilization treatment solutions, fully realizing functions such as refrigeration, heating, humidification, dehumidification, filtration, purification, and sterilization.Additionally, they can also provide precise and remote control for various clean operating rooms, auxiliary areas, pharmaceutical workshops, and biological laboratories.
The air volume handled by the unit ranges from 1500 m³/h to 40,000 m³/h and products can be selectively chosen according to different clean zones for targeted applications. The units are divided into two major series: mixed air and fresh air . The refrigeration methods include direct evaporation type and chilled water type.It integrates multiple air handling functions into one customizable unit, including:
* Cooling / Heating Coils
* Filtration (G4–H13 optional)
* Humidification / Dehumidification
* Heat Recovery (Plate / Rotary Wheel optional)
* Mixing Section
* Fan Section with AC or EC motor
* Cooling / Heating Coils
* Filtration (G4–H13 optional)
* Humidification / Dehumidification
* Heat Recovery (Plate / Rotary Wheel optional)
* Mixing Section
* Fan Section with AC or EC motor
* Silencer Section，etc.
Key Features
✔ Modular Design – airflow and functions can be customized based on project requirements
✔ High Energy Efficiency – EC fan options, low leakage casing, optimized airflow design
✔ Flexible Configuration – suitable for comfort applications and process-controlled clean environments
✔ Easy Installation & Maintenance – sectional design allows easy transport and assembly
✔ Reliable Quality – manufactured using CNC processing and tested before delivery
Application Fields
* Pharmaceutical cleanrooms
* Electronics & semiconductor workshops
* Laboratory and biotech facilities
* Lithium battery and energy industries
* Hospitals and medical environments
Key Features
✔ Modular Design – airflow and functions can be customized based on project requirements
✔ High Energy Efficiency – EC fan options, low leakage casing, optimized airflow design
✔ Flexible Configuration – suitable for comfort applications and process-controlled clean environments
✔ Easy Installation & Maintenance – sectional design allows easy transport and assembly
✔ Reliable Quality – manufactured using CNC processing and tested before delivery
Application Fields
* Pharmaceutical cleanrooms
* Electronics & semiconductor workshops
* Laboratory and biotech facilities
* Lithium battery and energy industries
* Hospitals and medical environments
Pharmaceutical Cleanrooms
Electronics & semiconductor
Commercial HVAC systems
Specification
Product | Pharmaceutical Cleanroom air handling unit | Application | Pharmaceutical,biomedicine, Lab cleanrooms.， Hospitals and medical environments,semiconductors, lithium batteries |
Brand | Jetex | place of origin | Guangzhou, China |
Model | JTAHM Series | Airflow | 2000~40000 CMH |
Mounting Type | Floor standing or ceiling mounted | core components | belt drive motor or EC fan motor |
Frame | Thermal break aluminum alloy frame with high-density sealing gasket | Casing Structure & Insulation | double-skin with Polyurethane foam insulation |
Filters | G4 panel-type primary filters, F5~F9 bag-type medium-efficiency filters,H14 filters etc. | Cooling/Heating coil | High-quality copper tubes with blue-wave aluminum fins |
Humidifier type | Wet film/dry steam / high pressure micro mist | Other functions | customization is available based on customer requirements |
Cooling Capacity | 12kW + | Heating capacity | 17.9+ |
Rows | 2-8 rows | Warranty | 1 year |
Company Profile
Guangzhou Jetex-Lloyd’s Machinery Ltd. is a professional manufacturer specializing in the R&D, production and engineering solutions of air handling equipment for over 30 years. With a 10,000+ m2 factory, advanced manufacturing facilities and an experienced technical team, we provide high-quality HVAC terminal products widely used in pharmaceutical plants, cleanrooms, laboratories, electronics, lithium battery production, commercial buildings, hotels and shopping malls.
We are also a long-term supplier of Foxconn for more than 20 years, serving multiple Fortune 500 companies and international partners.
Our Worldwide Successful Cases
RayBiotech Guangzhou Co., Ltd.
Yangzijiang Pharmaceutical Group
Livzon Group Pharmaceutical
Our Team and Exhibitions
Packing & Delivery
For Shipment: The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
FAQ
Q1: Can you manufacture non-standard AHU?
A1: Yes, our factory has 30 years of manufacturing experience. Just provide us with your technical parameters and our engineers will develop a solution.
Q2: How about the quality of your product?
A2: Our products are manufactured strictly according to national and international standards. We have ISO and CRAA certifications.Every product undergoes testing before shipment.
Q3: How to choose a suitable machine?
A3: Please provide your specifications and building drawings. Our professional technical engineers will assist you in selecting the right solution.
Q4: How do you ensure the quality of products?
A4: Quality and integrity are fundamental to our corporate culture. Each product undergoes strict inspection in our factory before shipment.
A1: Yes, our factory has 30 years of manufacturing experience. Just provide us with your technical parameters and our engineers will develop a solution.
Q2: How about the quality of your product?
A2: Our products are manufactured strictly according to national and international standards. We have ISO and CRAA certifications.Every product undergoes testing before shipment.
Q3: How to choose a suitable machine?
A3: Please provide your specifications and building drawings. Our professional technical engineers will assist you in selecting the right solution.
Q4: How do you ensure the quality of products?
A4: Quality and integrity are fundamental to our corporate culture. Each product undergoes strict inspection in our factory before shipment.
Guangzhou NanFang Hospital
The Second People's Hospital of Shenzhen
Beijing You'an Hospital
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $5800 / set
- 10–29 set: US $5600 / set
- 30+ set: US $5500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this biopharming ahu brushless motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Jetex -Lloyd`s Machinery Limited, based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Jetex -Lloyd`s Machinery Limited range on HVACR Nexus.
