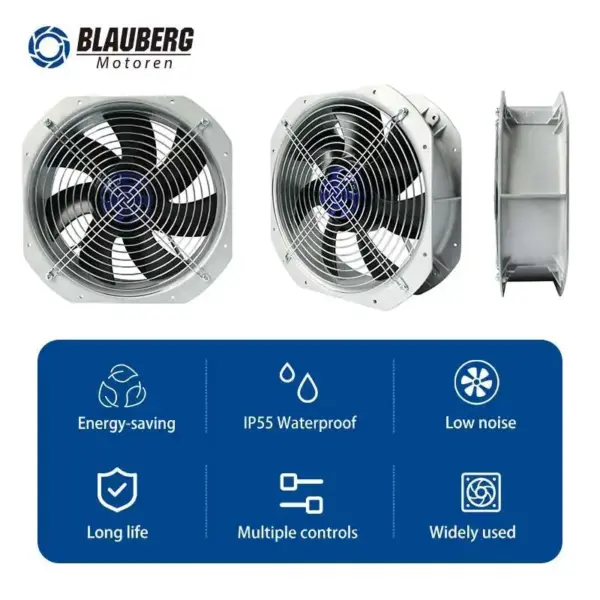

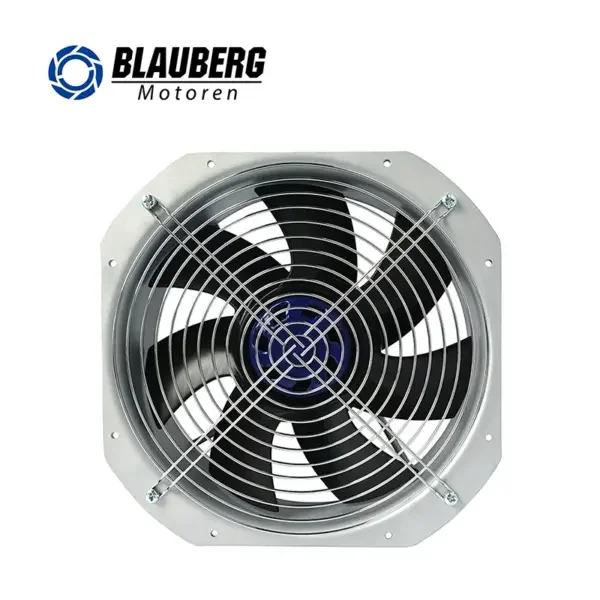

This axial fan is listed with the manufacturer’s full published specification — voltage 230 V, power source Electric, material Plastic. It is produced by Suzhou Blauberg Motoren Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Fan
- Power Source: Electric
- Voltage: 230 V
- Material: Plastic
- Blade Material: PA6+GF
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 230 V |
|---|---|
| Material | Plastic |
| Mounting Type | Duct Fan |
| Type | Duct Axial Fan |
| Warranty | 2 Years |
| Power Source | Electric |
| Blade Material | PA6+GF |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Jiangsu, China |
| Brand Name | Blauberg |
| Selling Units | Single item |
| Single Package Size | 35X35X30 cm |
| Single Gross Weight | 8.000 kg |
|
Type
|
BL-A250C-EC-00S
|
Nominal Speed
|
2700+5%RPM
|
|
|
Motor
|
EC072AC230V085W
|
Max. Input Power
|
85W
|
|
|
Phase
|
1~
|
Max. Input Current
|
0.5A
|
|
|
Nominal Voltage
|
230VAC
|
Sound level
|
68dB(A)
|
|
|
Nominal Voltage Range
|
184~276VAC
|
Min.Ambient Temperature
|
-25℃
|
|
|
Frequency
|
50/60 Hz
|
Max.Ambient Temperature
|
60℃
|
|
|
Method of Obtaining Data
|
FA
|
ML=Max. load ME=Max, effciency FA=Free Air
|
||
|
Model
|
Nominal voltage[VAC]
|
Speed (RPM)
|
Power input max(W)
|
Current max(A)
|
Sound pres level[dB(A)]
|
Method of Obtaining Data
|
|
BL-A200C-EC-00S
|
230VAC
|
3200±5%RPM
|
55W
|
0.45A
|
64dB(A)
|
FA
|
|
BL-A200C-EC-02S
|
230VAC
|
4100±5%RPM
|
110W
|
0.8A
|
68dB(A)
|
FA
|
|
BL-A250C-EC-00S
|
230VAC
|
2700±5%RPM
|
85W
|
0.5A
|
68dB(A)
|
FA
|
|
BL-A250C-EC-02S
|
230VAC
|
3100±5%RPM
|
115W
|
0.7A
|
71dB(A)
|
FA
|
|
BL-A300C-EC-01S
|
230VAC
|
1950±5%RPM
|
145W
|
1.0A
|
65dB(A)
|
FA
|
|
BL-A300C-EC-07S
|
230VAC
|
2400±5%RPM
|
230W
|
1.5A
|
80dB(A)
|
FA
|
|
BL-A350C-EC-07S
|
230VAC
|
1800±5%RPM
|
200W
|
1.4A
|
72dB(A)
|
FA
|
|
BL-A350C-EC-F05S
|
230VAC
|
2200±5%RPM
|
405W
|
1.8A
|
75dB(A)
|
FA
|
Deep Customization
Various Support
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 230 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
