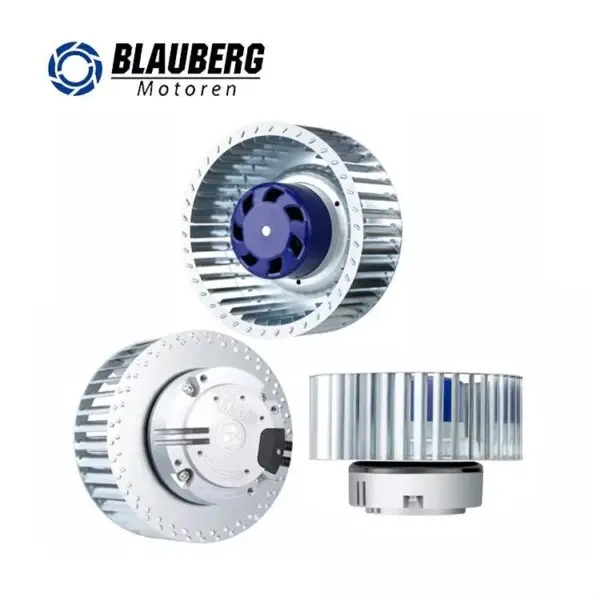

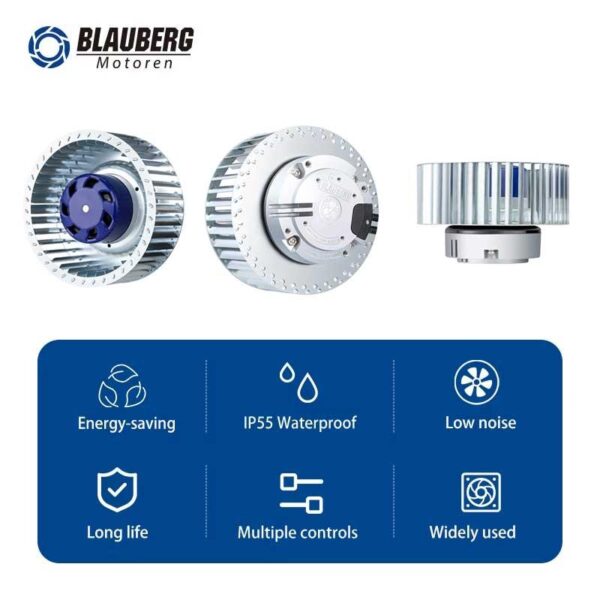

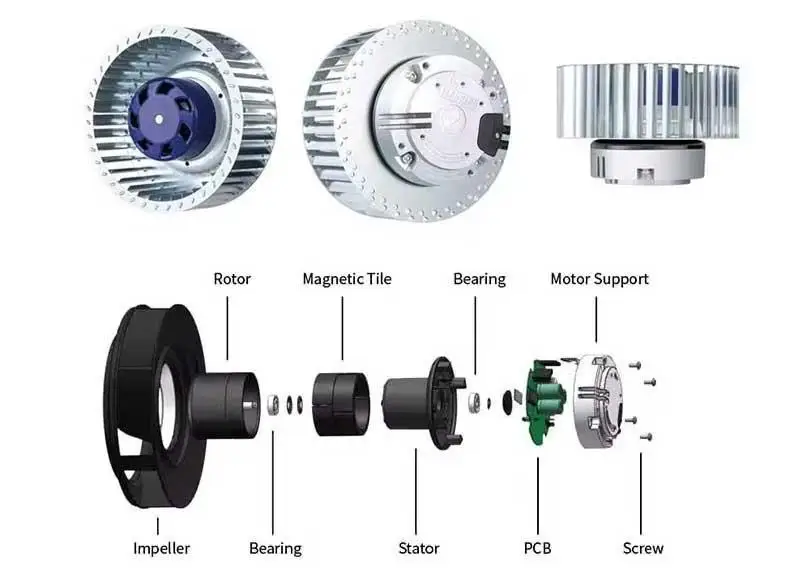

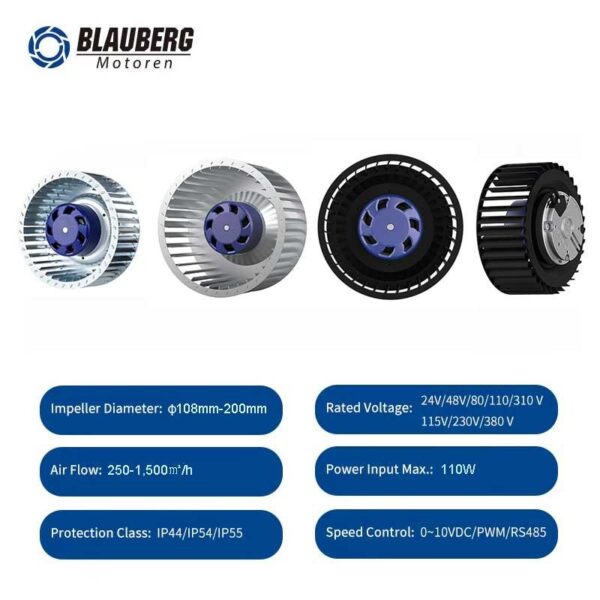

This Blauberg EC centrifugal blower uses a brushless electronically commutated motor, which holds efficiency across the speed range instead of collapsing at part load the way an AC motor does under throttling. The 160mm forward-curved aluminium alloy impeller delivers high airflow relative to its frame size. Supplied free standing on 230V for external rotor mounting, with a two-year warranty and OEM configuration on request.
Key Features of This Ec Centrifugal Blower
- Model Number: BL-F160C-EC-01
- Voltage: 230V
- Blade Material: Aluminum Alloy
- Warranty: 2 Years
- Place Of Origin: Jiangsu
- Single Package Size: 20X20X10 cm
Technical Specifications
| Voltage | 230V |
|---|---|
| Blade Material | Aluminum Alloy |
| Mounting | Ceiling Fan |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 2 Years |
| Place Of Origin | Jiangsu |
| Brand Name | Blauberg |
| Model Number | BL-F160C-EC-01 |
| Product Name | Blauberg Fan |
| Mode Of Operation | S1 |
| Protection Class | IP55 |
| Selling Units | Single item |
| Single Package Size | 20X20X10 cm |
| Single Gross Weight | 3.500 kg |
|
Type
|
BL-F160C-EC-01
|
Nominal Speed
|
1900±5%RPM
|
|
|
Motor
|
EC072AC230V170W
|
Max. Input Power
|
150W
|
|
|
Phase
|
1~
|
Max. Input Current
|
0.9A
|
|
|
Nominal Voltage
|
230VAC
|
Sound level
|
68dB(A)
|
|
|
Nominal Voltage Range
|
184~276VAC
|
Min.Ambient Temperature
|
-25℃
|
|
|
Frequency
|
50/60 Hz
|
Max.Ambient Temperature
|
60℃
|
|
|
Method of Obtaining Data
|
FA
|
ML=Max. load ME=Max, effciency FA=Free Air
|
||
|
Model
|
Nominal voltage[VAC]
|
Frequency[Hz]
|
Speed (RPM)
|
Power input max(W)
|
Current max(A)
|
Sound pres level[dB(A)]
|
|
BL-F108A-EC-00
|
230
|
50/60
|
1550
|
50
|
0.35
|
57
|
|
BL-F120B-EC-00
|
230
|
50/60
|
2600
|
70
|
0.5
|
67
|
|
BL-F120B-EC-02
|
230
|
50/60
|
3000
|
110
|
0.8
|
70
|
|
BL-F140B-EC-00
|
230
|
50/60
|
1700
|
85
|
0.6
|
69
|
|
BL-F140B-EC-02
|
230
|
50/60
|
2200
|
110
|
0.7
|
69
|
Deep Customization
Various Support
Frequently Asked Questions
What is the minimum order quantity for this ec centrifugal blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this ec centrifugal blower?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
