Bldc fan — 380V/220V, material 304 Stainless Steel Copper Alloy. The complete factory specification follows. Made by Shenzhen Maintex Intelligent Control Co., Ltd. (13 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Bldc Fan
- Model Number: BL190215-01
- Rated Power: 370w 750w 1100w 1500w 2000w
- Rated Voltage: 380V/220V
- Voltage: 220V/380V
- Material: 304 Stainless Steel Copper Alloy
- Speed Rpm: 630RPM
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | 380V/220V |
| Rated Power | 370w 750w 1100w 1500w 2000w |
| Speed Rpm | 630RPM |
| Speed(RPM) | 630 rpm |
| Efficiency | IE 4 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 182MM(7.17in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Fan |
| Warranty | 1year |
| Continuous Current(A) | 100mA~8000mA |
| Model Number | BL190215-01 |
| Torque | 13N.m ~ 22N.m(9.59lb.ft~16.23lb.ft) |
| Place Of Origin | Guangdong, China |
| Brand Name | Maintex |
| Motor Type | Brushless DC frequency converter motor |
| Application | EC FAN |
| Voltage | 220V/380V |
| Waterproof Level | IP66 |
| Certification | RoHS CE ISO |
| Noise | 60db |
| Material | 304 Stainless Steel Copper Alloy |
| Selling Units | Single item |
| Single Package Size | 60X50X40 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Comparison items | Permanent magnet EC motor fan | AC asynchronous motor fan |
Compared Quantity | 1 pc | 1 pc |
Size | 1460*1460*580 mm | 1460*1460*580 mm |
Maximum air flow | 39000 m³/h | 39000 m³/h |
Speed | 560 r/min | 560 r/min |
Input power | 0.75 kW/h | 1.0 kW/h |
Starting current | 0.3A~1.9A soft start, stable start, small current impact, no impact on the power grid. | 1.5A~2.5A does not start smoothly, and the current impact is large, which is a big impact on the transformer and the power grid. |

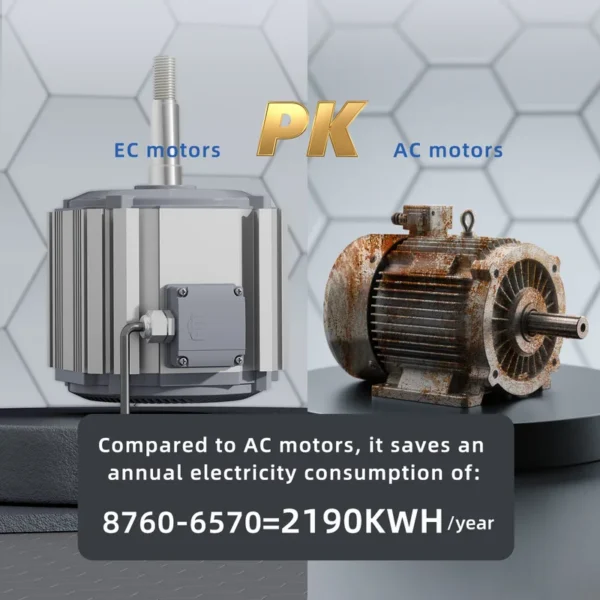

Annual electricity consumption of one fan (24H/day, 365days/year) | 1*0.75*24*365=6570 KWH | 1*1*24*365=8760 KWH |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–499 piece: US $193 / piece
- 500–999 piece: US $183 / piece
- 1000–4999 piece: US $174 / piece
- 5000+ piece: US $169 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this bldc fan carry?
It is supplied with RoHS CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the bldc fan be supplied for my local voltage?
The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Maintex Intelligent Control Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Maintex Intelligent Control Co., Ltd. range on HVACR Nexus.
