Bldc motor — 48V/72V, type Brushless Motor. The complete factory specification follows. Made by Golden Motor Technology Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Bldc Motor
- Model Number: HPM3KW
- Rated Power: 3kW(4.02hp)
- Rated Voltage: 48V/72V
- Voltage: 48V/72V
- Speed(RPM): 3600rpm
- Rated Speed: 3600rpm
Technical Specifications
| Rated Voltage | 48V/72V |
|---|---|
| Rated Power | 3kW(4.02hp) |
| Speed(RPM) | 3600rpm |
| IP Rating | IP65 |
| Efficiency | >90% |
| Type | Brushless Motor |
| Frame | / |
| Motor Mounting Type | / |
| Usage | Boat, Car, Electric Bicycle |
| Warranty | 1 year |
| Continuous Current(A) | 75/55/40A |
| Model Number | HPM3KW |
| Place Of Origin | Jiangsu, China |
| Brand Name | Golden Motor |
| Voltage | 48V/72V |
| Rated Current | 75A/55A |
| Max Phase Current | 240A/220A |
| Max Current Duration | 10s |
| Rated Speed | 3600rpm |
| Rated Torque | 8 N.m |
| Max Torque | 25N.m |
| Number Of Pole-Pairs | 4 |
| Selling Units | Single item |
| Single Package Size | 38X28X32 cm |
| Single Gross Weight | 9.0 kg |
Product Details
When you make the order
ATTENTION!
Please choose correctly you want
For the motor
48V or 72V or 60V?
Air cooling or Liquid Cooling Motor ?
For the controller
The price is only for 1 pcs 3KW motor,
not including controller. We offer EZkontrol controller for the motor if you need.
logistics
For items in stock, we guarantee shipment within 48 hours upon order confirmation. As for custom-made products, they will be
shipped 7 to 15 days after the sample is approved.
shipped 7 to 15 days after the sample is approved.
Product Description
3KW BLDC Motor Specifications | ||
Voltage | 48V/72V/96V | |
Rated Power | 3KW | |
Rated Current | 75A/55A/40A | |
Max Phase Current | 240A/220A/100A | |
Max Current Durations | 10s | |
Rated Speed | 3600rpm | |
Rated Torque | 8N.m | |
Peak Torque | 25N.m | |
Efficiency | >90% | |
Number of Pole-Pairs | 4 | |
Protection Level | IP65 | |

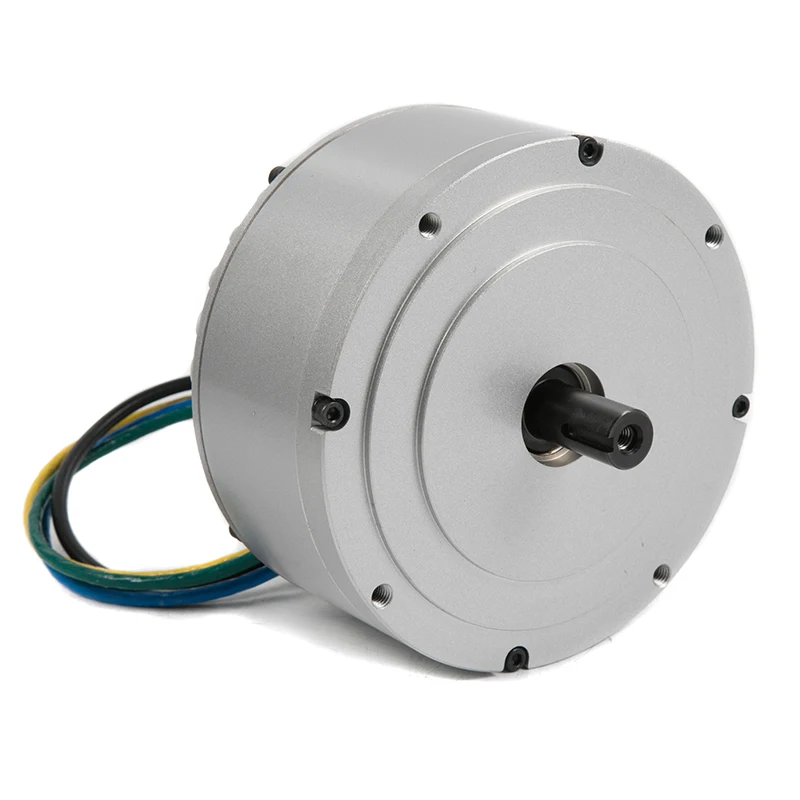

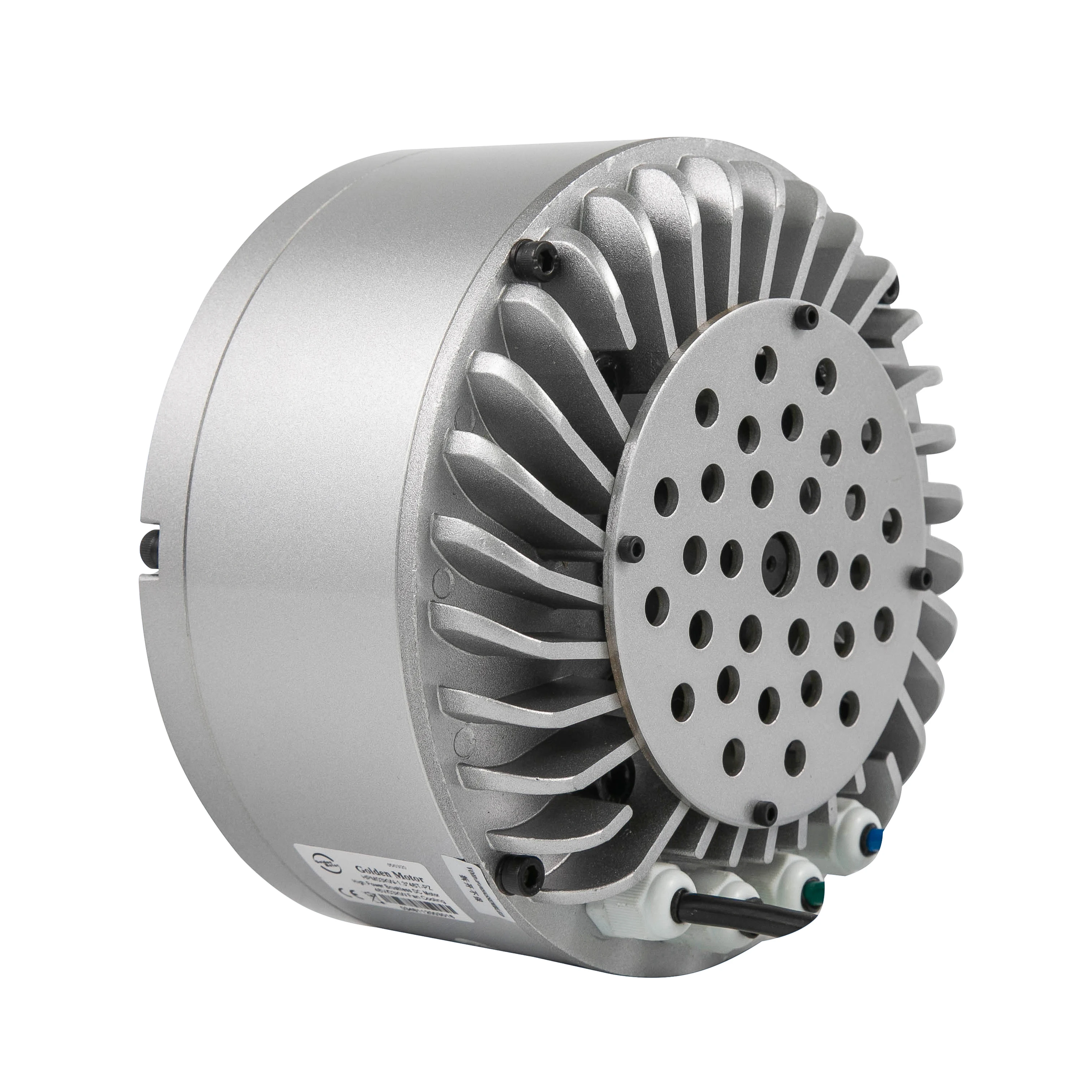

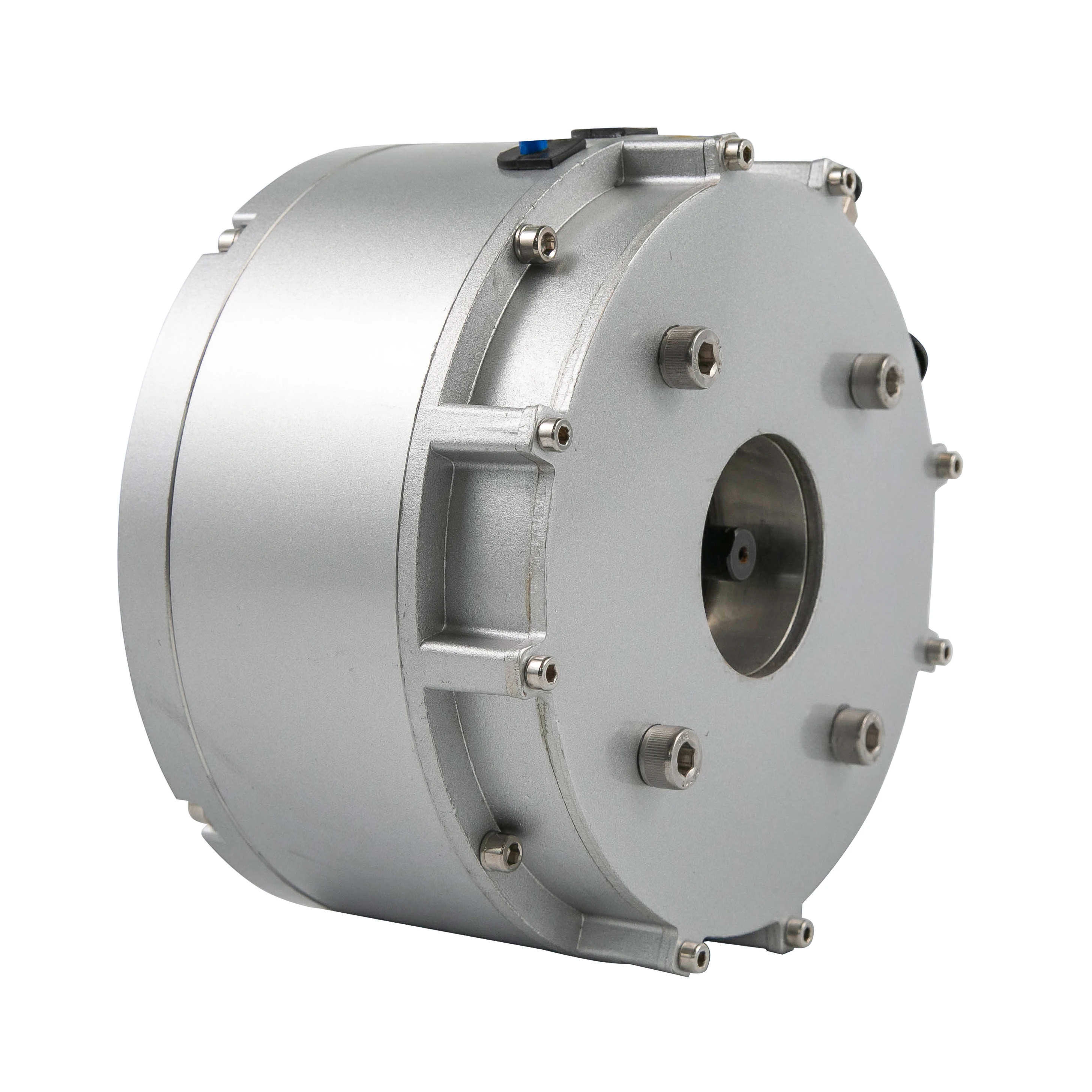

Air Cooling(Standard Shaft)
Advantage of Air cooling: Easy to build, no need extra equipment. If you want to build electric motorcycle, which have plenty wind to provide cooling air, air cooling will be perfect choice for you.

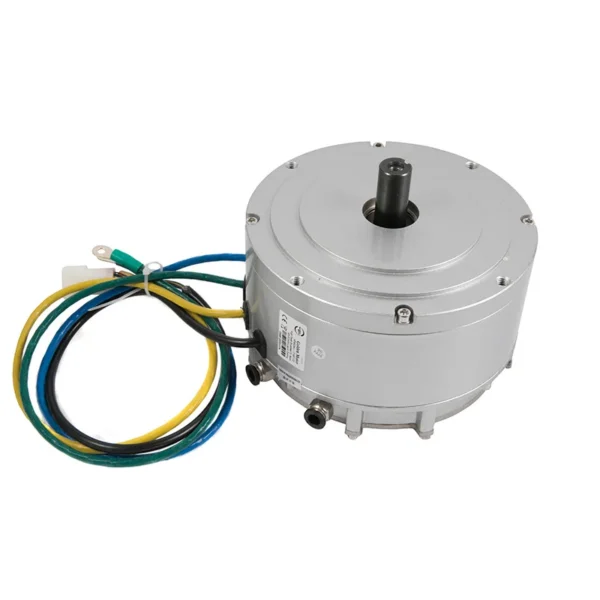

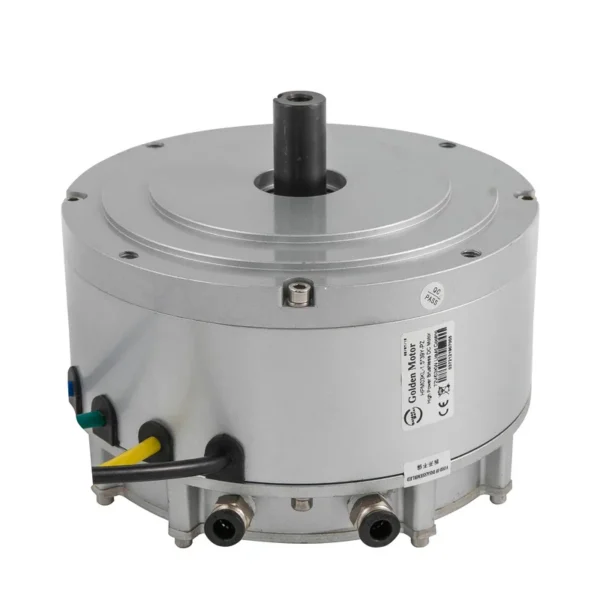

Liquid Cooling
Advantage of Liquid Cooling: You'll get a better cooling result. Besides, you can use it close position, like a car, outboard, which has no enough wind coming to cool the motor. But you need to make an extra pump to make it work.
Golden Motor BLDC Motors: Unleash High-Performance, Intelligent Power Tired of bulky, noisy, and limited motors? Step into the future of motion with our cutting-edge BLDC motors. Engineered with patented axial flux technology and intelligent controls, they deliver unmatched power density, whisper-quiet operation, and versatile performance to transform your machine. Your Key Advantages at a Glance Revolutionary Design, Superior Performance: Ditch the old radial design. Our patented Axial Flux Technology packs exceptional power and torque into a compact, lightweight frame. Experience smoother, quieter operation with minimal vibration—perfect for applications where performance and comfort are critical, from agile electric scooters to powerful marine drives. One Controller, Two Personalities: Ultimate Flexibility: Why choose between BLDC and PMSM? Our smart EZ Controller uniquely supports both trapezoidal and sinusoidal control in one unit. Wirelessly switch or update firmware via our free app (OTA). Optimize for high-torque starts or ultra-smooth, efficient cruising on the fly. Your motor evolves with your needs. Maximize Speed & Range with Intelligent Efficiency: Achieve peak efficiency over 90% to extend battery life and range significantly. Our advanced field weakening control safely unlocks speeds up to 60% above the base rating, giving you the high-speed capability and operational flexibility for thrilling performance. Built Tough for the Long Haul: Engineered for reliability with a 20,000+ hour service life. Featuring integrated temperature sensors and optional fan or liquid cooling, it thrives under demanding conditions. The wide 24-144V DC voltage range ensures compatibility and resilience across diverse setups. Your Trusted Partner for Integrated Solutions: As a specialist manufacturer since 2006, we deliver more than a component—we provide a perfectly matched, high-performance powertrain solution from 200W to 30KW. Backed by extensive experience in e-mobility and industrial applications, we are your expert partner from prototype to production.
Product Drawings

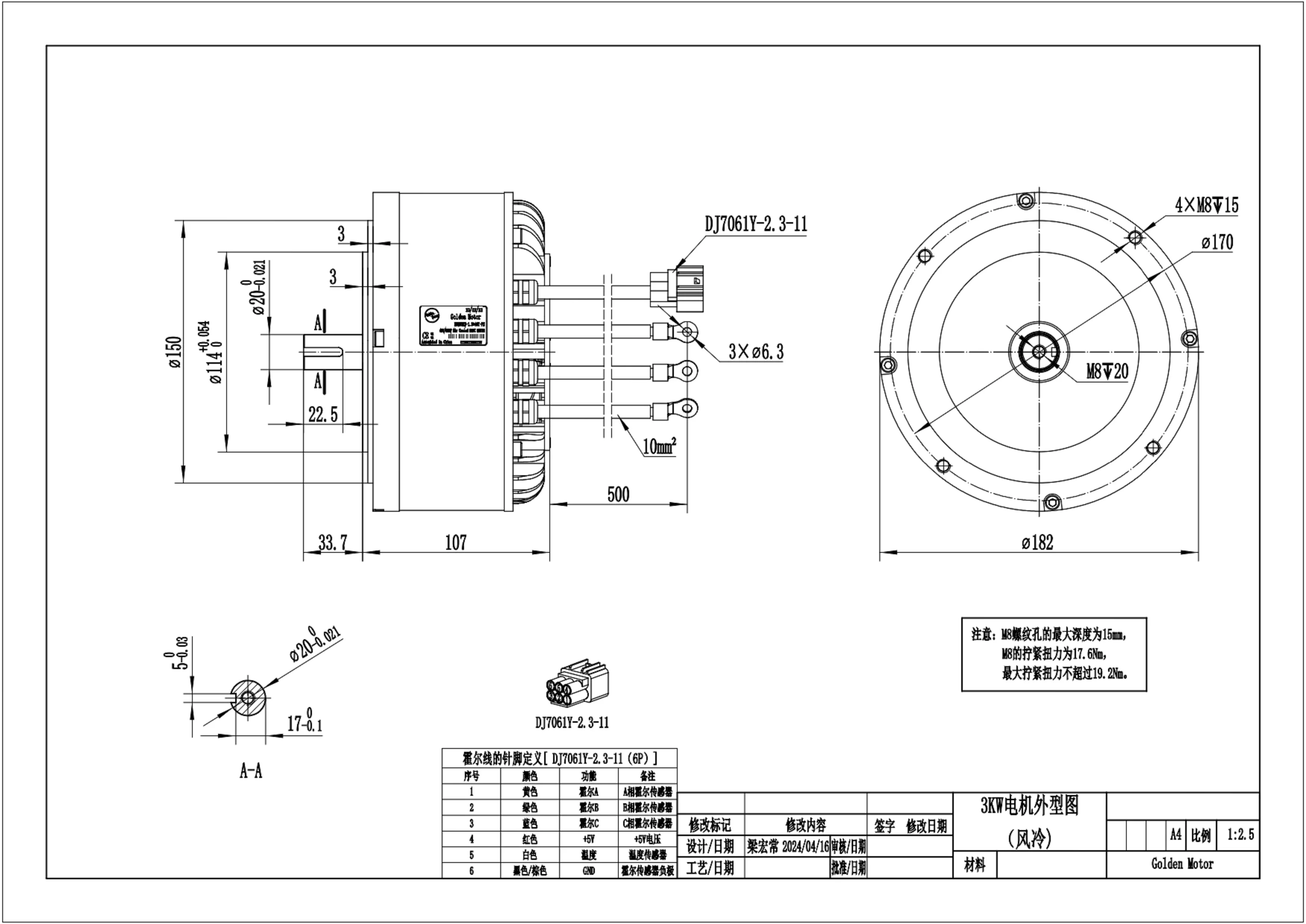

Drawing for 3KW Air Cooling Motor
Standard Shaft. If you need other shaft or customize your own shaft, please send us an inquiry.

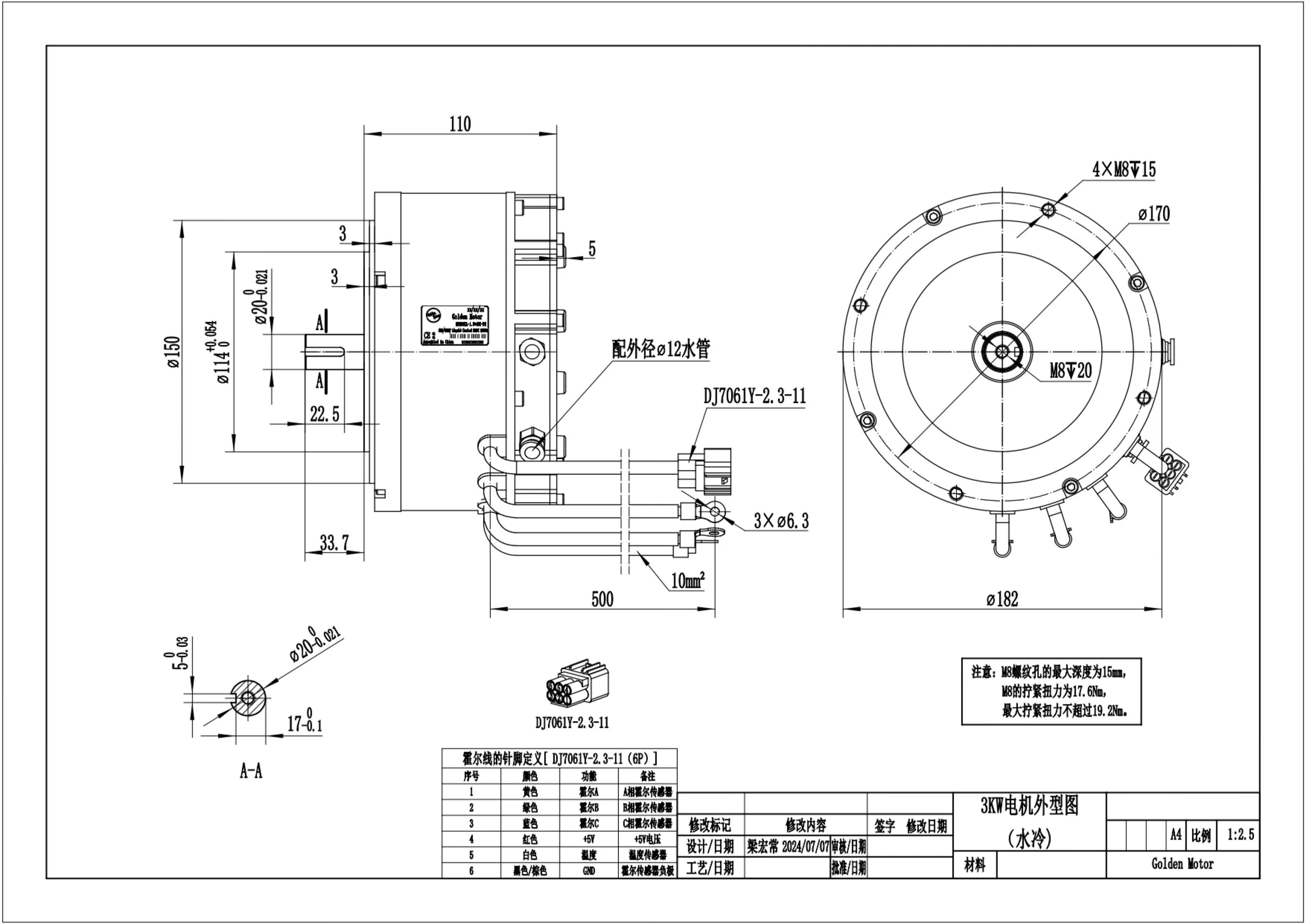

Drawing for 3KW Liquid Cooling Motor
Standard Shaft. If you need other shaft or customize your own shaft, please send us an inquiry.

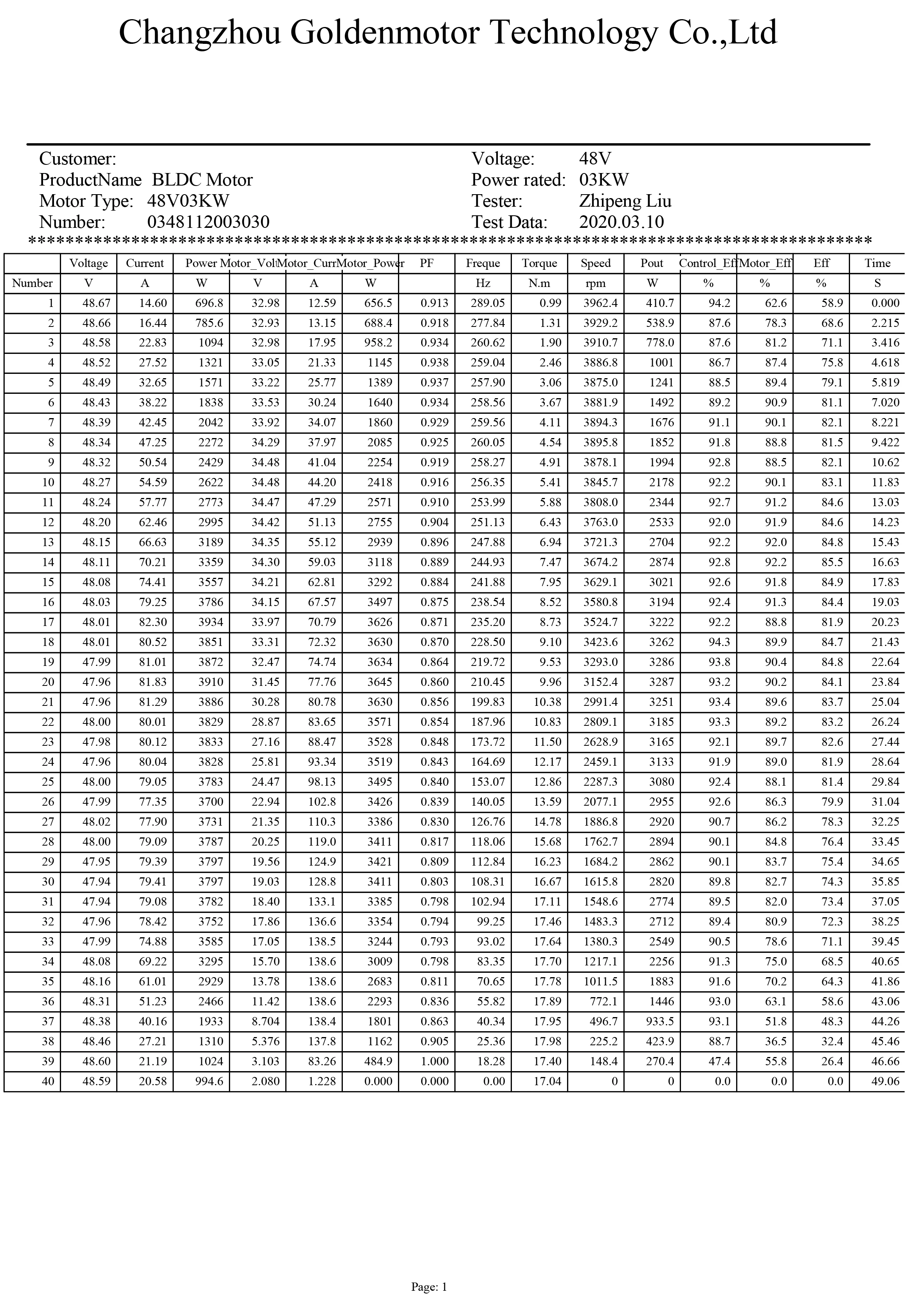

48V 3KW Testing Report Data
We also have 24V, 96V 3kw motor testing data available. Please send us an inquiry if you need them.

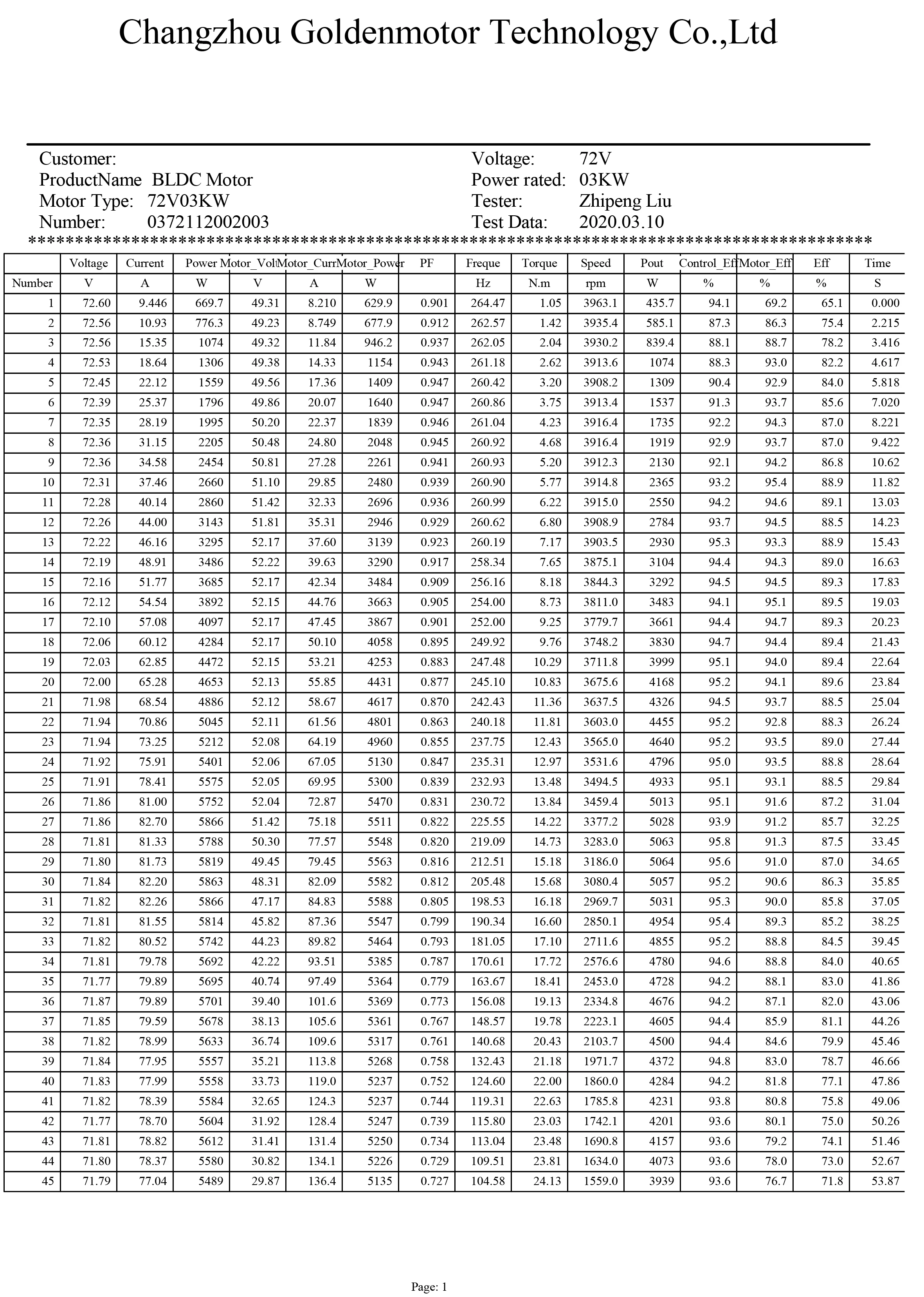

72V 3KW Testing Report Data
We also have 24V, 96V 3kw motor testing data available. Please send us an inquiry if you need them.
Related Products
Product Usage

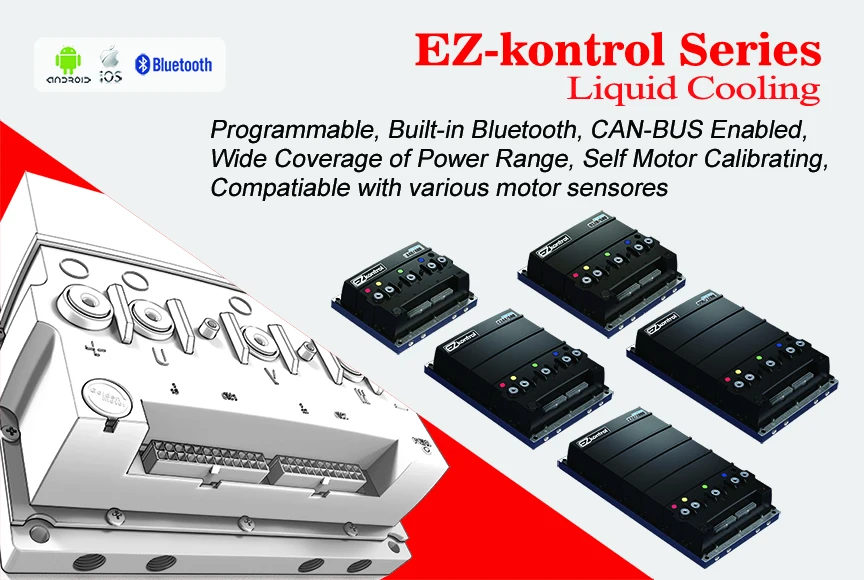

We strongly suggest you use our EZ Kontrol for our 3KW motor
Please click the photo if you need!
Applications
Satisfied buyers have spread out globally reaching more than 50 countries. They are so glad with our BLDC Motors to share the photos and videos with us. There are some photos from our clients

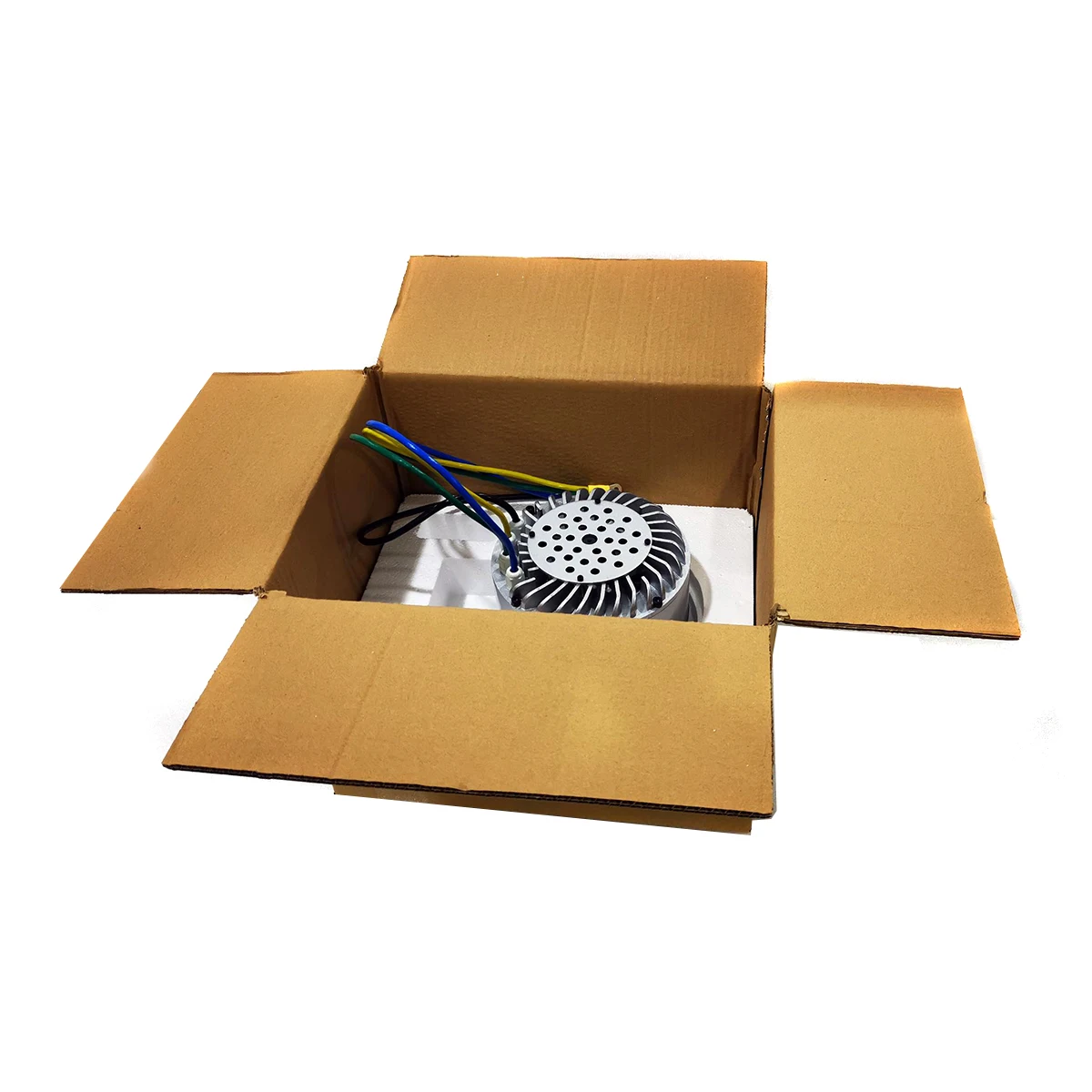

Packing&Shipping
Strong Carton Package, Safe, Compact, Saving your shipping cost.
Delivery By Express
For Sample orders, we can ship it by Express(DHL, UPS, FedEX, EMS, TNT and so on.) to your door. It will take only 3-5 working days to reach your door.
Delivery by Sea
For Big orders, we can ship the goods by sea to your close sea port. The shipping cost will be very low, but will take 15-35 days to reach you, based on your location.
Company Introduction
The Reasons Why You Choose Golden Motor
Golden Motor is an electric motor company responsible for producing some of the electric motors in the world. Whether it be the motor itself, or key components for all types of electric vehicles. The company is on a mission to provide affordable solutions for their worldwide customers.
Founded in 2007, the company began as a motor manufacturing company supplying their patented hub motors to Walmart. Confident that electric vehicles are the future, the company mainly focused on research and development to improve their brushless motor technology before moving on to designing and manufacturing applications. Throughout the years, the company's strict quality control and competitive prices rewarded with returning customers and business expanded across multiple industries globally.
Today, their bestselling high powered BLDC motors are used in wide variety of industrial applications. Being customizable and programmable the flexibility it creates endless possibilities, even EV enthusiasts and hobbyists are getting in on the action. They also offer engineering solutions for businesses as well as free consulting services.
But that's not all, Goldenmotor also produces their own lineup of products such as electric bicycles for the light traveler, electric motorcycles with a top speed of 75 miles per hour for the adventurous electric wheelchairs which are FDA approved electric engines and outboards for boats and more to come.
With recent advancements in battery technology and an expanding EV market the electric motor is here to stay. Drop us an inquiry and join Goldenmotor today.
COO He Zhang
Nearly20 years experience in the field of machinery, with about 50 patents.
Main Engineer A Chang
Nearly 18 years experience in the field of machinery, with about 30 patents.
Main Engineer Kevin
Nearly 15 years experience in the field of machinery, with about 20 patents.
Exhibition
Our shipping process is both stable and speedy, ensuring that your order will arrive in a timely manner without any delays or setbacks. With our reliable logistics network and efficient handling procedures, you can trust that your package will be delivered with precision and care.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $378 / set
- 10–99 set: US $299 / set
- 100+ set: US $269 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the bldc motor be supplied for my local voltage?
The standard configuration is 48V/72V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
