This blower is published with the manufacturer’s full specification — 12V/24V, material Aluminum Alloy. Made by Dongguan Kuhong Electronics Co., Ltd. (8 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Blower
- Model Number: CM43420-PA
- Voltage: 12V/24V
- Rated Voltage: 12v/24v Optional
- Blade Material: Other
- Material: Aluminum Alloy
- Housing Mater /Blade Material: Ganized Sheet Steel
Technical Specifications
| Voltage | 12V/24V |
|---|---|
| Speed | 2600rpm |
| Mounting | Free Standing |
| Blade Material | Other |
| Material | Aluminum Alloy |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | coolcom |
| Model Number | CM43420-PA |
| Application | HVAC |
| Product Name | Crossflow Fan |
| Motor Type | BLDC Motor |
| Bearing Type | NMB Ball Bearing |
| Keywords | Tangential Blower Fan |
| OEM /ODM | Acceptable |
| Function | FG PWM |
| Housing Mater /Blade Material | Ganized Sheet Steel |
| Rated Voltage | 12v/24v Optional |
| Selling Units | Single item |
| Single Package Size | 120X11X11 cm |
| Single Gross Weight | 2.0 kg |
Product Details
| MODEL | SIZE (MM) | BEARING TYPE | RATED VOLTAGE (V) | CURRENT (A) | SPEED (RPM) | AIR FLOW (M3/H) | PRESSURE (PA) | NOISE (DB) | WEIGHT (G) |
|---|---|---|---|---|---|---|---|---|---|
| CM43150HB12-PA | A=212 B=170 C=160 | BALL*3 | 12 | 0.32 | 2600 | 85 | 15 | 36 | 260 |
| CM43150HB24-PA | A=212 B=170 C=160 | BALL*3 | 24 | 0.16 | 2600 | 85 | 15 | 36 | 260 |
| CM43190HB12-PA | A=250 B=208 C=198 | BALL*3 | 12 | 0.36 | 2600 | 105 | 15 | 37 | 300 |
| CM43190HB24-PA | A=250 B=208 C=198 | BALL*3 | 24 | 0.18 | 2600 | 105 | 15 | 37 | 300 |
| CM43250HB12-PA | A=302 B=260 C=250 | BALL*3 | 12 | 0.43 | 2600 | 133 | 16 | 37 | 490 |
| CM43250HB24-PA | A=302 B=260 C=250 | BALL*3 | 24 | 0.24 | 2600 | 133 | 16 | 37 | 490 |
| CM43290HB12-PA | A=352 B=310 C=300 | BALL*3 | 12 | 0.46 | 2600 | 160 | 17 | 38 | 530 |
| CM43290HB24-PA | A=352 B=310 C=300 | BALL*3 | 24 | 0.27 | 2600 | 160 | 17 | 38 | 530 |
| CM43350HB12-PA | A=400 B=358 C=348 | BALL*3 | 12 | 0.50 | 2600 | 185 | 18 | 39 | 570 |
| CM43350HB24-PA | A=400 B=358 C=348 | BALL*3 | 24 | 0.29 | 2600 | 185 | 18 | 39 | 570 |
| CM43420HB12-PA | A=472 B=430 C=420 | BALL*3 | 12 | 0.52 | 2600 | 202 | 19 | 40 | – |
| CM43420HB24-PA | A=472 B=430 C=420 | BALL*3 | 24 | 0.33 | 2600 | 202 | 19 | 40 | – |
| Just let us know your requirements, we can offer customized service! | |||||||||
| item | cross flow fan |
| Blade Material | aluminum |
| voltage | 12V/24V |
| mounting | FREE STANDING |
| speed | 2400rpm |
| customized support | OEM, ODM, OBM |
| place of origin | Guang Dong,China |
| brand name | coolcom |
| warranty | 1 Year |
| After-sales Service Provided | Online support |
| Material | Aluminum Alloy, Steel |

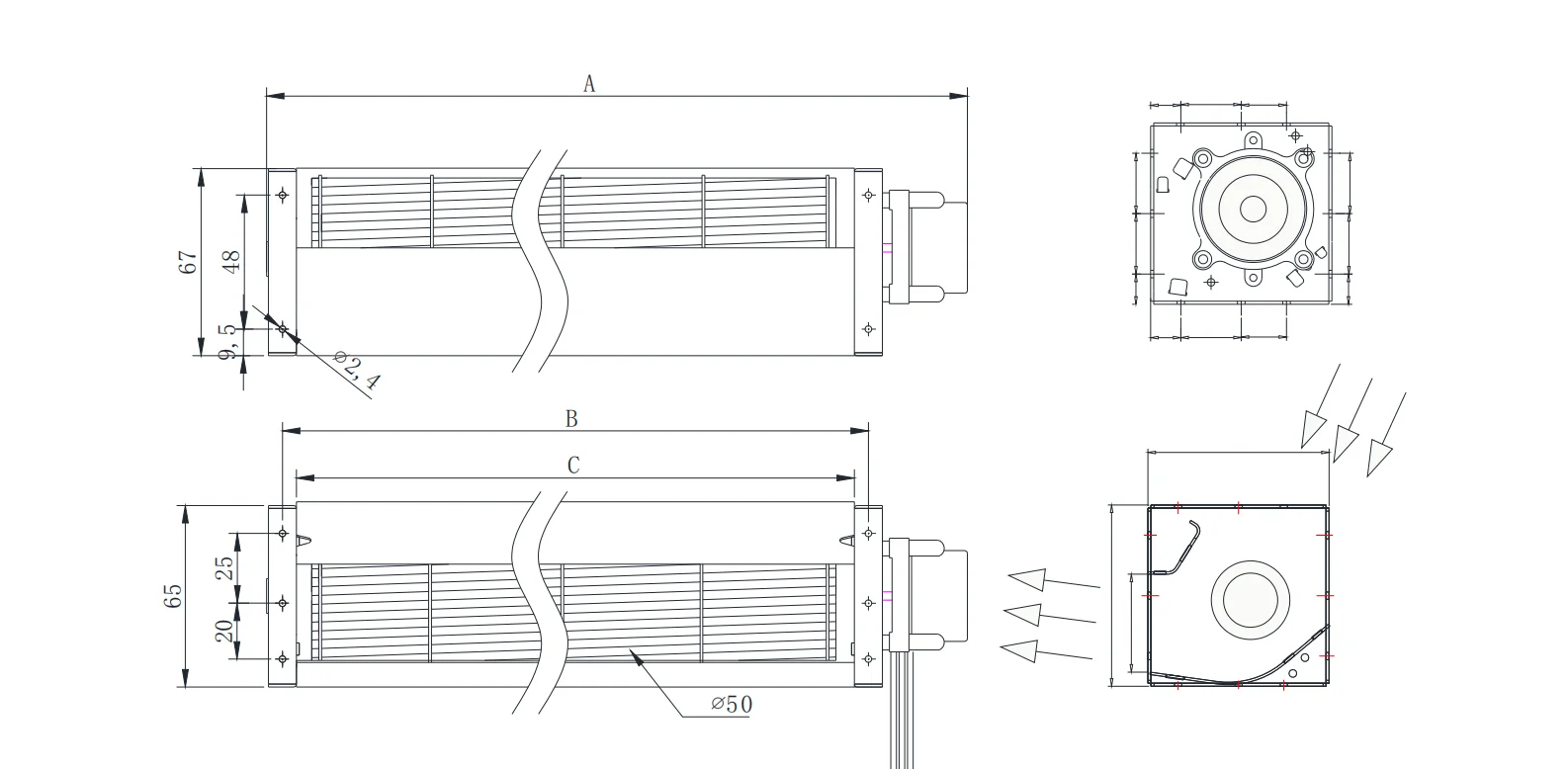

Dimension drawings

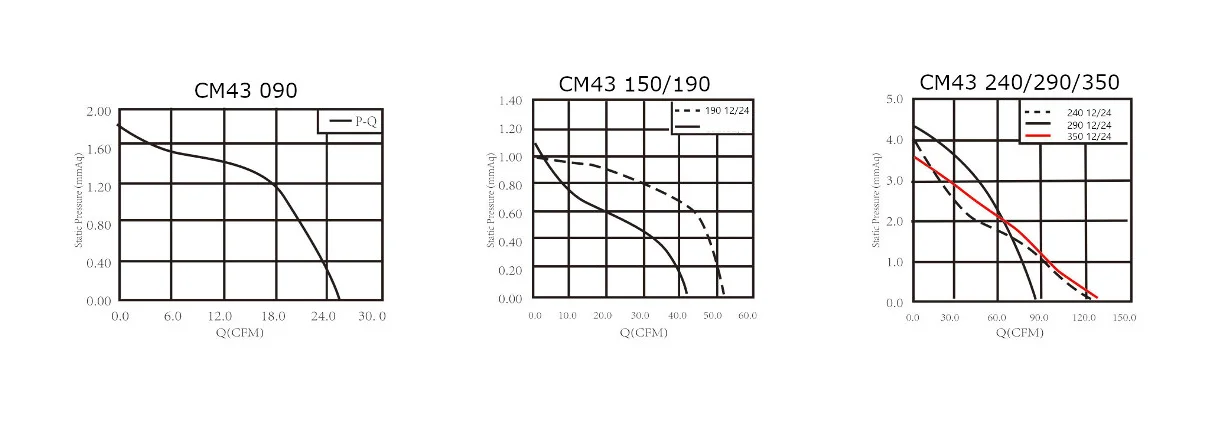

Fan Performance Curve
1. coolcom cross flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature.
Based in 2011, DONGGUAN KUHONG ELECTRONICS CO.,LTD is a distinguished manufacturer of cross flow fans, centrifugal fans, pipeline fans, brushless dc motors, and EC motors. Promoting our own branded product, 'COOLCOM FAN', we provide full support for OEM&ODM. The products are widely utilized in HVAC, ventilation, heating, air conditioning&refrigeration, home appliance, and varied industries.We're here to support your inquiries and provide customized solutions on motor and fan products. Connect with us.
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
cross flow fan,centrifugal fan,ec fan,axial fan,dc motor
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $30 / piece
- 500–999 piece: US $21 / piece
- 1000+ piece: US $20 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the blower be supplied for my local voltage?
The standard configuration is 12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Kuhong Electronics Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Kuhong Electronics Co., Ltd. range on HVACR Nexus.
