Box v-type outdoor condenser — voltage 380, material Aluminium. The complete factory specification follows. Made by Qingdao Bingquan Refrigeration Equipment Engineering Co., Ltd. (3 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Box V-Type Outdoor Condenser
- Voltage: 380
- Material: Aluminium
- Warranty: 1 Year
- Warranty Period: 1 year
- Place Of Origin: Shandong, China
- Application: Refrigeration Parts
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Material | Aluminium |
| Voltage | 380 |
| Core Components | Motor |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 260 |
| Brand Name | Bingquan |
| Dimension(L*W*H) | A variety of styles are available |
| Product Name | FMV box type V-type integrated condenser |
| Application | Refrigeration Parts |
| Color | White,Green, Blue,Black |
| Structure | Copper Brass Stainless Steel |
| Keyword | High Efficiency Heat Exchanger |
| Warranty Period | 1 year |
| Function | Original Plate |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
PRODUCT HIGHLIGHTS

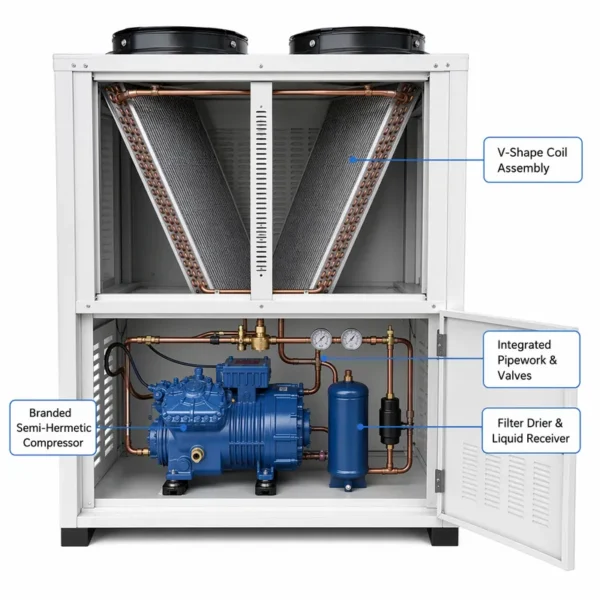

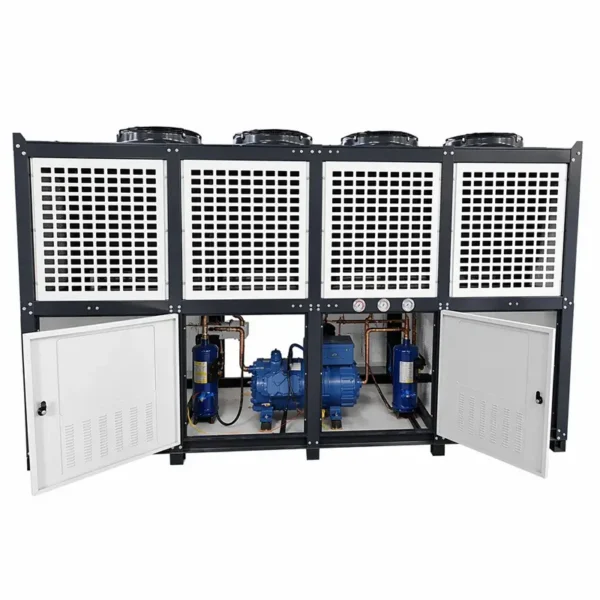

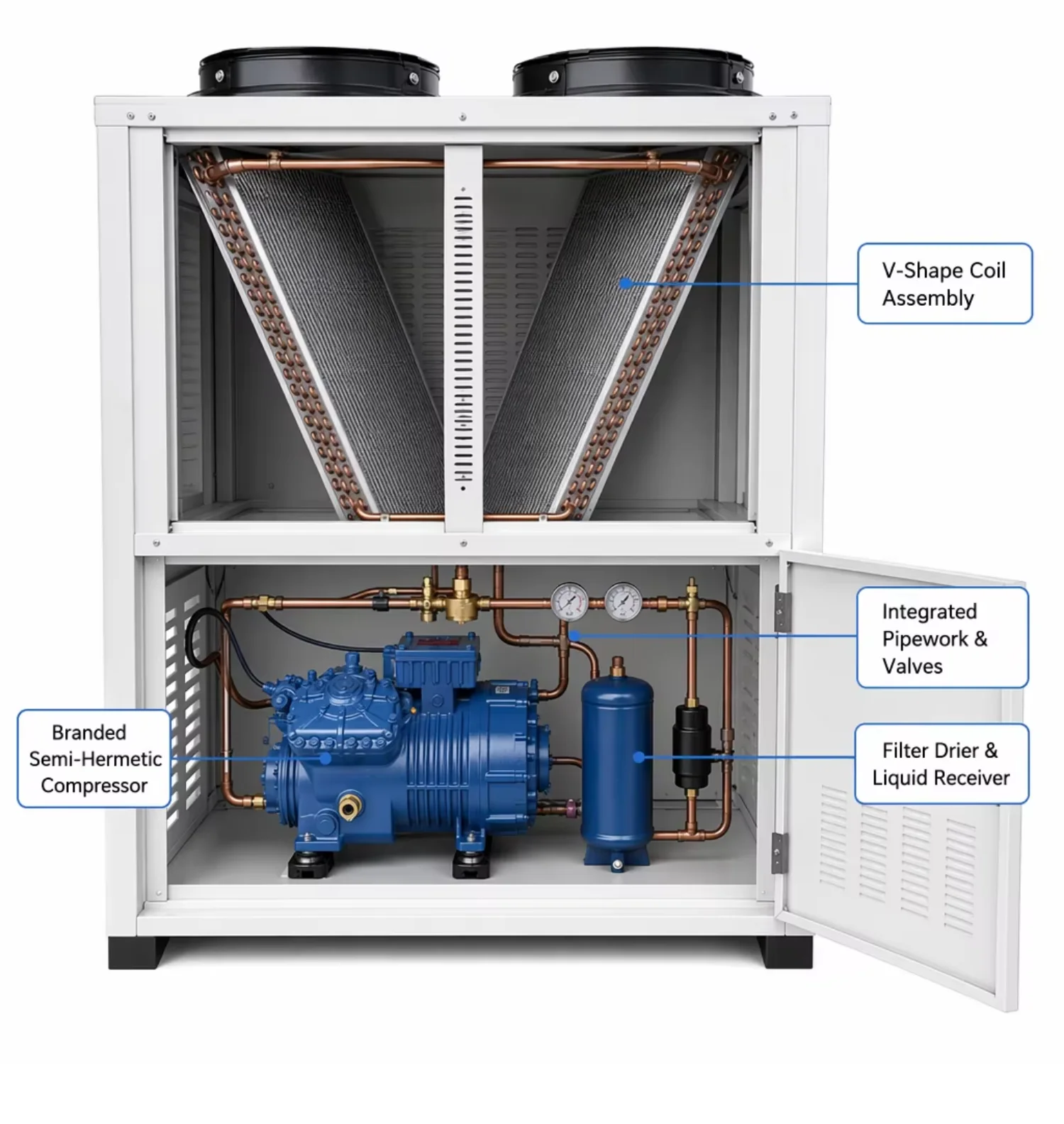

- *Complete All-in-One Integrated Design: Our box-type V condensing unit integrates the compressor, V-shape air-cooled condenser, receiver, oil separator, filter drier, sight glass, and control panel into one pre-assembled steel frame. This eliminates the need for on-site component matching and complex piping work.
- *Factory Pre-Commissioned and Ready to Run: Every unit is pre-piped, pre-wired, and pressure-tested at our factory before shipment. Delivered pre-charged with nitrogen holding charge, the unit only requires final copper pipe connection to the evaporator and main power supply — dramatically reducing installation time and labor cost.
- *V-Type High-Density Heat Rejection: The condenser section features an optimized V-shaped coil configuration with copper tubes and corrugated aluminum fins. This layout maximizes the heat exchange surface area within a compact footprint while top-mounted axial fans ensure efficient vertical airflow with minimal hot air recirculation.
- *Premium Compressor Core Performance: Equipped with world-class semi-hermetic or scroll compressors from Bitzer, Copeland, or equivalent brands, the unit delivers reliable and energy-efficient refrigeration across a wide operating range. Designed for medium and low-temperature applications from +10°C down to -35°C.
- *Compact Footprint with Industrial Durability: The single-frame structural design occupies minimal floor or rooftop space, making it ideal for small to medium cold rooms where installation area is limited. The heavy-duty galvanized steel frame and weather-resistant powder coating ensure long service life in outdoor environments.
- *Comprehensive Safety and Control Protection: Integrated electrical control box includes high/low pressure switches, phase sequence protection, and overload relays. The sight glass and service valves are positioned for easy maintenance access, ensuring system health can be monitored and serviced without disassembly.
FAQs
What is the main advantage of the box-type V integrated unit over a traditional split system?
The box-type unit comes fully pre-assembled from the factory — compressor, condenser, receiver, oil separator, filter drier, and control panel are all pre-piped and pre-wired on a single frame. You avoid complex on-site refrigerant piping, vacuuming, and system commissioning, saving at least 1-2 days of professional installation labor.
What compressor brands and types are available for this unit?

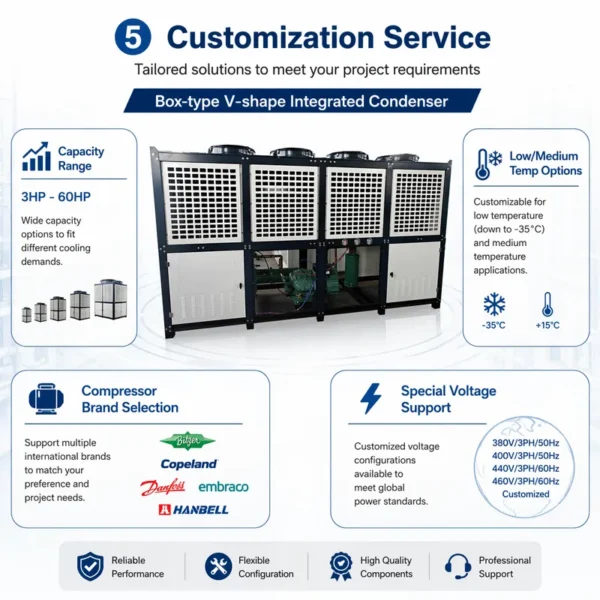

We offer multiple premium compressor options to match your performance and budget requirements, including Bitzer semi-hermetic, Copeland scroll, and Hanbell semi-hermetic compressors. The unit can be configured for medium temperature (0°C to +10°C) or low temperature (-15°C to -35°C) applications.
What needs to be done on-site after the unit arrives?
Installation is extremely simple. After positioning the unit on a flat concrete pad or steel platform, you only need to connect two copper pipes from the unit's service valves to your evaporator (cold room air cooler), connect the main power supply, and the system is ready for evacuation, refrigerant charging, and start-up.
What is the typical power range this integrated unit covers?
Our box-type V condensing units typically cover a power range from 3HP to 30HP. This makes them ideal for small to medium commercial cold rooms, such as 20m³ to 500m³ freezer or chiller rooms commonly used in restaurants, supermarkets, food processing workshops, and agricultural storage.
Can I choose between air-cooled and water-cooled versions?
Our standard box-type V unit uses air-cooled V-shaped condenser coils with top-mounted axial fans, which require no cooling water and are suitable for most outdoor and well-ventilated indoor installations. If your project requires water-cooled configuration, please contact us for a custom solution.
What refrigerants are compatible with this unit?
The unit is fully compatible with widely used refrigerants including R22, R404A, R507, R134a, and R448A/R449A. The compressor model and expansion valve are selected based on your target evaporating temperature and refrigerant type to ensure optimal performance.
How do I determine the correct unit size for my cold room?
Please provide your cold room dimensions (L×W×H), required storage temperature, product type and daily throughput, ambient climate conditions, and available power supply. Our engineering team will calculate the heat load and recommend the optimally matched unit capacity and evaporator combination.

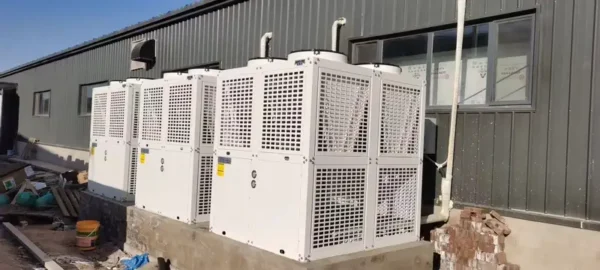

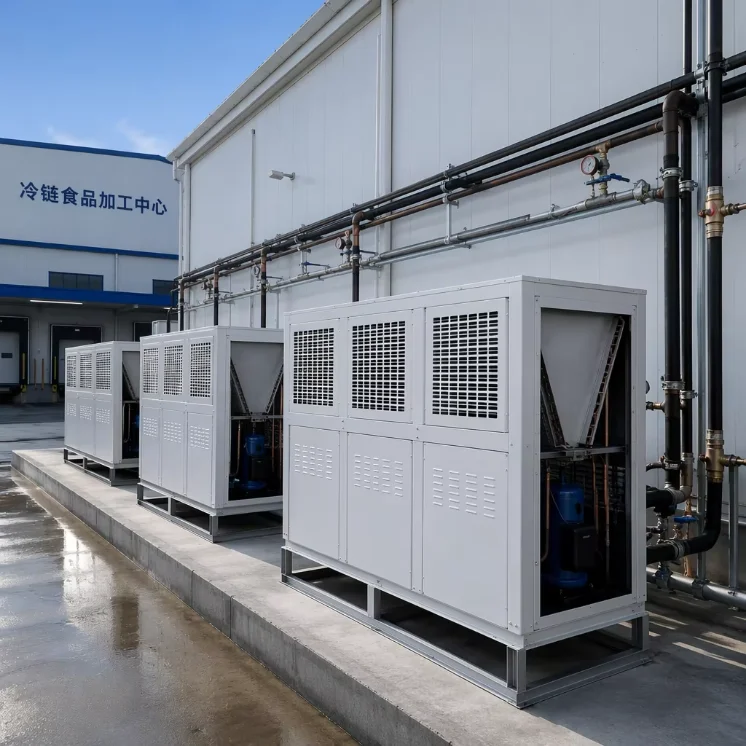

Is the unit suitable for outdoor installation in coastal or harsh environments?
Yes. The frame and panels receive a high-quality anti-corrosion powder coating as standard. For coastal, high-humidity, or chemically aggressive environments, we offer upgraded protection options including epoxy-coated condenser fins and enhanced weather-resistant casing to extend outdoor service life.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $1880 / set
- 5+ set: US $1800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this box v-type outdoor condenser?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the box v-type outdoor condenser be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

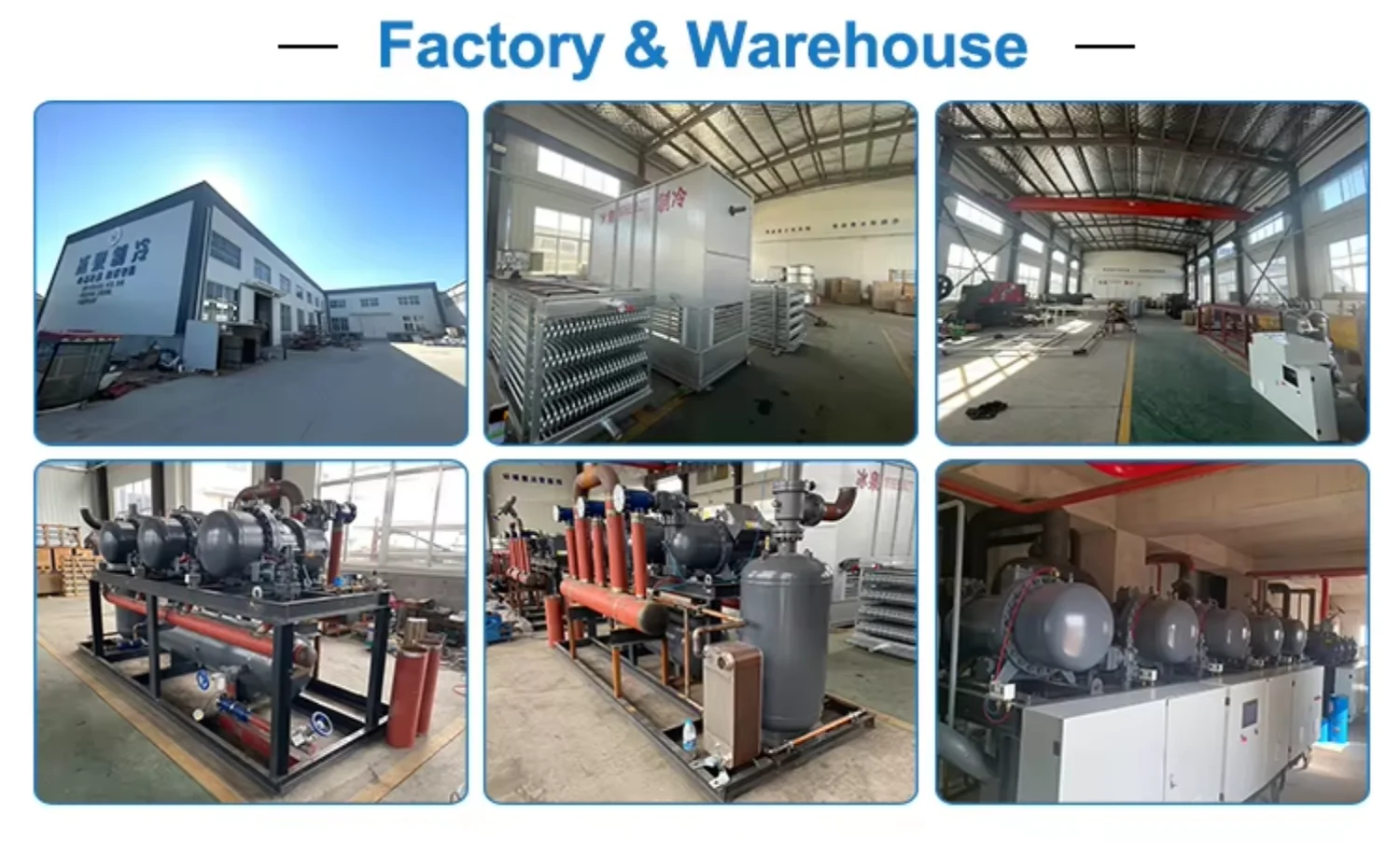

About the Manufacturer
This product is produced by Qingdao Bingquan Refrigeration Equipment Engineering Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingdao Bingquan Refrigeration Equipment Engineering Co., Ltd. range on HVACR Nexus.
