Brushless fan — 12V, 24V, 25.5m3/h. The complete factory specification follows. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Brushless Fan
- Model Number: WS7040-12-X200 blower &WS1208DY01V03-SRP008 driver, WS7040-24-V200 blower & WS2403DY01V04 driver
- Power Source: POWER SUPPLY
- Rated Voltage: 12V, 24V
- Free Blowing Airflow: 25.5m3/h
- Blade Material: Plastic
- Housing Material: PC
Technical Specifications
| Power Source | POWER SUPPLY |
|---|---|
| Rated Voltage | 12V, 24V |
| Electric Current Type | DC |
| Blade Material | Plastic |
| Pressure | 6.5KPA(0.94psi) |
| Place Of Origin | China |
| Model Number | WS7040-12-X200 blower &WS1208DY01V03-SRP008 driver, WS7040-24-V200 blower & WS2403DY01V04 driver |
| Housing Material | PC |
| Life Time(MTTF) | >20000hours(under 25 degree C) |
| Weight | 80gram |
| Unit Size | D70*H40mm |
| Color | Black |
| Static Pressure | 6.5kPa |
| Free Blowing Airflow | 25.5m3/h |
| Bearing | NMB Ball bearing |
| Motor Type | DC brushless motor |
| Controller | External |
| Selling Units | Single item |
| Single Package Size | 28.0X17.0X19.0 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Product Description

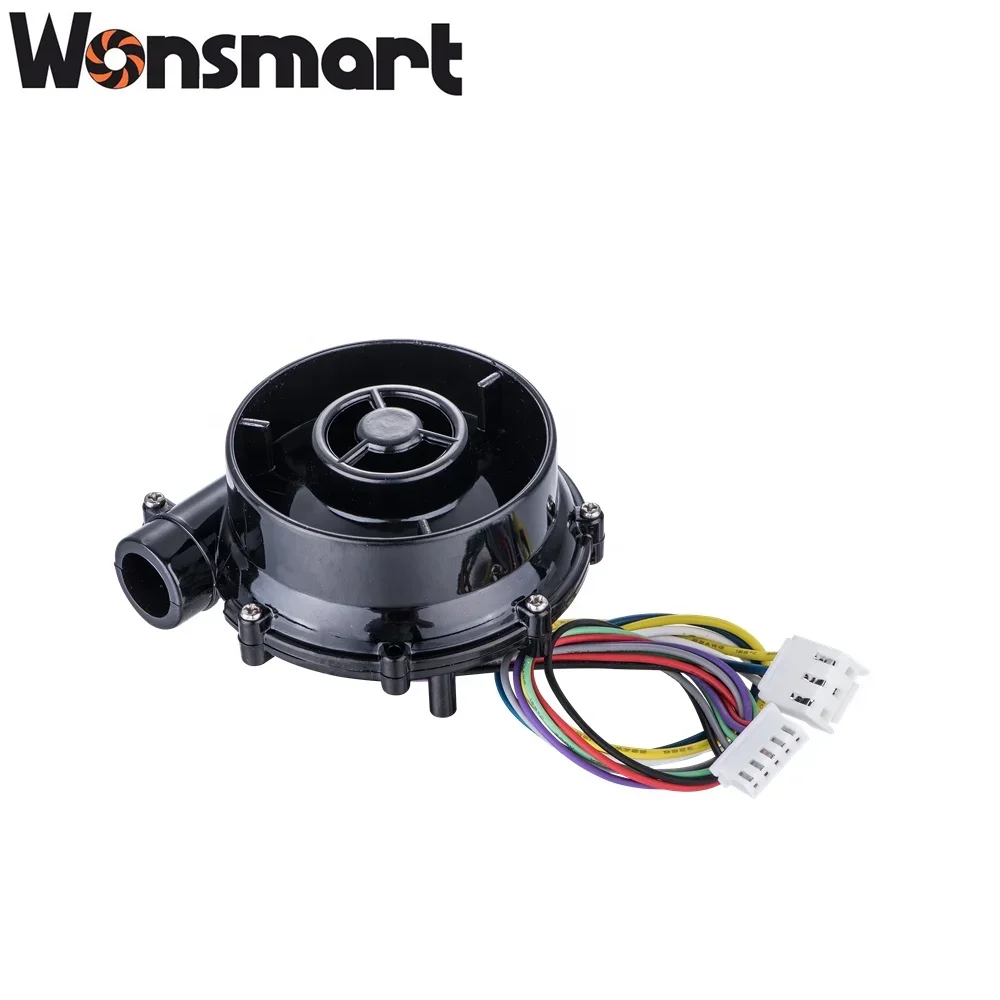

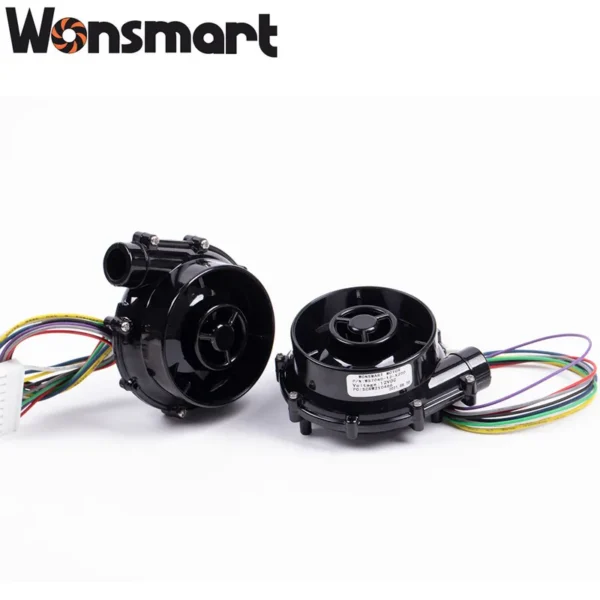

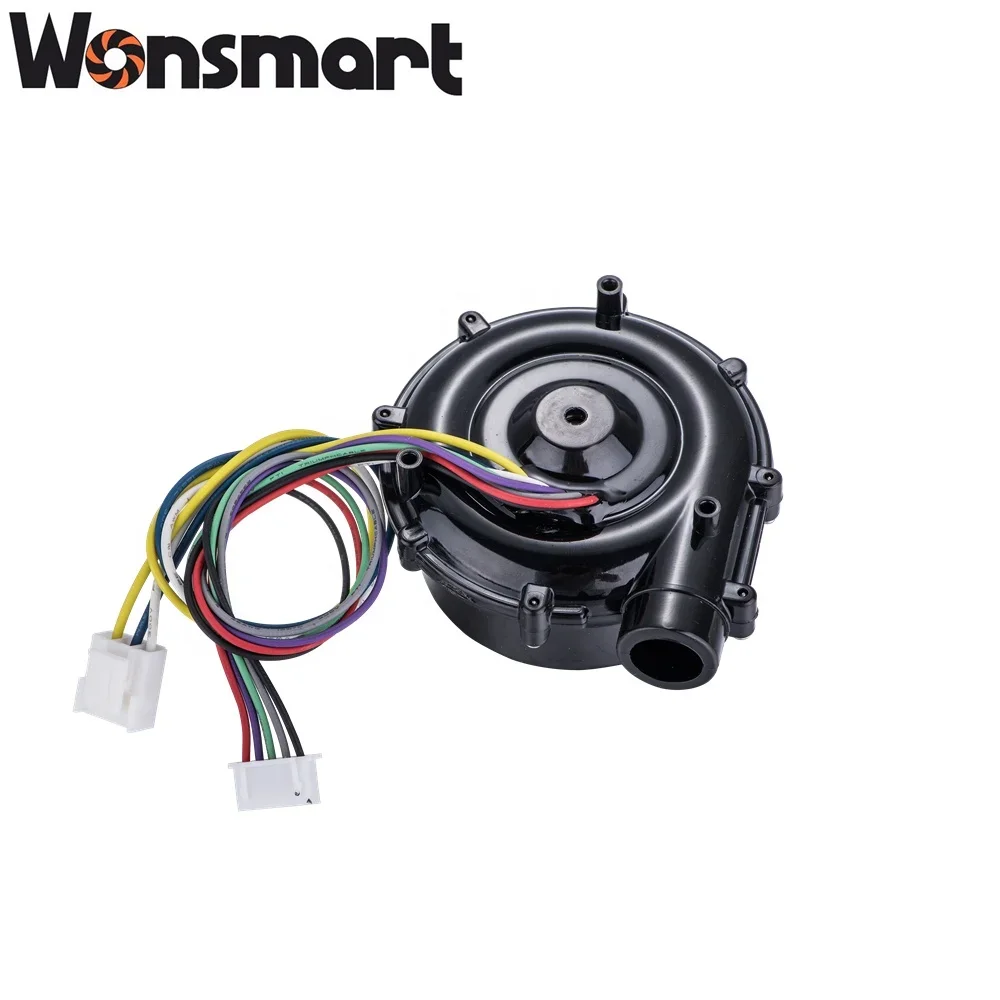

70mm diameter 6.5kPa pressure 25.5m3/h air flow dc 24v brushless fan blower
suitable for air cushion machine/CPAP machine/fuel cell/medical equipment.
Model | Voltage | Max.air flow | Max.air pressure | Current range | Power range | Noise | Speed |
VDC | m3/h | kpa | A | W | DBA | rpm | |
WS7040-12-X200 | 12 | 25 | 6 | 1.5-4.5 | 18-54 | 50-73 | 45000-49000 |
WS7040-24-V200 | 24 | 25.5 | 6.5 | 0.8-2.7 | 19.2-64.2 | 50-73 | 35000-43000 |

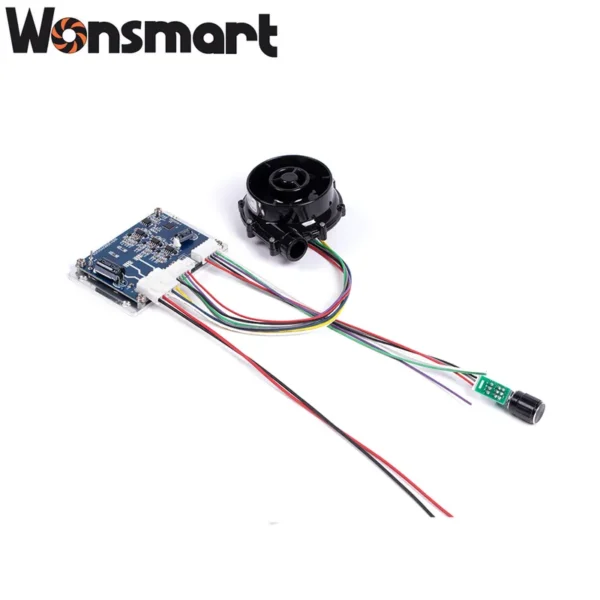

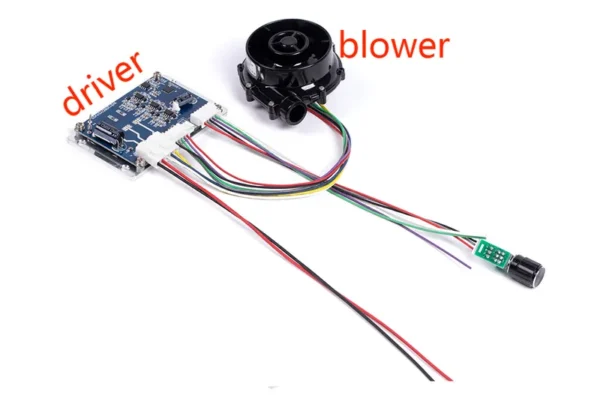

Wiring diagram for driver controller
We can supply standard drivers for this blower. If you want to design your own driver, you can refer to the wiring diagram on the
right picture.
right picture.

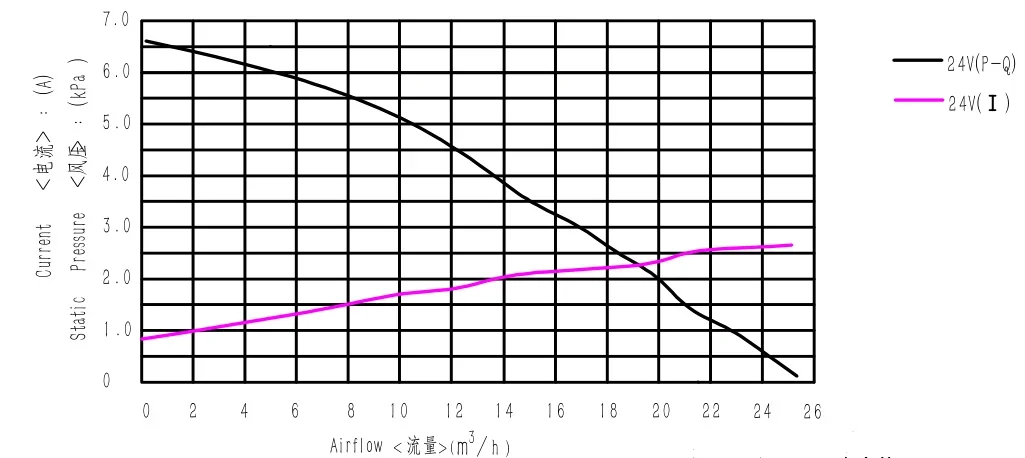

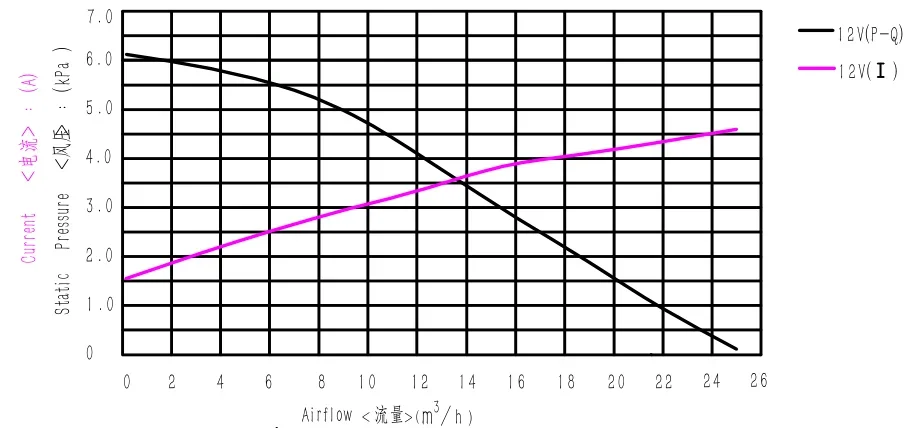

Performance Curve
WS7040-12-X200
@Free-blowering | @At working Point | @At static pressure | ||||||||||||||
Speed | Current | Air flow | Air pressure | Speed | Current | Airflow | Speed | Current | Air pressure | |||||||
rpm | a | m3/h | kpa | rpm | a | m3/h | rpm | a | kpa | |||||||
35000 | 4.5 | 25 | 5 | 42000 | 2.8 | 8.5 | 43000 | 1.5 | 6.0 | |||||||
WS7040-24-V200
@Free-blowering | @At working Point | @At static pressure | ||||||||||||||
Speed | Current | Air flow | Air pressure | Speed | Current | Airflow | Speed | Current | Air pressure | |||||||
rpm | a | m3/h | kpa | rpm | a | m3/h | rpm | a | kpa | |||||||
37000 | 2.7 | 25.5 | 4 | 40000 | 1.9 | 13 | 45000 | 0.8 | 6.5 | |||||||

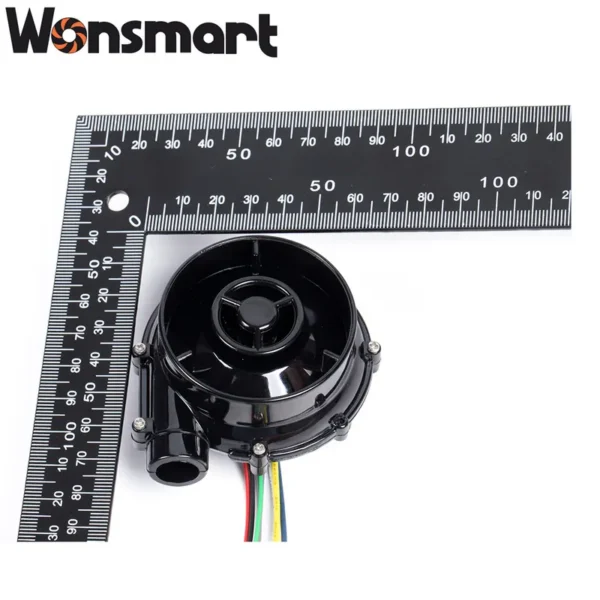

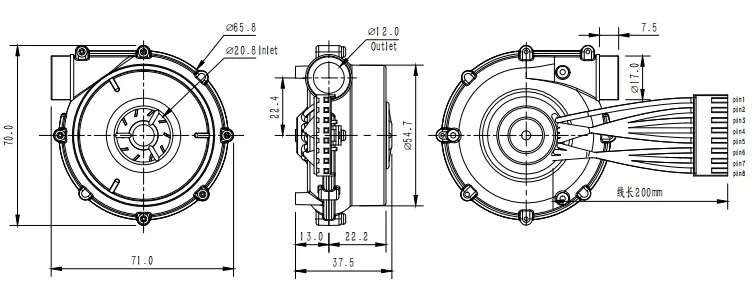

Size Information
Product drawing as below
Overall size(L*W*H):71mm*70mm*37.5mm
Outlet size:φ12mm
Inlet size:φ20.8mm
Related Products

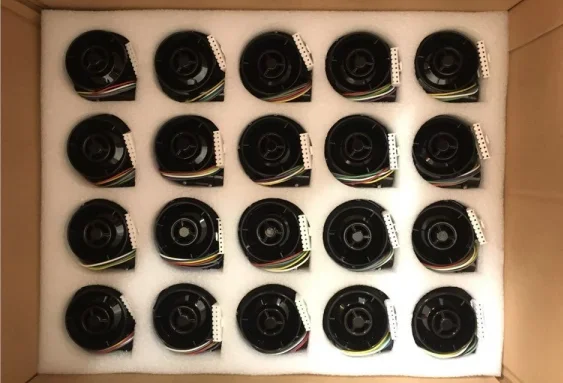

Packing&Shipping
Qty per Ctn: 100pc;
Ctn size:420*330*285mm;
G.W.: 9.3KGS;
N.W.:8.3KGS;
Company Introduction
Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dc motors and brushless dcblowers. Our blower’s max airflow reaches 150 cubic meter per hour and a max pressure of 15 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can serve more than 10,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion
machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is I S O 9 0 0 1 certificated and we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.

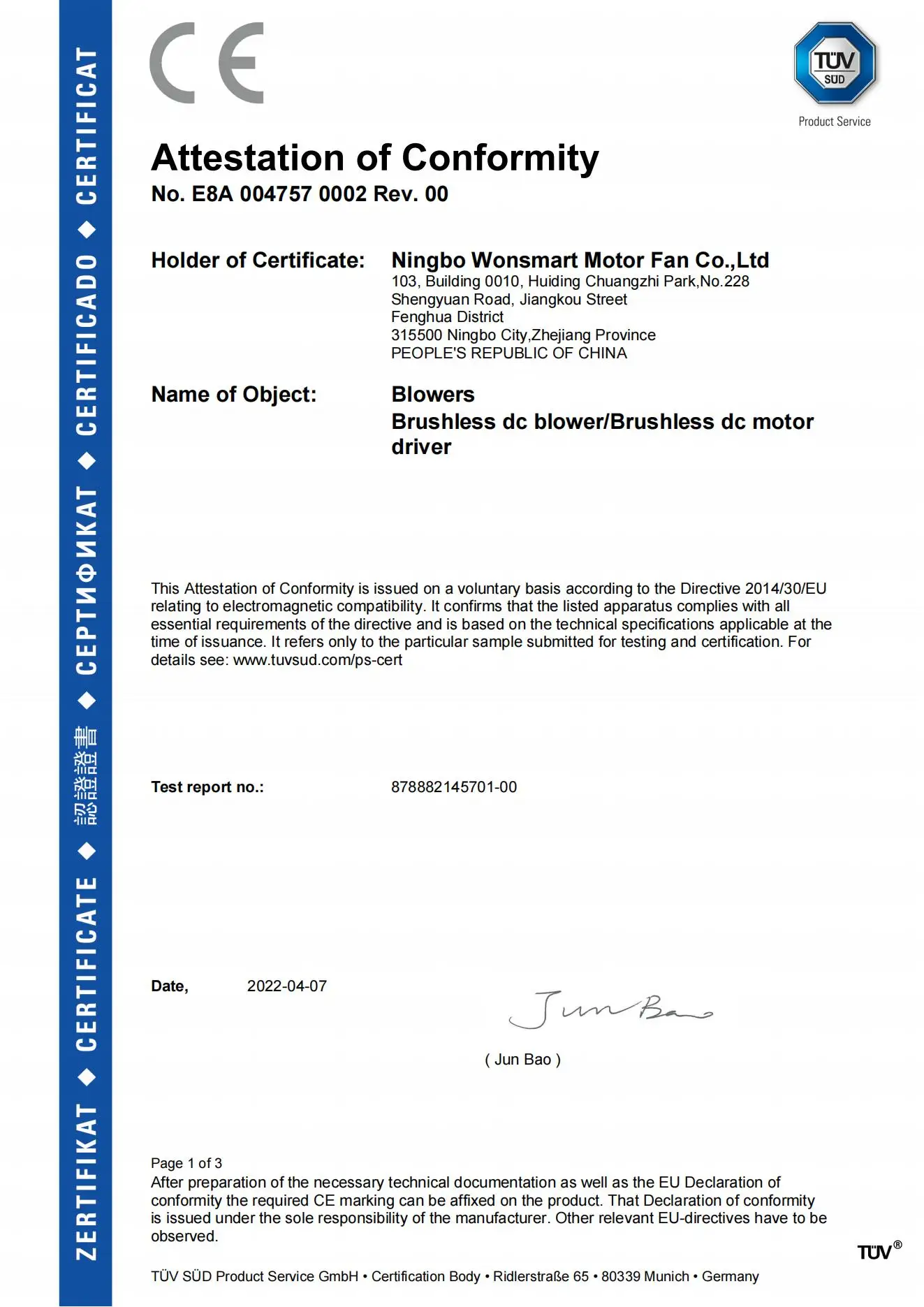

With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion
machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is I S O 9 0 0 1 certificated and we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure BLDC
blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
We are factory with 4,000 square meters and we have been focus on high pressure BLDC
blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the brushless fan be supplied for my local voltage?
The standard configuration is 12V, 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
