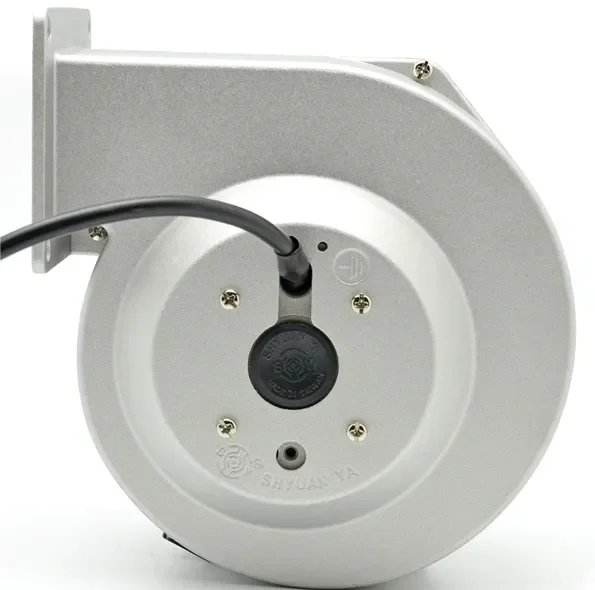

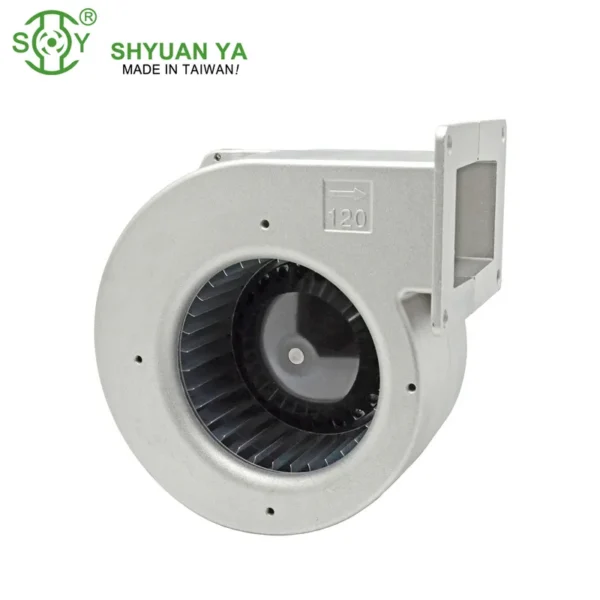

CA120-98T Hot Air Centrifugal Blower, 50kW EC Turbo, 100-164 CFM

A hot air centrifugal blower has to survive a duty that destroys ordinary fans: the air stream stays hot continuously, which cooks bearings and softens plastic impellers. Stainless steel construction and a cabinet housing address both. EC drive means output can be trimmed to the process rather than throttled with a damper, which is where the energy saving comes from. 100-164 CFM on 115V or 230V, duct mounted, made in Taiwan.

Key Features of This Hot Air Centrifugal Blower

• Model Number: CA120-98T
• Voltage: 115, 230V
• Air Flow: 100 ~ 164 CFM
• Blade Material: Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Taiwan, China

Technical Specifications

Product Details

Specification
Air Flow	100 ~ 164 CFM
Impeller	Galvanized Sheet Steel Impeller
Motor	External Rotor Motor
Rotor	Black Paint
Bearing	Dual Ball Bearing
Lead Wire	450mm AWG# 20
Insulation	Class “B” or “F”
Safety	Thermally Protected
Operating Temperature	-20°C to +60°C
Certification	ce, RoHS

Product Name	CENTRIFUGAL BLOWER CA120-98T	CENTRIFUGAL BLOWER CA140-100T-1C	CENTRIFUGAL BLOWER CA140-100T-2/3C
Air Flow	100 ~ 164 CFM	286 ~ 297 CFM	217 ~ 250 CFM
Impeller	Die-cast Aluminum Housing Galvanized Sheet Stell Impeller
Motor	Capacitor-Run Induction and External Rotor Motor
Insulation	Class “B” or “F”
Operating Voltage Range	85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
Operating Temperature	-20°C to +60°C	1V→ -20°C to +60°C 2V→ -20°C to +40°C	2C→ -20°C to +60°C 3C → -20°C to +70°C

Product Name	CENTRIFUGAL BLOWER CA146-100T	CENTRIFUGAL BLOWER CA160-100T
Air Flow	255 ~ 325 CFM	286 ~ 297 CFM
Impeller	Die-cast Aluminum Housing Galvanized Sheet Stell Impeller
Motor	Capacitor-Run Induction and External Rotor Motor
Insulation	Class “B” or “F”
Operating Voltage Range	85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
Operating Temperature	-20°C to +60°C	1V→ -20°C to +60°C 2V→ -20°C to +40°C

Questions & Answers

Q: What information do you need to provide in order to get a quotation? A: Generally, information about Size,Air Flow,Voltage of required fans is needed in order to select a right fan for you and provide you a quotation. Q: Can I have samples for testing before ordering products? A: Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. Q: Can I have a discount for the quoted price? A: The quoted price is based on annual usage quantity. If annual usage quantities increase, please provide the information to our sales. We will provide you a further discount. Q: What is the warranty of products? A: All of our products have 1 year warranty. Every product has its own production code. This code is able to track the production time. Q: Could you print our company LOGO on the nameplate and package? A: Yes, we accept OEM orders.

Ordering and Pricing

• Minimum order quantity: 12 piece
• Ships from: TW
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hot air centrifugal blower?

The standard minimum order quantity is 12 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the hot air centrifugal blower be supplied for my local voltage?

The standard configuration is 115, 230V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

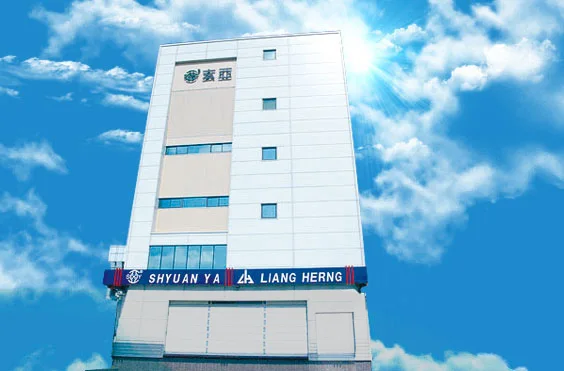

About the Manufacturer
