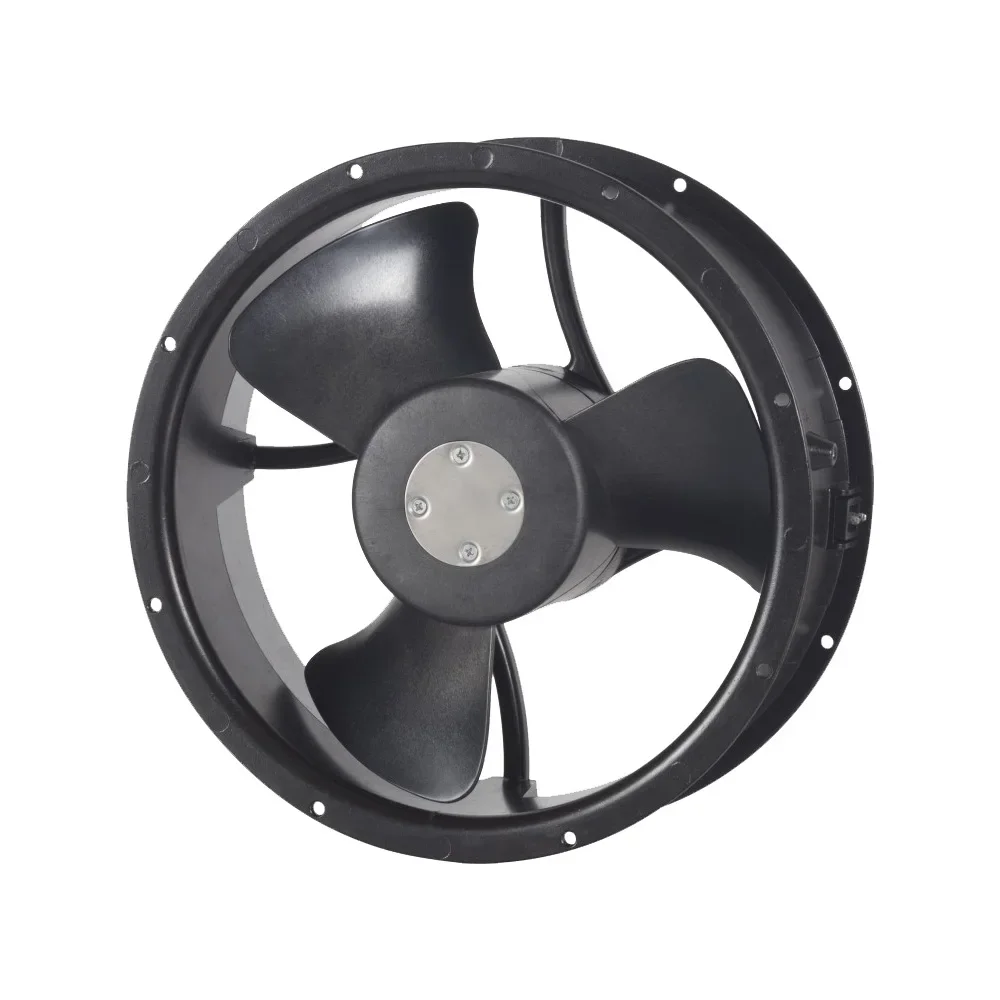

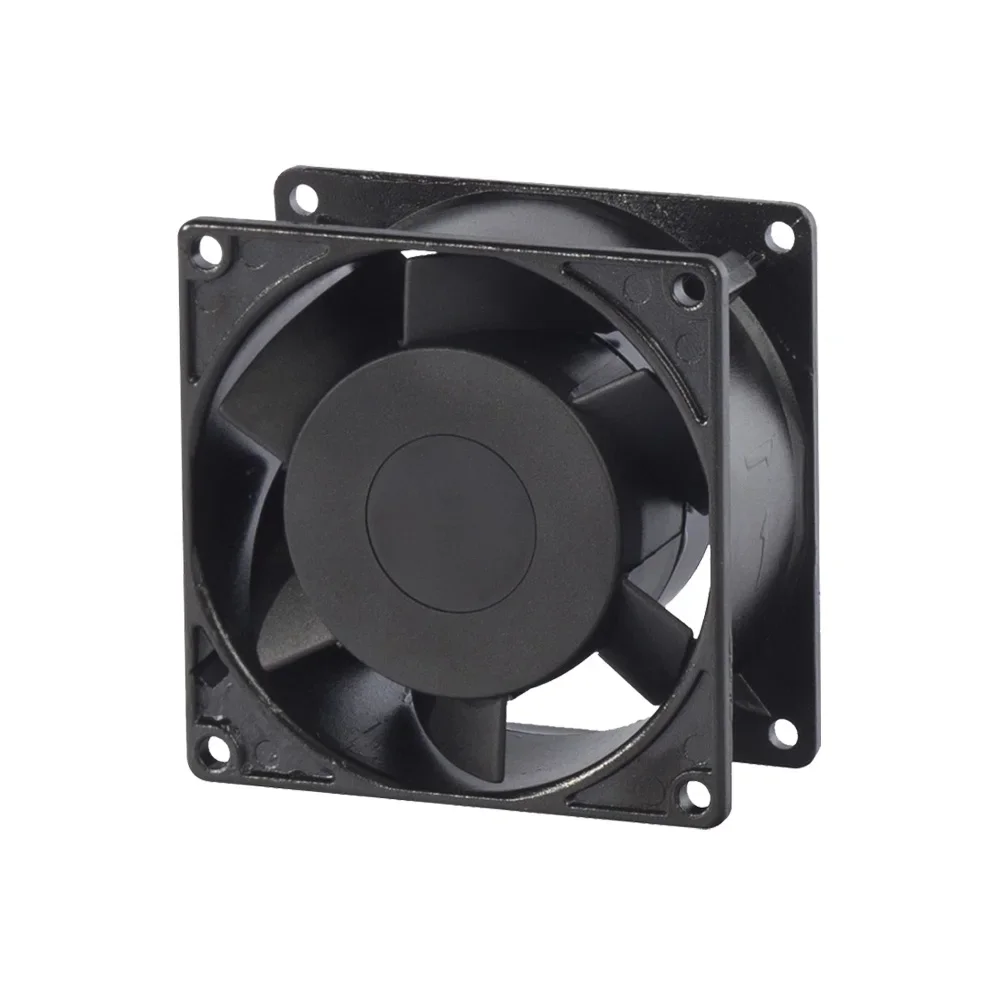

The axial flow fan listed here carries 115V, 230V, power source Electric, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.

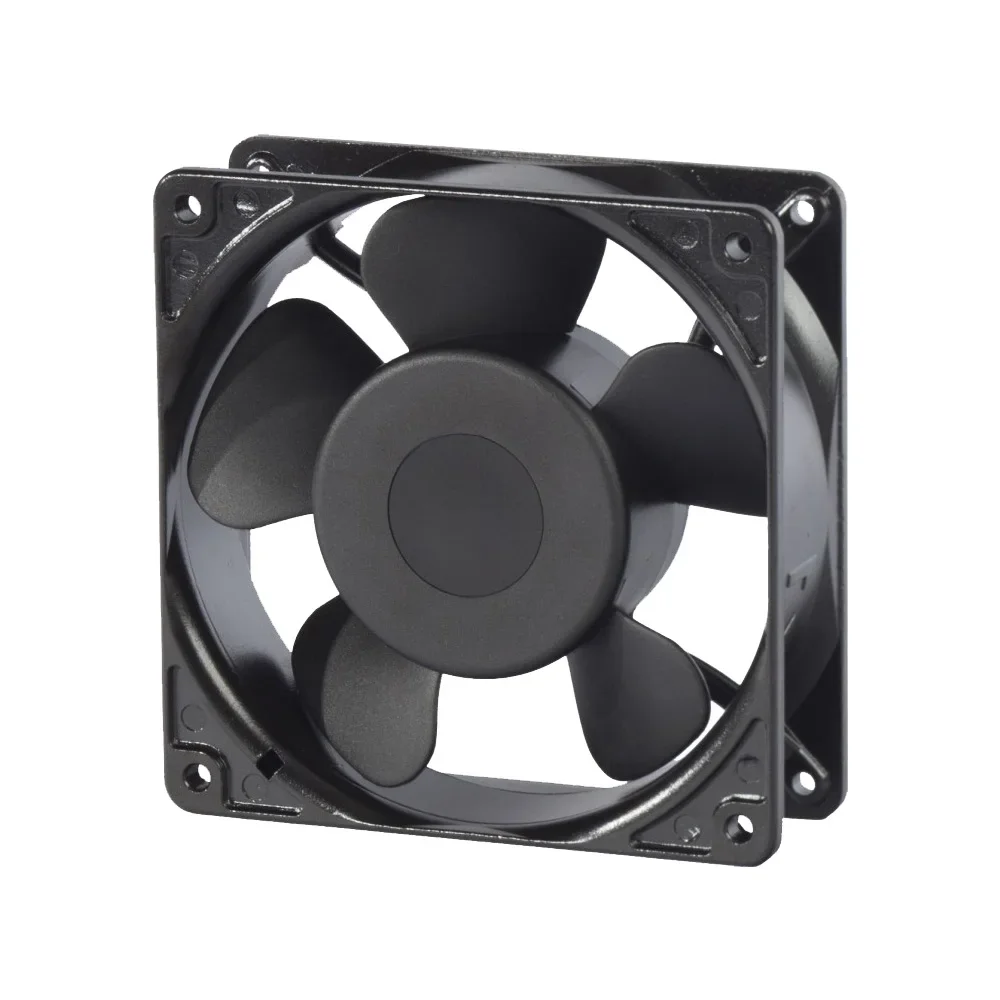

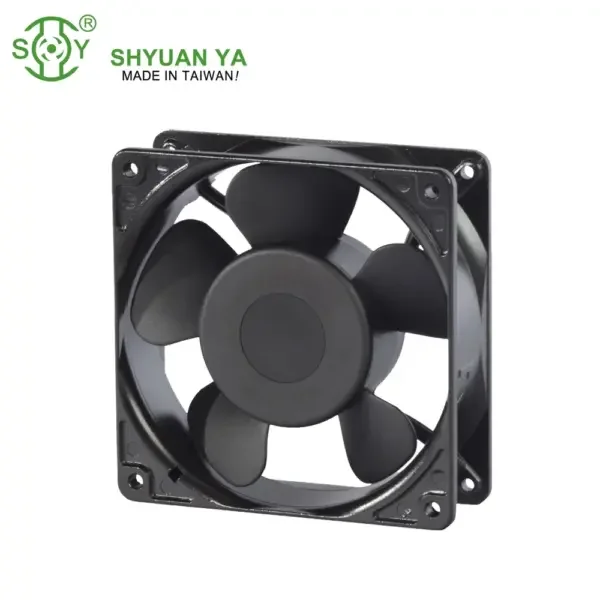

This axial flow fan is listed with the manufacturer’s full published specification — voltage 115V, 230V, power source Electric, material Die-Cast Aluminum, Painted Black. It is produced by LIANG HERNG ELEC MACH CO., LTD.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: 115V, 230V
- Material: Die-Cast Aluminum, Painted Black
- Blade Material: Plastic
- Speed: 2700/3000RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 115V, 230V |
|---|---|
| Material | Die-Cast Aluminum, Painted Black |
| Speed | 2700/3000RPM |
| Mounting Type | Wall Fan |
| Type | Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | DUAL BALL BEARING |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Taiwan, China |
| Selling Units | Single item |
| Single Package Size | 12X12X3.8 cm |
| Single Gross Weight | 0.500 kg |
|

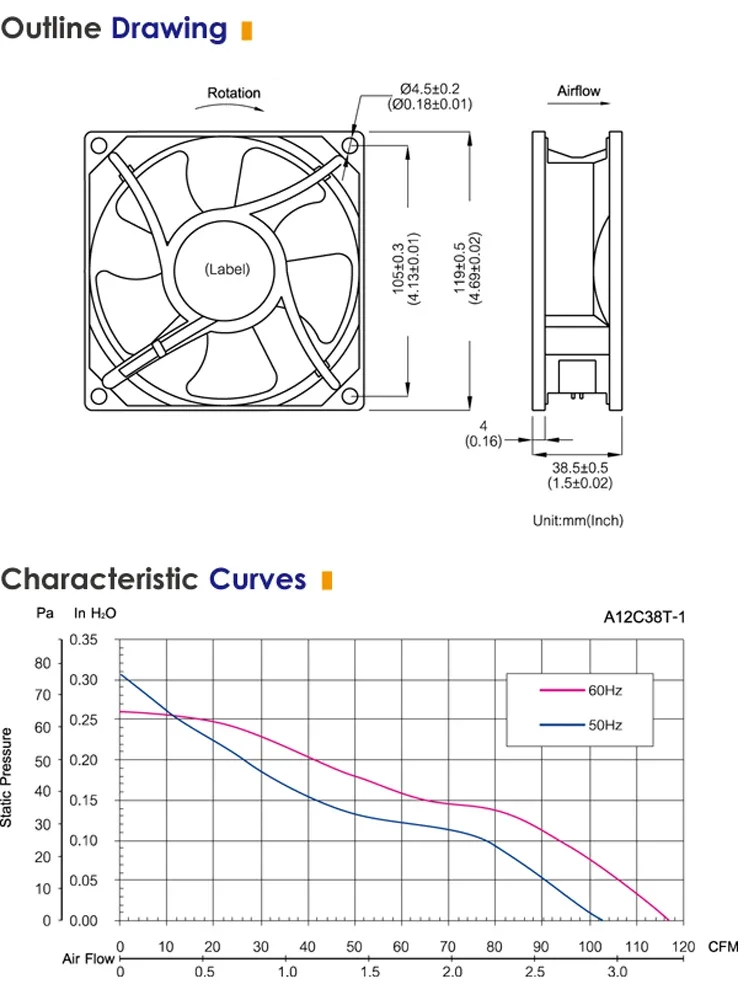

Specification
|
||
|
Air Flow
|
103 ~ 117 CFM
|
|
|

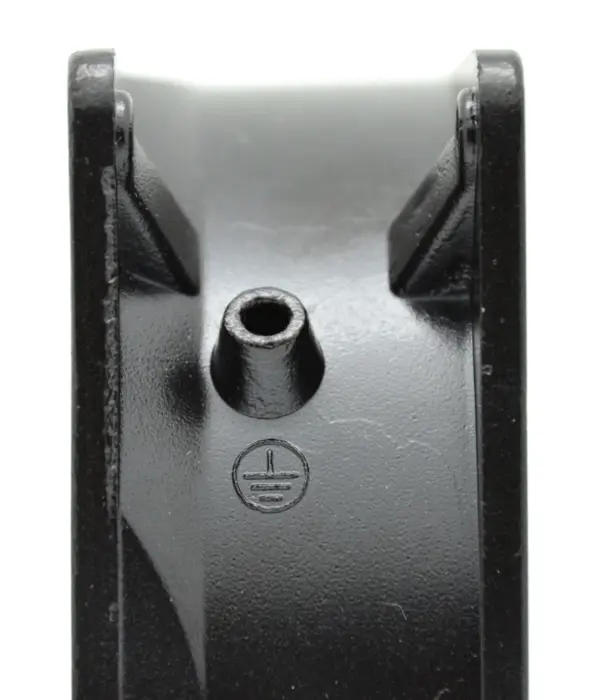

Housing
|
Die-Cast Aluminum
|
|
|
Impeller
|
Thermoplastic PBT, UL94V-0
|
|
|
Motor
|
Shaded-Pole Motor
|
|
|
Bearing
|
Ball or Sleeve
|
|
|

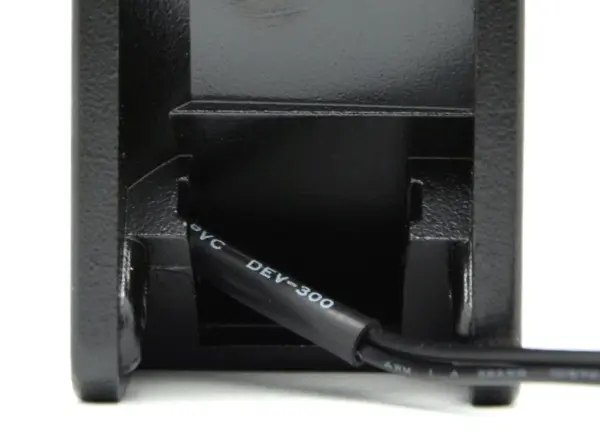

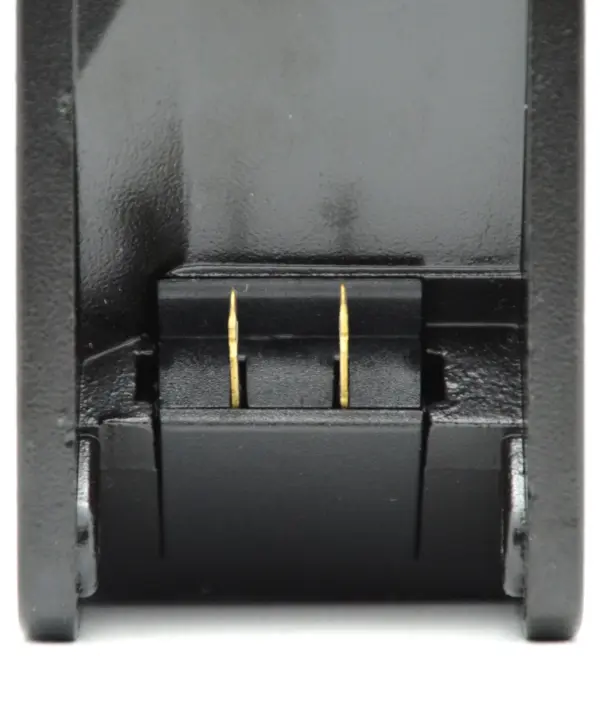

Termination
|
Terminals or Lead Wire
|
|
|
Insulation
|
Class “B” or “F”
|
|
|
Safety
|
Impedance Protected
|
|
|
Operating Temperature
|
-10°C to + 80°C
|
|
|
Certification
|
ce, RoHS, CUL, UL
|
|
|

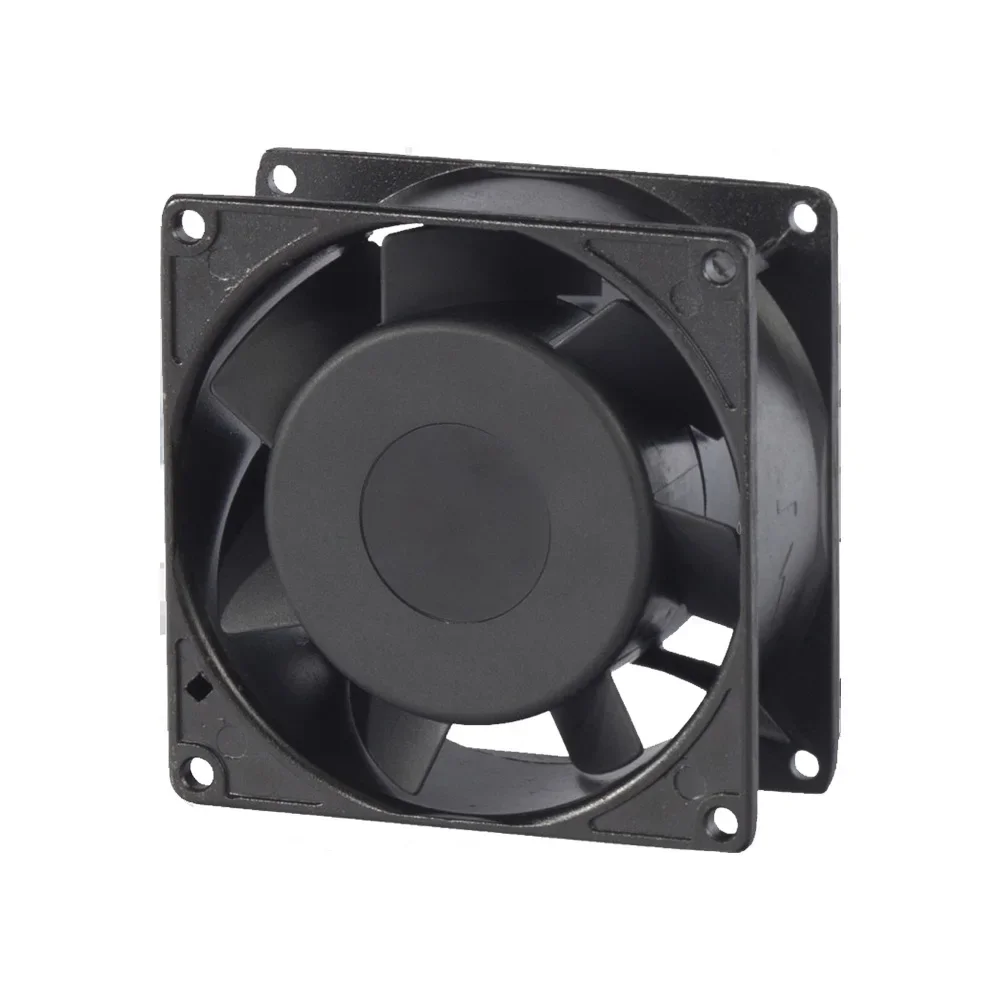

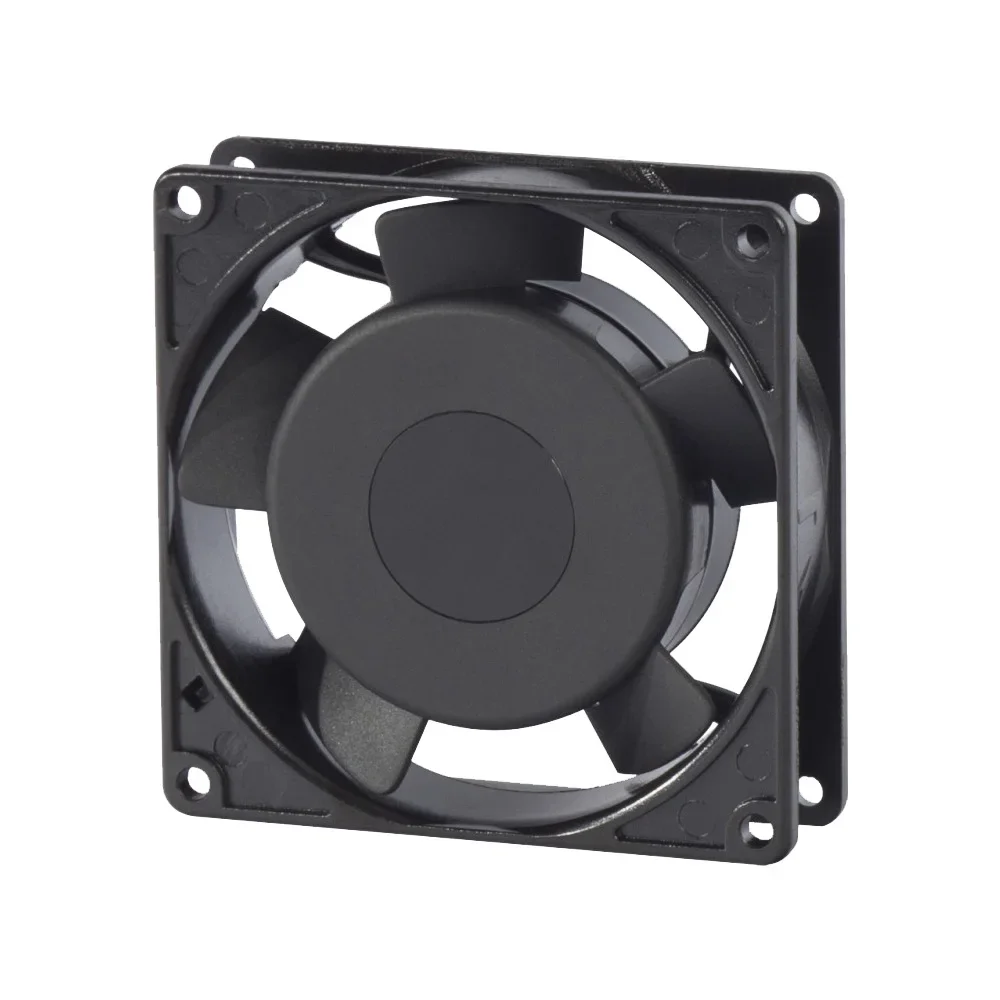

Product Name
|
|||||
|
Air Flow
|
18 ~ 22 CFM
|
26 ~ 31 CFM
|
30 ~ 36 CFM
|
||
|
Housing
|
Die-Cast Aluminum, Painted Black
|
||||
|
Impeller
|
Thermoplastic PBT, UL94V-0
|
||||
|
Motor
|
Shaded-Pole Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type
|
||||
|

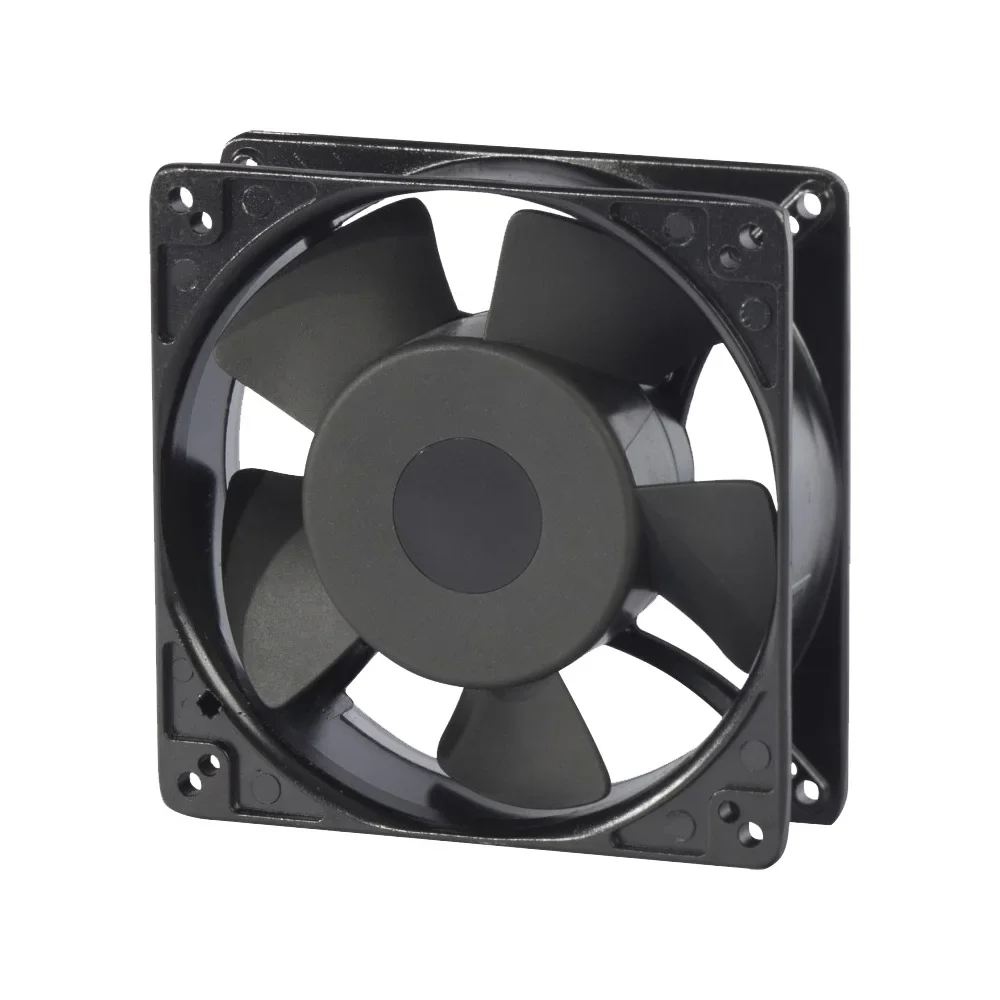

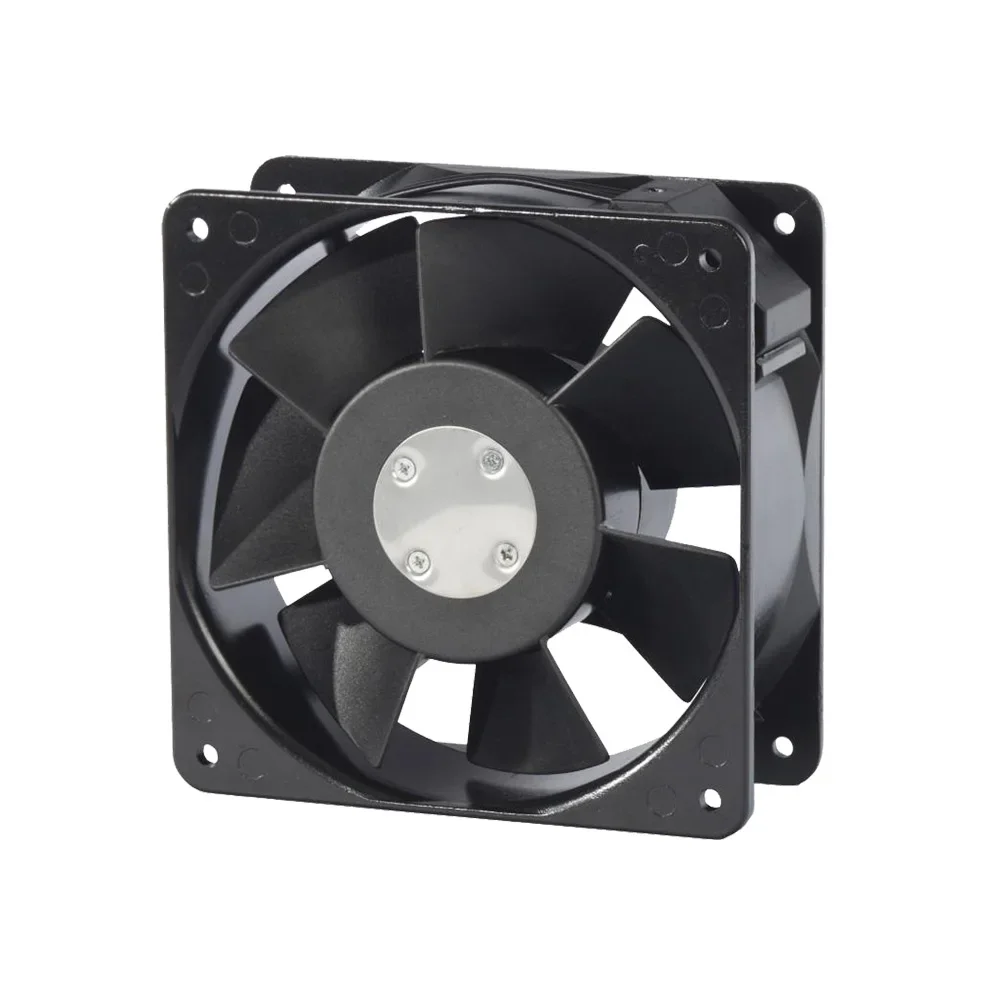

Product Name
|
|||||
|
Air Flow
|
42~49 CFM
|
61 ~ 72 CFM
|
103 ~ 117 CFM
|
||
|
Housing
|
Die-Cast Aluminum, Painted Black
|
||||
|
Impeller
|
Thermoplastic PBT, UL94V-0
|
||||
|
Motor
|
Shaded-Pole Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type
|
||||
|

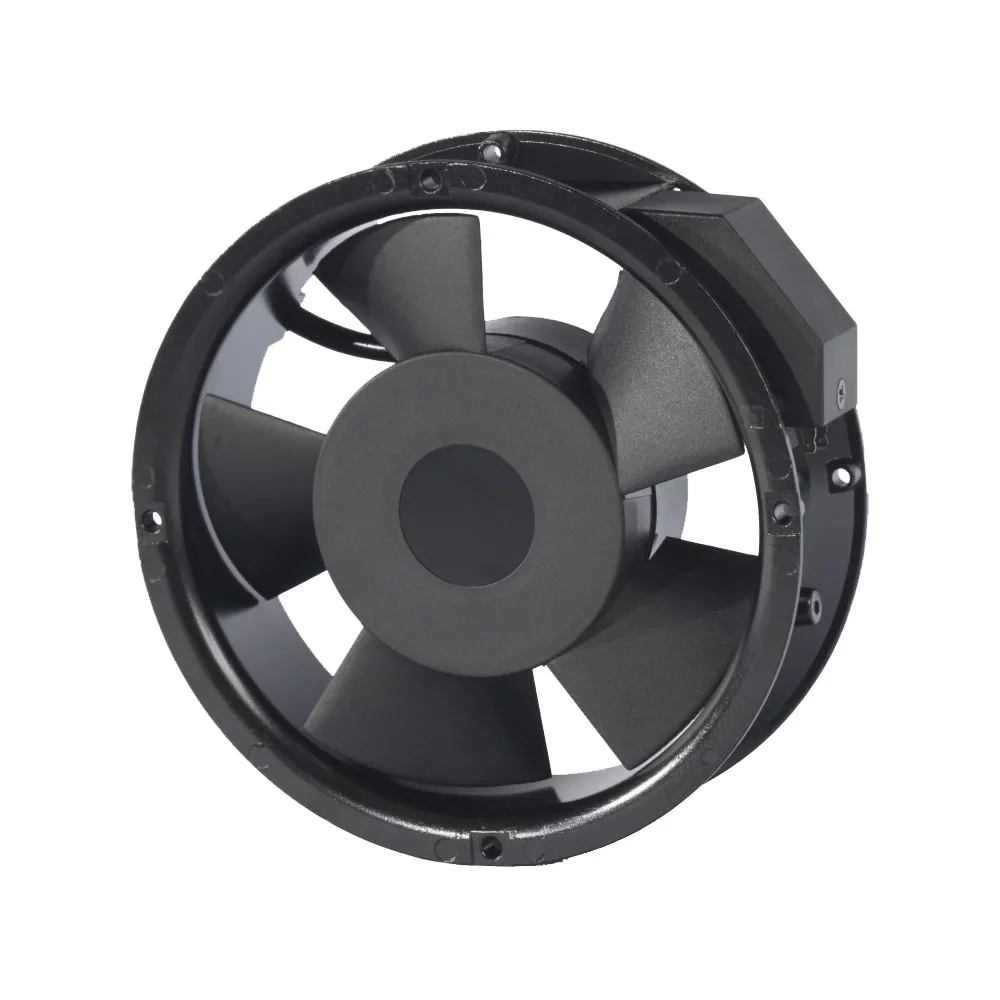

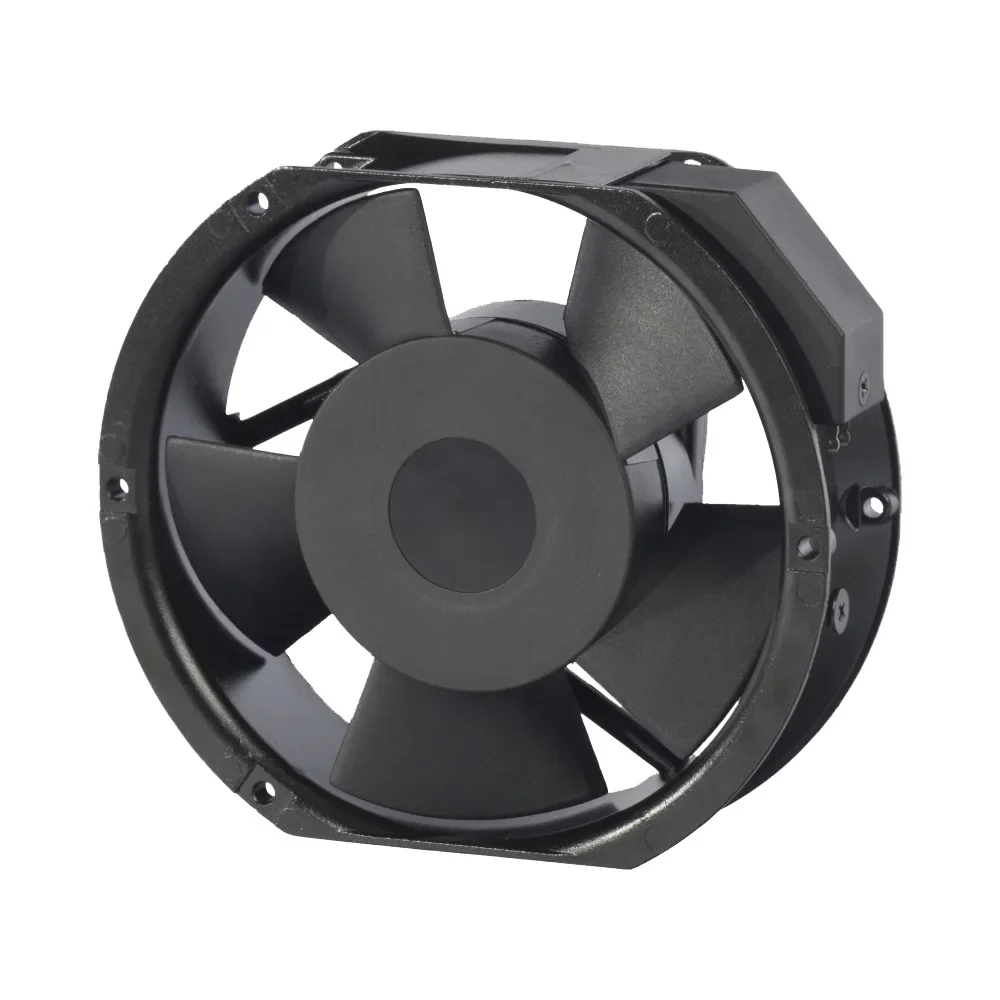

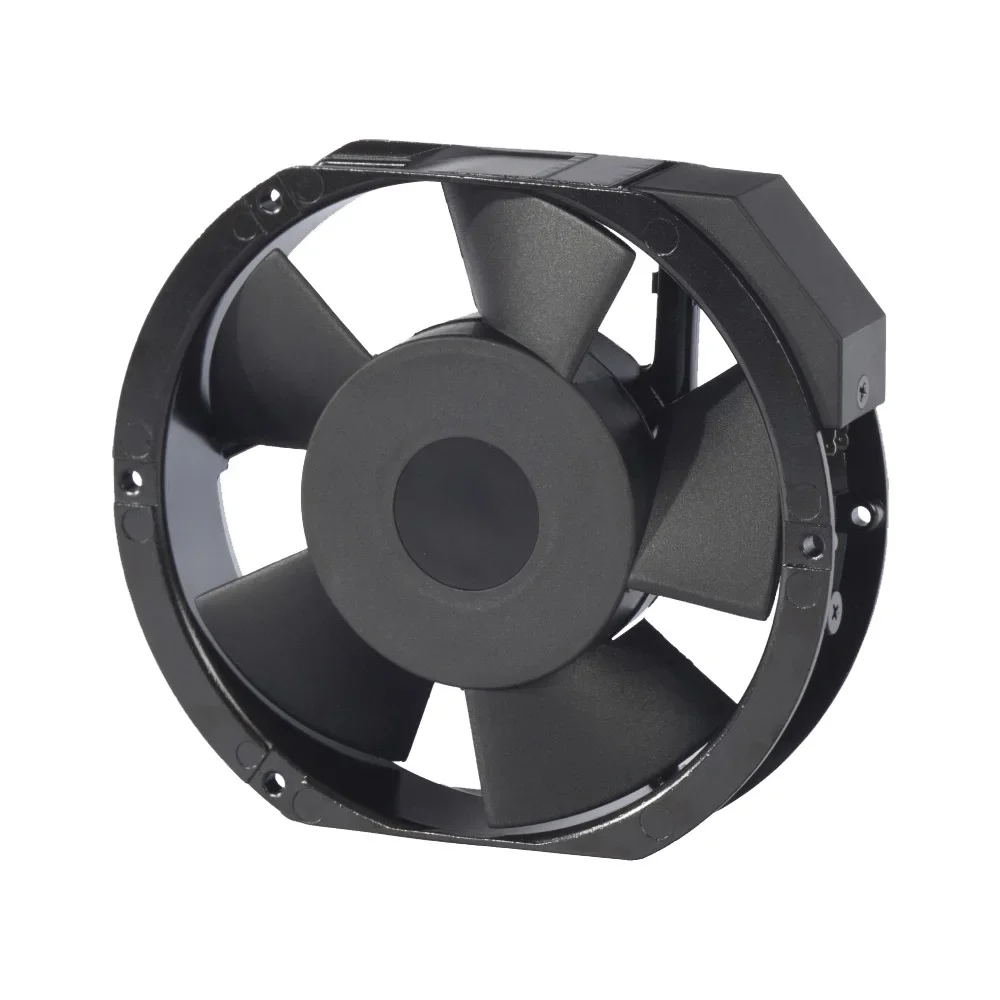

Product Name
|
|||||
|
Air Flow
|
107 ~ 123 CFM
|
198 ~ 229 CFM
|
178 ~230 CFM
|
||
|
Housing
|
Die-Cast Aluminum, Painted Black
|
||||
|
Impeller
|
Thermoplastic PBT, UL94V-0
|
||||
|
Motor
|
Shaded-Pole Motor
|
Capacitor Start Motor
|
Capacitor Start Motor / Shaded-Pole Motor
|
||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type
|
-20°C to + 90°C
|
-20°C to + 80°C
|
||
|

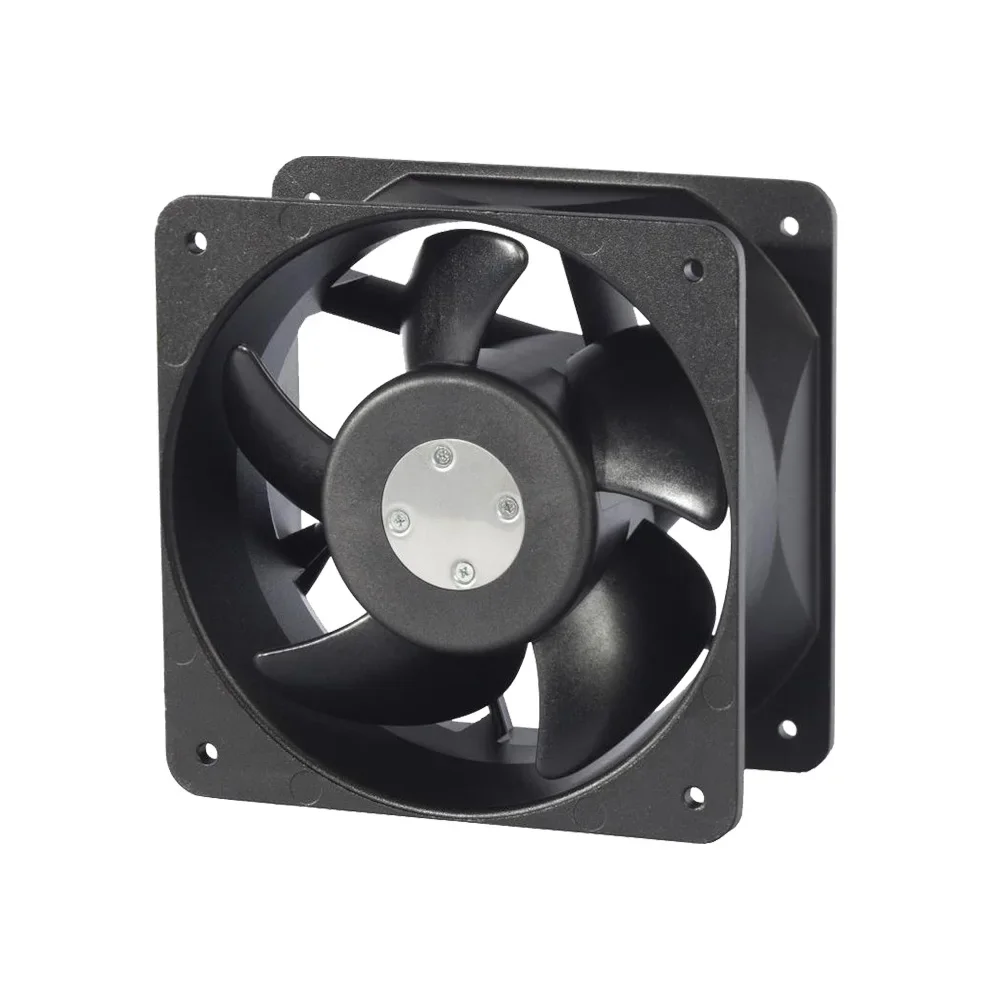

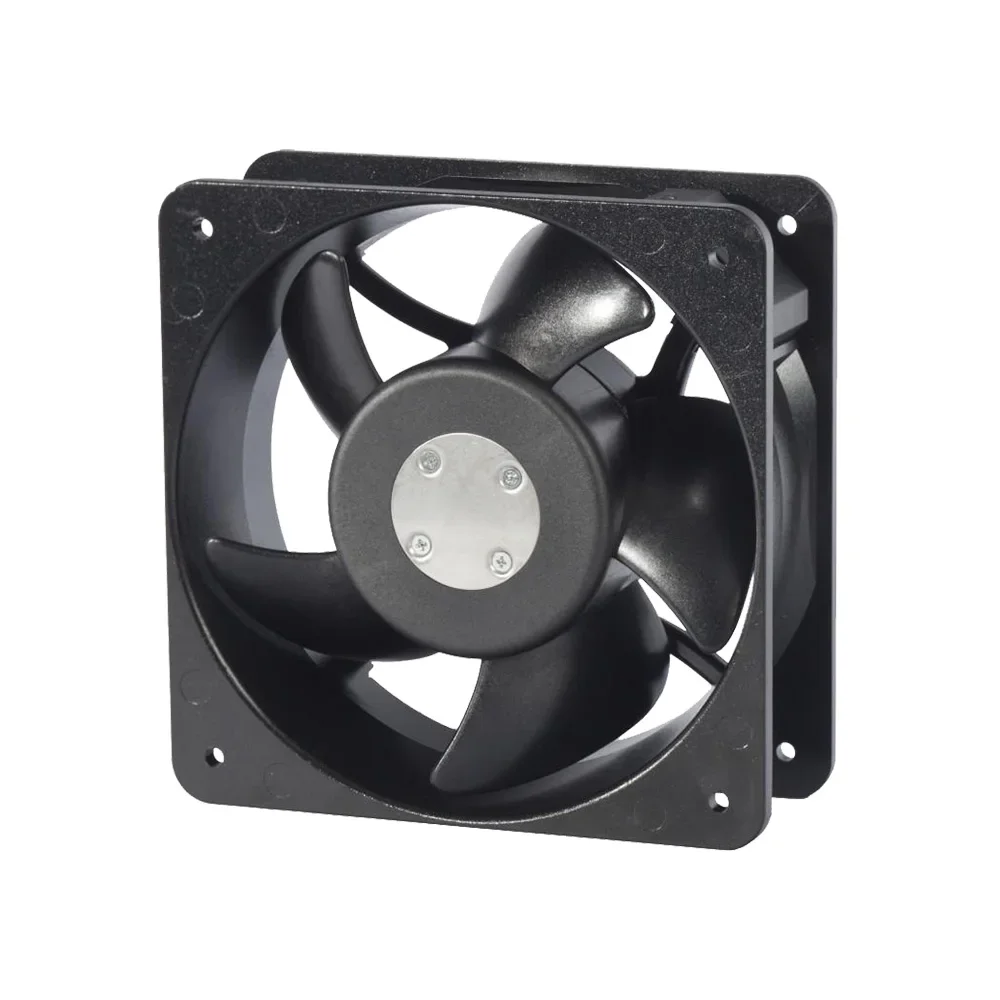

Product Name
|
|||||
|
Air Flow
|
261 ~ 307 CFM
|
342 ~ 394 CFM
|
100 ~ 225 CFM
|
||
|
Housing
|
Die-Cast Aluminum, Painted Black
|
||||
|
Impeller
|
Injection Molded of Flame Retardant Polycarbonate, Black
|
Thermoplastic PBT, UL94V-0
|
Thermoplastic PBT, UL94V-0
|
||
|
Motor
|
Capacitor Start Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to + 80°C
|
||||
|
Product Name
|
|||
|
Air Flow
|
376 ~ 434 CFM
|
443 ~ 529 CFM
|
|
|
Housing
|
Die-Cast Aluminum, Painted Black
|
||
|
Impeller
|
Injection Molded of Flame Retardant Polycarbonate, Black
|
Thermoplastic PBT, UL94V-0
|
|
|
Motor
|
Capacitor Start Motor
|
||
|
Insulation
|
Class “B” or “F”
|
||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||
|
Operating Temperature
|
-20°C to + 80°C
|
-30°C to + 80°C
|
|
Questions & Answers
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 115V, 230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This axial flow fan is produced by LIANG HERNG ELEC MACH CO., LTD.. Browse the full LIANG HERNG ELEC MACH CO., LTD. range on HVACR Nexus.
