The wall mount air blower listed here carries 115V/230V, air flow 825 ~ 910 CFM, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.

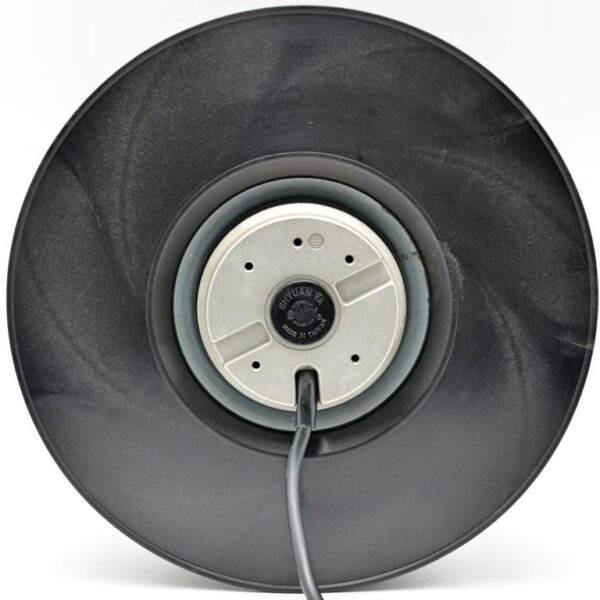

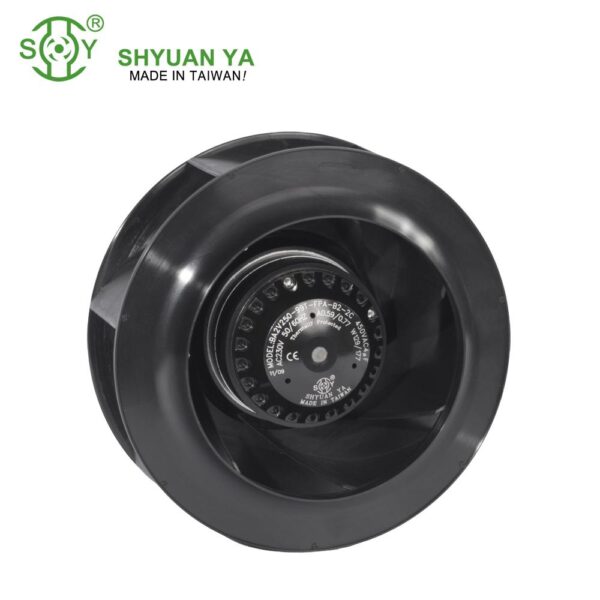

This wall mount air blower delivers 825-910 CFM in either hot or cold mode, which covers hand and equipment drying as well as inflatable and general air supply duty from one fixed installation. Wall mounting removes the trip hazard and theft risk of a floor unit in public or commercial settings. Dual ball bearings are specified over sleeve bearings because a wall-mounted motor runs horizontally, where sleeve bearings wear unevenly. Available on 115V and 230V.
Key Features of This Wall Mount Air Blower
- Model Number: BA250-99T
- Voltage: 115V/230V
- Air Flow: 825 ~ 910 CFM
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Taiwan, China
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115V/230V |
| Blade Material | Plastic |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Model Number | BA250-99T |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Air Flow | 825 ~ 910 CFM |
| Impeller | Plastic PA |
| Motor | External Rotor Motor |
| Selling Units | Single item |
| Single Package Size | 25X25X9.9 cm |
| Single Gross Weight | 2.700 kg |
|

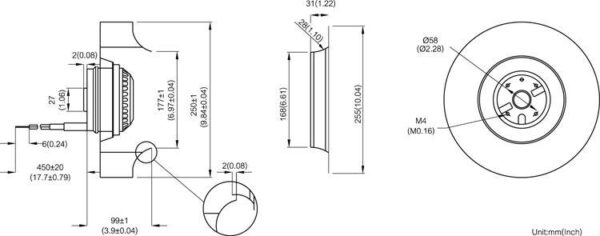

Specification
|
||
|
Air Flow
|
824 ~ 909 CFM
|
|
|
Housing
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
|
|
Impeller
|
Capacitor-Run Induction and External Rotor Motor
|
|
|
Rotor
|
Black Paint
|
|
|
Bearing
|
Dual Ball Bearing, Permanently Lubricated
|
|
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type
185VAC to 245VAC for 230V Type |
|
|
Lead Wire
|
AWG# 18 UL
|
|
|
Insulation
|
Class “B” or “F”
|
|
|
Safety
|
Thermally Protected (Auto Restart)
|
|
|
Operating Temperature
|
-20°C to + 60°C
|
|
|
Weight
|
2670g
|
|
|
Product Name
|

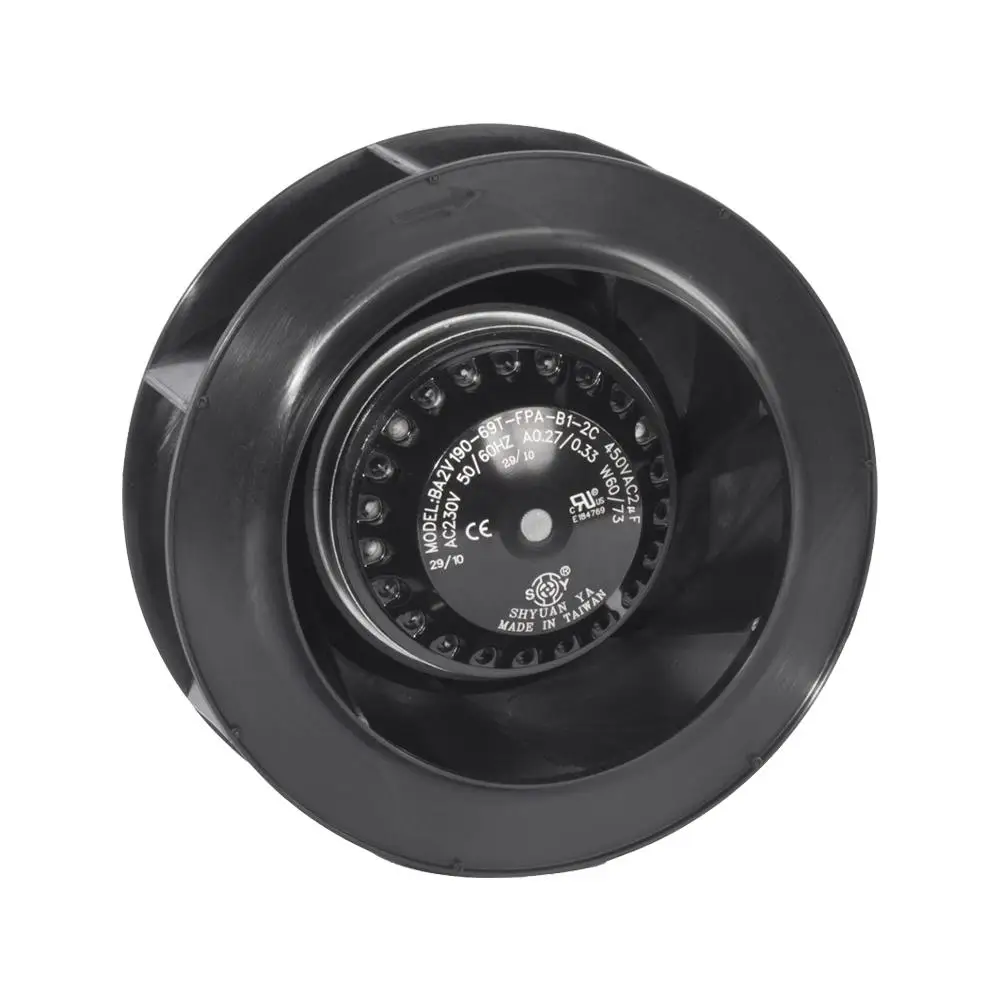

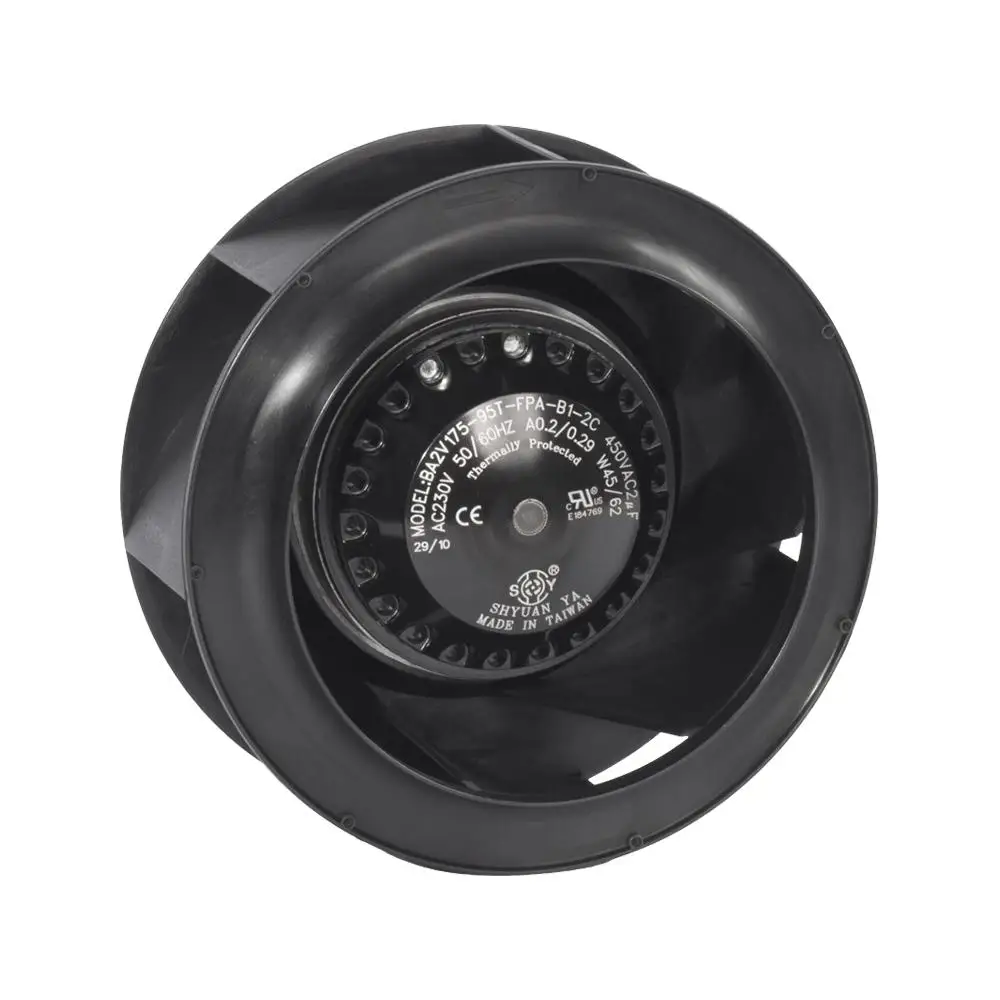

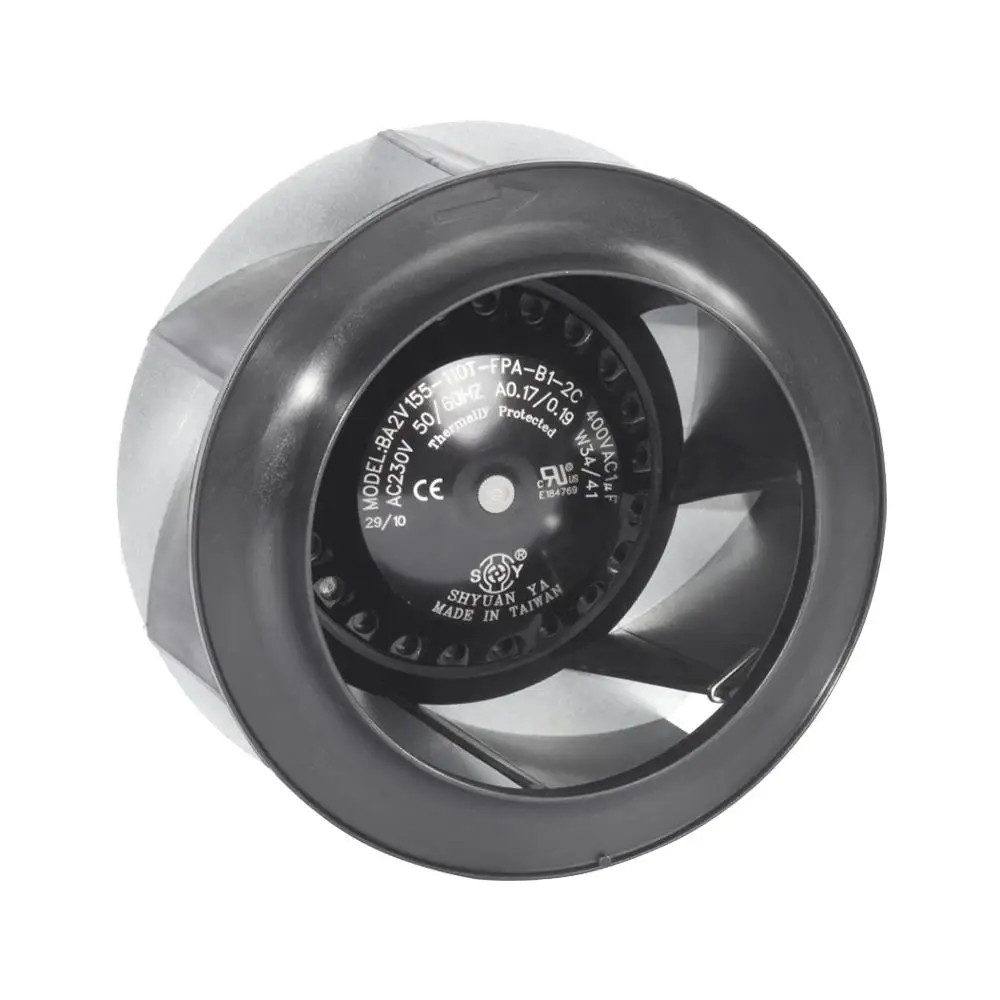

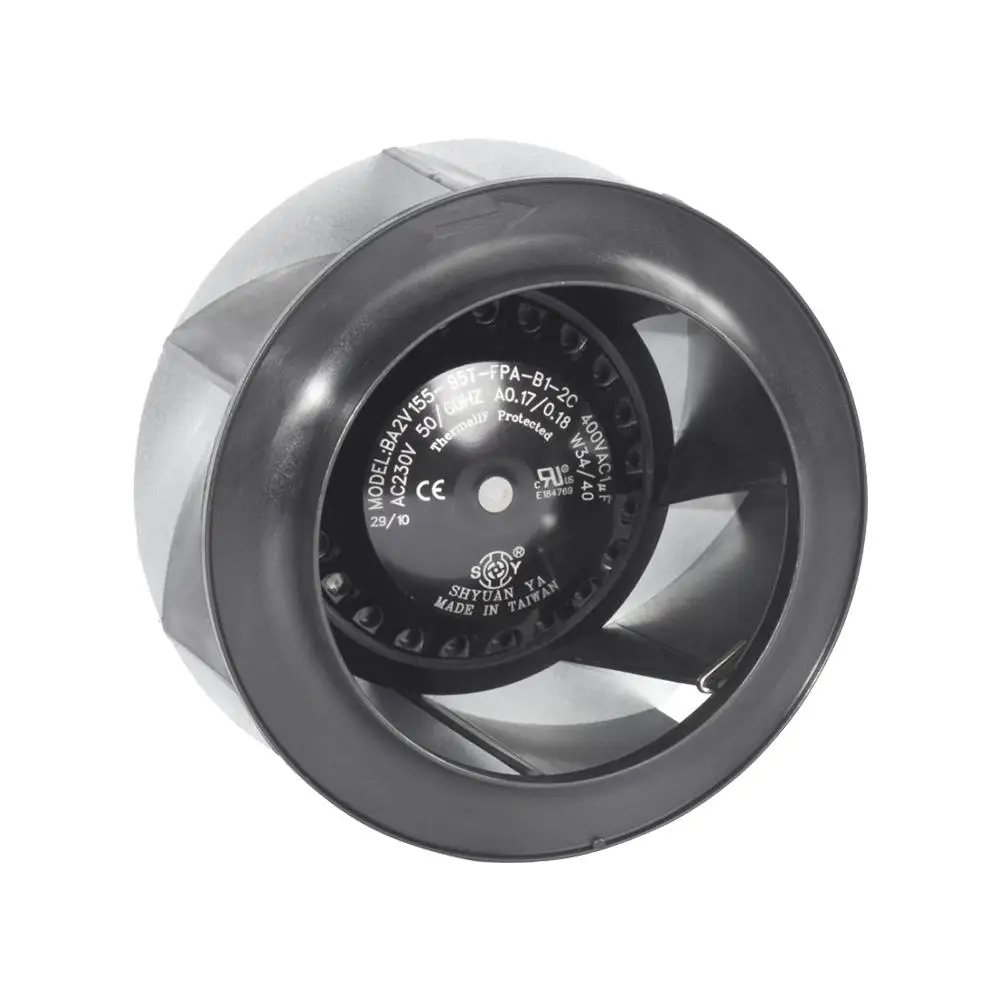

CENTRIFUGAL FAN BA155-95T
|
CENTRIFUGAL FAN BA155-110T
|

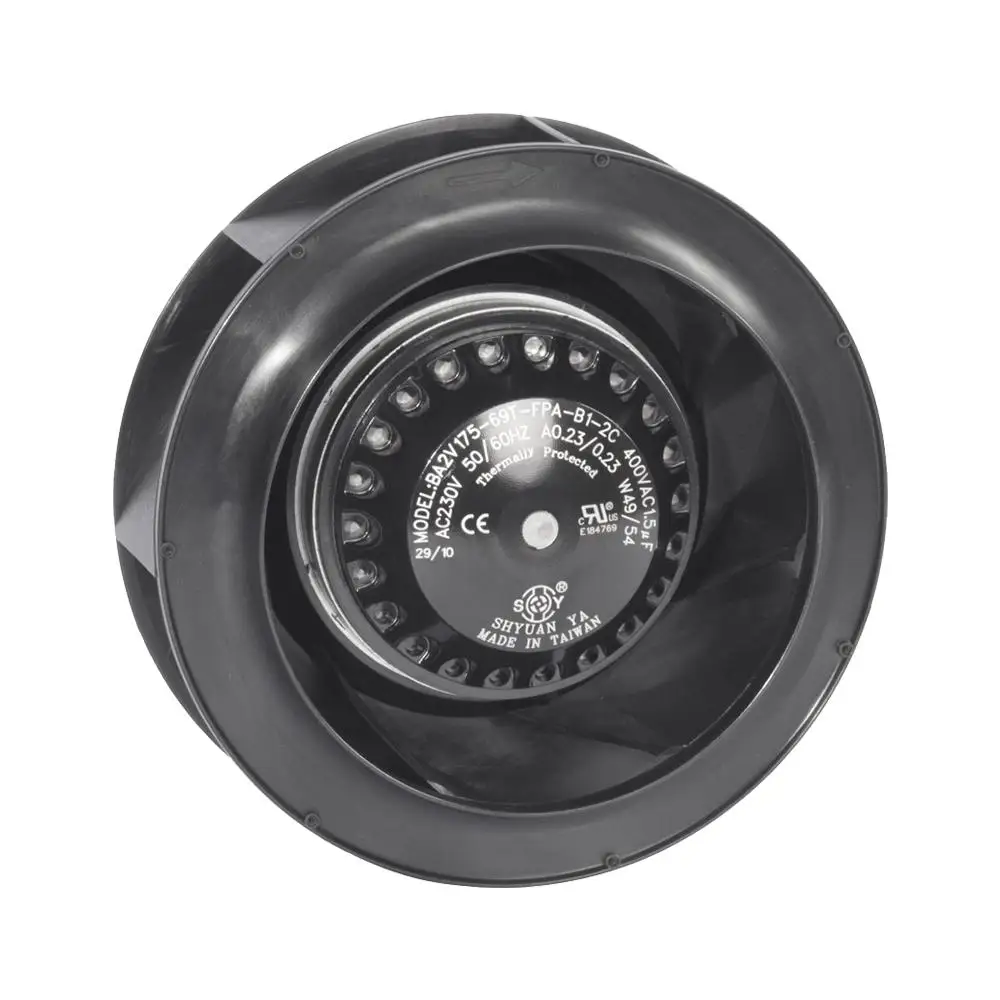

CENTRIFUGAL FAN BA175-69T
|
||
|
Air Flow
|
234 ~ 273 CFM
|
280~315CFM
|
287 ~ 331 CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +70°C
|
||||
|
Product Name
|

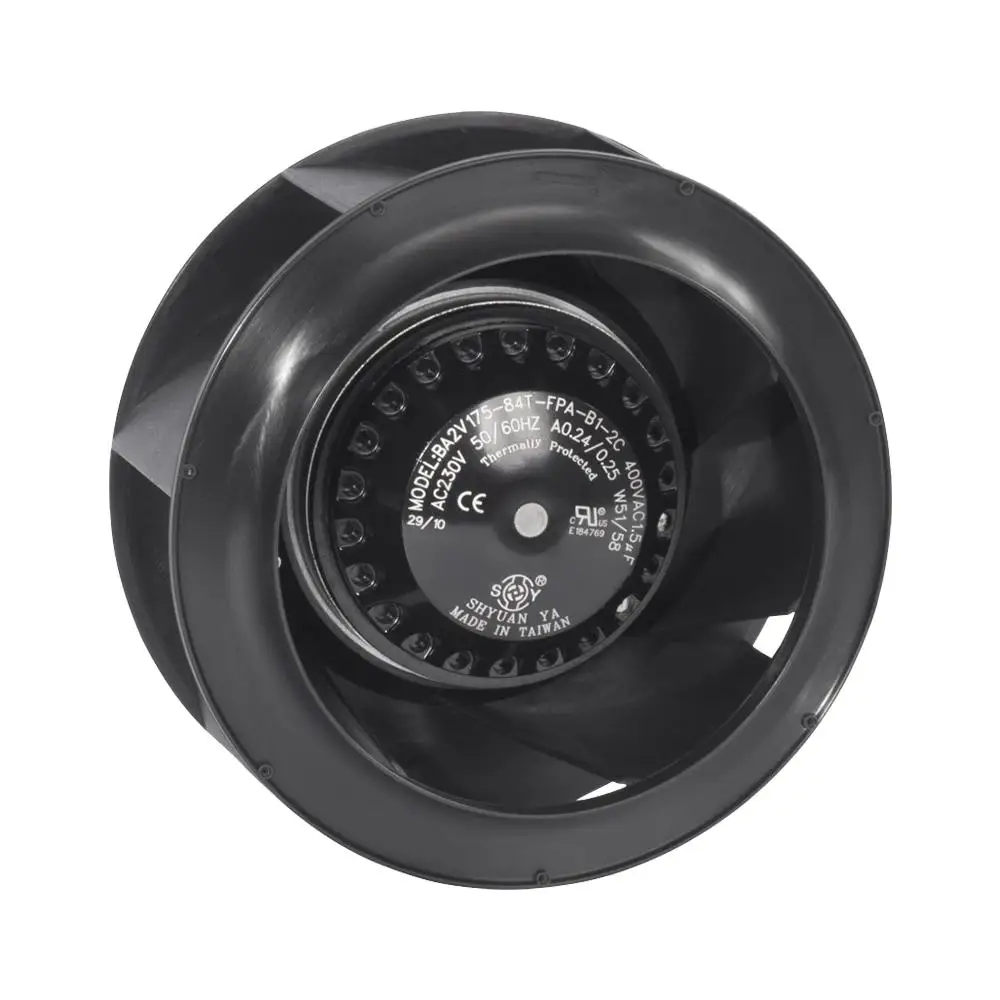

CENTRIFUGAL FAN BA175-84T
|
CENTRIFUGAL FAN BA175-95T
|

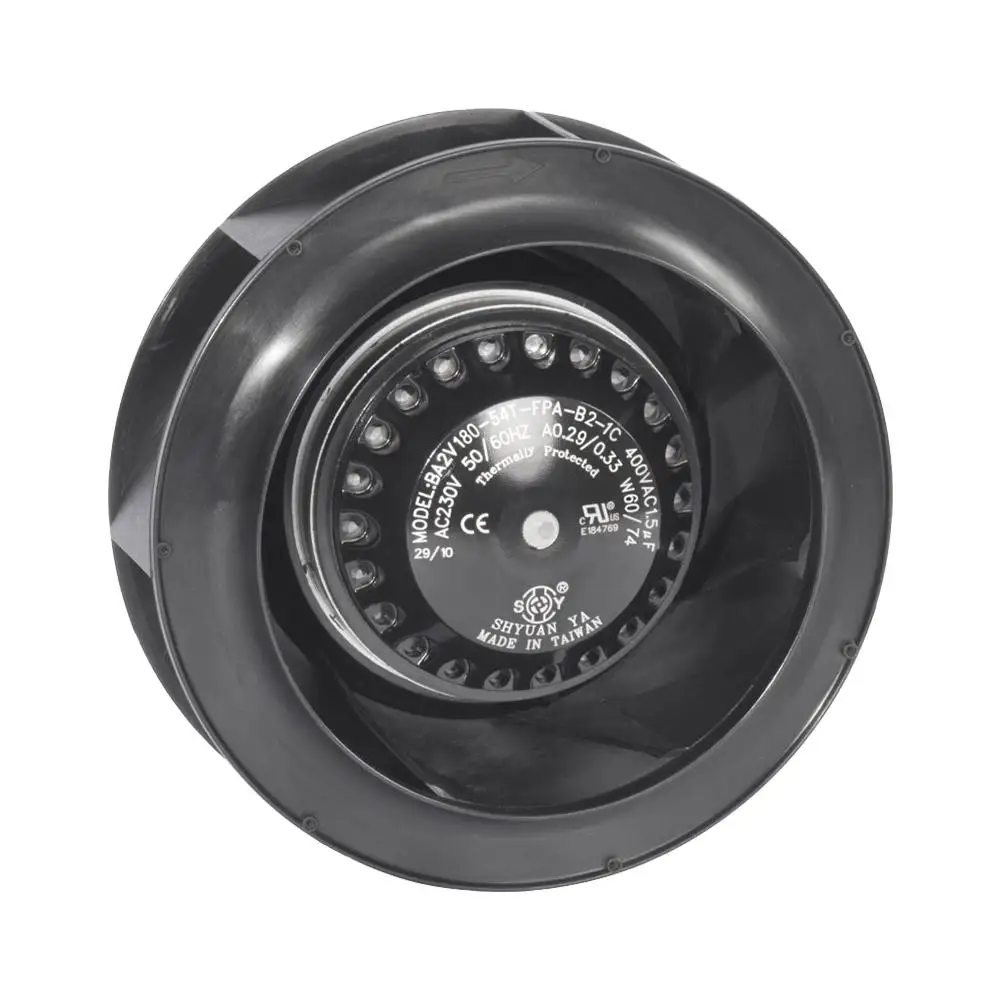

CENTRIFUGAL FAN BA180-54T
|
||
|
Air Flow
|
348 ~ 389 CFM
|
371 ~ 421 CFM
|
229 ~267CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +70°C
|
||||
|
Product Name
|

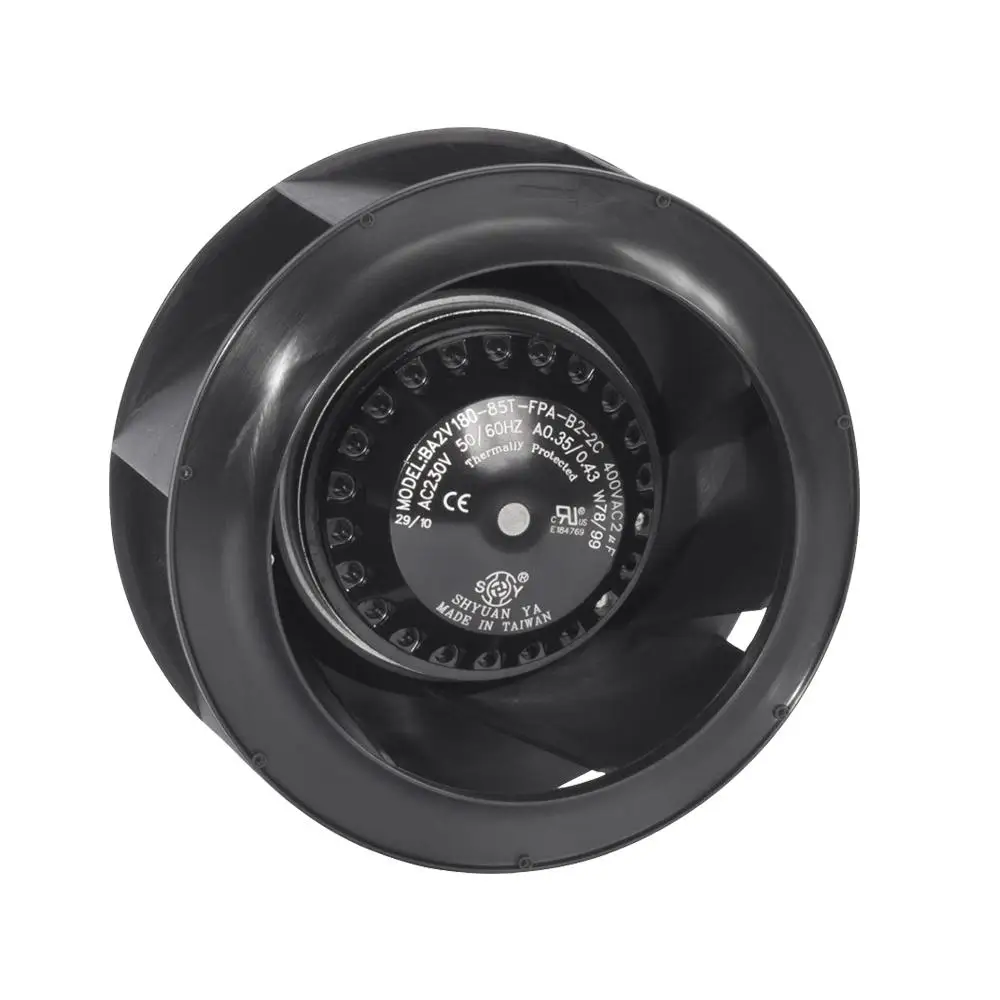

CENTRIFUGAL FAN BA180-85T
|
CENTRIFUGAL FAN BA190-69T
|

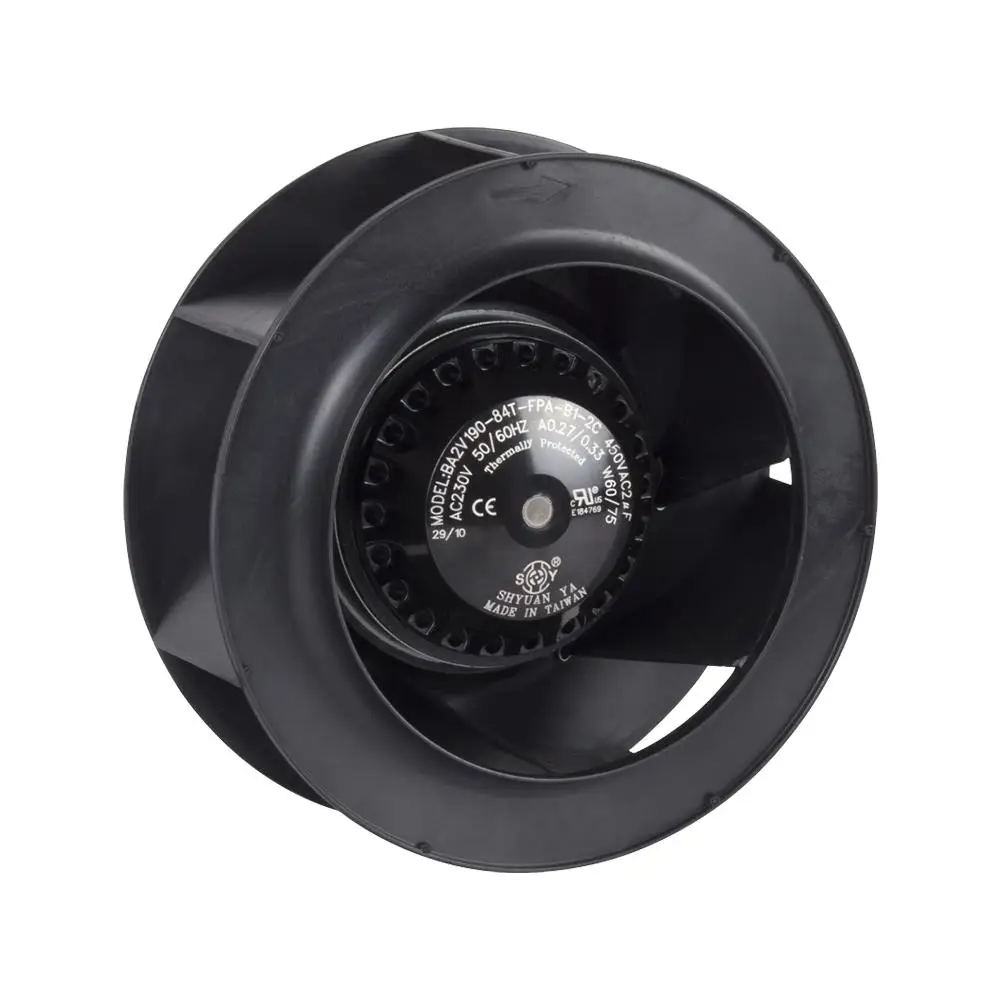

CENTRIFUGAL FAN BA190-84T
|
||
|
Air Flow
|
387 ~ 426 CFM
|
339 ~ 378 CFM
|
229 ~267CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +70°C
|
||||
|
Product Name
|

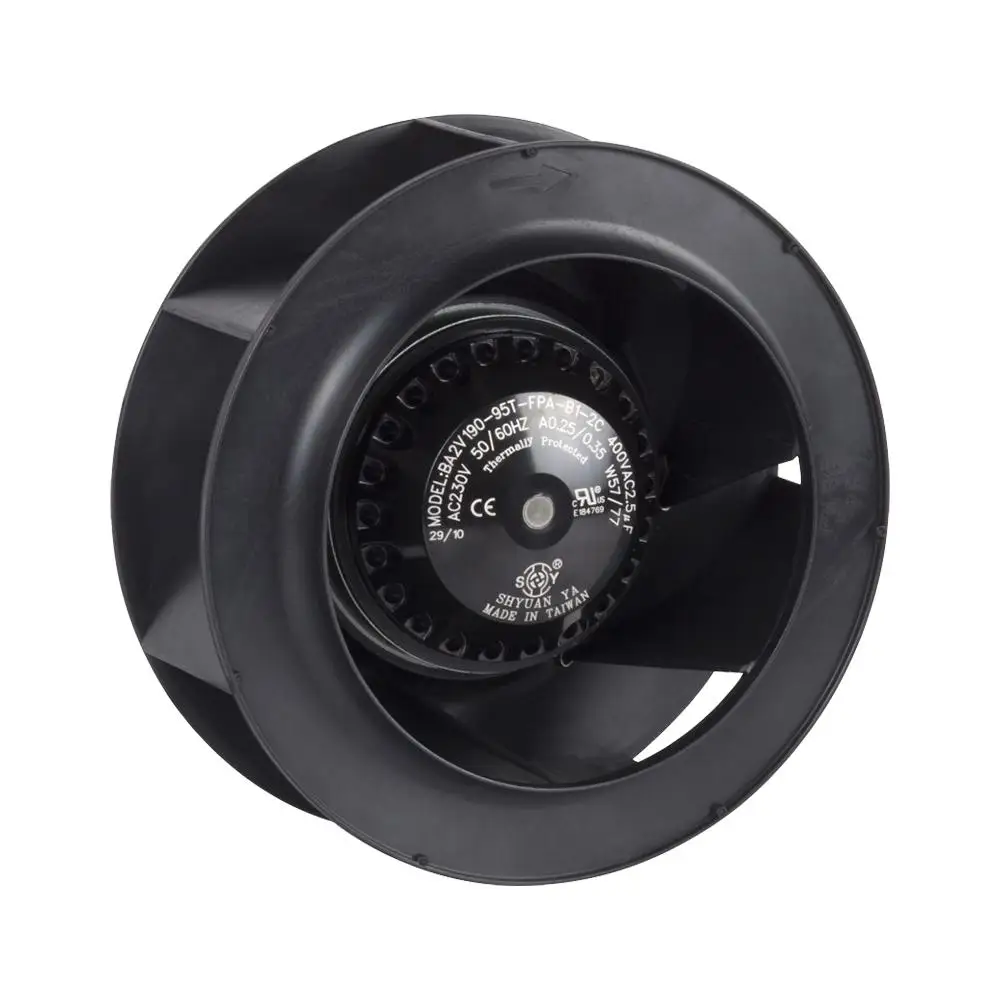

CENTRIFUGAL FAN BA190-95T
|

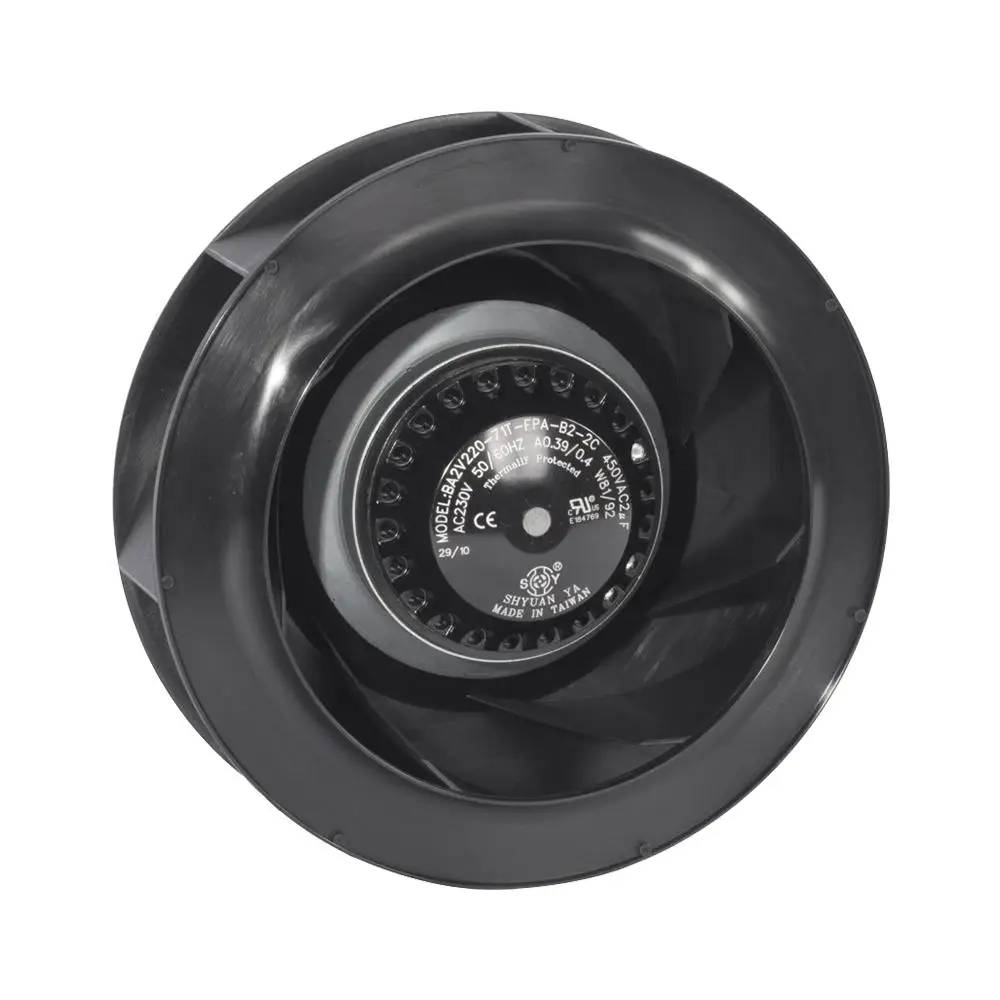

CENTRIFUGAL FAN BA220-71T
|
CENTRIFUGAL FAN BA225-69T
|
||
|
Air Flow
|
410 ~ 451 CFM
|
482 ~ 590 CFM
|
460 ~ 527 CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +70°C
|
-20°C to +60°C
|
|||
|
Product Name
|

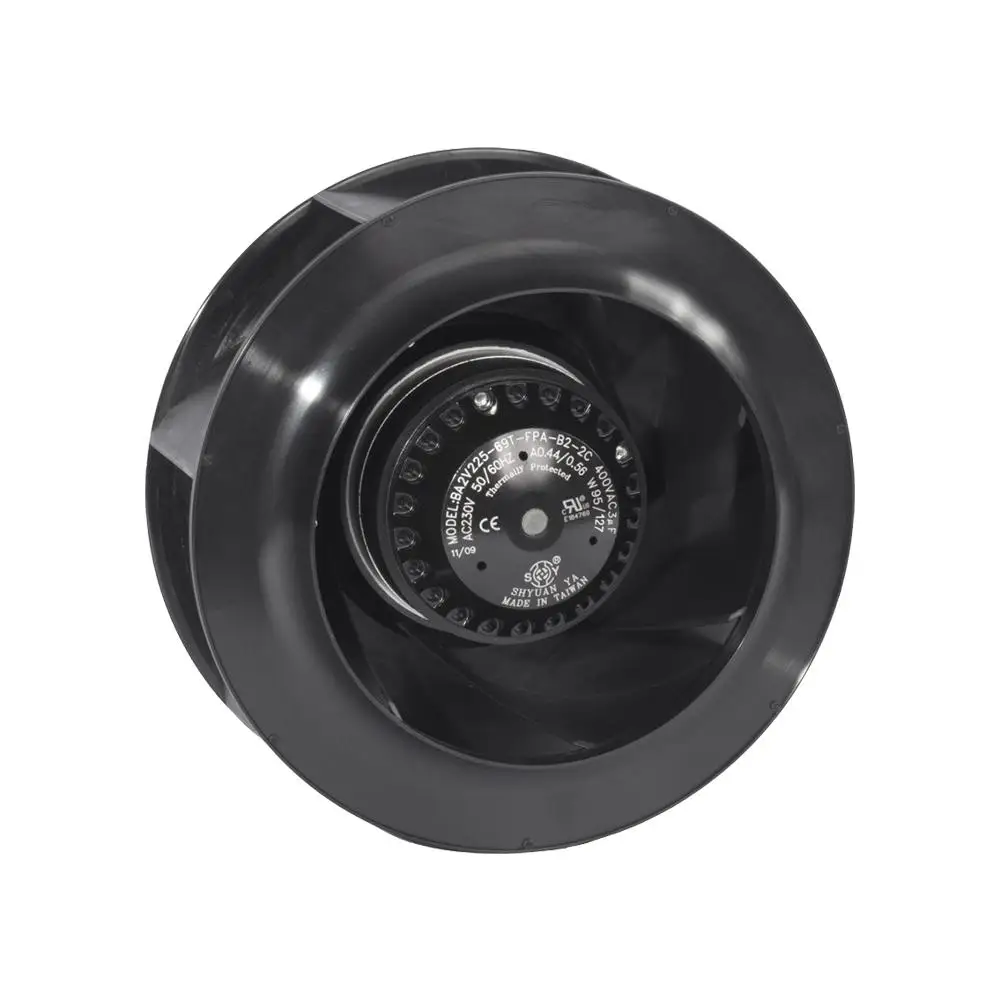

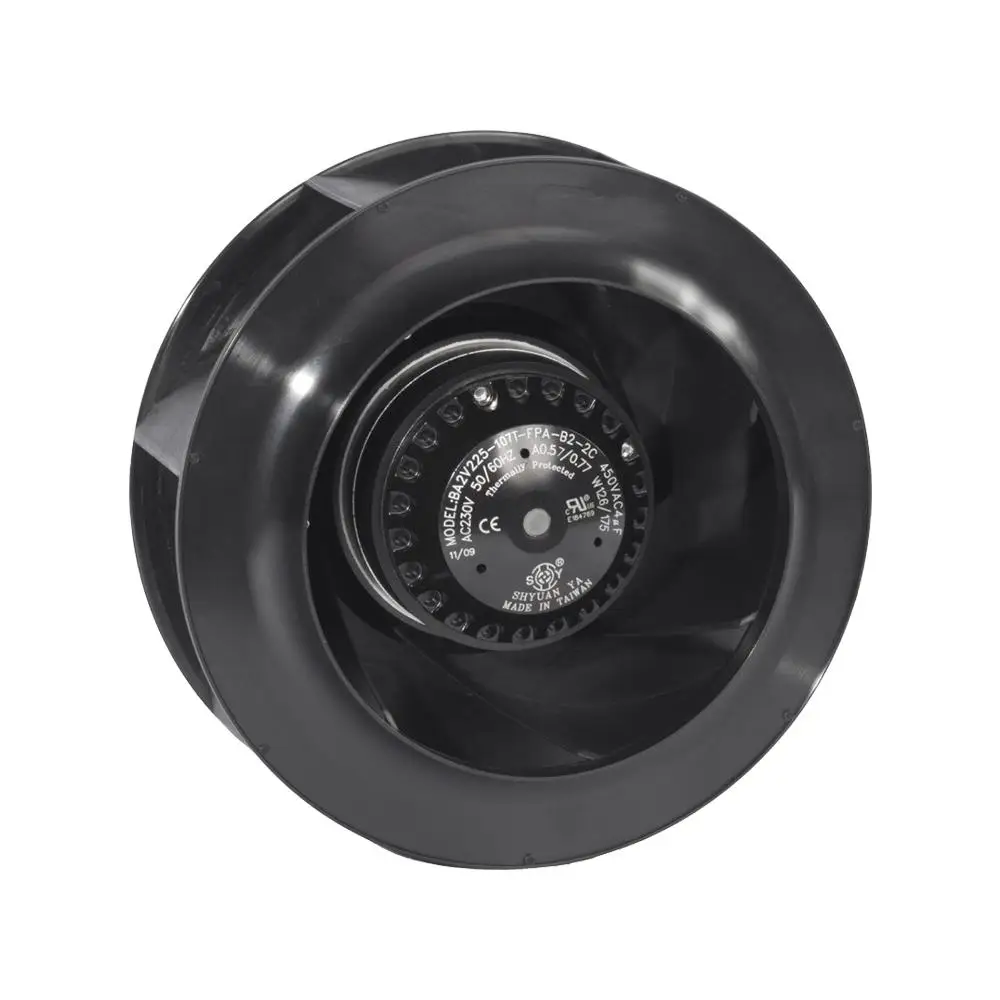

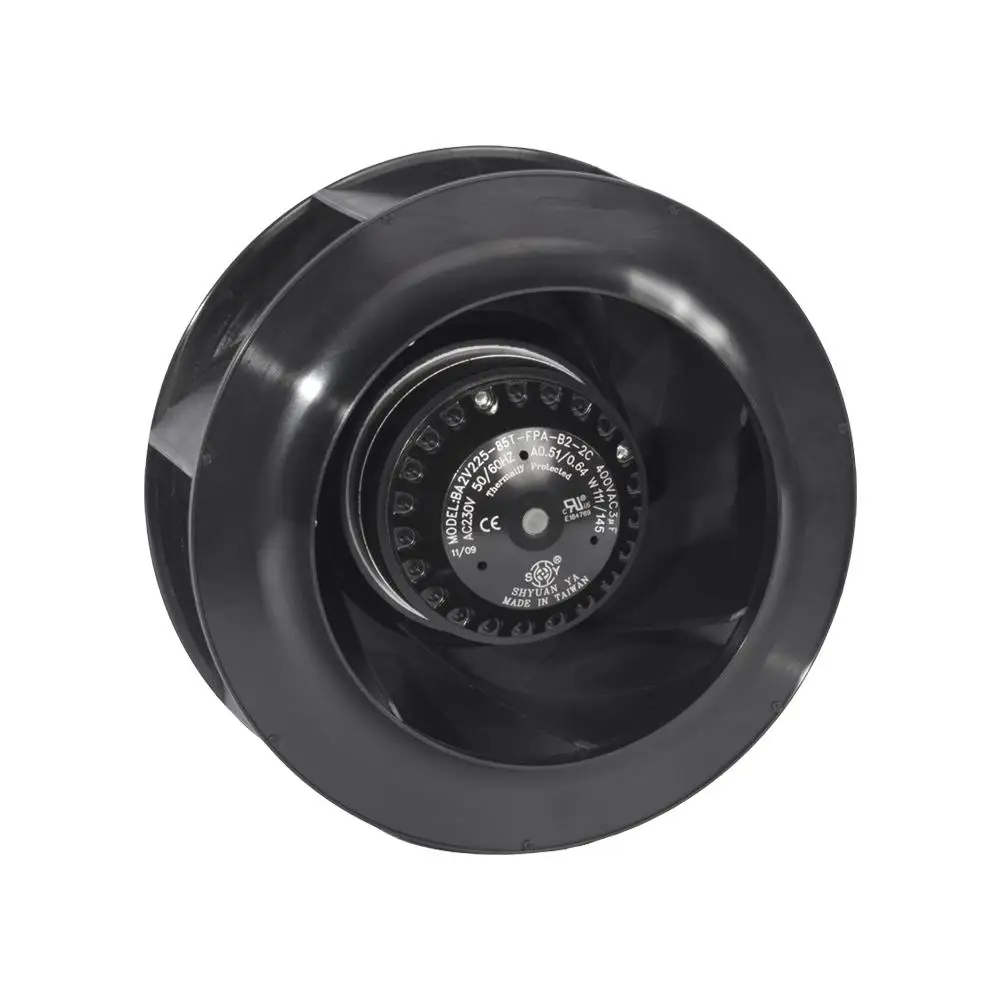

CENTRIFUGAL FAN BA225-85T
|

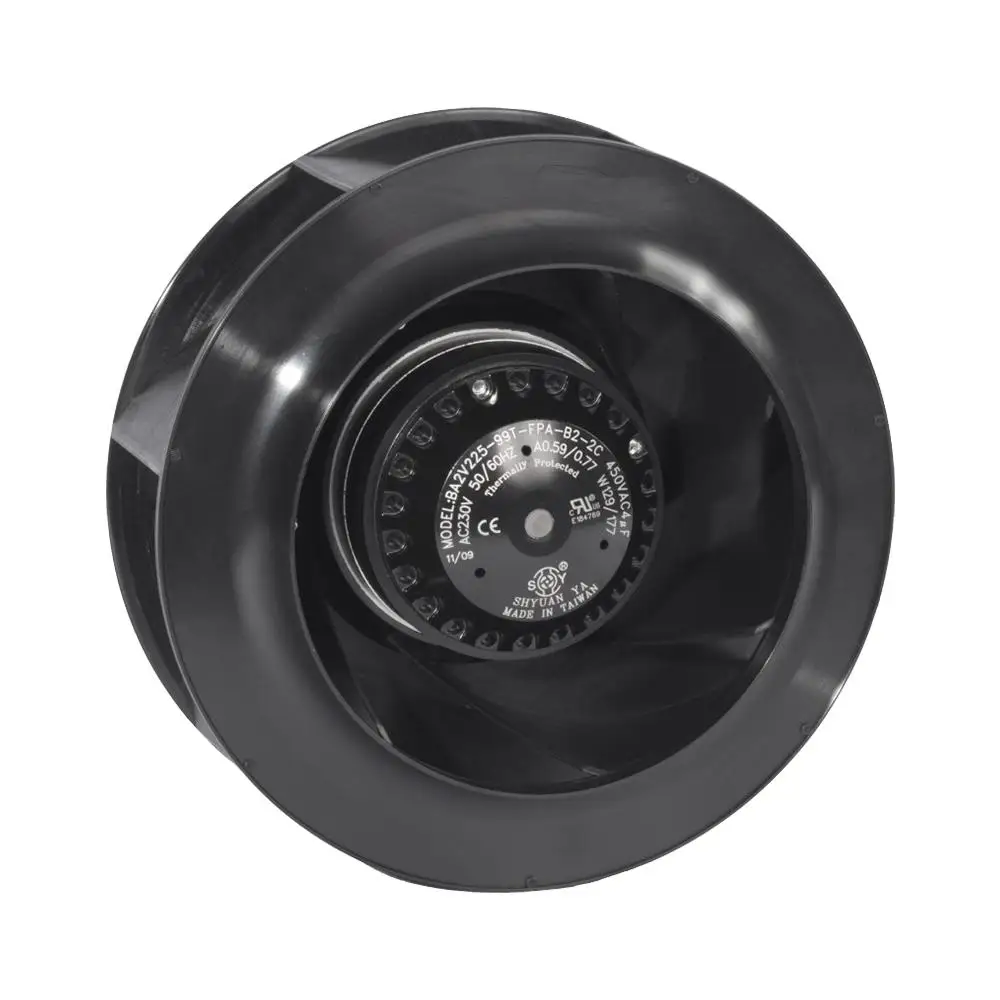

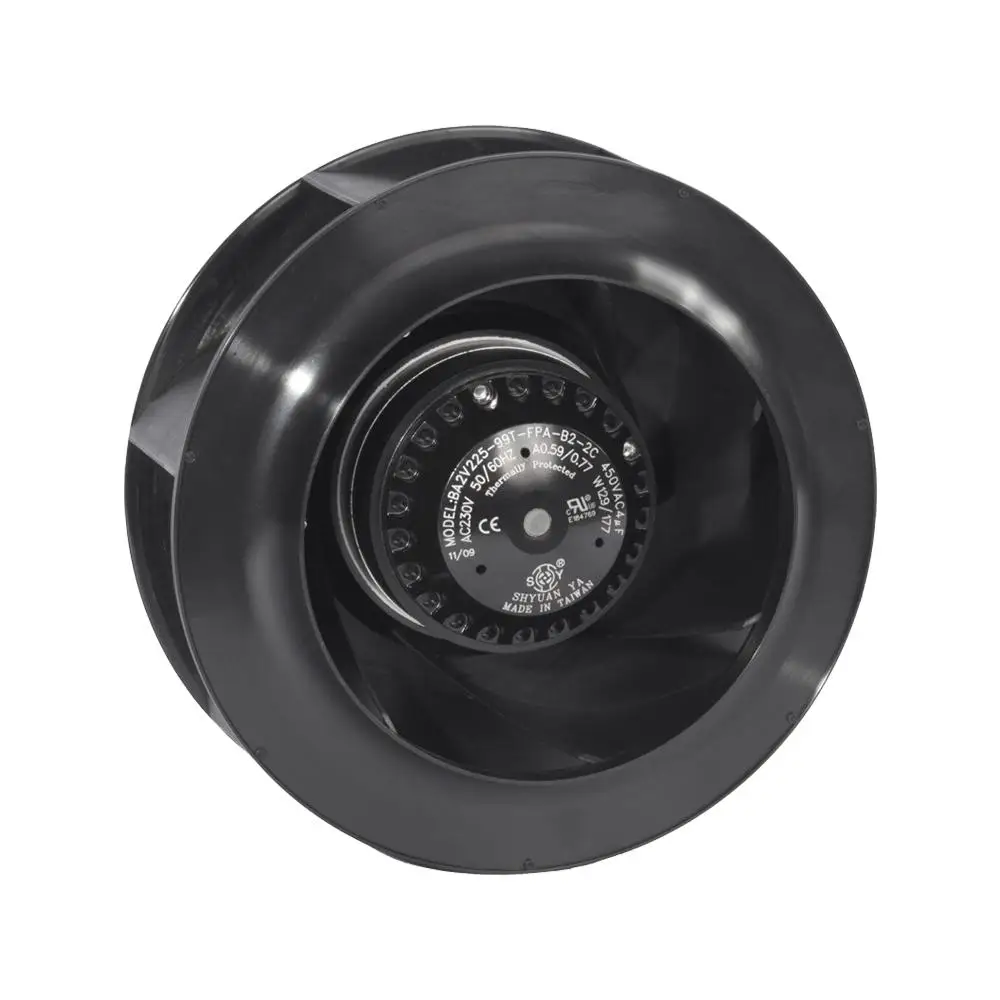

CENTRIFUGAL FAN BA225-99T
|
CENTRIFUGAL FAN BA225-107T
|
||
|
Air Flow
|
586 ~ 669 CFM
|
682 ~ 772 CFM
|
711 ~ 807 CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +60°C
|
-20°C to +60°C
|
|||
|
Product Name
|

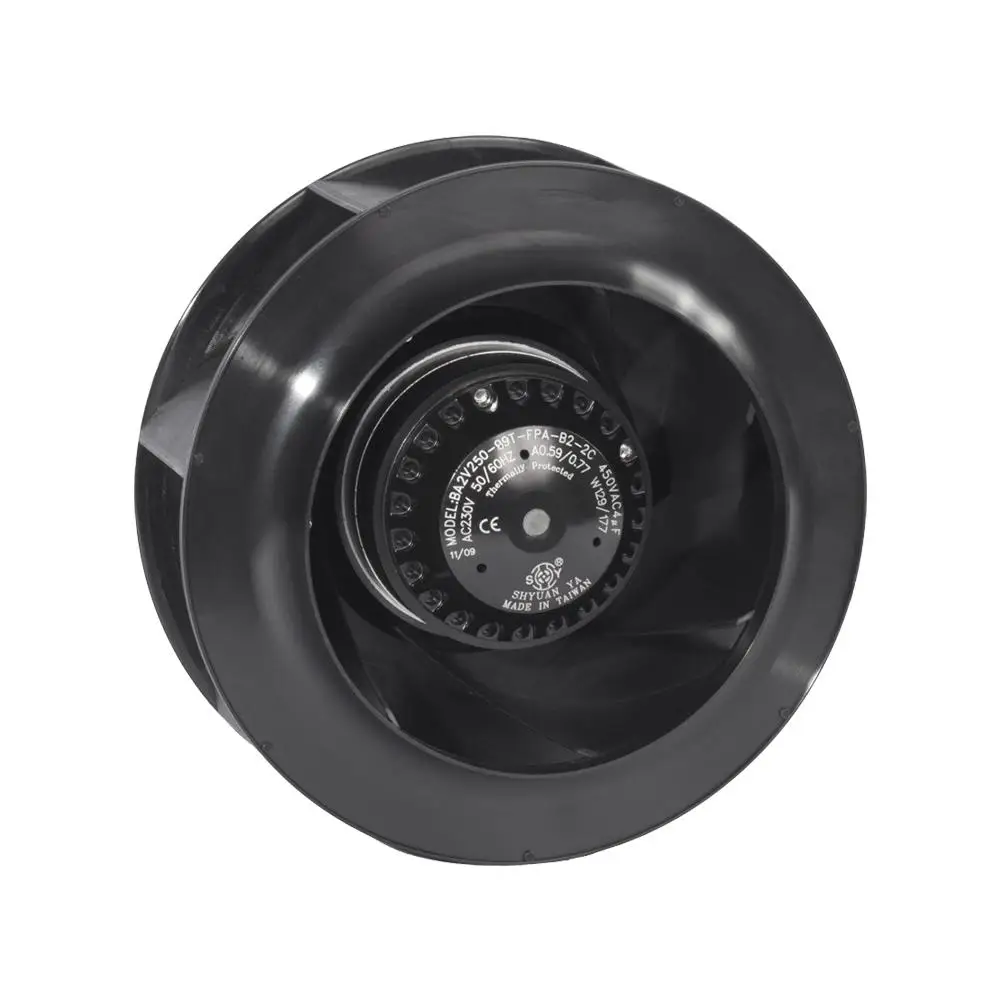

CENTRIFUGAL FAN BA250-89T
|
CENTRIFUGAL FAN BA250-99T
|
CENTRIFUGAL FAN BA250-112T
|
||
|
Air Flow
|
700 ~ 774 CFM
|
824 ~ 909 CFM
|
945 ~ 1024 CFM
|
||
|
Impeller
|
Plastic PA (Polyamide Glass-fiber Reinforced)
|
||||
|
Motor
|
Capacitor-Run Induction and External Rotor Motor
|
||||
|
Insulation
|
Class “B” or “F”
|
||||
|
Operating Voltage Range
|
85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type
|
||||
|
Operating Temperature
|
-20°C to +60°C
|
-20°C to +60°C
|
|||
Questions & Answers
Frequently Asked Questions
What is the minimum order quantity for this wall mount air blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this wall mount air blower?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 115V/230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
