This wall fan is listed with the manufacturer’s full published specification — voltage 115, 230V, air flow 280~315CFM, blade material Plastic. It is produced by LIANG HERNG ELEC MACH CO., LTD.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Wall Fan
- Model Number: BA155-110T
- Voltage: 115, 230V
- Air Flow: 280~315CFM
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Taiwan, China
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115, 230V |
| Blade Material | Plastic |
| Electric Current Type | BA155-110T |
| Warranty | 1 Year |
| Model Number | BA155-110T |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| After-Sales Service Provided | Overseas third-party support available |
| Air Flow | 280~315CFM |
| Impeller | Plastic PA |
| Selling Units | Single item |
| Single Package Size | 15.5X15.5X11 cm |
| Single Gross Weight | 30.000 kg |
Product descriptions from the supplier

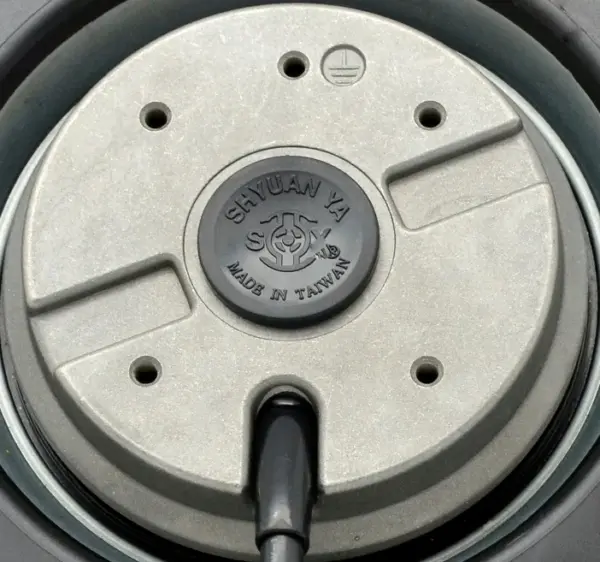

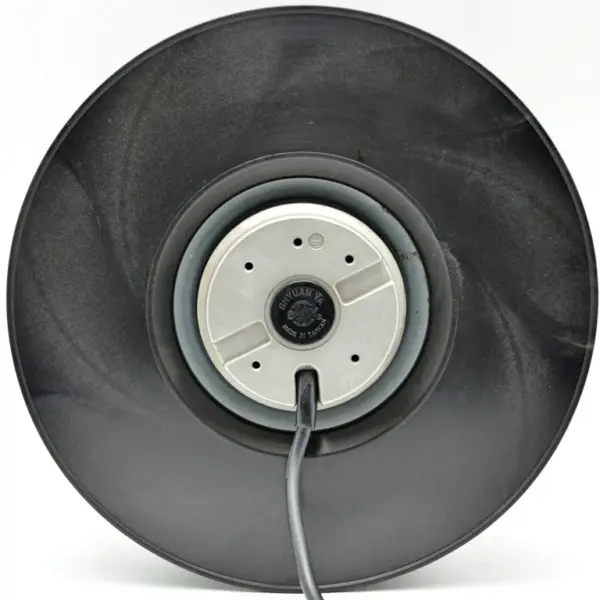

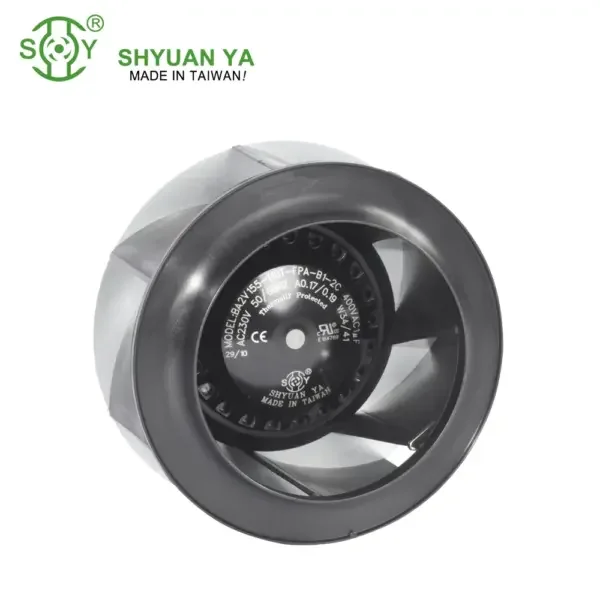

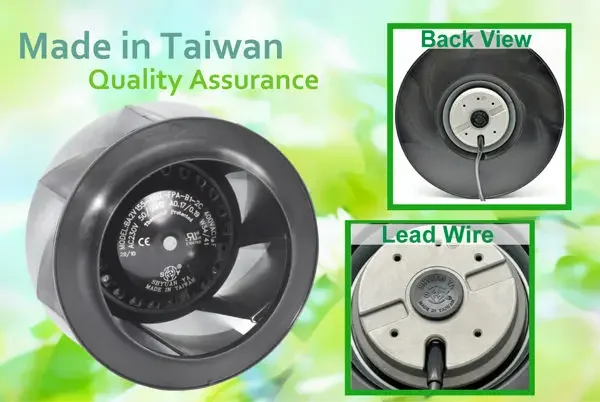

High Volume AC Motor Air 155x110mm Centrifugal Fan
A Leader in Innovation
Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into High Volume AC Motor Air 155x110mm Centrifugal Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each High Volume AC Motor Air 155x110mm Centrifugal Fan carries Shyuan Ya’s patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturer. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.
Quick Detail 1
High Volume AC Motor Air 155x110mm Centrifugal Fan
|
Air Flow : 280~315CFM |
|
Impeller : Plastic PA (Polyamide Glass-fiber Reinforced) |
|
Motor : Capacitor-Run Induction and External Rotor Motor |
|
Rotor : Black Paint |
|
Bearing : Dual Ball Bearing, Permanently Lubricated |
|
Operating Voltage Range : 85VAC to 125VAC for 115V Type 185VAC to 245VAC for 230V Type |
|
Lead Wire : AWG# 20 UL |
|
Insulation : Class “B” or “F” |
|
Safety : Thermally Protected (Auto Restart) |
|
Operating Temperature : -20°C to +70°C |
|
Weight : 1250g |

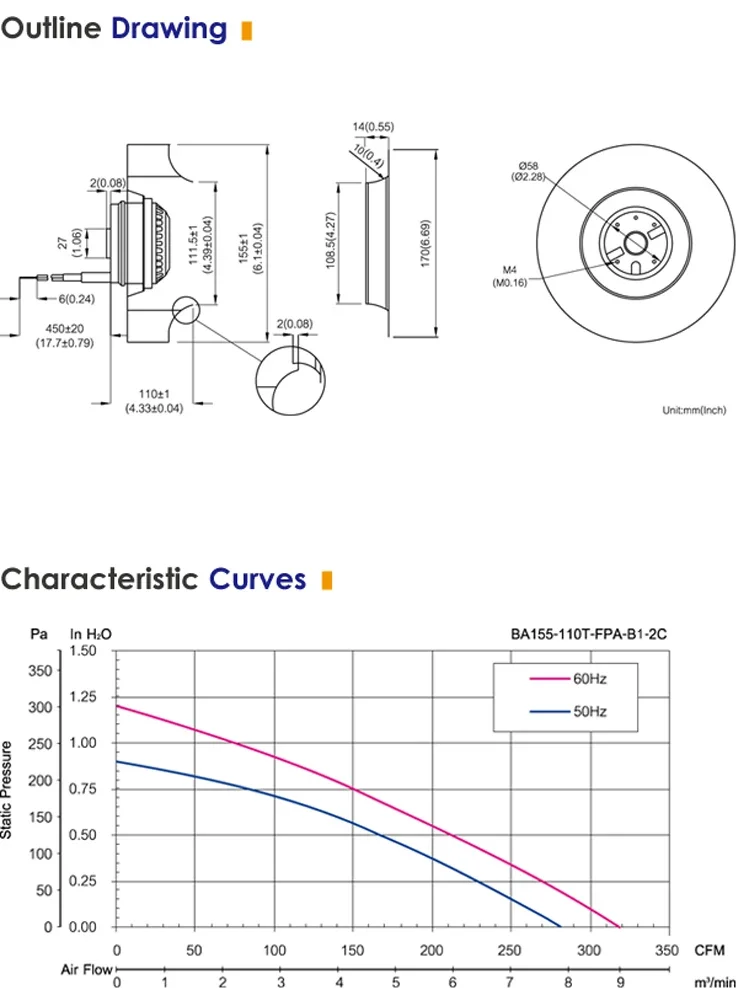

High Volume AC Motor Air 155x110mm Centrifugal Fan
|
Item CodeBA1V155-110T-FPA-B1-2C |
|||||||||
|
Rated |
Frequency |
Rated |
Input |
Speed |
Air Flow |
Air Flow |
Static Pressure |
Noise |
Capacitor |
|
115V |
50/60 |
0.32/0.37 |
34/42 |
2650/2950 |
280/315 |
8.07/8.92 |
0.91/1.21 |
57/60 |
4μF/200VAC |
|
Item CodeBA2V155-110T-FPA-B1-2C |
|||||||||
|
Rated |
Frequency |
Rated |
Input |
Speed |
Air Flow |
Air Flow |
Static Pressure |
Noise |
Capacitor |
|
230V |
50/60 |
0.17/0.19 |
34/42 |
2650/2950 |
280/315 |
8.07/8.92 |
0.91/1.21 |
57/60 |
1μF/400VAC |
 |
|
Professional & Customized Service

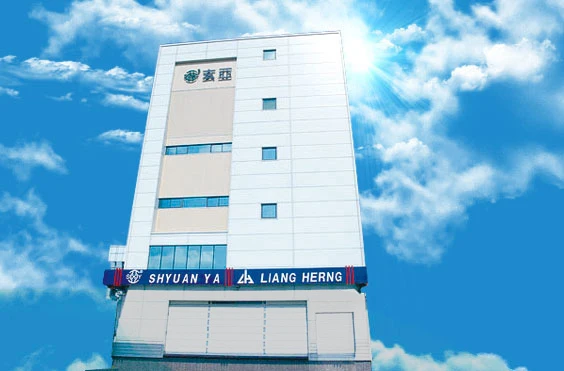

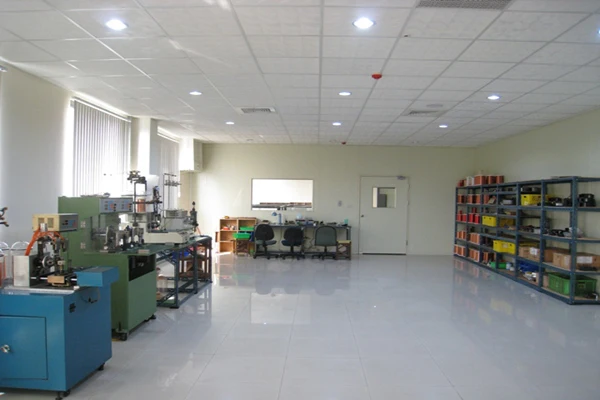

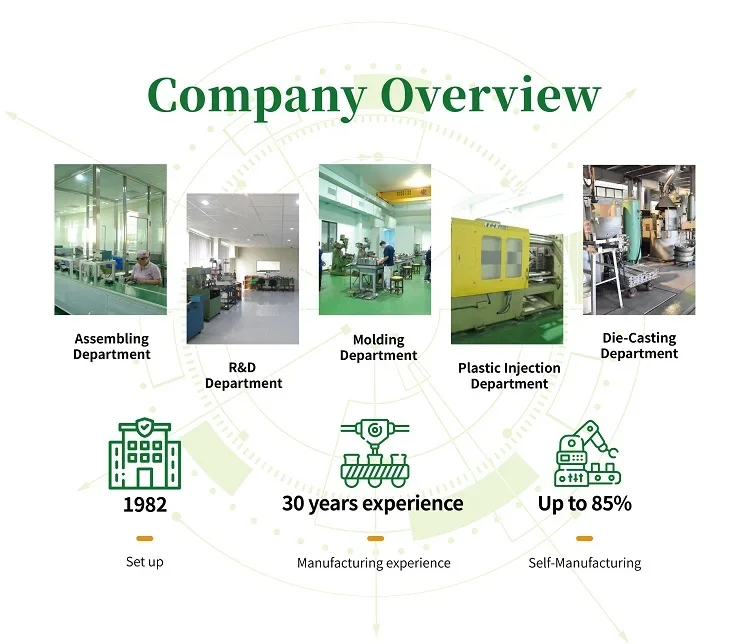

SHYUAN YA Group was founded in 1982 with more than 30 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers. Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan. |
|
Short Production Time & Prompt Delivery

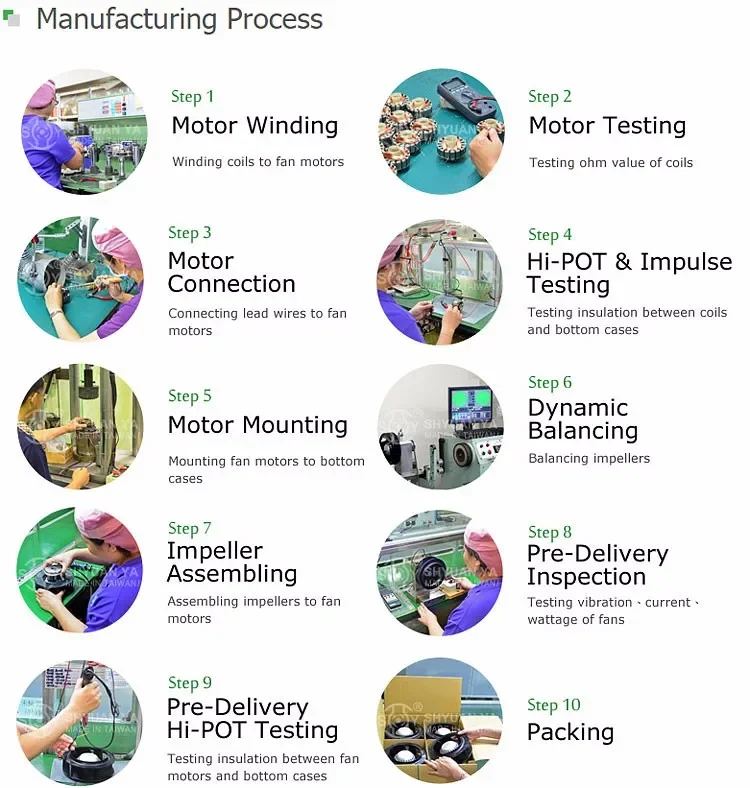

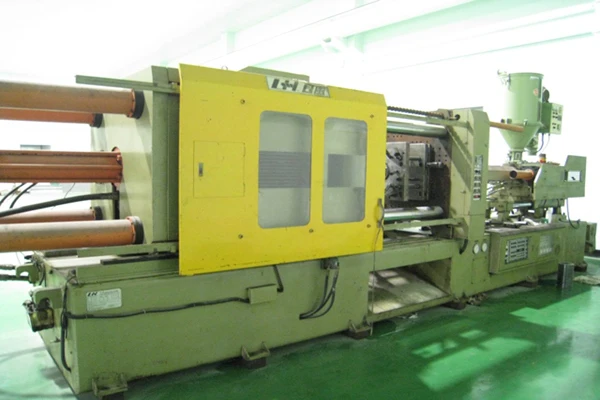

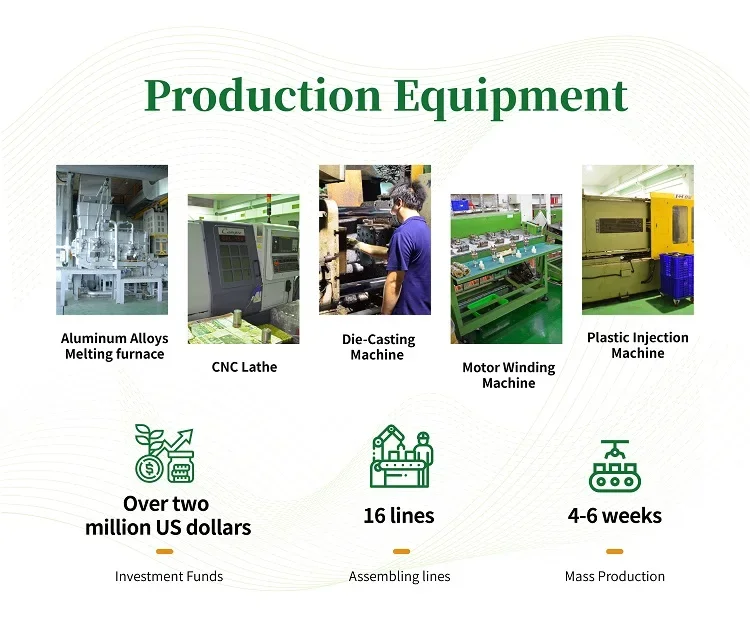

SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines. Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks. |
 |
|
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM. |
High Volume AC Motor Air 155x110mm Centrifugal Fan
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
5. Customized Service: As we have our own molding department,
customized service can be provided.
6. Prompt customers Services: E-mail will be replied in 24 hours.
Questions & Answers:
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
High Volume AC Motor Air 155x110mm Centrifugal Fan
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this wall fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 115, 230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
