Ceiling fan — rated voltage 110~630V.AC, model number 11901-3414. The complete factory specification follows. Made by Changzhou Xunwande Electronics Co., Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Model Number: 11901-3414
- Rated Voltage: 110~630V.AC
- Withstand Voltage Between Terminals: 2.0Un(5s)
- Place Of Origin: Jiangsu, China
- Application: For AC motors
- Features: Excellent Self-healing property
Technical Specifications
| Brand Name | XWD |
|---|---|
| Model Number | 11901-3414 |

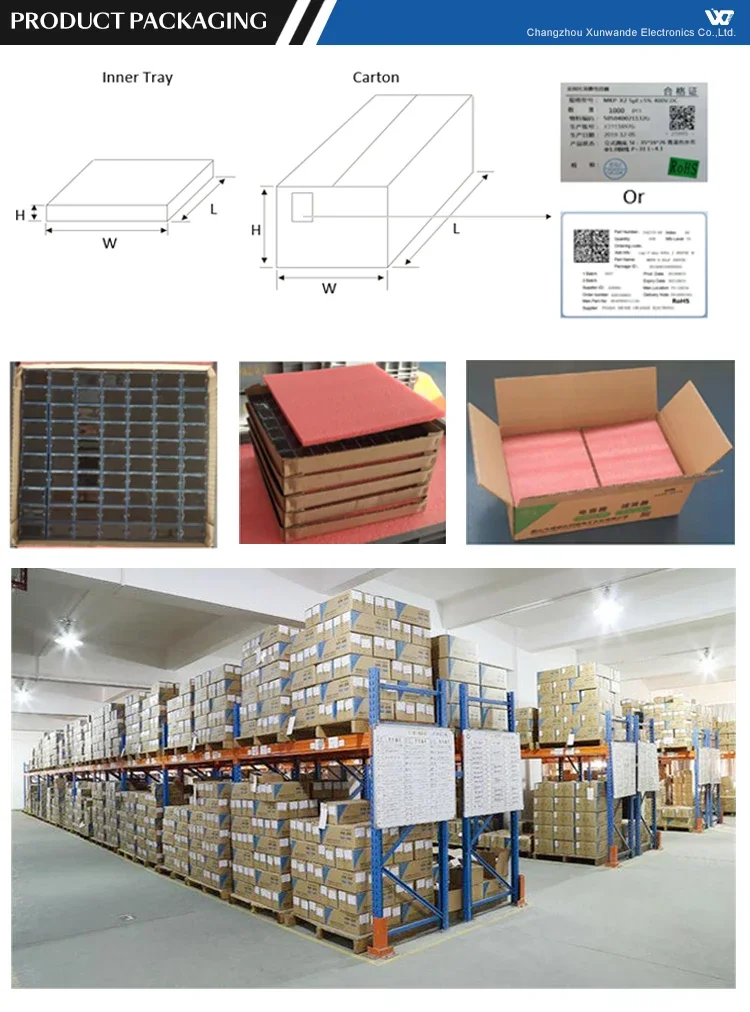

| Packaging Type | Foam box and carton |
| Manufacturing Date Code | / |
| Capacitance | 8.0uf |
| Place Of Origin | Jiangsu, China |
| Description | Nonin-ductive construction. Fetch out in many ways |
| Specification | 8.0uf |
| Application | For AC motors |
| Package / Case | Plastic or Aluminum shell |
| Series | CBB60 |
| Features | Excellent Self-healing property |
| Size / Dimension | OEM |
| Operating Temp Range | -40°C~+85°C |
| Capacitance Range | 0.1~120uf |
| Rated Voltage | 110~630V.AC |
| Capacitance Tolerance | ±5%(J),±10%(K) |
| Dissipation Factor | tgDelta≤0.002(at 100Hz) |
| Withstand Voltage Between Terminals | 2.0Un(5s) |
| Insulation Resistance | IR≥300MQ at 100VDC |
| Referenced Standard | IEC 6025 UL810 GB3667-2005 |
| Flammability | UL94V-0 |
| Selling Units | Single item |
| Single Package Size | 4.2X4.2X6.2 cm |
| Single Gross Weight | 2.0 kg |
Product Details

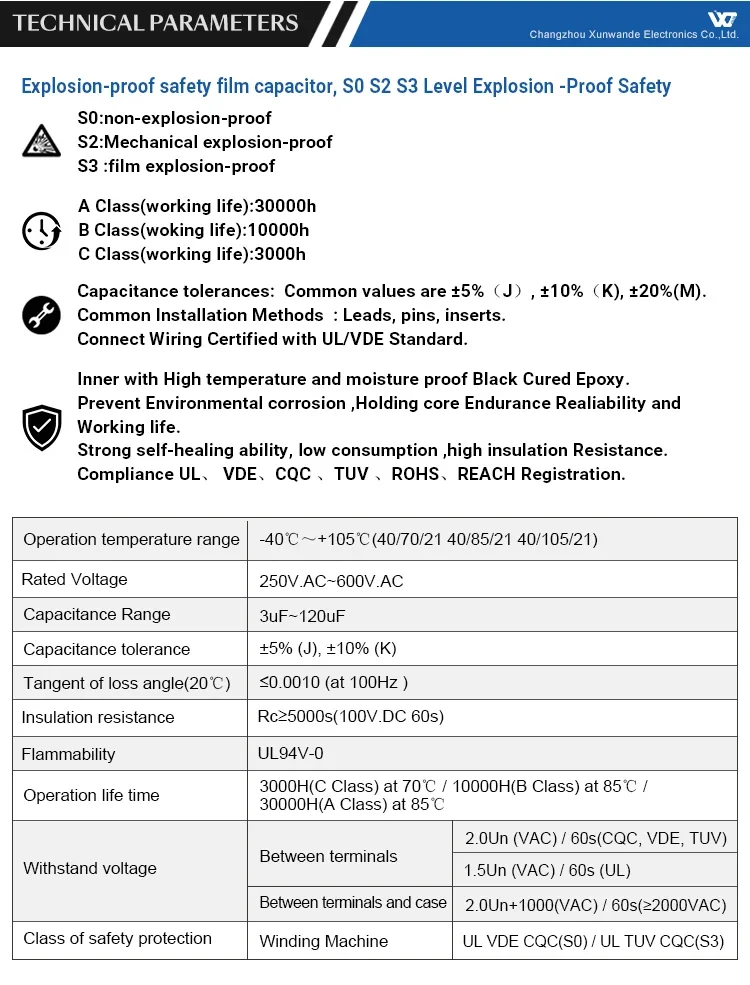

1. What is the principle of explosion-proof safety film capacitor? |
The metallized electrodes adopt tiny fuses structure. If there is any failure during capacitor operation, the power supply is automatically cut off by disconnecting the micro-fuse. In this way, the failure can be prevented and self-safety protection realized. |
2. What’s meaning of P0(S0) and P2(S3) in the XWD capacitor? |
P0(S0) and P2(S3) are refer to the class of safety protection. P0(S0) means non-explosion-proof. P2(S3) means explosion-proof. |
3. What is ROHS? |
RoHS: the Restriction of the use of certain hazardous substances in electrical and electronic equipment. The regulation is a European Union (EU) ban on the use of six hazardous substances in electronic products entering Europe. In the RoHS standard, the maximum limits of six hazardous substances are: lead (Pb), mercury (Hg), hexavalent chromium (Cr6+), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE) maximum allowable content of 0.1%(1000ppm), cadmium (CD) is 0.01%(100ppm). This limit is the legal basis for determining whether a product complies with the RoHS directive. |

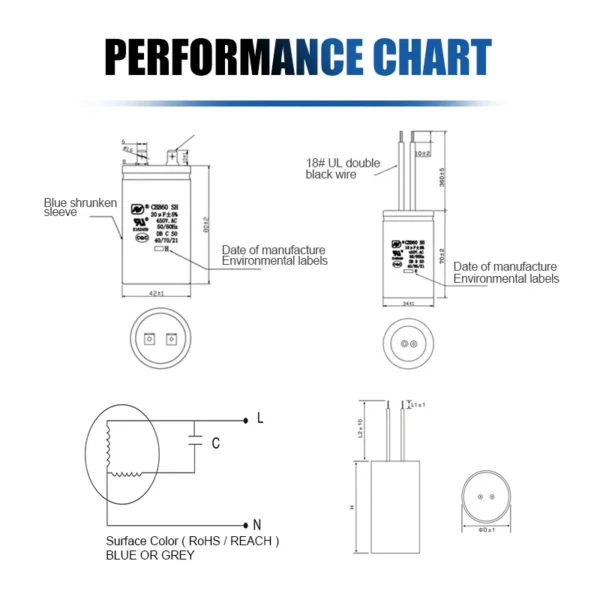

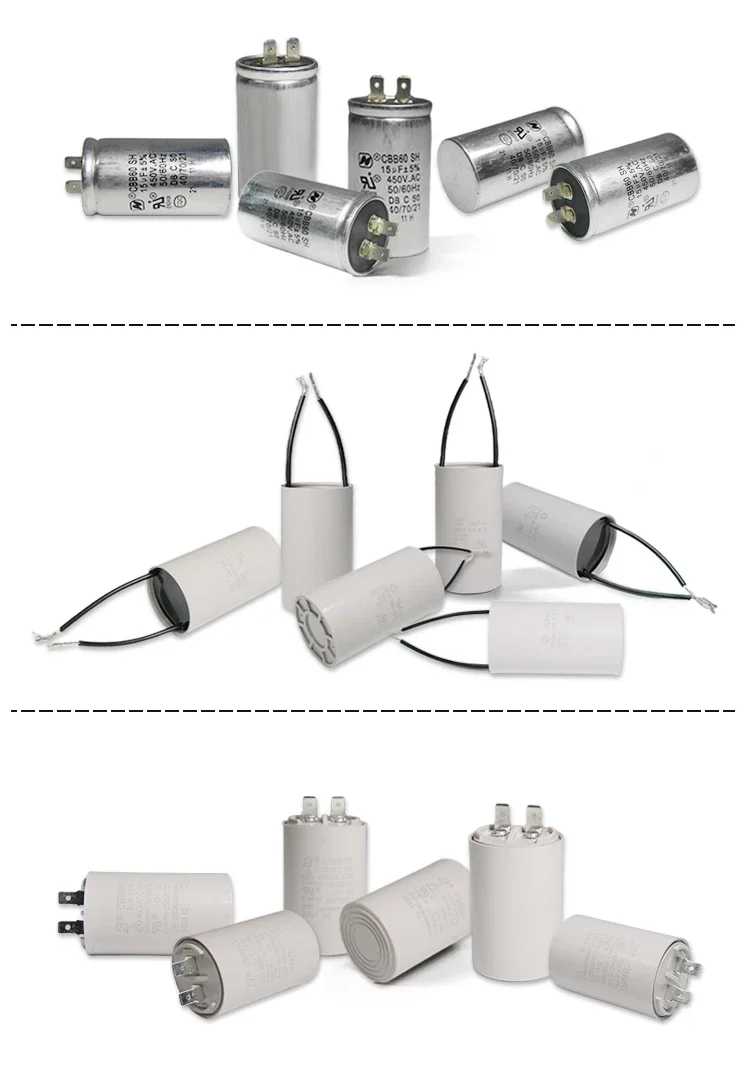

4. Common Installation Methods of Fan Capacitor |

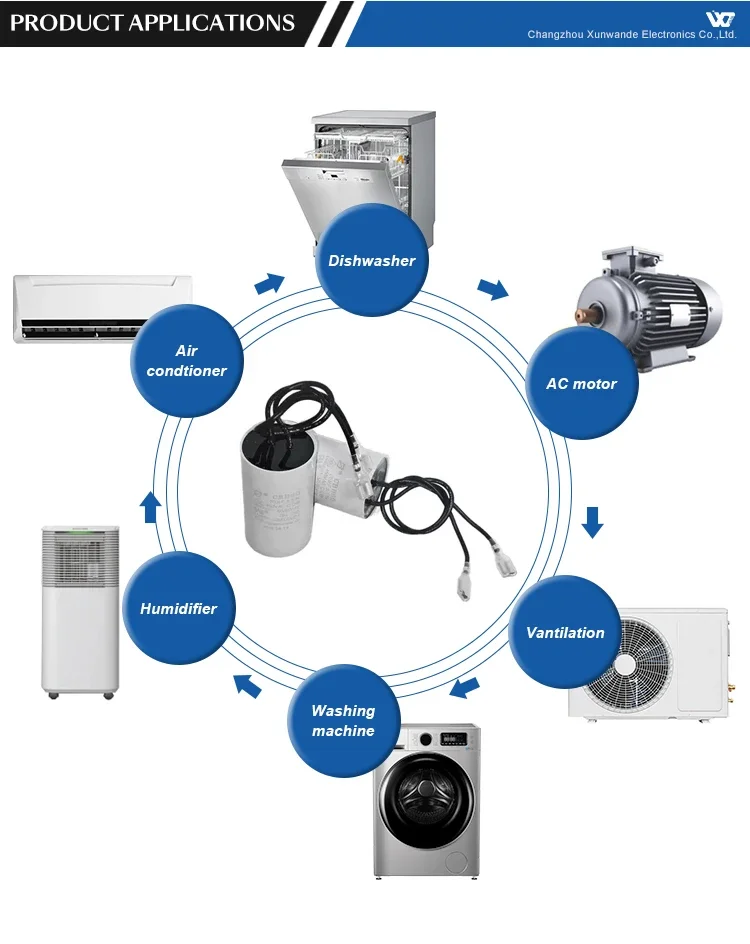

According to customers’ different installation methods on products, XWD capacitor can provide the following capacitor styles. XWD ac motor capacitors are used for starting, running and adjusting speed.XWD-Capacitor are widely applied in table tans, floor fans, ceiling fans, wall fans, luxury ceiling fans, exhaust fans, extractor fans, heater, smash paper machine, turbine, dehumidifier, etc. Noted: Since the capacitor is made of plastic material, improper installation of the capacitor can cause the plastic ear to break. Therefore, the customer should pay attention to the URYU, screw, hole position to maintain vertical state during the fan capacitor installation. |
5. What capacitance tolerances are available? |
Tolerance on rated capacitance determines its application. Common values are ±5%（J）,±10%（K0）, ±20%（M）. |
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–4999 piece: US $0.83 / piece
- 5000+ piece: US $0.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 110~630V.AC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
