The centrifugal bathroom exhaust fan listed here carries voltage 24, 48V, 720 CFM, documented exactly as the manufacturer publishes it. Made by LIANG HERNG ELEC MACH CO., LTD. (21 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Bathroom Exhaust Fan
- Model Number: BD225107T-B7-1BA
- Voltage: 24, 48V
- Air Flow: 720 CFM
- Material: Plastic, Aluminum, Iron
- Blade Material: Plastic
- Noise Level: 63-73dB
Technical Specifications
| Duct Diameter | 6in |
|---|---|
| Mounting | Wall Fan |
| Voltage | 24, 48V |
| Motor Type | DC Motor |
| Speed | 2950RPM |
| Material | Plastic, Aluminum, Iron |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 63-73dB |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Model Number | BD225107T-B7-1BA |
| Air Flow | 720 CFM |
| Impeller | Plastic PA |

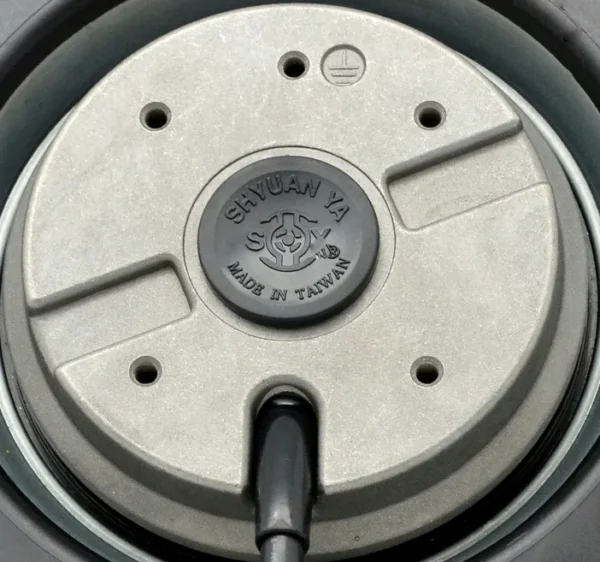

| Motor | DC Brushless Fan Motor |
| Bearing | Dual Ball Bearing, Permanently Lubricated |
| Lead Wire | AWG# 20 UL2517 |
| Insulation | Class "B" |
| Safety | Thermally Protected (Auto Restart) |
| Operating Temperature | -25°C ~ +60°C |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 22.5X22.5X10.7 cm |
| Single Gross Weight | 1.3 kg |
Product Details

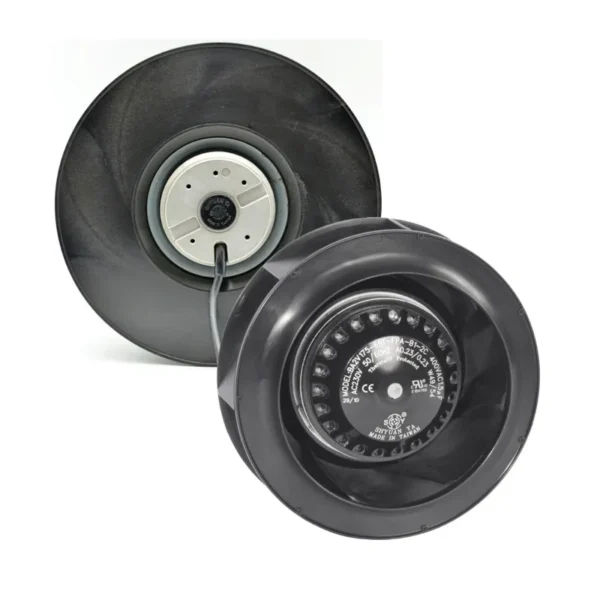

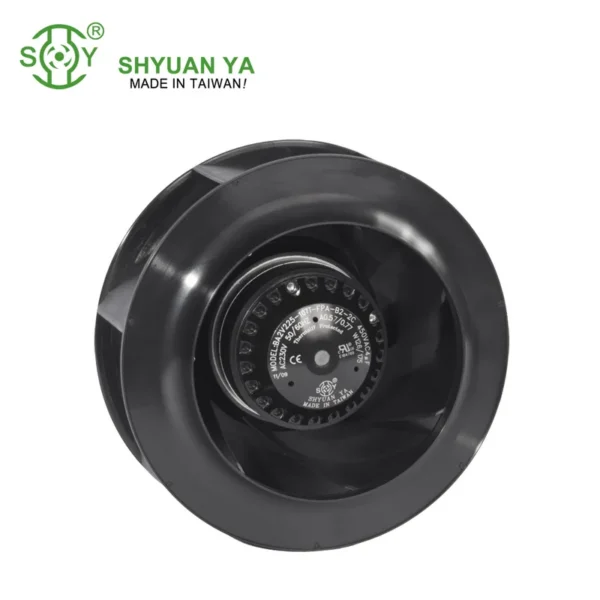

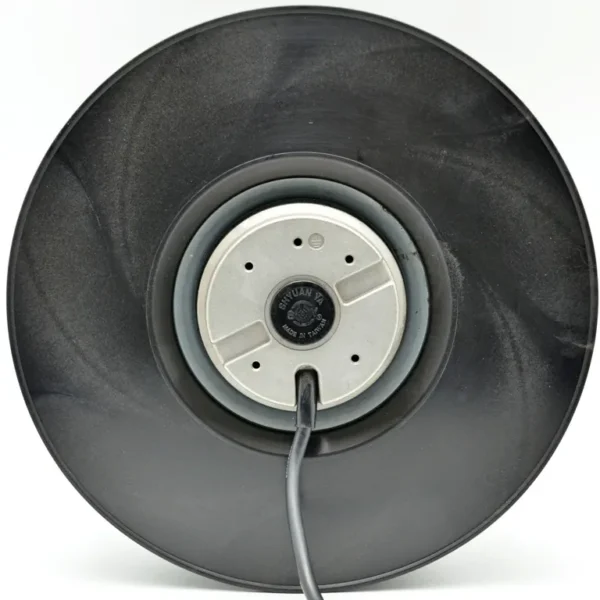

DC 225x107mm Centrifugal Radial Industry Fan
A Leader in Innovation
Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into Reptile Cooling Circulation Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each Reptile Cooling Circulation Fan carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturers. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.
Quick Detail 1
DC 225x107mm Centrifugal Radial Industry Fan
| Air Flow : 720 CFM |
| Impeller : Plastic PA (Polyamide Glass-fiber Reinforced) |
| Motor : DC Brushless Fan Motor
|
| Bearing : Dual Ball Bearing, Permanently Lubricated
|
| Operating Voltage Range : 16 ~ 28 VDC for 24V Type 36 ~ 57 VDC for 48V Type |
| Lead Wire : AWG# 20 UL 2517 |
| Insulation : Class “B” |
| Safety : Reverse polarity and Lock Protection
|
| Operating Temperature : -25°C ~ +60°C
|
| Weight : 1250g |

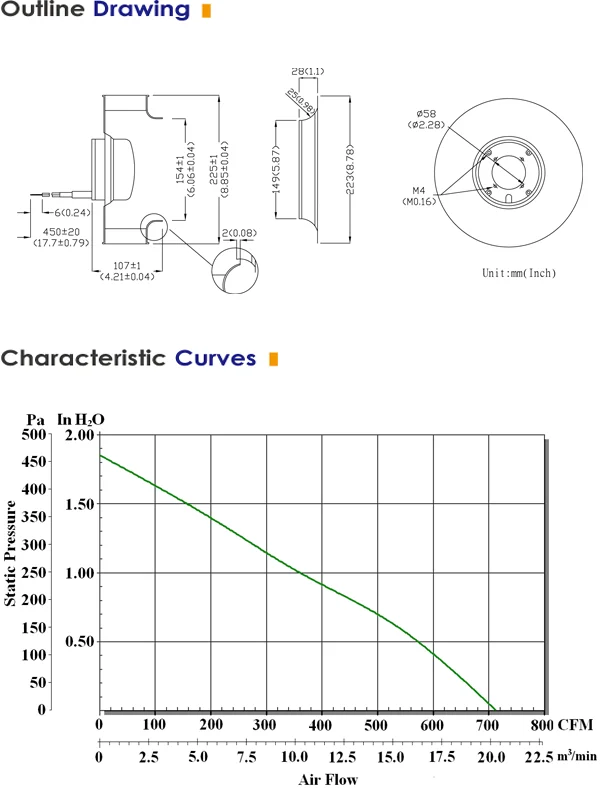

DC 225x107mm Centrifugal Radial Industry Fan
| Item Code: BD24V225107T-B7-1BA | |||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
| 24 VDC | NONE | 3.75 | 90 | 2600 ± 10% | 720 | 20.39 | 1.89 | 74 | NONE |
| Item Code: BD48V225107T-B7-1BA | |||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
| 48 VDC | NONE | 2 | 96 | 2600 ± 10% | 720 | 20.39 | 1.89 | 74 | NONE |
 |
|
Professional & Customized Service
SHYUAN YA Group was founded in 1982 with more than 30 years’ experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers. Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.
|
| Short Production Time & Prompt Delivery
SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment. Our production lines include plastic injection, motor winding, and die casting processing lines. Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.
|
 |
|
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM. |
DC 225x107mm Centrifugal Radial Industry Fan
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
5. Customized Service: As we have our own molding department,
customized service can be provided.
6. Prompt customers Services: E-mail will be replied in 24 hours.
Questions & Answers:
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
Reptile Cooling Circulation Fan
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal bathroom exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal bathroom exhaust fan be supplied for my local voltage?
The standard configuration is 24, 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
