Centrifugal Blower, 380 V, Electric

This centrifugal blower is published with the manufacturer’s full specification — 380 V, 220 V, 240 V, Other, power source Electric. Made by Dongguan Qianwei Mechanical Equipment Technology Limited (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Blower

• Model Number: 37KW
• Power Source: Electric
• Power Cord Length: 25 ft
• Rated Voltage: 380 V, 220 V, 240 V, Other
• Material: Stainless Steel
• Blade Material: Stainless Steel

Technical Specifications

Product Details

Specification

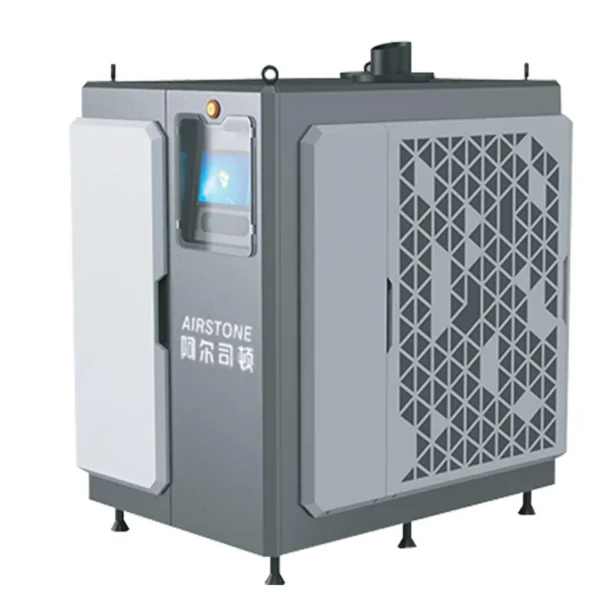

China Airstone Energy Saving Wastewater Treatment Magnetic Levitation Centrifugal Blower Oil-free High-speed Turbo Blower

Product name	Magnetic levitation centrifugal blower	Pressure	40-80KPA
Motor Power	37KW	Drive method	Driect Drive
Air Capacity	28m3/min 988CFM@80KPA	Cooling method	Air Cooling
Connector size	G1''	Warranty	Two years

Features of MSC Series Maglev Motor

The magnetic levitation controller has high reliability and strong stability,with self calibration and self identification functions. It can achieve adaptive adjustment and control as the operating time of the magnetic levitation equipment increases, without the need for manual intervention,avoiding risks such as downtime.Vibration caused by mass unbalance is a common problem in rotating machinery. Perfect balance can make the rotor assembly center completely coincide with its inertial principal axis, but it is difficult to achieve for rotor of maglev motor with impeller and multiple components, because the imbalance may change during rotor operation (for example,the influence of thermal deformation or ash layer.). As for the residual imbalance of the rotor, the negative feedback control +UFRC algorithm is adopted to make the rotor rotate around its inertial main shaft at each speed, eliminating reaction force on bearing and excitation force on the whole machine; finally, it effectively ensures the long-term reliable oper- ation.By sweeping the frequency from 0 to 2000Hz, the natural frequency of rotor and the whole machine can be measured before rotor rotates, the rotating condition can be simulated to make fault prediagnosis. When machine is working, the anti-interference performance is measured by sweeping to ensure each machine' s stability.

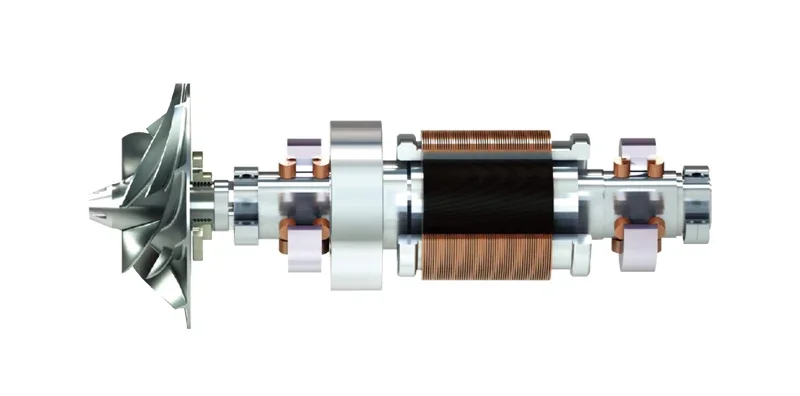

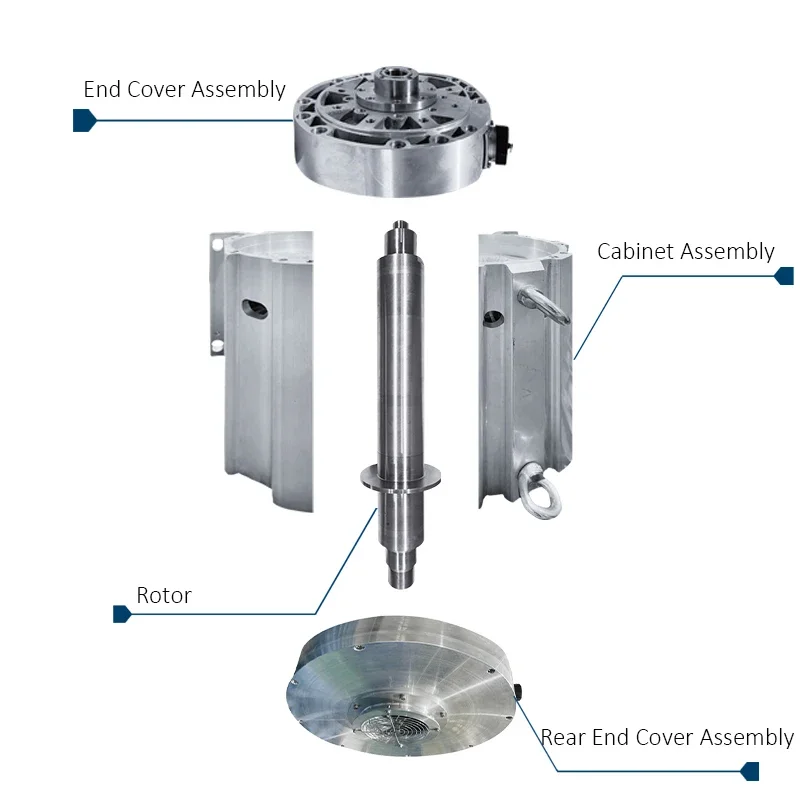

Motor Components

High speed permanent magnet motors have the advantages of small size, high power density, high efficiency, and direct connection with loads, making them the preferred choice for application in the blower industry. We conducted research on high-speed permanent magnet motors based on optimization of motor electromagnetic schemes, design of cooling systems, and dynamic analysis of rotor systems, and established an analytical model for the BOKES brand series MSC motors.

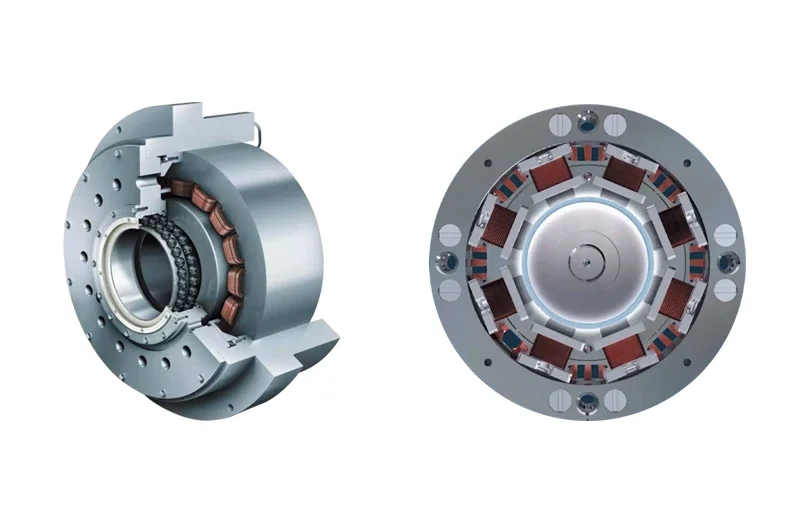

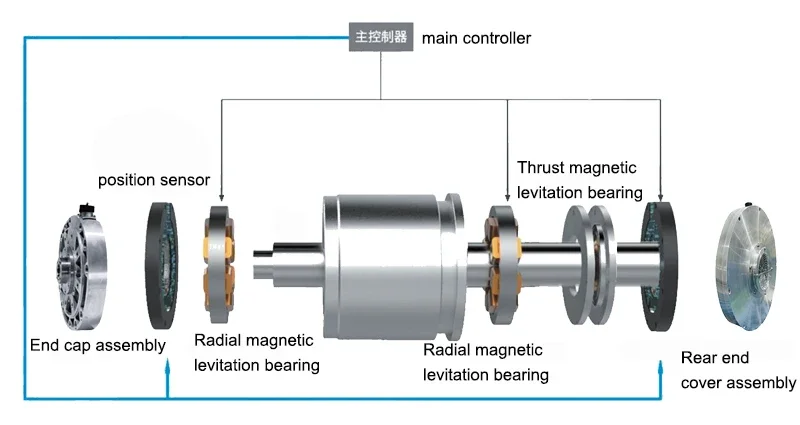

Axial and Radial Magnetic Bearings

Combining electromagnets, power amplifiers, displacement sensors, and electronic control systems, a design optimization model for magnetic levitation bearings is constructed, with the goals of maximum bearing capacity, minimum eddy current loss, and minimum coil heating loss. The geometric structure of the bearings is optimized to improve system reliability and reduce system power consumption.

UFRC Control System

Unbalance Force Rejection Control (algorithm of revolving around the center of mass) enables the rotor to rotate around the inertial spindle. The advantages of this algorithm: for the inevitable residual unbalance of rotor, by making the rotor rotate around its inertial spindle at each speed, the reaction force transmitted by the bearing and the excitation force brought to the entire machine can be eliminated, so that can effectively ensure the long-term reliable operation.

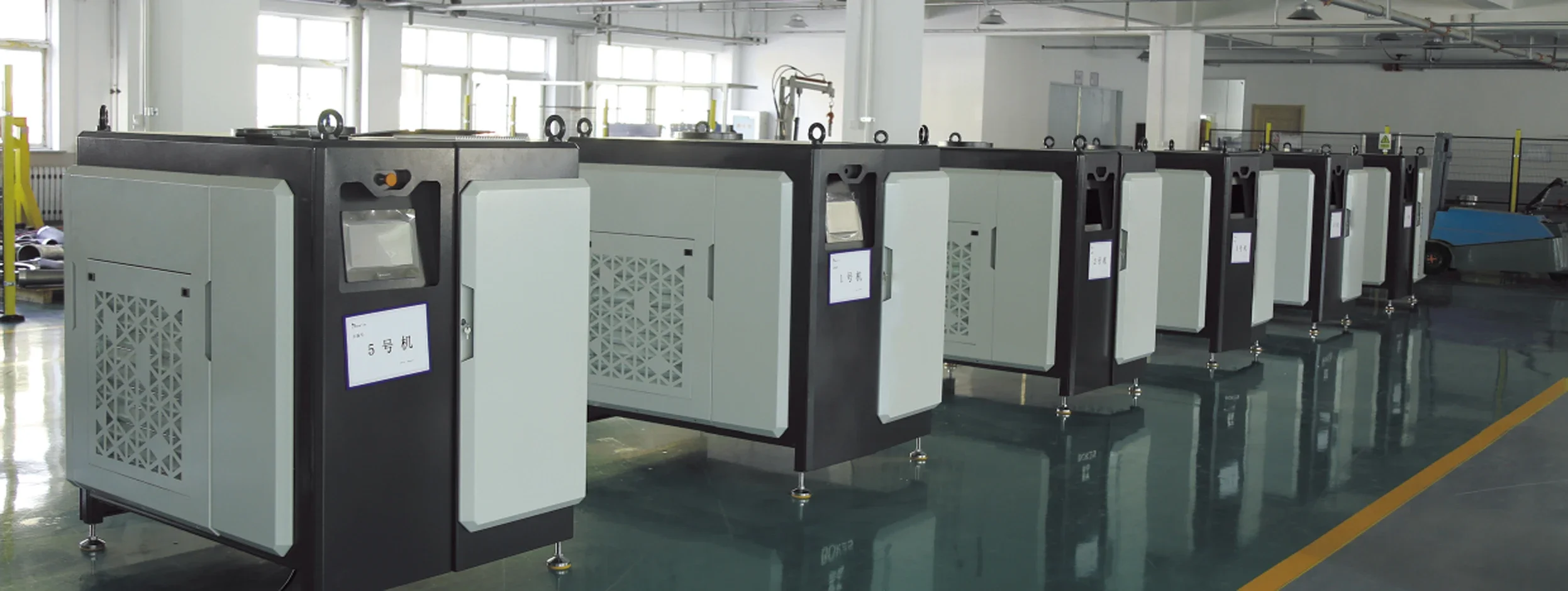

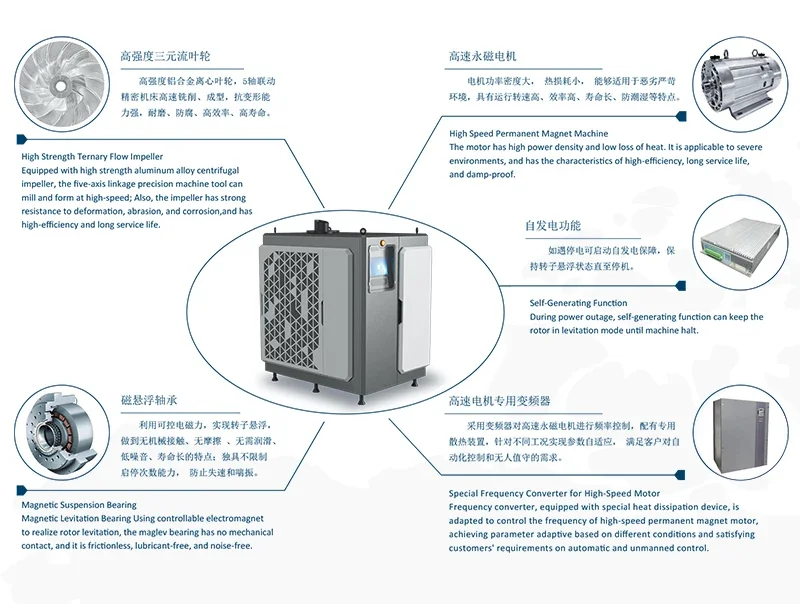

Integrated Design of Maglev Blower

The blower features the integrated design of "electrical,mechanical and electronic". It comprises the pneumatic unit of ternary flow impeller and volute shell, the high-speed frequency inverter and the maglev motor drive unit, and the central control unit for motor suspension and blower operation.

The Principle of Maglev Blower

MSC series maglev centrifugal blower adopts active magnetic bearing and high-speed permanent magnet synchronous motor. It is directly driven by ternary flow impeller, levitating the rotor system through magnetic force, and generating kinetic energy by high-speed rotating impeller to achieve blowing function.

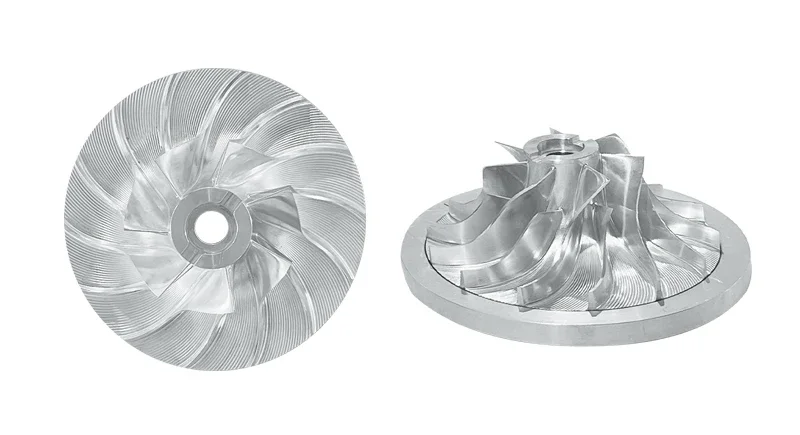

New Ternary Flow Impeller

Based on three-dimensional flowing theory, the ternary flow impeller is designed with multi-curved blade, so that the flow channel is more adapted to the true flow state of fluid. The CFD analysis is used to solve complex calculation of quantitative value of three-dimensional flow of the blade, so that improves the efficiency, reliability, and safety of blower. Through ternary optimization, the flow loss in the flow channel is reduced, the influence of separation flow, vortex, secondary flow and other effects on the aerodynamic performance are reduced, and then an optimized design that conforms to air flow is finally obtained.

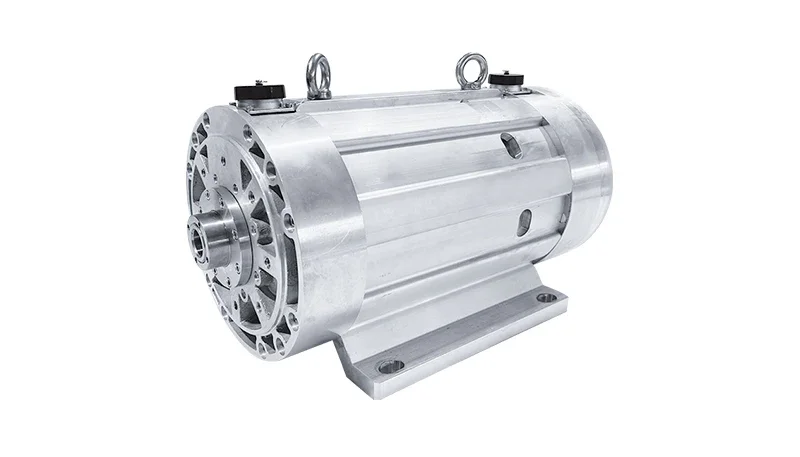

High-Speed Permanent Magnet Motor

High speed permanent magnet motors have the advantages of small size, high power density, high efficiency, and direct connection with loads, making them the preferred choice for application in the blower industry. We conducted research on high-speed permanent magnet motors based on optimization of motor electromagnetic schemes,design of cooling systems, and dynamic analysis of rotor systems, and established an analytical model for the BOKES brand series MSC motors.

Features of MSC Series Maglev Blower

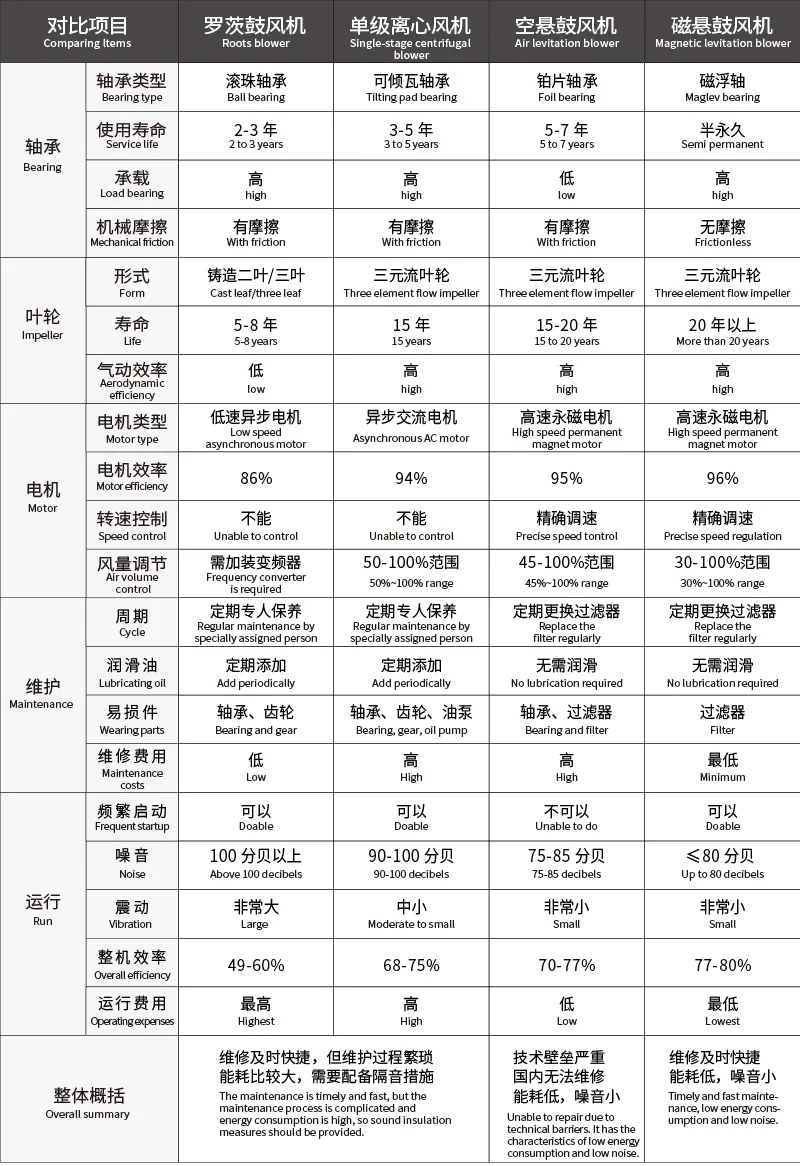

Compared with Roots blower's efficiency, maglev blower's efficiency increased 30%~40%. Taking the 160kW maglev blower as an example, each blower can save more than 500,000 kWh electricity and ￥300,000 in bills per year.Maglev blower is lubricant-free; the air transmitted is pollution-free. The Maglev bearing is frictionless and operates without noise, bringing no effect to the surrounding office and living environment. take 160kW maglev blower for example, each blower can reduce carbon dioxide emissions by approximately 500 tons per year.High performance frequency converter is adopted to control 25% speed. Advanced control system is adopted to provide multiple control modes. The turntable can monitor running process and can be controlled remotely, saving labor costs. Fully enclosed water-cooling and air-cooling system are adopted to dissipate heat from motor, ensuring stable running and prolonging blower's service life. Modular design makes it easy to maintain.Frictionless maglev bearing reduces product damage and extends blower's service life to 20 years or more. Maglev blower is easy to maintain, requiring only regular filter change. The maglev blower is lubricant-free, which saves the cost of lubricating oil and cleaning. The motor adopts direct drive, small size, light weight, and space saving. Domestic production ensures timely supply of spare parts

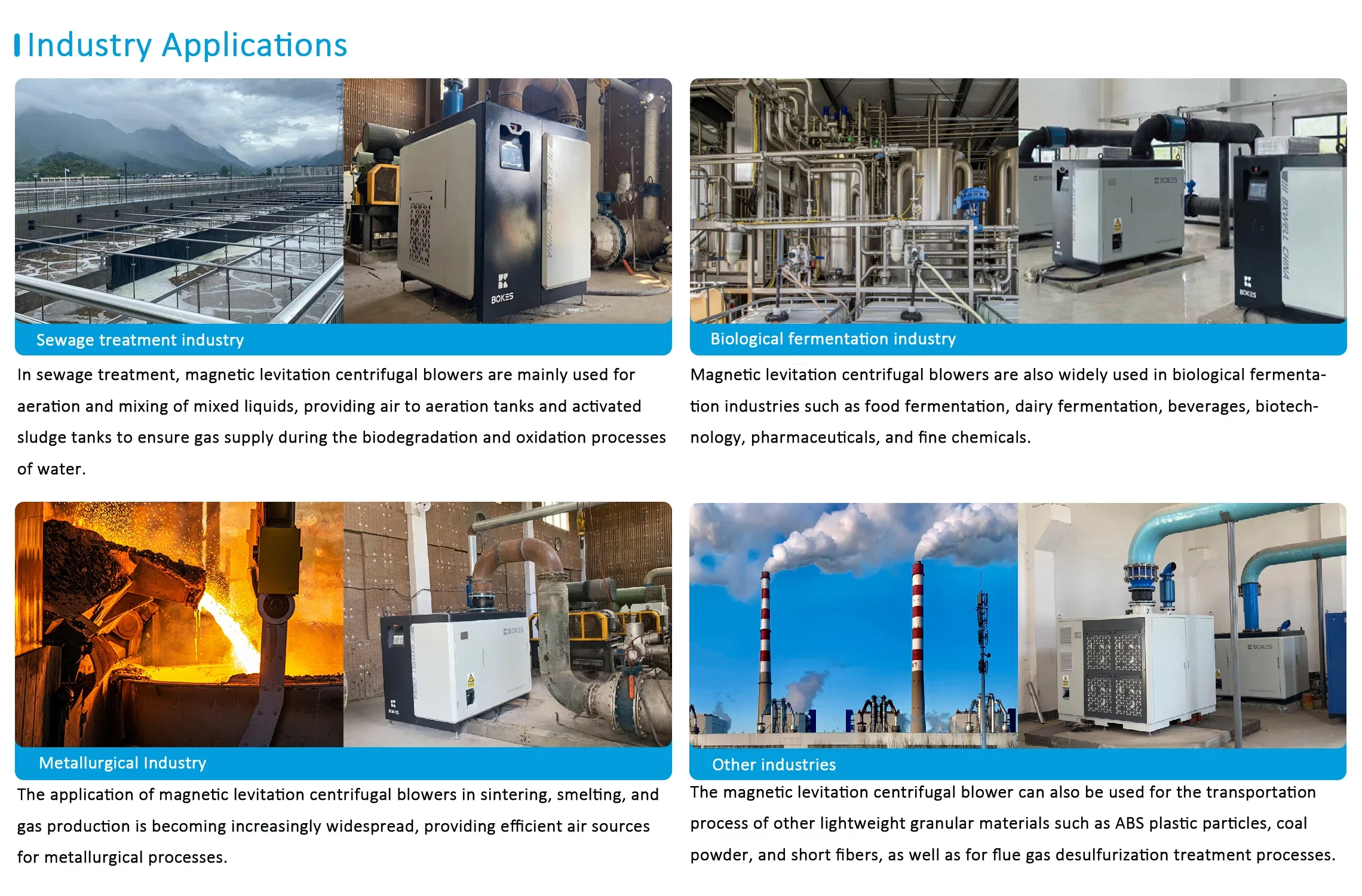

Areas of Application

1. Conveying material and gas

Can be used in cement factory, chemical, food and other industries;Application scenarios: pneumatic conveying of industrial raw materials,dust and food.

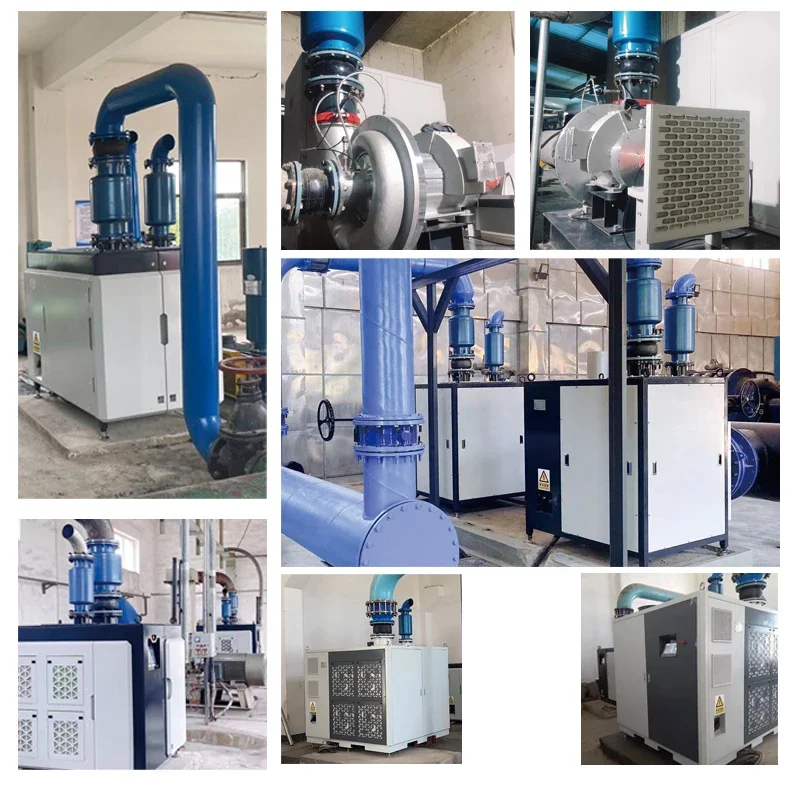

2. Sewage treatment (municipal, industrial)

The maglev blower can be applied to aeration of sewage tank,so that the biological active substances in sewage treatment tank can fully contact with the substances in sewage,achieving the purpose of decontamination.

3. Aquaculture

By pumping air into the bottom of the aquaculture tank, the oxygencontent in the tank is increased and the survival rate of aquaticproducts is increased.

4. Other industries

Paper mill, brewing industry, textile industry, dairy industry, thermal power industry, etc.

Application

Airstone magnetic levitation centrifugal fan is independently developed, with zero friction, energy saving of about 30%, low noise, oil-free, and maintenance free! The fan adopts active magnetic levitation bearings and high-speed permanent magnet synchronous motors. Directly driving the three-way flow impeller, suspending the rotor system through magnetic force, and generating kinetic energy through the high-speed rotating impeller to achieve the function of a blower.

Other series Type

This is Jessica,who manufacture air compressor&spare parts.We are willing to looking forward to you,for further information,please feel free to contact

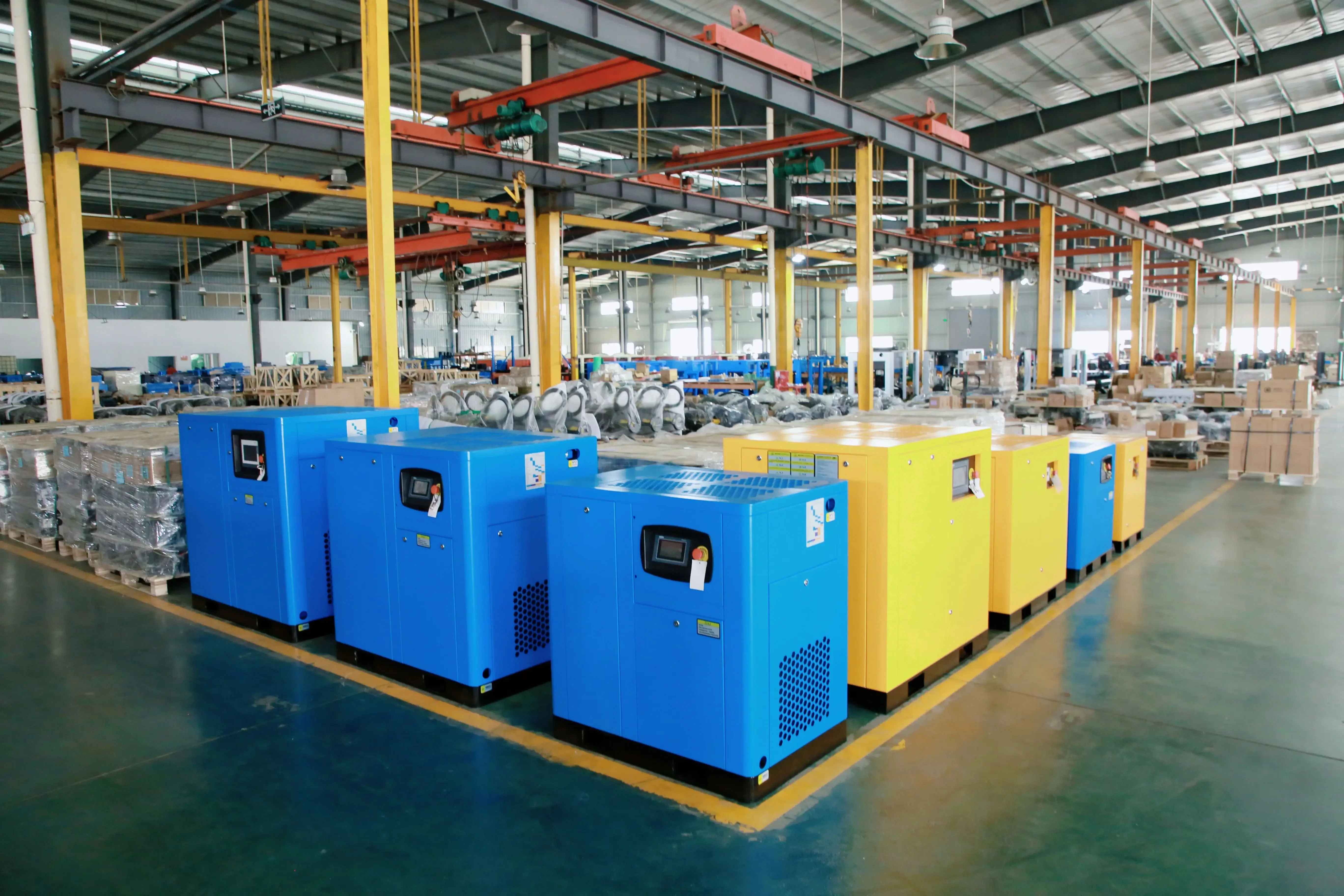

Why Choose Us

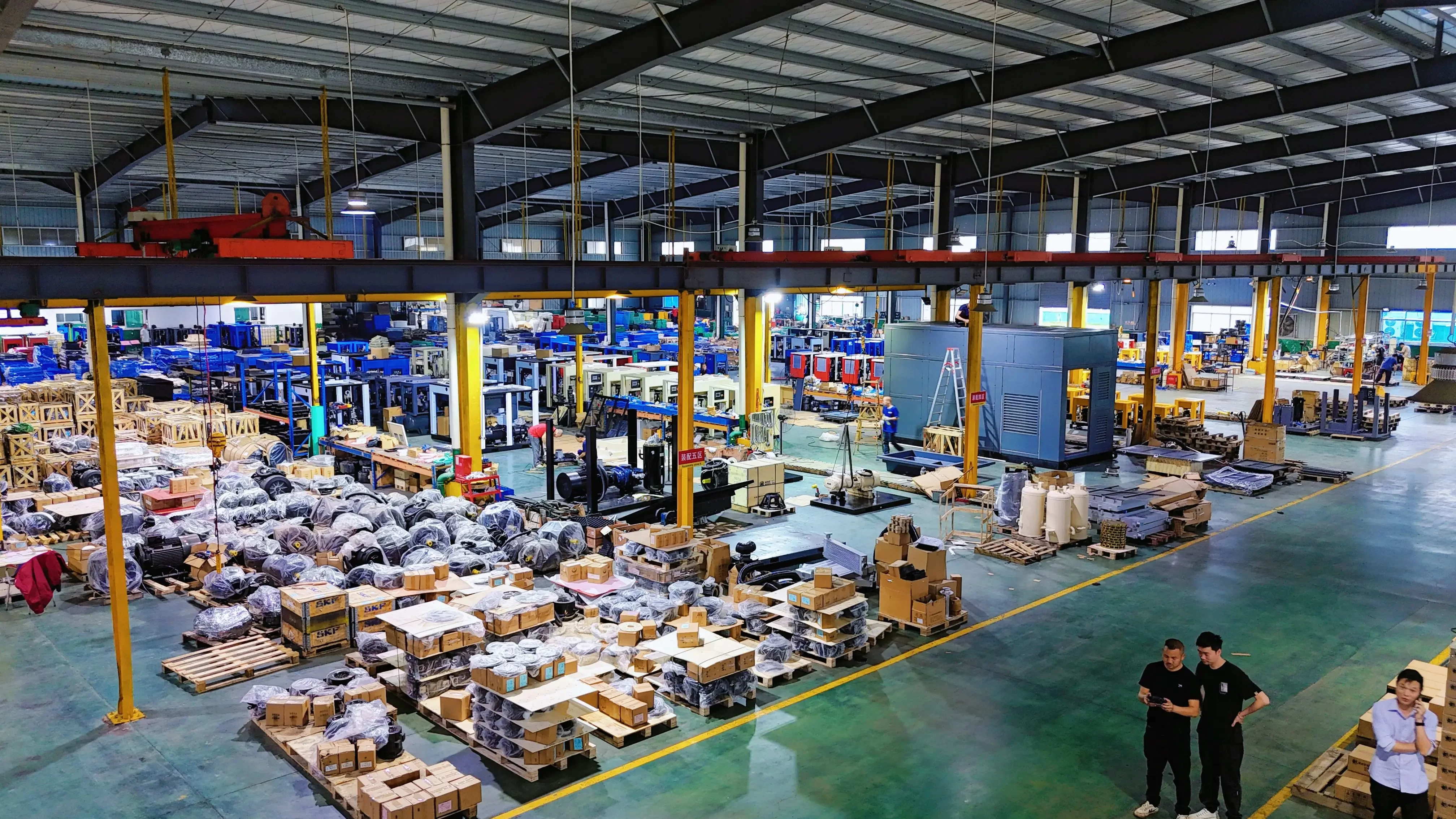

Dongguan QianWei Mechanical Equipment Technology Ltd

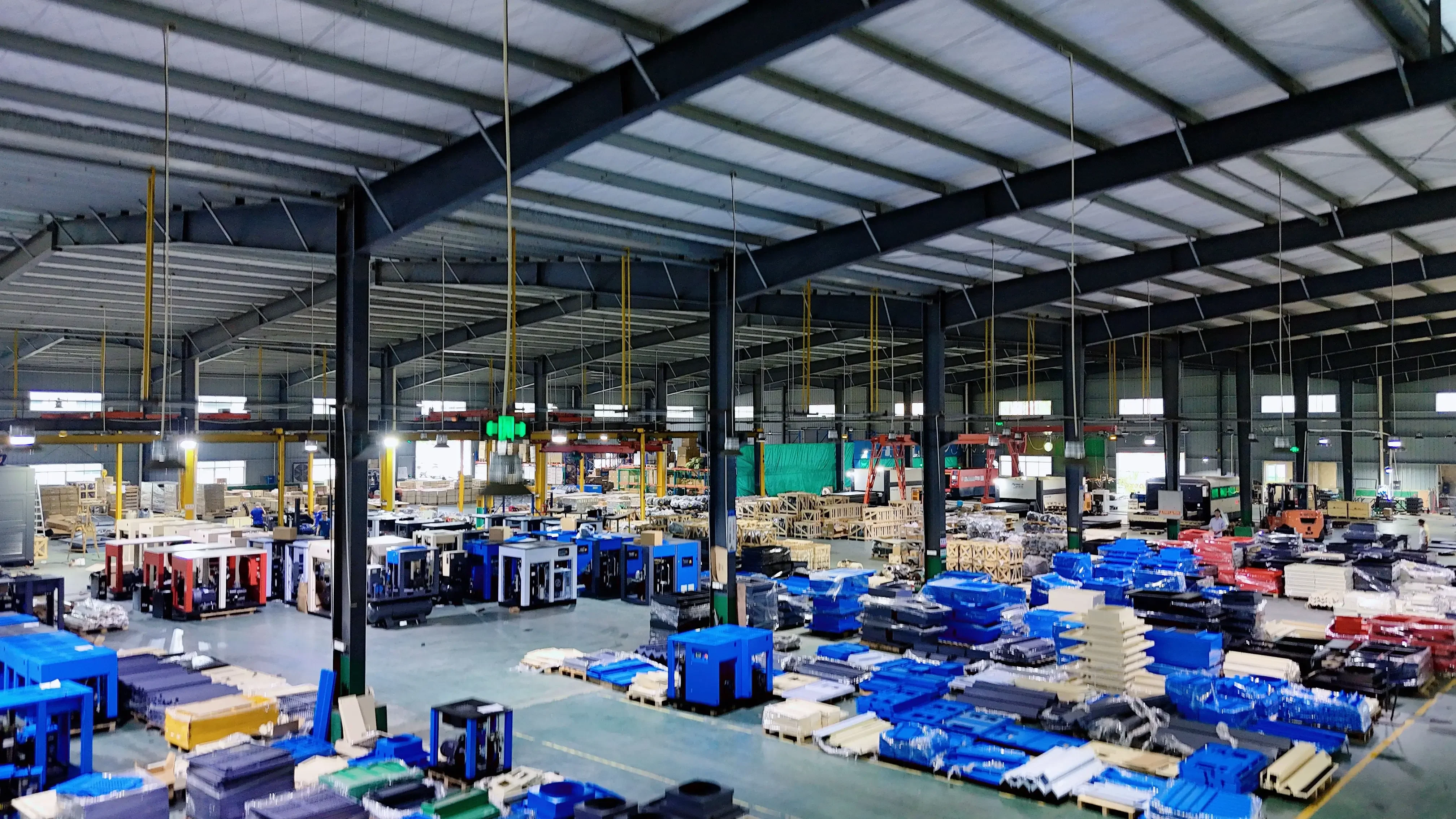

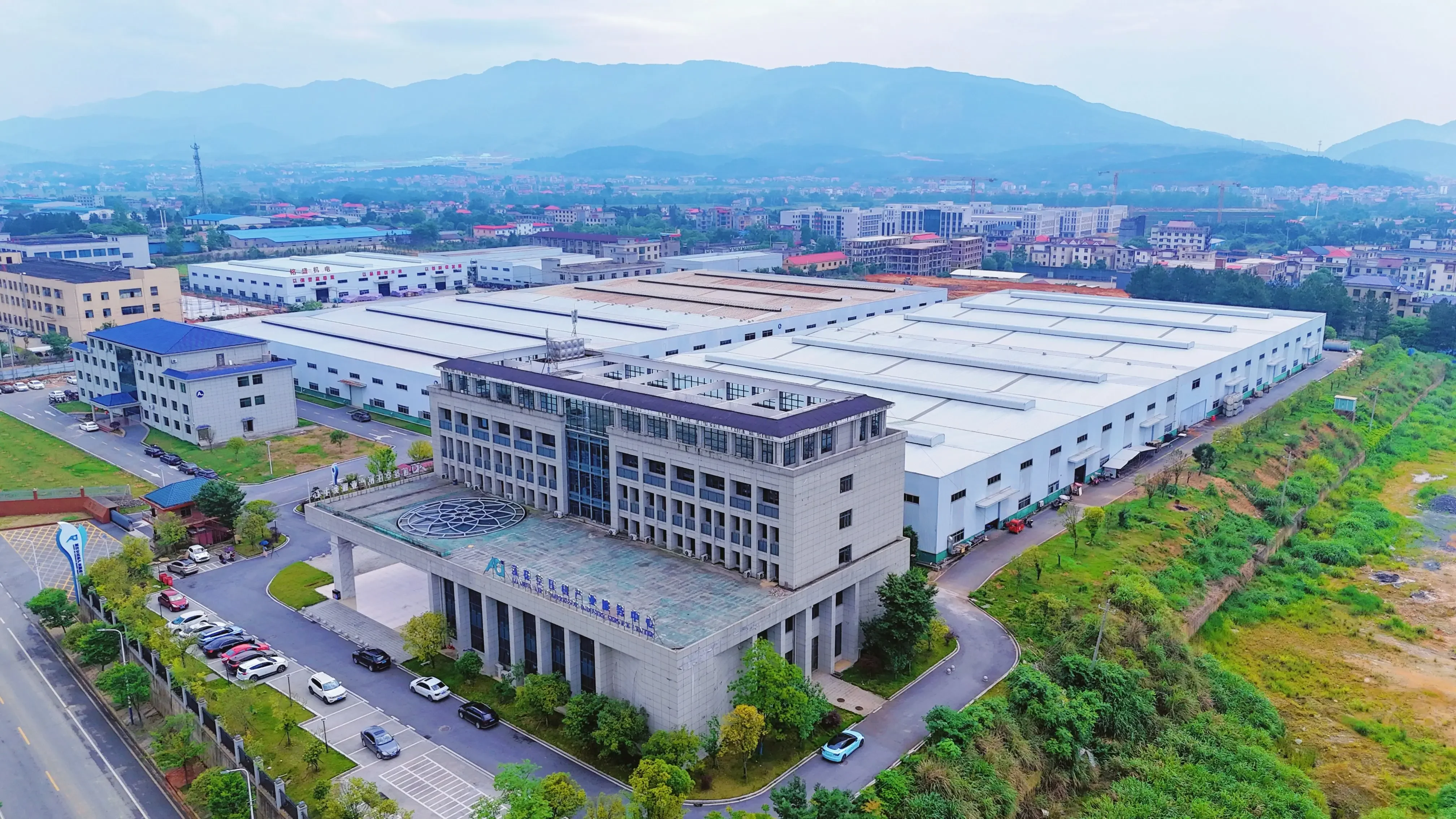

Located in B district of lianhua industrial park, pingxiang city, jiangxi province. The company was founded in May 2018, covers an area of more than 150 acres, and has a factory building of more than6,000 square meters. The company has more than 300 fixed employees, more than 50 skilled workers, and more than 40 sets of large-scale production equipment.The company has a complete equipment production system. In order to strengthen the integration of the industry, the company passed the ISO9001:2008 international quality management system verification at the end of 2018. After the company's unity, positive and facing fierce market competition, the company is relying on its own advantages to integrate external resources, optimize pioneering and innovation, and move forward in the direction of diversified business and diversified operations.The company is mainly engaged in the production of screw air compressors and spare parts. The main products are fix speed screw air compressor,variable frequency speed screw air compressor, permanent magnet variable frequency speed screw air compressor and two-stage screw air compressor. At the end of 2018, the company joined forces with famous school designers to develop integrated screw compressors. The pressure range is 0.4mpa-1.6mpa and the power is 4kw-315kw. It can be customized to meet the requirements of different climate buyers in different countries.

Q: Are you trading company or manufacturer ? A: We are factory,we been manufacturer of air compressor for more than 15 years,we can supply Fixed Speed,Variable speed,permanent magnet inverter type screw air compressor machine,two stage air compressor etc

Q: How long is your delivery time?

A: Generally it takes 15-20 days if in common condition,if in stock,it will take only 1-3days to lead

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but do not pay the cost of freight and sample cost

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
For the payment method.we can accept:T/T,LC,Xtransfer,Paypal,RMB Transfer

Q:Do you test all your 18.5kw 25hp Fixed Speed screw air compressor before delivery?

A:Yes, we have 100% test before delivery, don't worry about the screw air compressor quality.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $10200 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 380 V, 220 V, 240 V, Other. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
