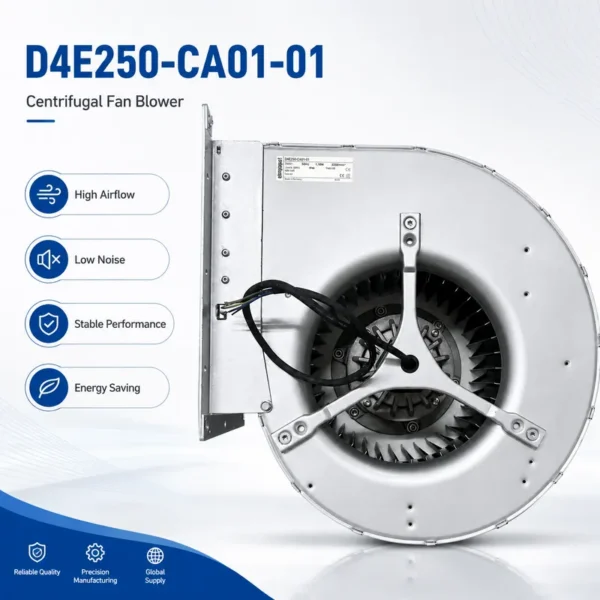

This centrifugal fan is published with the manufacturer’s full specification — 230V, material Sendzimir Galvanized Sheet Steel. Made by Guangzhou Yuexiu District Weikeheng Electronic Firm (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: D4E250-CA01-01
- Voltage: 230V
- Material: Sendzimir Galvanized Sheet Steel
- Blade Material: Sendzimir Galvanized Sheet Steel
- Impeller Material: Sendzimir galvanized sheet steell
- Housing Material: Sendzimir galvanized sheet steell
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230V |
| Motor Type | AC Motor |
| Speed | 1200-1400 RPM |
| Material | Sendzimir Galvanized Sheet Steel |
| Blade Material | Sendzimir Galvanized Sheet Steel |
| Warranty | 4 Years |
| After-Sales Service Provided | Online support |
| Customized Support | ODM |
| Place Of Origin | Germany |
| Model Number | D4E250-CA01-01 |
| Color | Silver |
| Weight | 16.88 kg |
| Size | 250 mm |
| Motor Size | 94 |
| Rotor Surface | Cast in aluminum |
| Impeller Material | Sendzimir galvanized sheet steell |
| Housing Material | Sendzimir galvanized sheet steell |
| Direction Of Rotation | Clockwise, viewed toward rotor |
| Degree Of Protection | IP20 |
| Insulation Class | "F" |
| Moisture (F)/Environmental (H) | H0 – dry environment |
| Selling Units | Single item |
| Single Package Size | 27X27X15 cm |
| Single Gross Weight | 3.15 kg |
Product Details
- Delivers powerful airflow with a minimum back pressure of 100 Pa (50Hz) / 350 Pa (60Hz), ideal for demanding ducted HVAC and industrial ventilation systems.

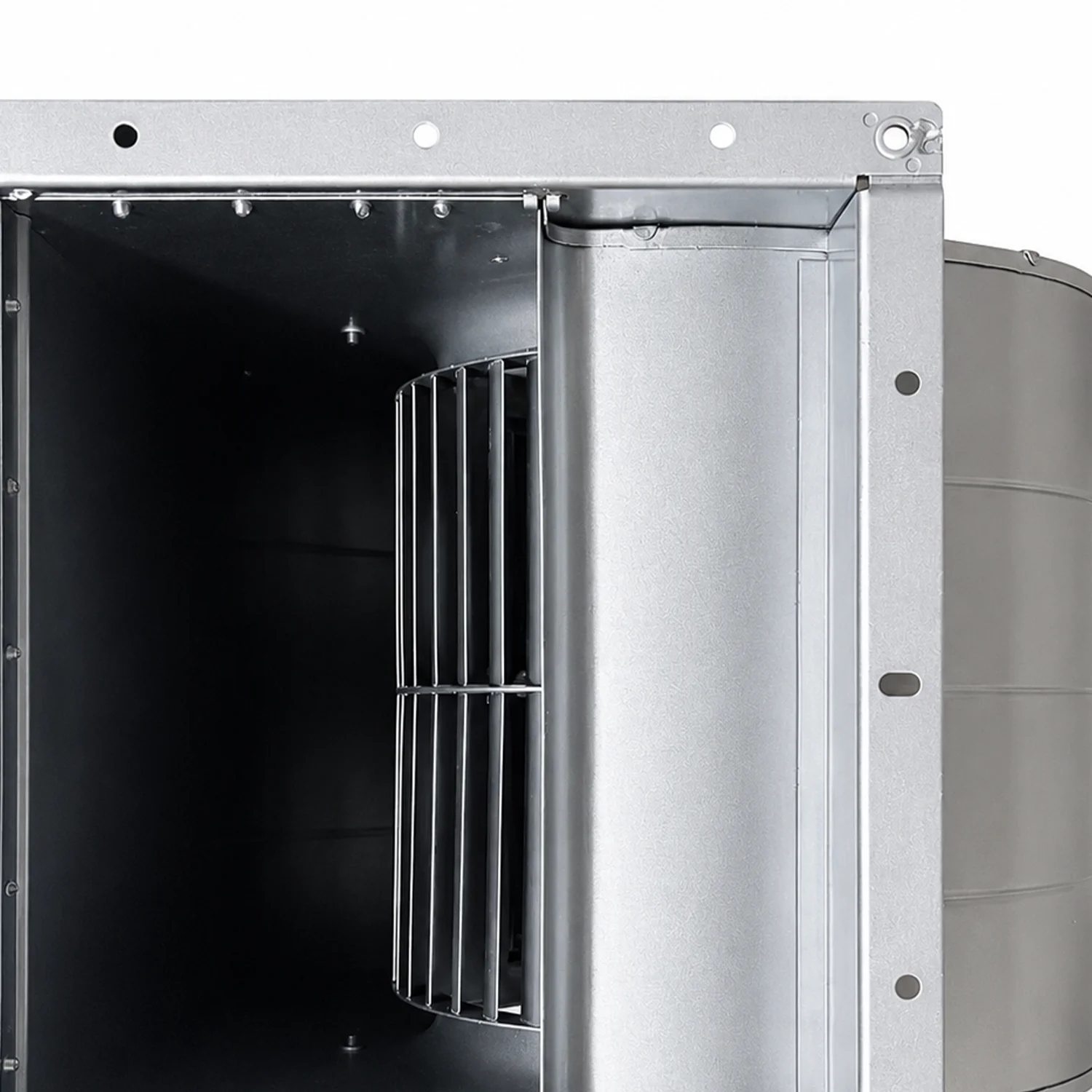

- Features forward-curved blades and a durable housing, built for reliable continuous operation in air handling units (AHUs) and commercial applications.
- Operates at 1250W (50Hz) / 1285W (60Hz) with 230VAC single-phase power, providing strong performance for large-scale cooling needs.
- Functions reliably from -40°C to +40°C, suitable for diverse environments from low-temperature setups to standard commercial use.
- Manufactured by a global leader in fan technology, ensuring long service life, low maintenance, and CE compliance for safety and performance.

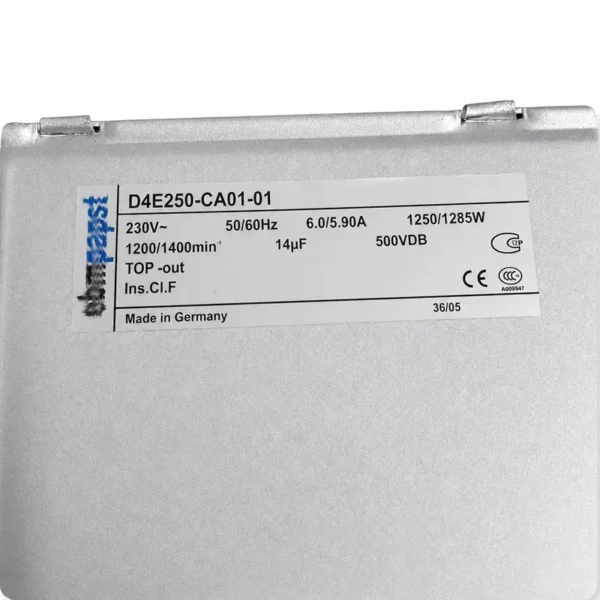

Parameter | 50/60 Hz |
Model | D4E250-CA01-01 |
Motor Type | M4E094-LA, Single-Phase AC |
Nominal Voltage | 230 VAC |
Frequency | 60 Hz |
Power Consumption | 1285 W |
Current Draw | 5.9 A |
Speed | 1400 RPM |
Capacitor | 500 VDB |
Min. Back Pressure | 350 Pa / 1.41 in.wg |
Ambient Temperature Range | -40°C to +40°C |
Place of Origin | Germany / Made in China |
Application | Industrial ventilation, air handling units, HVAC systems, and high-static-pressure cooling applications |
Our products are widely applied in HVAC, air purification, industrial equipment, transportation and general ventilation fields. They serve central air conditioning units, fresh air ventilators, fan coil units and air curtains for commercial and residential buildings, and power FFUs and air purifiers in hospitals, laboratories and cleanrooms. They also support industrial dehumidifiers, drying equipment, electrical cooling systems and HVAC terminal units. Additionally, the fans work reliably for rail transit and coach air conditioners, as well as ventilation and exhaust for kitchens, cold storage and other venues. |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $340 / piece
- 20–79 piece: US $330 / piece
- 80+ piece: US $320 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 4 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Yuexiu District Weikeheng Electronic Firm, based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Guangzhou Yuexiu District Weikeheng Electronic Firm range on HVACR Nexus.
