Key specification for this centrifugal fan: 400 V, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Shanghai Lianxing Electronic Technology Co., Ltd. (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

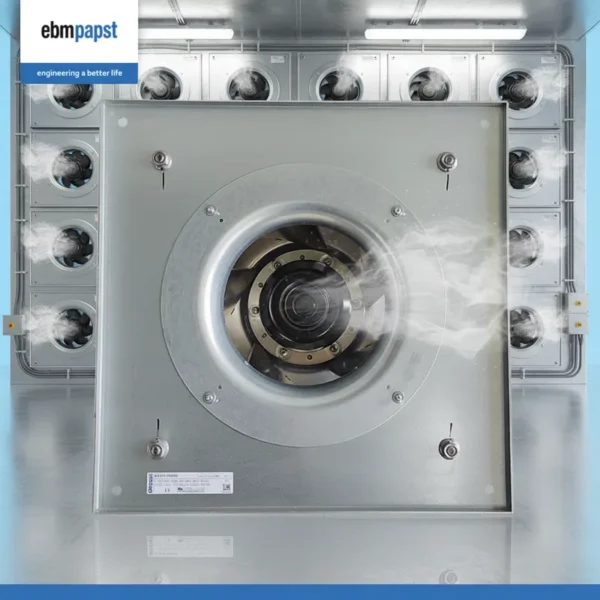

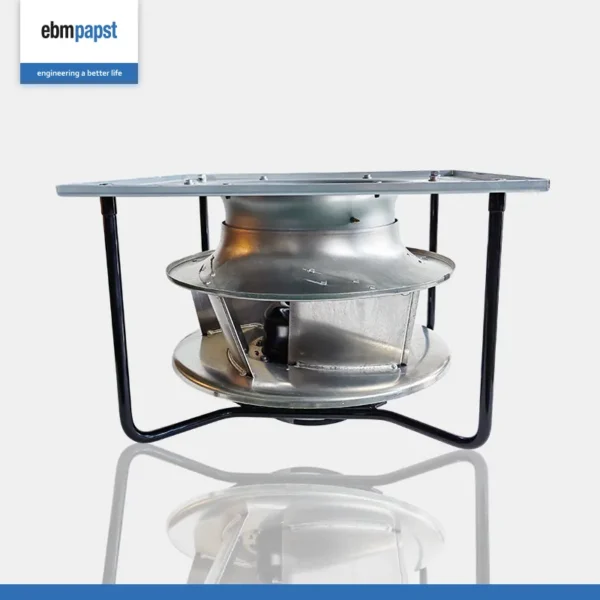

Key Features of This Centrifugal Fan
- Model Number: K3G560-PC04-01/F01
- Power Source Type: Corded Electric
- Voltage: 400 V
- Material: Aluminum
- Blade Material: aluminum
- Impeller Material: Sheet aluminum
Technical Specifications
| Duct Diameter | 560MM(22.05in) |
|---|---|
| Mounting | Free Standing |
| Voltage | 400 V |
| Motor Type | EC MOTOR |
| Speed | 1760rpm |
| Material | Aluminum |
| Blade Material | aluminum |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| Place Of Origin | Germany |
| Brand Name | ebmpapst |
| Model Number | K3G560-PC04-01/F01 |
| Color | Silver |
| Motor | M3G150-NA |
| Weight | 68 kg |
| Impeller Material | Sheet aluminum |
| Number Of Blades | 5 |
| Degree Of Protection | IP55 |
| Insulation Class | F |
| Moisture (F) / Environmental (H) | H1 |
| Motor Mounting | Ball bearing |
| Approval | UL 1004-7 + 60730; CSA C22.2 No. 77 + CAN/CSA-E60730-1; EAC |

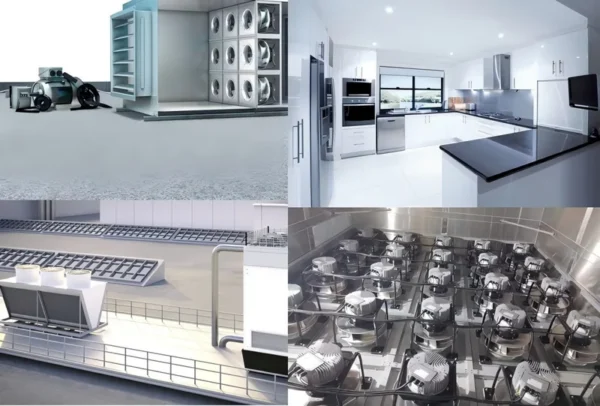

| Applicable Industries | HVAC |
| Selling Units | Single item |
| Single Package Size | 85X62X57 cm |
| Single Gross Weight | 80.0 kg |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $1754.5 / piece
- 10–99 piece: US $1595 / piece
- 100+ piece: US $1160.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with UL 1004-7 + 60730; CSA C22.2 No. 77 + CAN/CSA-E60730-1; EAC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 400 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Lianxing Electronic Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Lianxing Electronic Technology Co., Ltd. range on HVACR Nexus.
