Centrifugal Fan, Steel, Stainless, Stainless Steel

This centrifugal fan is published with the manufacturer’s full specification — power 0.75-200kw, material Stainless Steel. Made by Dongguan Jufu Ventilation Equipment Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Power: 0.75-200kw
• Material: Stainless Steel
• Warranty: 1 year
• Place Of Origin: Guangdong, China
• Type: Centrifugal fan impeller
• Size: Customizable

Technical Specifications

Product Details

Products Description

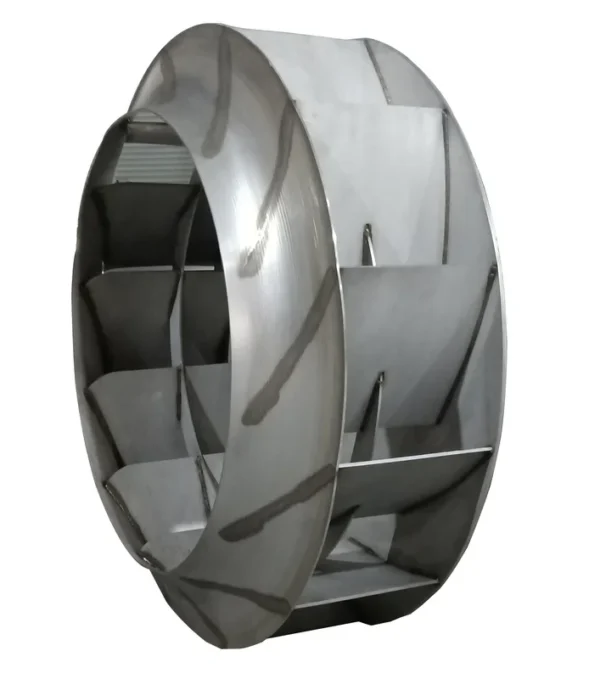

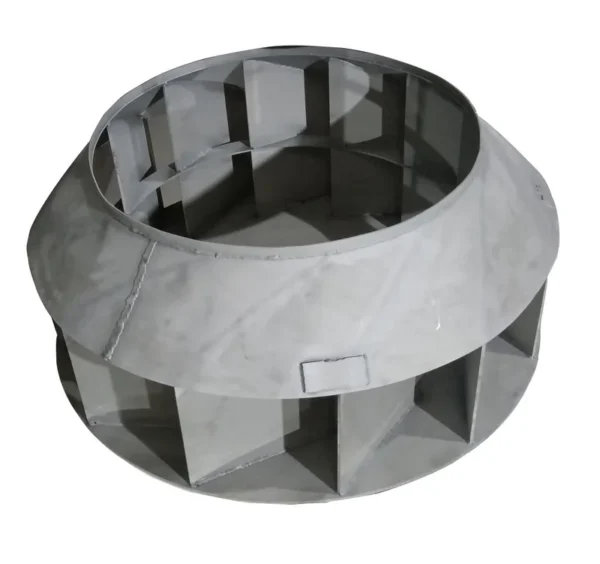

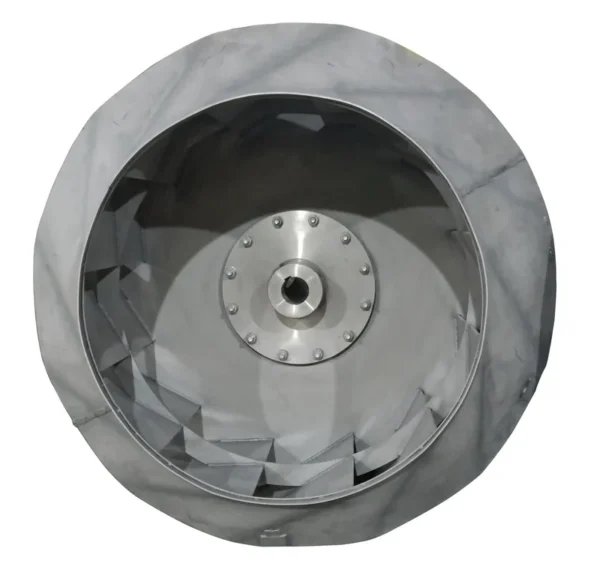

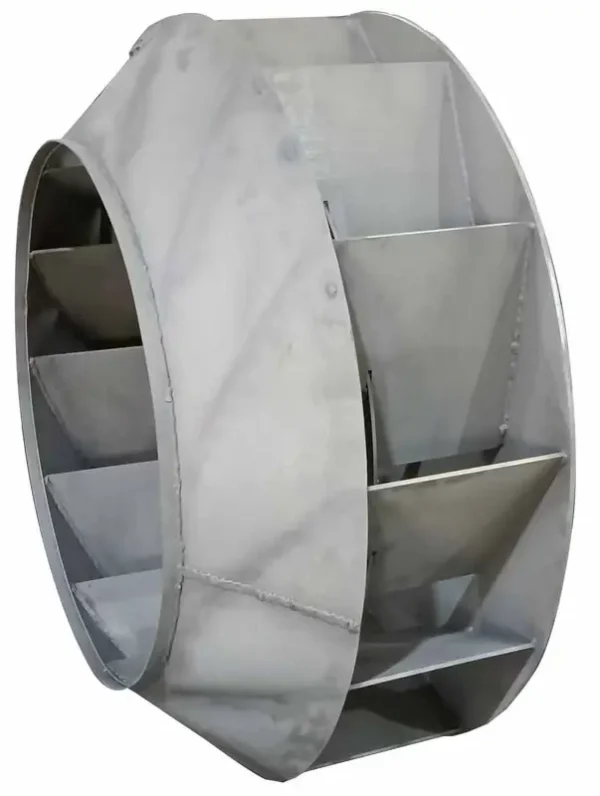

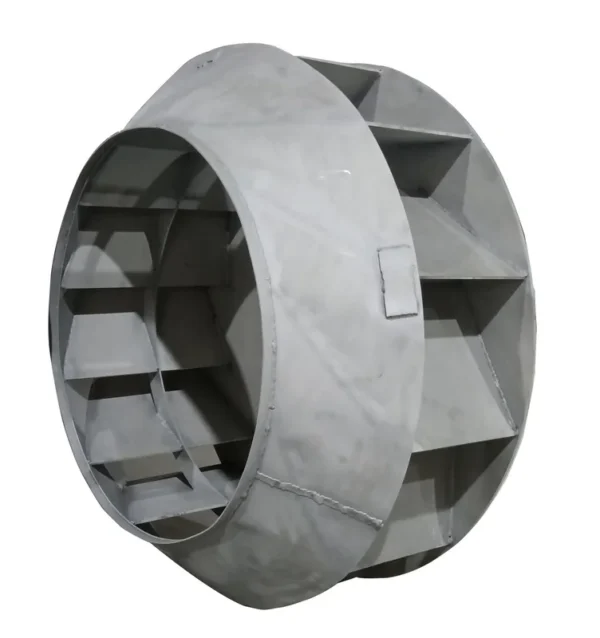

Carbon Steel Stainless Steel Forward Curved Centrifugal Fan Impeller

Applications of Fans/Blowers
Exhaust gas extraction from paint booth/painting line Food drying equipment (coffee, cocoa, grains)
VOC treatment system (washing tower, activated carbon, zeolite impeller front and rear sections) Ventilation pharmaceutical workshop Electroplating workshop, acid pickling line exhaust Clean room air supply Ventilation of chemical plant reaction kettle New energy coating machine oven hot air circulation Pharmaceutical factory exhaust system Clean air supply for electronic factories Exhaust of humid and hot gases in food factories Cosmetics production line
Gas transportation:
VOC organic waste gas (painting, coating, printing)
Acidic gases (such as: HCl, SO2, NOx at low concentrations)
Alkaline gas (ventilation in ammonia environment)
Chemical waste gas
Damp and foggy exhaust gas
High-temperature but corrosive hot gas (requires a structure that can withstand high temperatures)

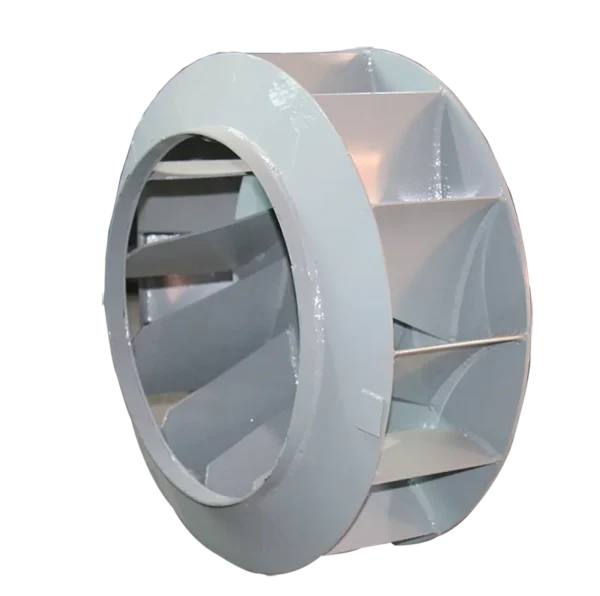

Backward Centrifugal Fan
Material is option:Mile steel with powder caoting,201#,304#,316#,316L#,Stainless steel,Aluminum alloy.
Rpm:1450/2900
Size:280mm~1400mm
All wheels will be test by dynastic balance.

Fan Hosing
Material is option as below:
201#,304#,316#,316#,stainless steel,Mile steel with powder caoted

Air inlet
The inlet is designed in line with aerodynamics,which is streamlined for better airflow movement and efficiency,reducing
turbulence and sound.

Motor
Type: Regular Type or Explosion-proof Type
Specification: 220V/380V/415V/480V, 50Hz/60Hz
Drive method: Direct drive
Protection level: IP44, IP54, IP55
Insulation class: B class, F class, H class
Power: 0.55 – 110 kilowatts
Brand: TECO, Siemens, ABB / Other imported brands
Bearings: SKF/NSK
Belt: Samsung
Shell: Laser edge welding
Impeller/wind wheel: Laser edge welding;
Surface treatment: Baking varnish;
Shock absorber: Spring series

Air outlet & Fan angle
Fan angle is adjustable according to customer need

Application scenarios

Product Paramenters

model	speed	Air volume			Static Pressure			Total Pressure			Power
		r/ min	m³/H	m³/ min	Pa	mmAq	Pa	mmAq	KW
3C	1450	2655	44	442	45	520	53	0.75
				2850	48	432	44		508	52
				3200	53	405	41		476	49
3.8C	1450	3368	56	498	51	586	60	1.5
				3890	65	470	48		553	56
				5408	90	452	46		532	54
4.5C	1450	7856	131	586	60	689	70	2.2
				8560	143	568	58		668	68
				9688	161	540	55		635	65
		1595	9876	165	663	68	780	80	3.7
				10000	167	650	66	765		78
				10800	180	621	63	730		74
5C	1450	10900	182	731	75	860	88	3.7
				11300	188	737	75		867	88
				12800	213	706	72		830	85
		1740	13280	221	795	81	935	95	5.5
				15660	261	775	79	912		93
				16000	267	762	78	897		92
6C	1329	15850	264	848	87	998	102	5.5
				16558	276	833	85		980	100
				17860	298	775	79		912	93
		1450	18000	300	1003	102	1180	120	7.5
				18560	309	935	95	1100		112
				19860	331	918	94	1080		110

Company profile

                   Dongguan Jufu Ventilation Equipment Co., Ltd

Guangdong Jufu Fan is an enterprise full of vitality, potential and strength.Located in Dongguan, China, the factory area of 12,000 square meters. It is an industrial and trade factory with a powerful executive team and innovation research and development center. It has more than 20 product patents, obtained ISO and CE certification and other system certifications, and won the title of top ten supplier in the surface treatment and coating industry. The factory takes the lead in enteringIndustry 4.0,standardized large-scale production, with optical advanced fiber laser cutting machine. The air inlet and blade mold of the fan are integrally formed, two high-precision dynamic balancing machines. The factory has advanced test platformand testing equipment,powder spraying coating process. And the product series are complete for customers to choose.

The company has been committed to the research,development, production,sales, and inteligent manufacturing of high-endhumanized fans for a long time, and many types offans have achieved high efficiency and low noise.Fans are widely used in new energy equipment,coating machine industry,coating industry,environmental protection industry, kiln industry. ventilation industry,etc. The service customers include CATL, BYD, Keheng Group, Gree Air Conditioner, Midea Air Conditioner,Foxconn Group, Sany Heavy Industry, Lvyuan Electric Vehicle, Yadi Electric Vehicle,etc.The products have been exported to Furope, America,Southeast Asia for a long time, and have won unanimous praise!It is our eternal business principle to build abrand with heart, create value with quality and serve every customer well! Welcome to Jufu Fan!

Production procedure

Workshop production

Workshop production

Certifications

Cooperative customer

Packing and shipping

FAQ Q1:Are you a fan manufacturer?
A1:Yes, we have 12 years of experience in the production of fans

Q2:What is the MOQ of your company
A2:The minimum order quantity of our company's fan is one

Q3:Does your company support personalized customization
A3.Yes, as long as you provide us with relevant data,we can produce according to your requirements

Q4:Does your company have after-sales service
A4:Our company has a one-year warranty period, and we have a perfect after-sales team to provide you withcorresponding technical support

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–24 set: US $550 / set
  • 25+ set: US $500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
