Key specification for this chiller: 380v/3phase/50hz, cooling capacity 2.5-5.2. Everything below is reproduced from the factory data sheet. Made by Shenzhen Solarshine Renewable Energy Technology Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Chiller
- Power: 750 W
- Input Power(KW): 0.85-1.7
- Power (Output): 5KW
- Voltage: 380v/3phase/50hz
- Cooling Capacity(KW): 2.5-5.2
- Warranty: 2 Years
Technical Specifications
| Voltage | 380v/3phase/50hz |
|---|---|
| Power | 750 W |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Core Components | Motor, compressor, evaporator, condenser |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 50 |
| Brand Name | SolarShine/OEM |
| Rated Water Temperature | 15℃ |
| Cooling Capacity(KW) | 2.5-5.2 |
| Input Power(KW) | 0.85-1.7 |
| Noise(DB) | 60 |
| Garment Shops | Hotels farms home office factory |
| Working Temperature | 5-50℃ |
| Condition | New |
| Showroom Location | Oman |
| MOQ | 2pcs |
| Power (Output) | 5KW |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

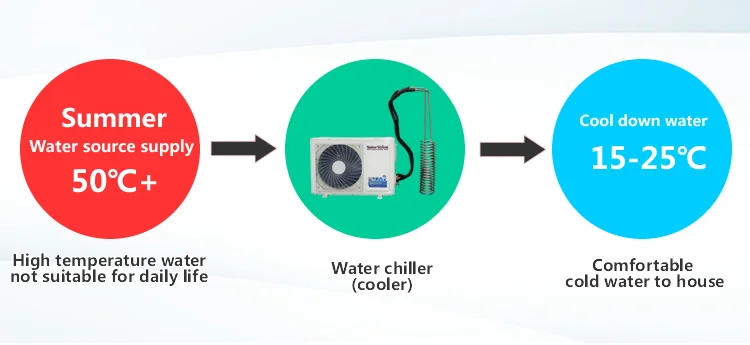

In mid-east or many other countries in tropical regions where the average outdoor temperature in summer can exceed 50 ℃, under this very hot summer season, city water source supply is also very high and often exceeds 45 ℃ or even 50℃+, high temperature water sources bring very big inconvenience to people's daily lives. Therefore, in these types of countries, it is necessary and important to cool water temperature.
SolarShine KC-F series chiller is designed specifically for high-temperature tropical countries. It can reduce water temperature from 50 ℃+ to 15-30 ℃ even under summer high ambient temperature conditions, cooled down water making will suitable for daily life of people. KC-F series chiller (cooler) has great advantages of stable and reliable operation, high efficiency, and fast cooling speed, can be widely used in tropical regions.

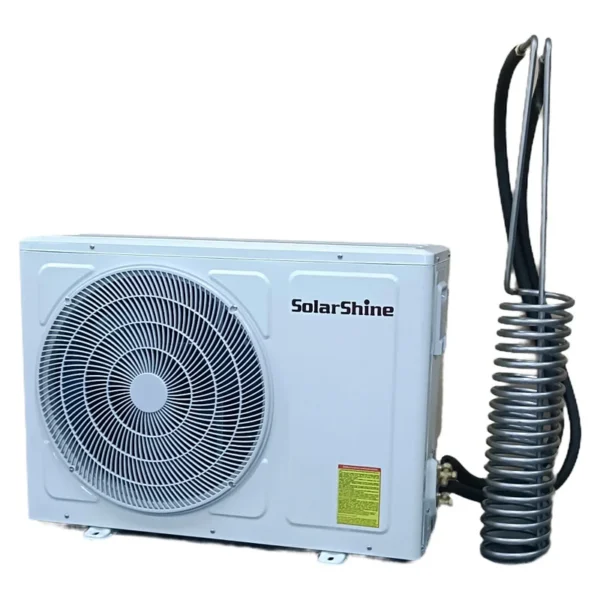

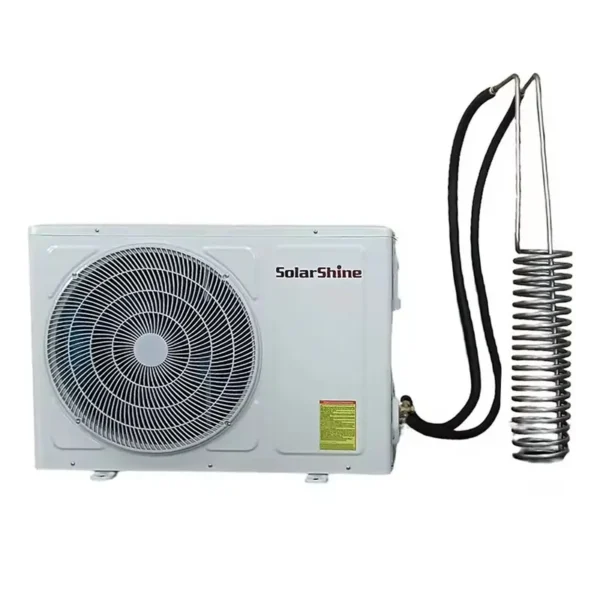

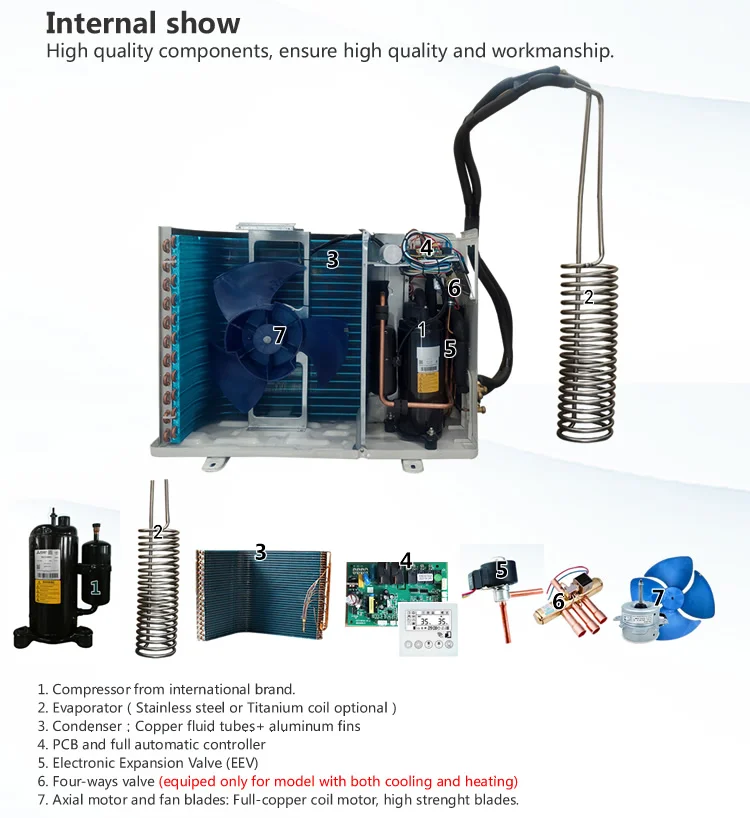

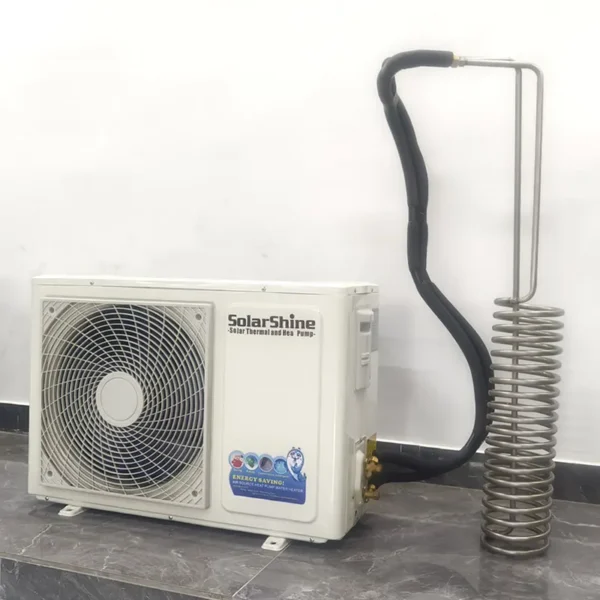

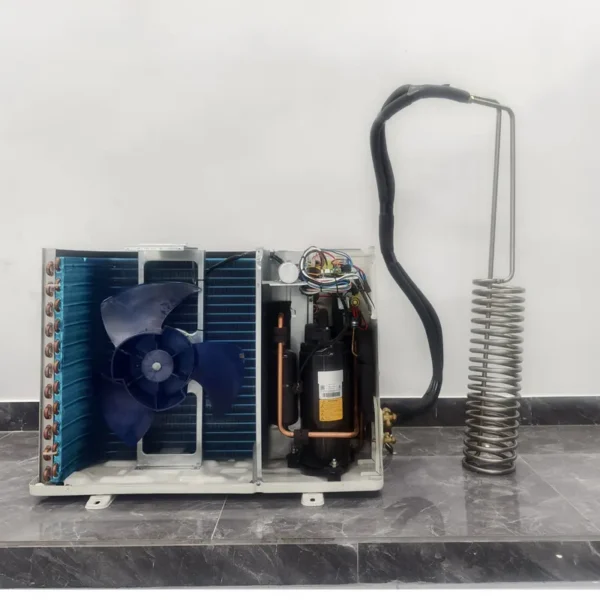

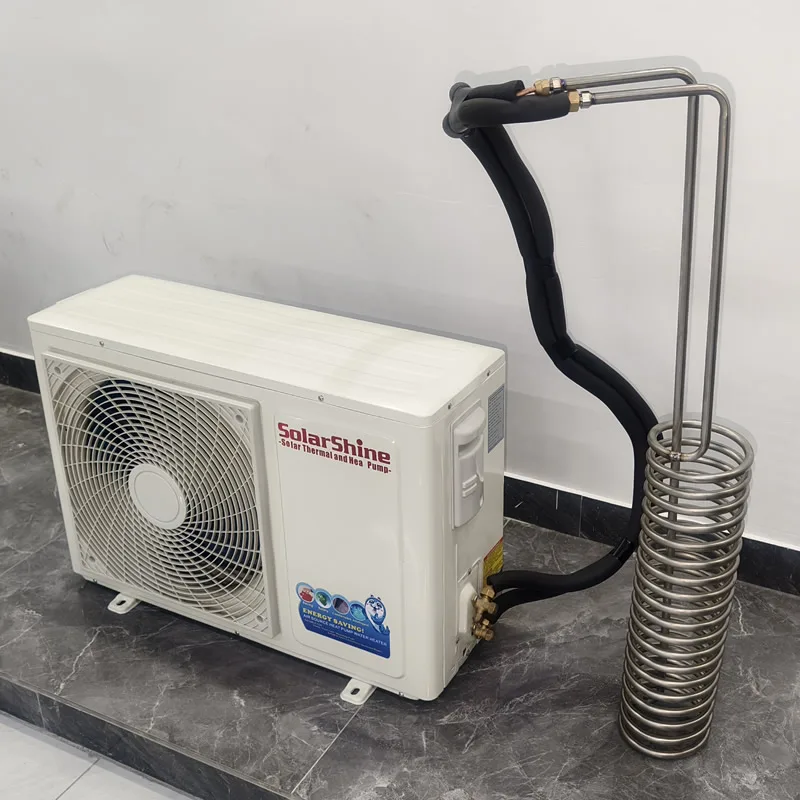

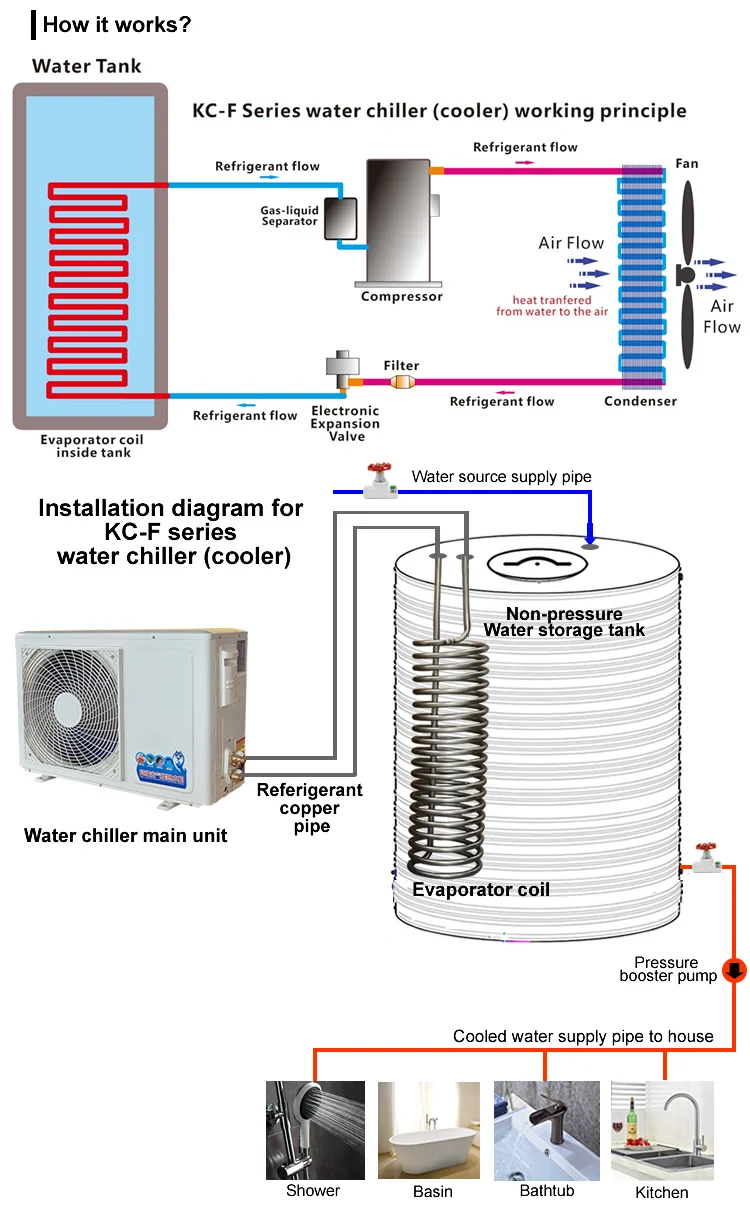

This series of units is equipped with one main unit and one set of evaporator coils placed inside a water storage tank. There are two options for evaporator coils: stainless steel and titanium. For those areas with good water quality and no risk of corrosion, stainless
steel evaporator coils can be chosen. For areas with poor water quality, containing salt, high chloride ion or corrosive components, titanium coils will be the best option.

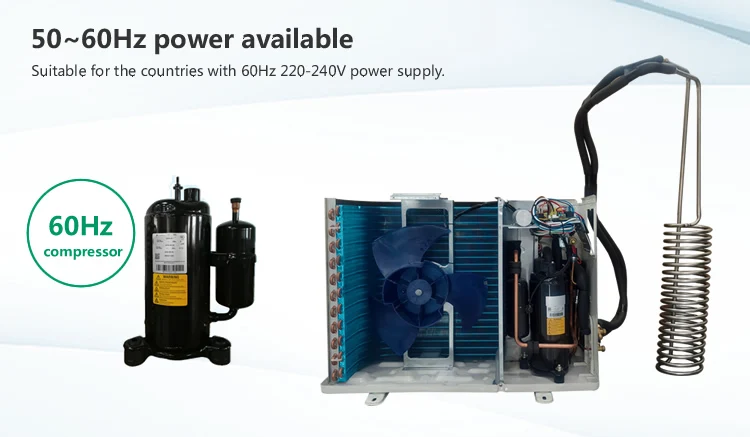

The power supply of this series of chillers is suitable for 50Hz/60Hz, which is applicable in most countries. The power range of the unit can be selected as 1HP, 1.5HP, and 2HP, which can meet different usage range of most households.
| KC-F Series water cooler for house (chiller) | ||||
| Model | Measure- ment | KS-C-1.0 | KS-C-1.5 | KS-C-2.0 |
| Nominal power | HP | 1 | 1.5 | 2 |
| Input Power | KW | 0.85 | 1.25 | 1.7 |
| Nominal cooling capacity* | KW | 2.57 | 3.83 | 5.20 |
| Cooling COP-1* | W/W | 3.02 | 3.06 | 3.06 |
| Cooling capacity-2* | KW | 2.13 | 3.20 | 4.40 |
| Cooling COP-2* | W/W | 2.5 | 2.56 | 2.59 |
| Rated/low water tem. | / | 25℃/10℃ | ||
| Power supply | / | AC220V~240V/50Hz~60Hz | ||
| Working currency | A | 3.9 | 5.7 | 7.7 |
| Max input power | / | 1.03 | 1.51 | 2.06 |
| Max currency | A | 4.68 | 6.88 | 9.35 |
| Evaporator coil *external | dia*lenght | Φ12.7mm * 6 meters | Φ12.7mm * 8 meters | Φ12.7mm * 10 meters |
| Evaporator material (2 types optional) | Stainless steel / Titanium (Customer choose coil type according to water source condition) | |||
| Condenser | / | Copper tube+Aluminum fins high efficiency condenser | ||

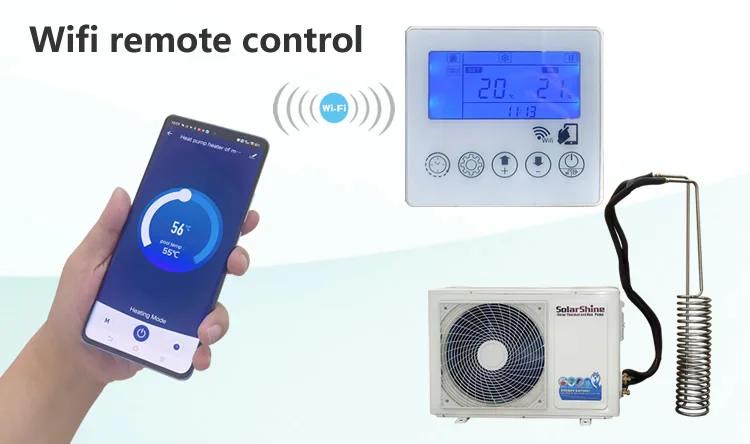

| Controller | / | Smart control system with wifi network connection | ||
| Fan motor power | W | 30 | 30 | 40 |
| Fan direction | / | Front | Front | Front |
| Refrigerant | / | R410a | R410a | R410a |
| Machine Ext. Size (L/W/H) | MM | 780*260*540 | 780*260*540 | 840*285*615 |
| Packing size (L/W/H) | MM | 900*350*630 | 900*350*630 | 960*365*700 |
| Net. Weight | KG | 35 | 44 | 50 |
| *Remarks: cooled water temperature from 45-25℃
cooled water temperature from 45-15℃ | ||||
About us:

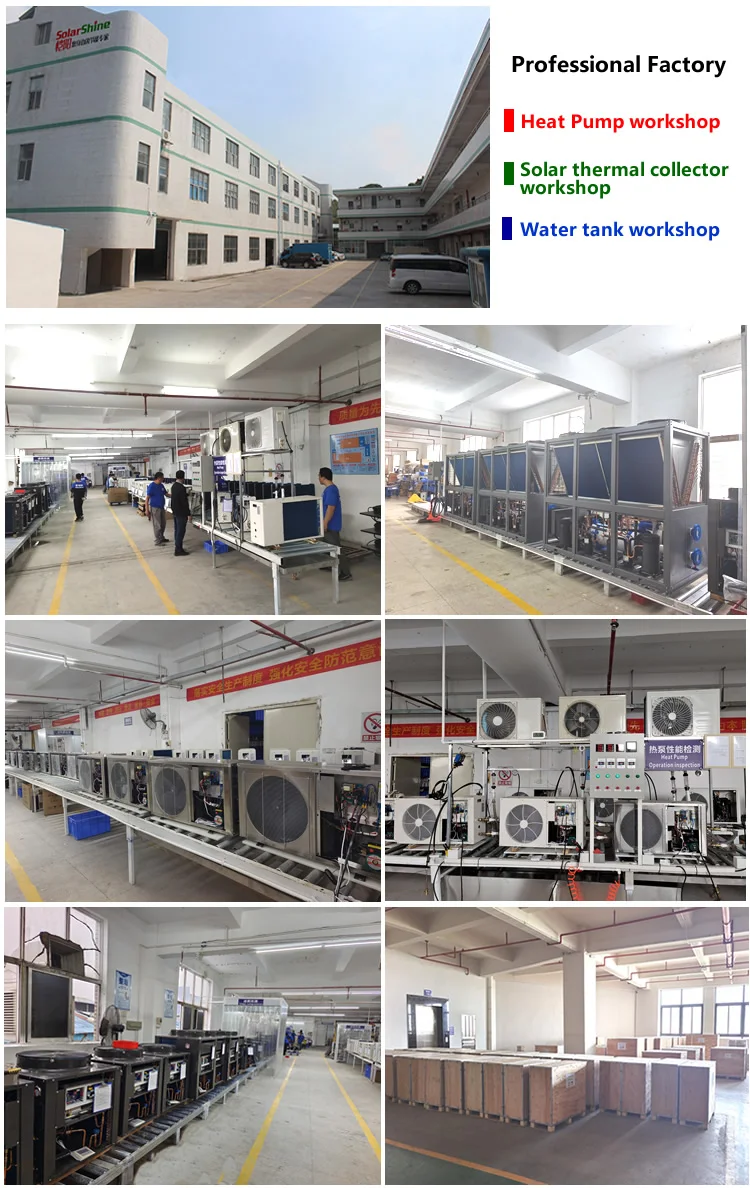

SolarShine was established in 2006, which is an expert manufacturer of solar thermal and heat pump products base on renewable energy areas. we have been keeping supply professional and high quality products, professional services for our customers from more than 30 countries and regions.
Our main productions covering:
*Domestic, swimming pool and commercial heat pump water heater
(Air source / water source and geothermal source)
* Domestic and industry water chiller (cooler)
* Solar thermal collectors and solar water heater
* Hot water storage tank, buffer tank.
Our certificates:
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–9 set: US $500 / set
- 10–49 set: US $450 / set
- 50+ set: US $400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the chiller be supplied for my local voltage?
The standard configuration is 380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
