Key specification for this chiller: voltage 3PH 380V~415V 50HZ/60HZ, power 41.34. Everything below is reproduced from the factory data sheet. Made by Shenzhen Hero-Tech Refrigeration Equipment Co., Ltd. (10 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Chiller
- Power: 41.34
- Voltage: 3PH 380V~415V 50HZ/60HZ
- Refrigerant: R22/R407C
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: extruder & injection machine
Technical Specifications
| Voltage | 3PH 380V~415V 50HZ/60HZ |
|---|---|
| Power | 41.34 |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Core Components | Pump, Compressor, Condenser, Evaporator |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1320 |
| Brand Name | HERO-TECH |
| Dimension(L*W*H) | 2450*1800*2060 |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Refrigerant | R22/R407C |
| Compressor Type | Hermetic-scroll |
| Condenser | Aluminum Finned coil+low noise axil fan |
| Evaporator | Shell & tube |
| Application | extruder & injection machine |
| Marketing Type | Ordinary Product |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

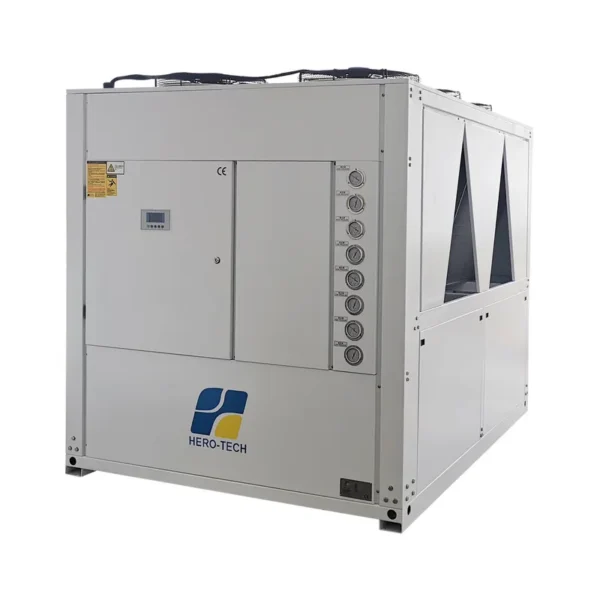

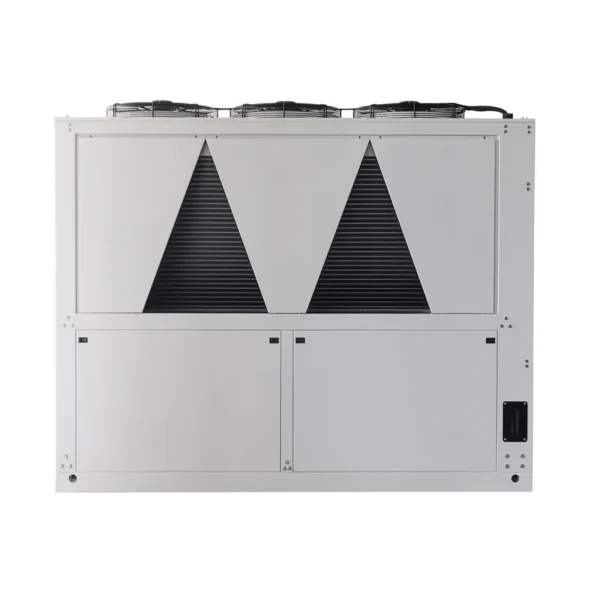

HTI-A series industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve t he production efficiency.They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food &Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating,Construction
Model | HTI-50AF | ||||
Nominal Cooling Capacity@7℃ | Kcal/h | 109220 | |||
KW | 127 | ||||
Nominal Cooling Capacity@12℃ | Kcal/h | 129000 | |||
KW | 150 | ||||
Max Power Consumption | KW | 41.34 | |||
Power Source | 3PH 380V/50HZ (3PH 220V/380V/440V 60HZ) | ||||
Refrigerant | Type | R22/R407C | |||
Control | Thermostatic expansion valve | ||||
Compressor | Type | Hermetic Scroll | |||
Max Power | KW | 8.76*4 | |||
Condenser | Type | finned copper tube + low noise axial fan | |||
Fan Motor | KW | 0.55*6 | |||
Air Volume | m3/h | 50000 | |||
Evaporator | Type | Shell and tube+SS tank or SS coil in SS tank | |||
Coolant Flow | m3/h | 21.9 | |||
Tank Volume | Litre | 400/580 | |||
Inlet and Outlet | Inch | 3 | |||
Pump | Power | KW | 3.7 | ||
Head | m | 20 | |||
Unit Protection Modules | Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Flow switch, Tank Level switch, phase protection, anti-freezing protection | ||||
Dimension | Length | mm | 2450 | ||
Width | mm | 1800 | |||
Height | mm | 2060 | |||
Weight | KG | 1320 | |||
* Chilled water supply/return temperature: 12℃/17℃
* Cooling air inlet/outlet temperature: 30℃/38℃
* Condensing temperature 45℃, evaporating temperature 7℃;
* Chiller should be used under max 40℃ ambient temperature.
* R407C, R410A, R134A for option.
We reserve the right to modify the specifications without further notice.
Main Features
Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life;
adopted aluminum fin/copper tube type condenser, easy for cleaning and installation;
5C to 35C optional temperature range;
R22 charged, CFC free type R407C, R410A for option, R134A, r404A for special condition, high cooling efficiency;
Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature;
Microcomputer control system offering accurate temperature stability within ±1℃;
Low noise and big volume air blower;
Standard equipped Iron pump, stainless steel or high lift pump for option;
Multi-protection devices ensure the chiller unit running safely;
The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Suitable for various industries | ||||||||
We are based in Guangdong, China, start from 2010,sell to Domestic Market(30.00%),Southeast Asia(22.00%),South America(7.00%),Mid
East(7.00%),South Asia(6.00%),Africa(6.00%),Eastern Asia(4.00%),North America(4.00%),Western Europe(3.00%),Eastern
Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%). There are total about 51-100
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Industrial Chiller,Screw Chiller,Glycol Chiller,Laser Chiller,Heating And Cooling Chiller
4. why should you buy from us not from other suppliers?
23 years R&D experience; 12 years Manufacture experience; Original branded refrigeration and electrical components; 12 to 24
months warranty according to differenct prodcuts; Exported to 78 countreis, and have partners in different countries and areas.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,French
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $23400 / set
- 10+ set: US $11700 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the chiller be supplied for my local voltage?
The standard configuration is 3PH 380V~415V 50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
