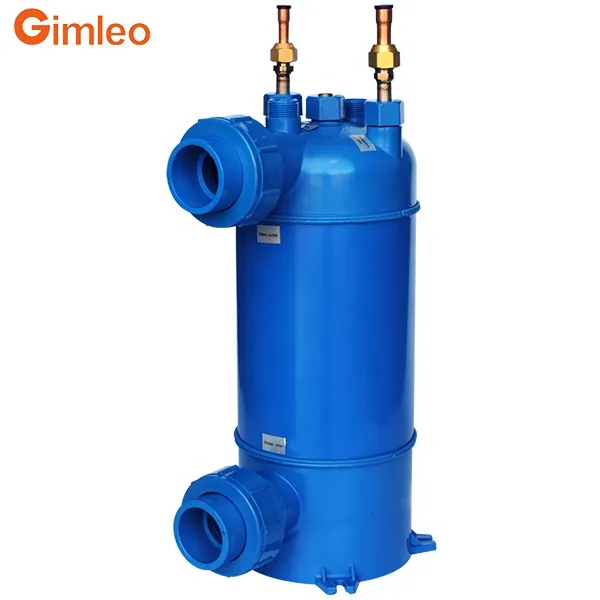

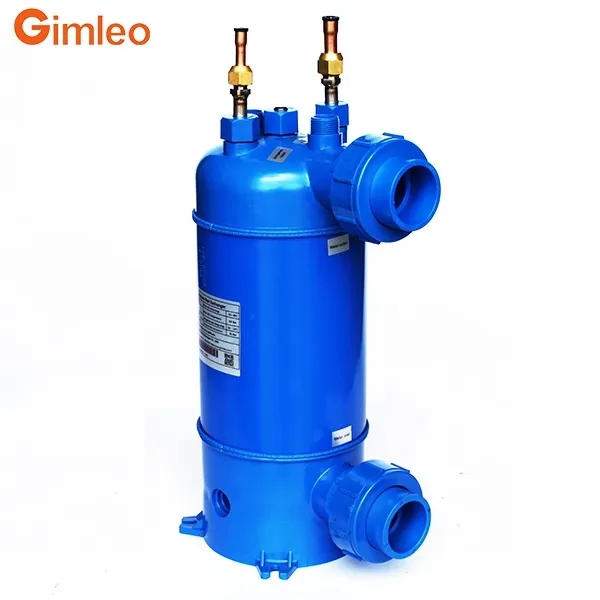

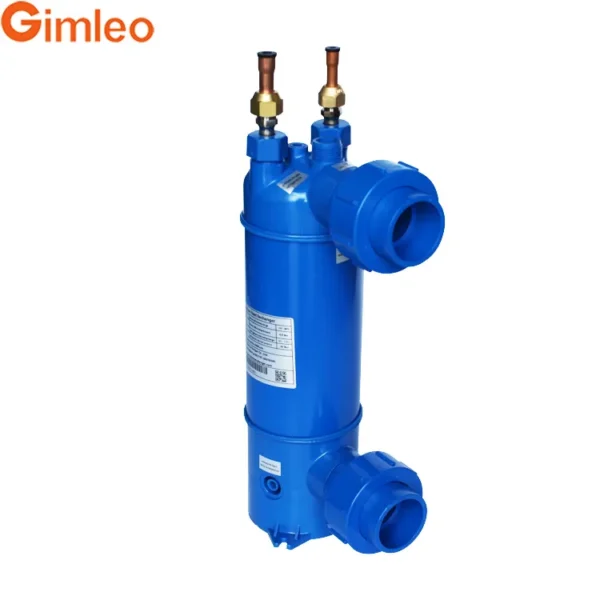

Compact spiral titanium coil — voltage OEM, 5KW(17000BTU). The complete factory specification follows. Made by Foshan Shunde Gimleo Heat Exchanger Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Compact Spiral Titanium Coil
- Voltage: OEM
- Heating Capacity: 5KW(17000BTU)
- Material: titanium
- Shell Material: PVC
- Tube Material: Threaded Titanium Tube
- Refrigerant Inlet: 12.7mm
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Material | titanium |
| Voltage | OEM |
| Core Components | Titanium coil |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Key Selling Points | Good appearance, safety, high efficient,easy installation. |
| Working Temperature Range | -50~150℃ |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 5 |
| Brand Name | Gimleo |
| Liquid Flow Rate | 1m3/h(35.31ft3/h) |
| Maximum Pressure Rating | 5.2MPa(754.20psi) |
| Dimension(L*W*H) | 143x98x359mm(5.63×3.86×14.13in) |
| Product Name | Titanium heat exchanger |
| Heating Capacity | 5KW(17000BTU) |
| Water Flow | 2.2 m³/h |
| Water Connection | 1.5 inch |
| Refrigerant Inlet | 12.7mm |
| Refrigerant Outlet | 9.52mm |
| Shell Material | PVC |
| Tube Material | Threaded Titanium Tube |
| Application | Swimming pool,SPA |
| Certification | RoHS |
| Selling Units | Single item |
| Single Package Size | 21X32X53 cm |
| Single Gross Weight | 7.2 kg |
Product Details
Product name | PVC Titanium Heat Exchanger (Heat or Cool mode) |
Type | MHTA series |
Model number | MHTA-1.5 |
Heating capacity | 5kw |
Water flow | 2.2m³/h |
Use as | Condenser,Evaporator |
Product Introduction :
Product Features :
• Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
• Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure in water side can be 2.5 MPa. Titanium tube can stand 5.2MPa high pressure.
Product material :
Company Introduction
Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.
Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, electroplating industry and heat recovery from the waste water or exhaust gas.
Ordering and Pricing
- Minimum order quantity: 20 unit
- Volume pricing:
- 20–99 unit: US $83.38 / unit
- 100+ unit: US $49.1 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this compact spiral titanium coil?
The standard minimum order quantity is 20 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this compact spiral titanium coil carry?
It is supplied with RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the compact spiral titanium coil be supplied for my local voltage?
The standard configuration is OEM. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
