Key specification for this concealed ducted fcu fan: power supply 220/1pH /50Hz, cooling capacity 2.3-15.19 w. Everything below is reproduced from the factory data sheet. Made by Henan Abot Trading Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Concealed Ducted Fcu Fan
- Power Supply: 220/1pH /50Hz
- Operating Voltage: 220v
- Cooling Capacity: 2.3-15.19 w
- Capacity Control: 0/50/100
- Warranty: 2 Years
- After Warranty Service: Video Technical Support, Online support, Spare parts, Field Maintenance and Repair Service

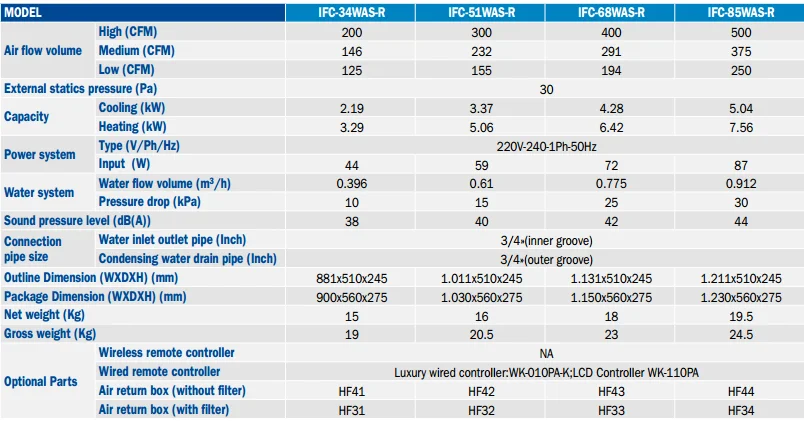

Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Operating Voltage | 220v |
| Mounting Type | Ceiling Mount |
| Key Selling Points | Long Service Life |
| Warranty | 2 Years |
| Place Of Origin | Zhejiang, China |
| Brand Name | inventor |
| Dimension(L*W*H) | 900*560*275mm |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| After Warranty Service | Video Technical Support, Online support, Spare parts, Field Maintenance and Repair Service |
| Local Service Location | Turkey, Vietnam, Philippines, Indonesia, Uzbekistan |
| Showroom Location | Vietnam, Philippines, Indonesia, Uzbekistan |
| Condition | New |
| Certification | CE |
| After-Sales Service Provided | Free Spare Parts, Video Technical Support, Field installation, commissioning and training, Field Maintenance and Repair Service, Online support |
| Product Name | horizontal ceiling concealed ducted fcu fan coil |
| Air Volume CMH | 340-2380 |
| Air Volume CFM | 200-1400 |
| Cooling Capacity | 2.3-15.19 w |
| Function | chiller terminal |
| Capacity Control | 0/50/100 |
| Fan Motor | low noise |

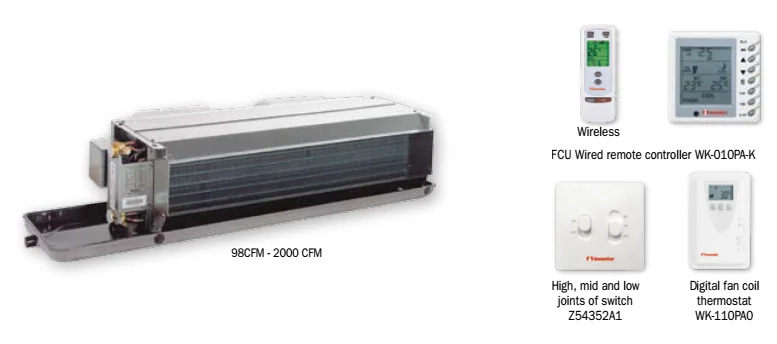

| Controller | Luxury wired controller:WK-010PA-K;LCD Controller WK-110PA |
| Power Supply | 220/1pH /50Hz |
| Filter | G3 |
| Packaging Details | Package for horizontal ceiling concealed ducted fcu fan coil plastic film + wooden package,fumigation package grade for European clients. 900*560*275mm Export worthy. |
| Port Of Dispatch | China port,ningbo,qingdao,shanghai,guangzhou,shenzhen,etc |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 50 sets per Month |
Product Details

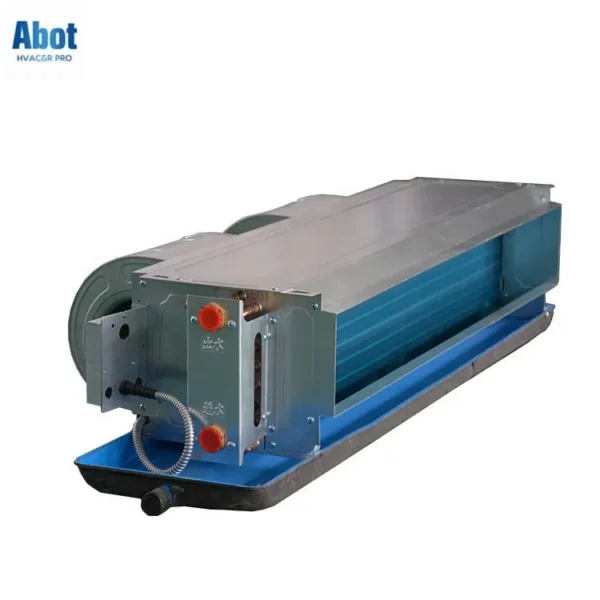

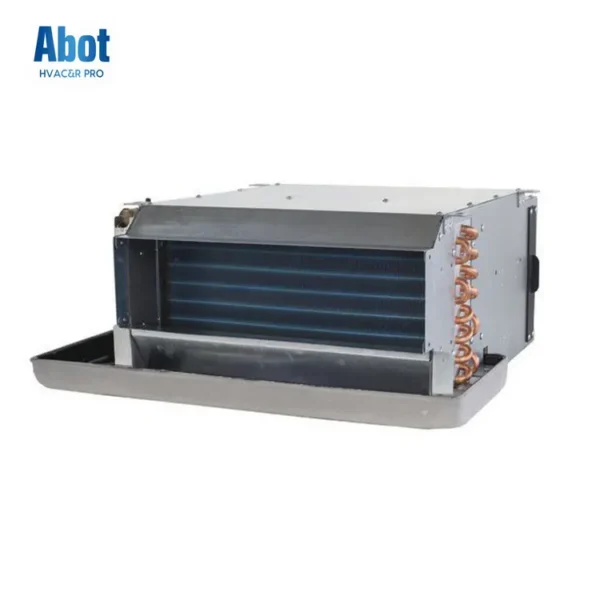

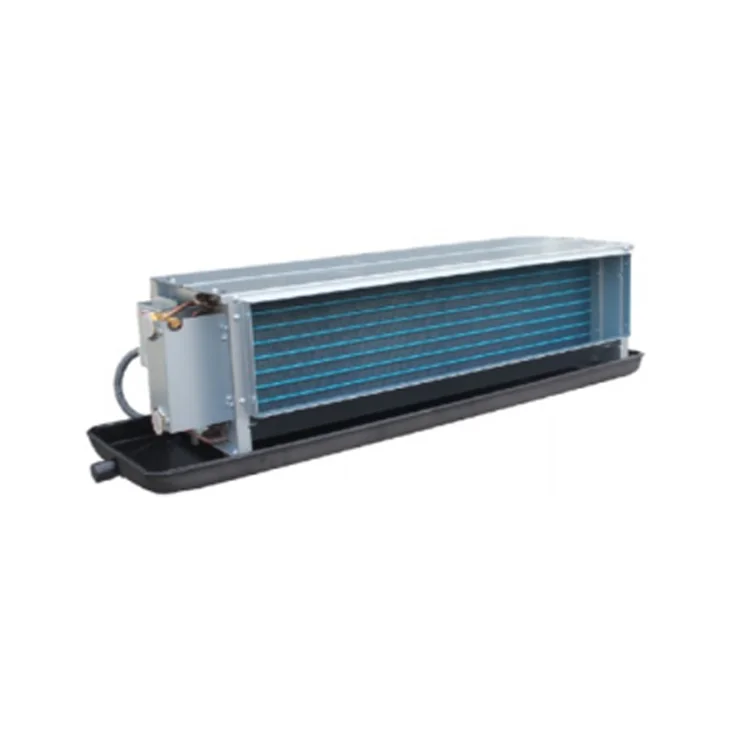

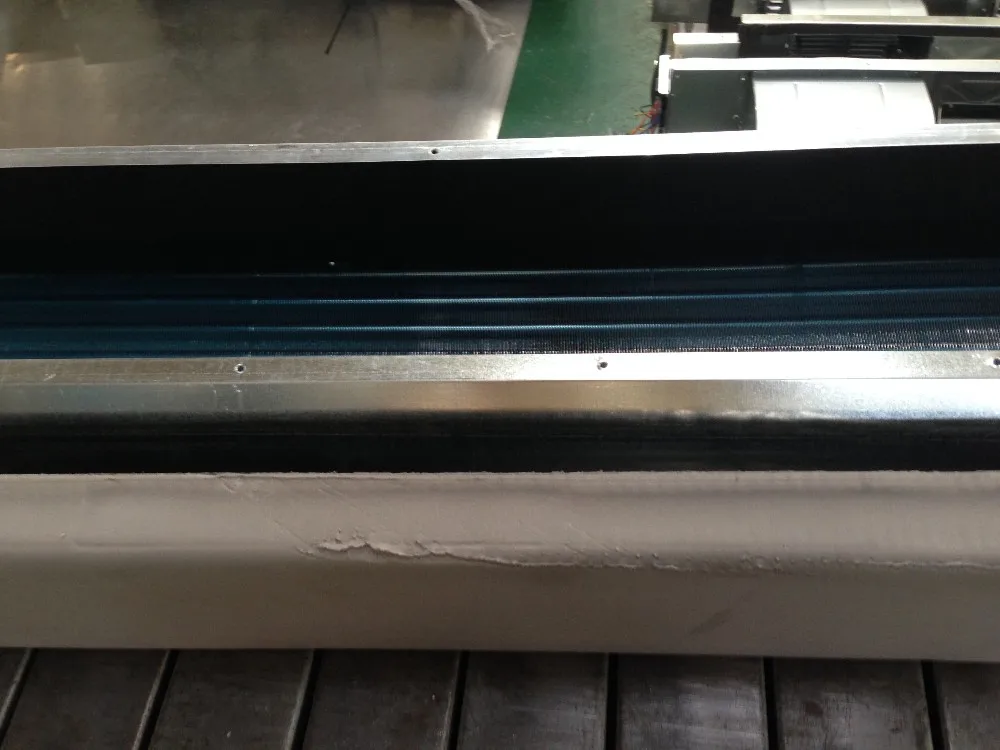

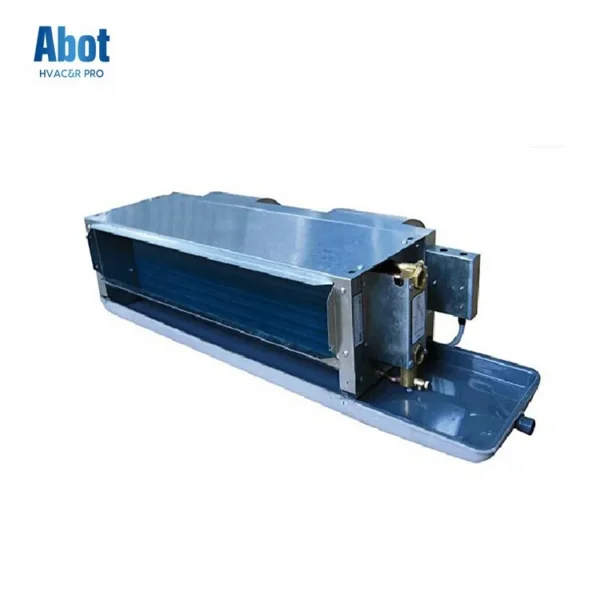

Product description-horizontal ceiling concealed ducted fcu fan coil
A fan coil unit (FCU) is a simple device consisting of a heating and/or cooling heat exchanger or 'coil' and fan. It is part of an HVAC system found in residential, commercial, and industrial buildings. A fan coil unit is a diverse device sometimes using ductwork, and is used to control the temperature in the space where it is installed, or serve multiple spaces. It is controlled either by a manual on/off switch or by a thermostat, which controls the throughput of water to the heat exchanger using a control valve and/or the fan speed.
Due to their simplicity and flexibility, fan coil units can be more economical to install than ducted 100% fresh air systems (VAV) or central heating systems with air handling units or chilled beams. Various unit configurations are available, including horizontal (ceiling mounted) or vertical (floor mounted).
Noise output from FCUs, like any other form of air conditioning, is principally due to the design of the unit and the building materials around it. Some offer noise levels as low as NR25 or NC25
The output from an FCU can be established by looking at the temperature of the air entering the unit and the temperature of the air leaving the unit, coupled with the volume of air being moved through the unit. This is a simplistic statement, and there is further reading on sensible heat ratios and the specific heat capacity of air, both of which have an effect on thermal performance
Main Features-3 speed 510CMH ceiling concealed fan coil winding machine unit
• Excellent outside condensate-water proof performance thanks to compression-moulding chassis with integrated
heat-insulating material.
• Slim design
• Low noise:
• Hot galvanized steel case
• Various type of controller available (optional)
• Different kind of wired remote control available (optional)
• 3way valve(optional)
• Long life and washable filter with air return box(optional)
• Also available with 3 & 1 rows
Optional parts
• Back return,bottom return air box

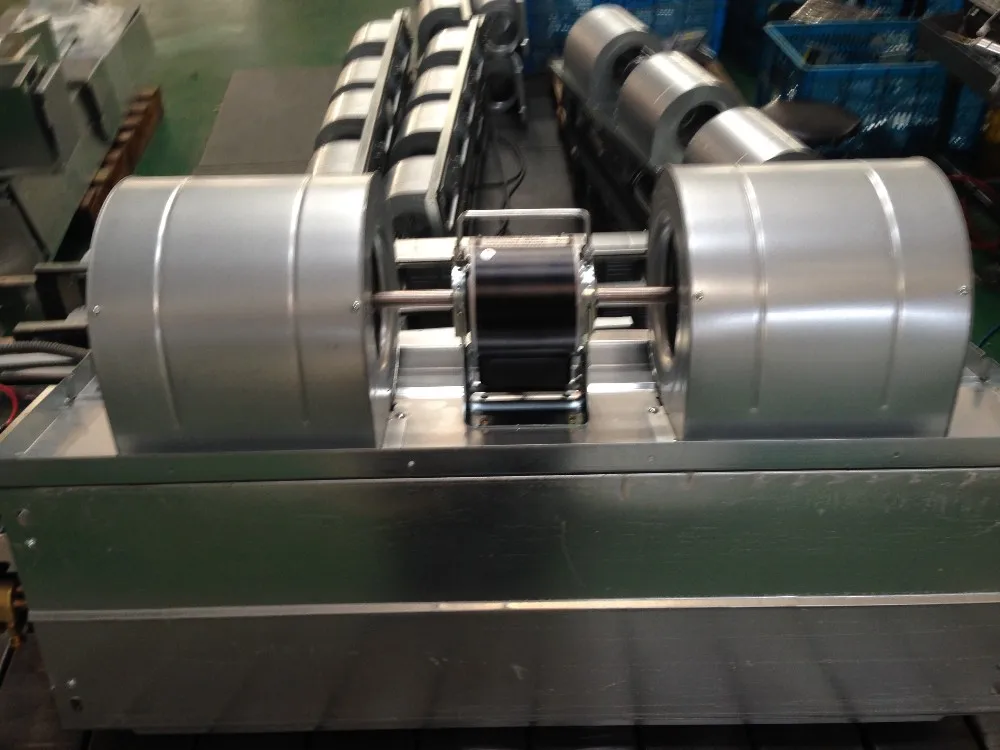

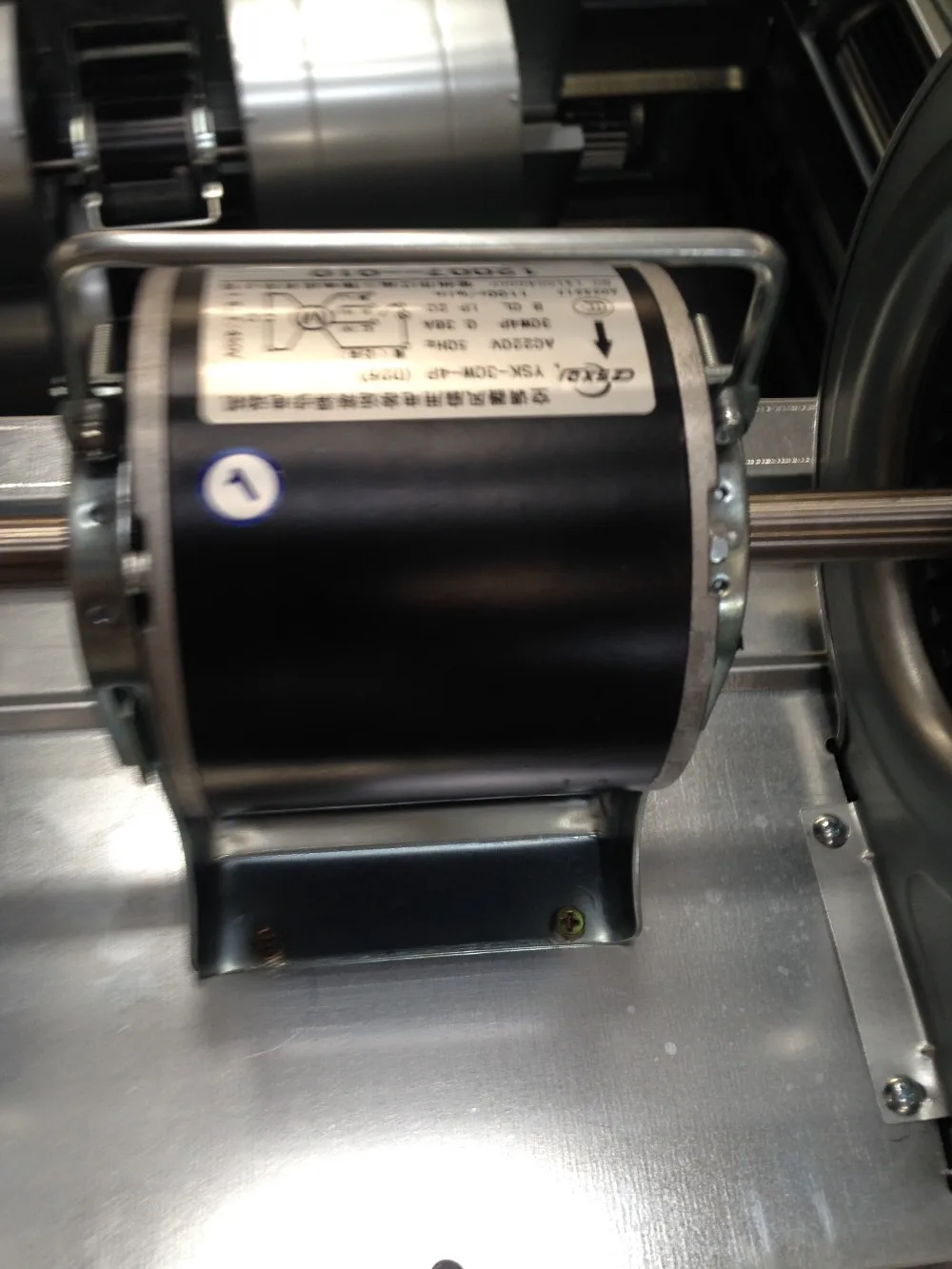

• AC motor,DC brushless motor
• Nylon filter
• Stainless Steel extented drain pan
• Electric heater EHA
• Thermostat
• 2-way/3-way valve
• Motorized 2 way ball valve
• Flexible tube
Packaging-horizontal ceiling concealed ducted fcu fan coil | ||
Size | 900*560*275(L)* (W) * (D) | |
Weight | 19kg | |
Packaging Details | The normal package for 3 speed 510CMH ceiling concealed fan coil winding machine unit is wooden box(Size: 900*560*275mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Pre-Sales Service
* Free HVAC system design
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts + long period warranty.
Combined AHU
91.8% Response Rate
DCC dry cooling coil
91.8% Response Rate
Magnetic bearing chiller
91.8% Response Rate
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this concealed ducted fcu fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this concealed ducted fcu fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the concealed ducted fcu fan be supplied for my local voltage?
The standard configuration is 220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
